Product Description

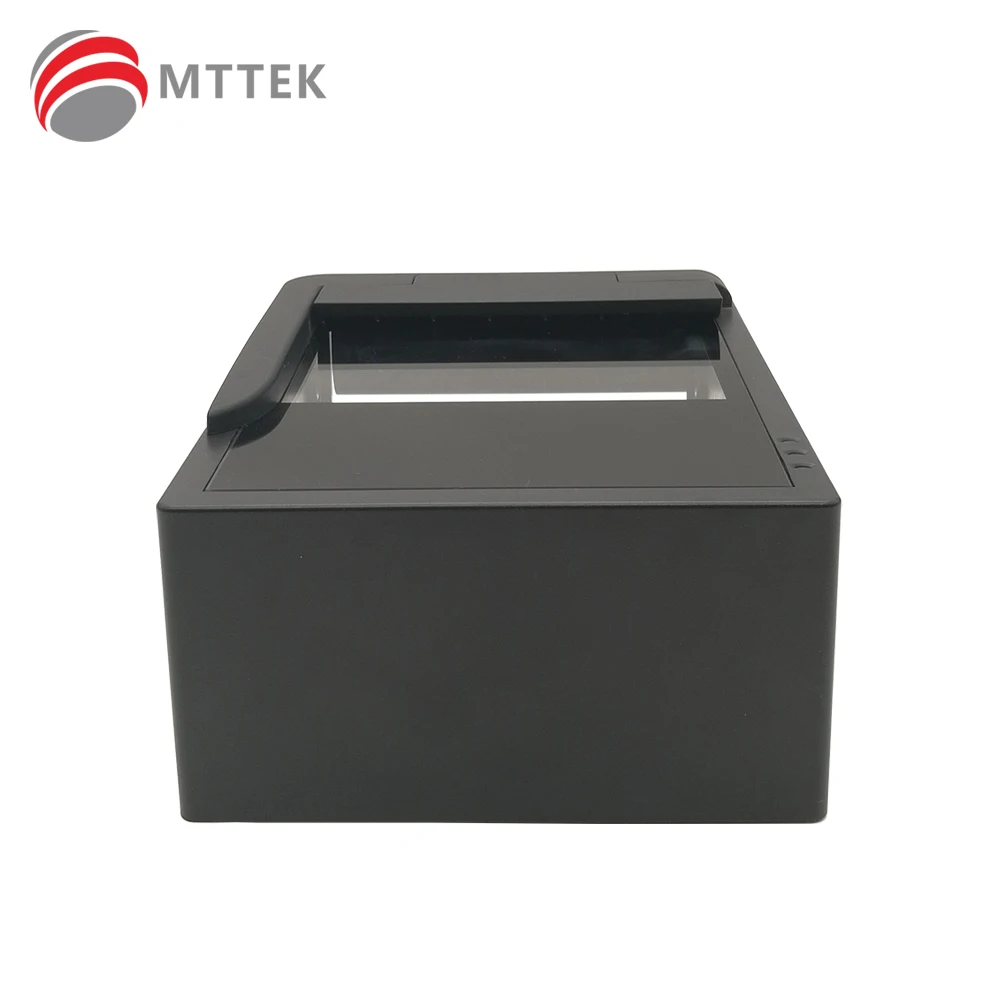

MEPR series Full-Page Passport Reader
MEPR series multi-purpose passport reader is a compact,full page passport reader in a stylish housing. It provides perfect solutions for scanning passport, e-passport, visa and other documents, which make it can be applied to variety of industries. Printed data is extracted from the entire data page, from MRZ & OCR, while digital data from contactless RFID chip, including name, data of birth, gender, document number, date of expiry, the holder's image etc.

Our passport readers are both portable and desktop devices 'equipped' with a Software Development Kit, so that they can be integrated into computer systems - whether existing or planned. The industrial standard interfaces of our devices can be integrated into any IT system, the most importantly is that we can provide the customized service as per the clients requirement.




Supported Documents


OCR(MRZ):
ICAO 9303 standard compliant documents:
> ID-1 (Identity Card)
> ID-2 (Passport,Visa)
> ID-3 (Passport)


RFID:
> Read contactless ICs(13.56MHz) according to ISO/IEC 14443-S(TypeA/B/C)
> Support e-passport Basic Access Control (BAC) & Extended Access Control
> Support active/passive authentication


The key features of the product are:
> Automatic data entry
> Very high accuracy OCR
> Single-line reading
> Multiple-line reading
> ICAO compliancy
> MRZ reading
> RFID Reading
> Full page processing
> Multi illumination sources (visible/IR/UV)
> Heavy-duty design
> Reliability
> Stable operation
> Opened interfaces
> Free SDK (Software Development Kit)
> Application programming interface (API)


Multi illumination sources:
MEPR series multi-purpose passport reader takes high resolution (3.1Mpixels) pictures of different types of personal documents (passport, identity card, etc.) using three important illuminations: White light, Infra-red and UVA. And can take photos and save.

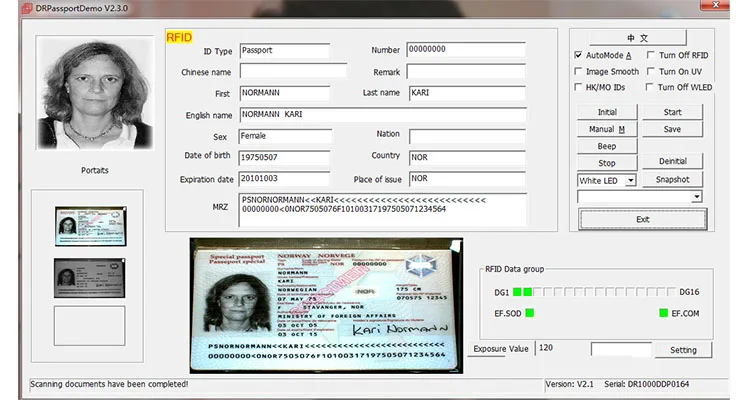

Sample Test
Norway sample passport test：




White light
Infra-red
UV


Application:
This includes applications that are primarily focused on data capture opportunities in hotels, casinos, liquor stores, bars, bank, airport, customs, embassy, government, and rental car companies.


MEPR500+ Full Page Passport & Document Reader :




Specifications:


Multi-purpose Passport Reader
MEPR500+
Product Features:
RFID
YES
OCR(MRZ)
YES
Anti-counterfeiting function:
Optical security
YES
RFID security
YES
Performance Parameter:
Reading speed(S)
OCR reading time
< 2s
ICs Data captured time
Depends on the amount of data stored in the chip
Reading correct rate(100%):
OCR reading correct rate
> 98%
ICs reading accuracy rate
100%
Multi illumination sources:
White light
YES
Infra-red
YES
UV
YES
Window size
125*92 mm

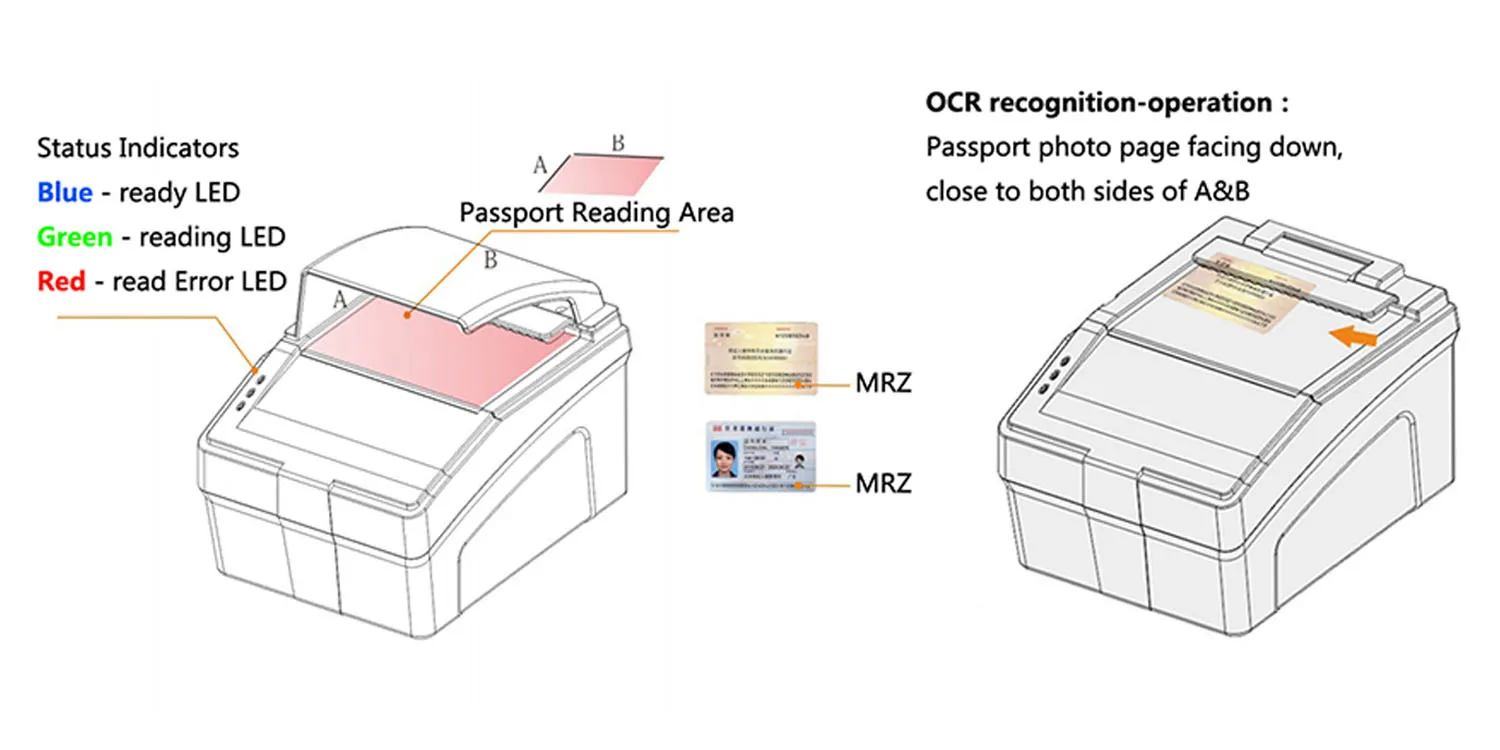

Status Indicators：
Red
Read Error LED
Blue
Ready LED
Green
Reading LED
Resolution:
Sensor
3.1 Megapixels (2048*1536), CMOS, RGB 24 bit
DPI
400
Physical Characteristics:
Dimensions (L*W*H) (Without shading plate)
192*163*95
Net Weight
＜ 1.2 KG (2.2lbs)
Power:
Voltage
External 5VDC 2A Input voltage 100 - 240VAC, Frequency 50 - 60Hz
Energy consumption
＜ 20W
Other
Free SDK
C++ C# OCX Java Android
Support Systems
Windows&Android
Service & Maintenance
One-year warranty

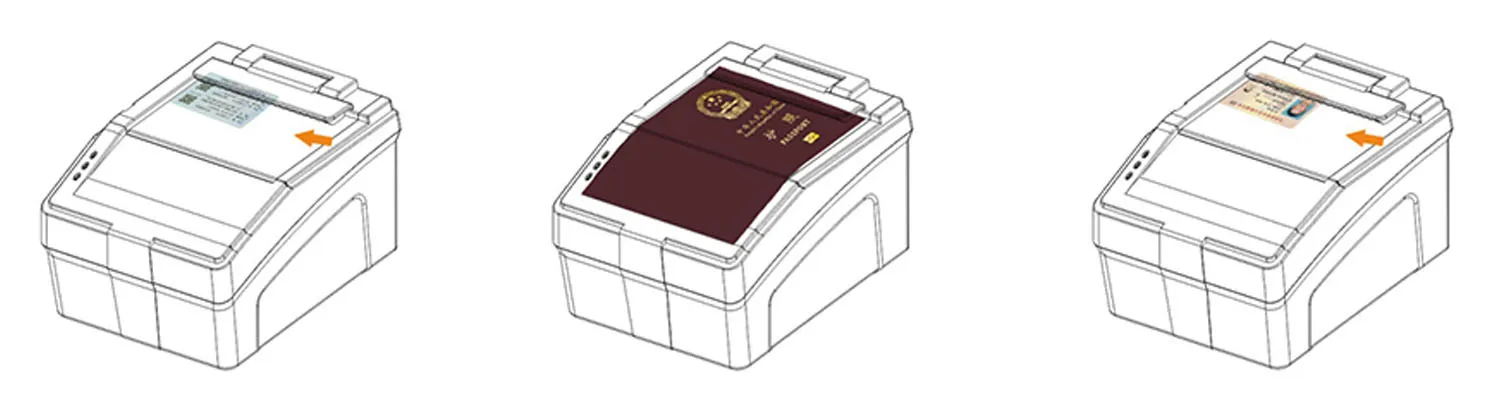

Passport Reading Guide：




OCR only




OCR & RFID


Identification by Chip-operation：
1.Please face down the MRZ page of your ID card, close to the AB side；
2.Please have the photo page of your passport face down, close to both sides of A&B；
