Китайский производитель маленький мини считыватель штрих-кодов для продажи 1D 2D OEM Встроенный сканер

Китайский производитель маленький мини считыватель штрих-кодов для продажи 1D 2D OEM Встроенный сканер

Цена:13,90 $ - 17,90 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

CPU

decode 1280

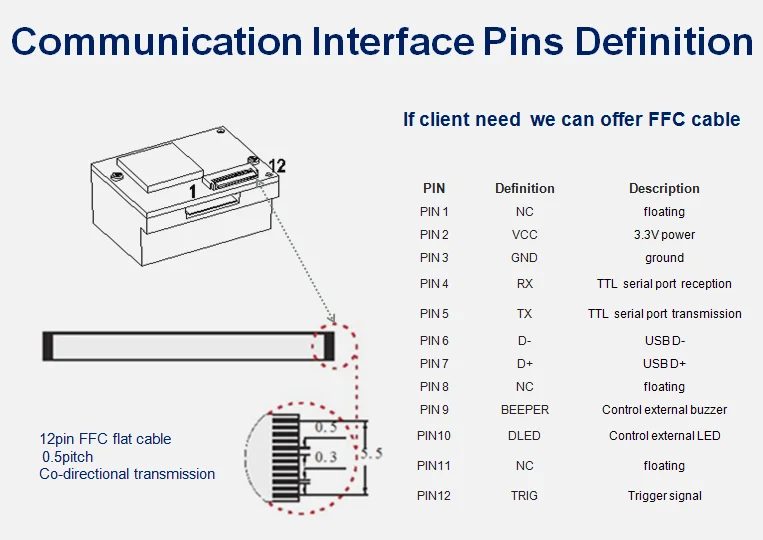

pin definition 1280

system 1280.png

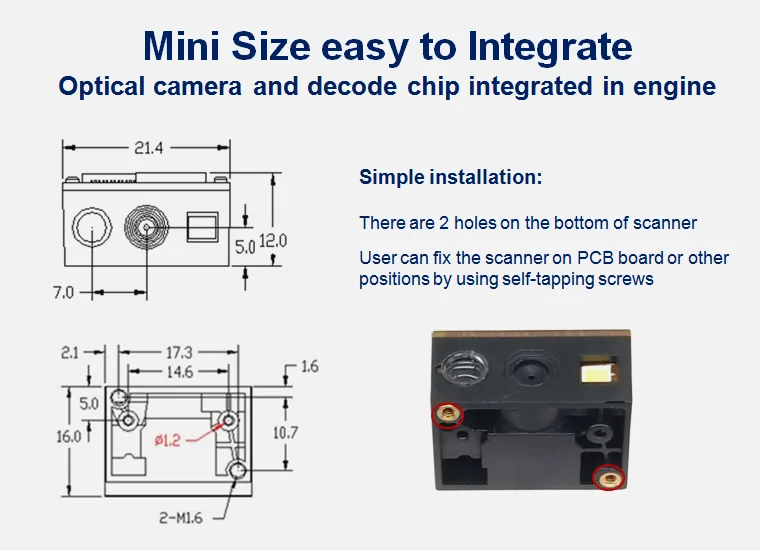

installation 1280

FEATURES & BENEFITS

1. Decoding min barcode density:4mil

2. Support 1D/2D barcode on paper and screen

3. Decode long PDF 417,large QR, up to 1800btyes.

4. Interface TTL232 and USB by 12pin FFC

5. Small size, fast and convenient installation

Product Parameters

Item	Para. Name	Para. Value
Reading performance	Image Sensor	CMOS
	Resolution	752*480pixels,60fps
	Decoding capacity	Support paper and screen barcodes
		2D: QR,PDF417,Micro PDF417, Data Matrix, Maxicode, Aztec, Hanxin code etc.
		1D: EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey GS1 Databar,GS1 Composite Code, Code 11, Industrial 25, Standard 25,Plessey,Matrix 2 of 5 etc. all normal 1D
	Precision	4mil
	Light Source	620nm Visible Red Diode, red LED for illumination
	View Angle	66°(H) x50°(V)
	Scan Angle	Rotation360°,tilt±55°,skew±55°
	Min Contrast	25%
	Trigger Mode	Manual, Continuous, Motion sensing, Host ,batch processing etc.
	Typical DOF	EAN13 (13mil) 50-200mm Code 39(5mil)40-90mm QR code(20mil)25-240mm PDF417(6.67mil)30-130mm Performance may be impacted by bar code quality and environmental conditions
Mechanical and electrical	Interface	TTL232,USB by 12pin FFC flat cable
	Working Voltage	DC 3.3V
	Current	160mA(working) 20mA(USB standby) 2mA(TTL standby)
	Dimensions	21.6(W)×16(D)×12(H)mm
	Weight	5g
	Indication	LED(fill light),can trigger external buzzer and LED indicator
Environment Request	Working Tem	-20~50℃
	Storage Tem	-40~70℃
	Humidity	5%-95%(Non-condensing)
	Light brightness	0-100000LUX
