Product Description

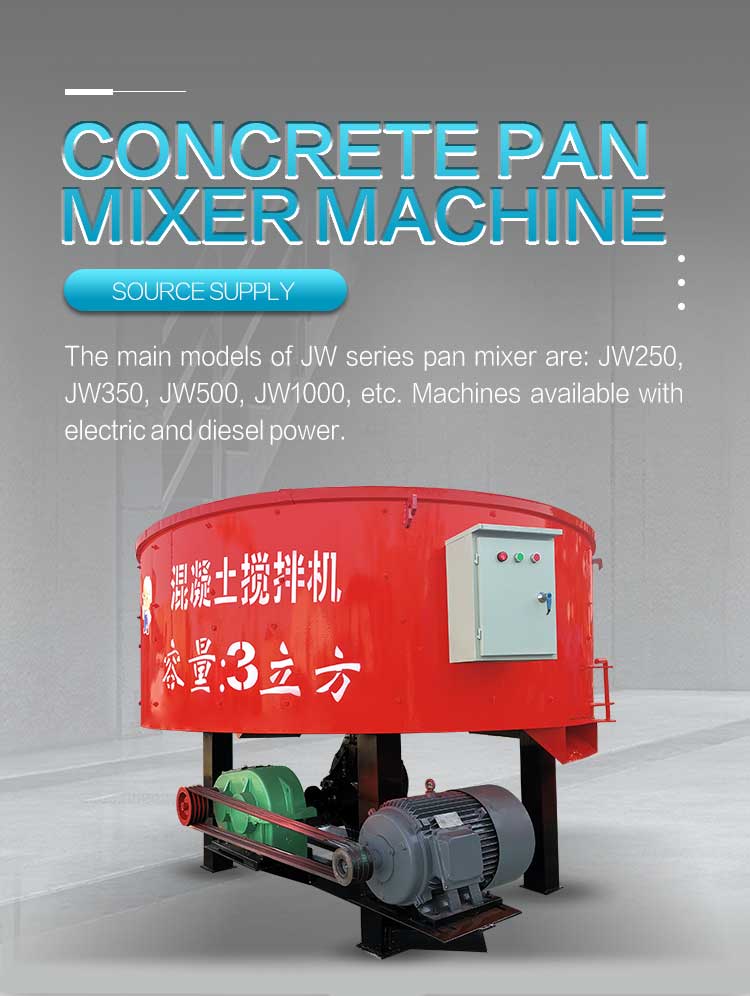

 Concrete Pan Mixer Machine


The main models of JW series pan mixer are: JW250, JW350, JW500, JW1000, etc. Machines available with electric and diesel power.The concrete pan mixer can mix a variety of mixing proportion of concrete, mortar, is suitable for all kinds of medium and small construction projects, and is the ideal mixing equipment of the concrete pan Mixer.It can work independently, and can also be used with other supporting equipment. The working principle is to rotate the mixture clockwise and discharge counterclockwise. The machine is widely used in real estate, roads, bridges and other construction sites.Mini Mobile JW350 Electrical Concrete Pan Mixer Machine basin Cement Mixing Brands With Hopper For Refractory






specification





































































































Model



JW300




JW400




JW500




JW1000



Volume



260L




380L




530L




1000L



Feeding Volume



240L




350L




460L




900L



Discharging Volume(L)



230L




340L




440L




890L



Maximum Aggregate Diameter(mm)



40




40




40




50



Discharging Method



Automatic



Dynamic Source



Electrical /Diesel



Main Shaft Revolution (rpm)



21/35




21/35




35/45




35/45



Matched Power (KW)



4KW/5.5HP




5.5KW/7HP




7.5KW/11HP




15KW/22HP



Stirring Drum (M) (Diameter*H)



Φ0.9*0.4




Φ1.1*0.4




Φ1.3*0.4




Φ1.8*0.4



Assembly Weight (kg)



250




350




450




650



Wall thickness



4/6/8mm




4/6/8mm




4/6/8mm




6/8mm



Bottom thickness



6/8mm




6/8mm




8/10mm




10/12mm



Productivity



6-8m³/h




10/14m³/h




18/25m³/h




38/45m³/h

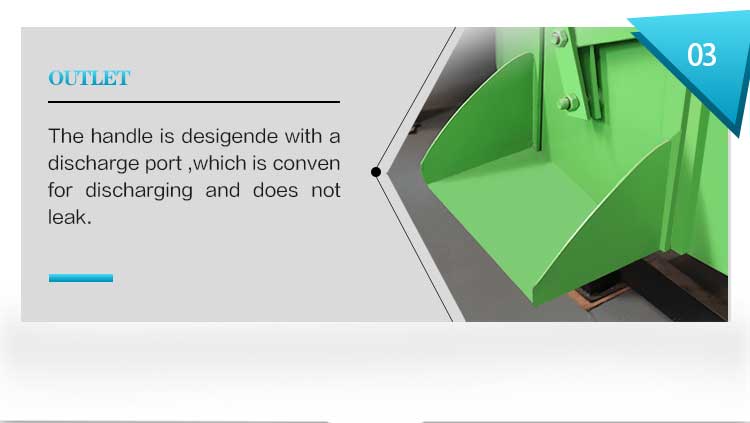

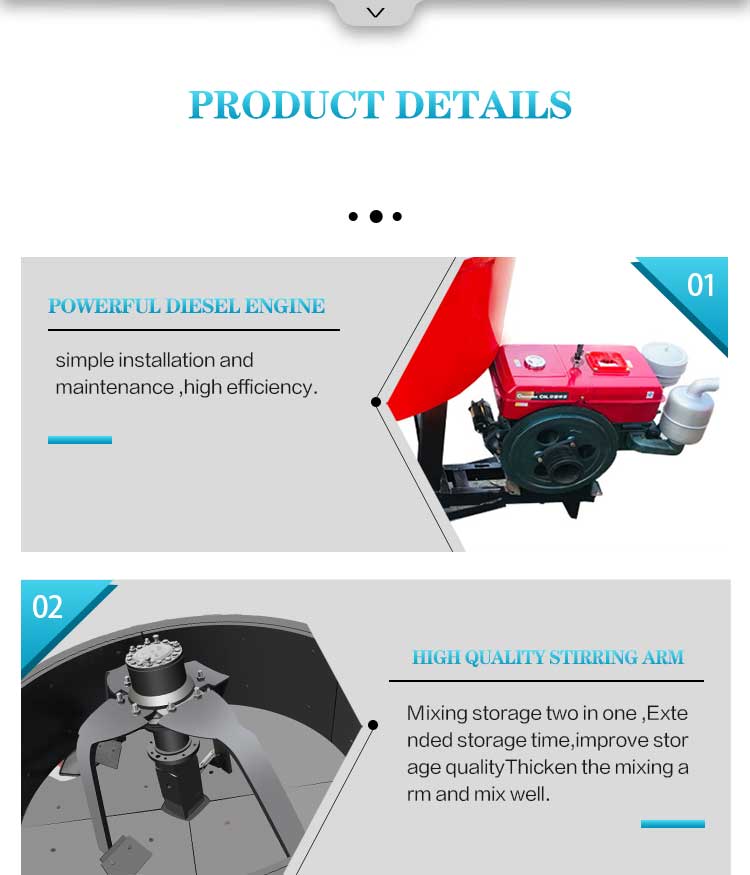

product details

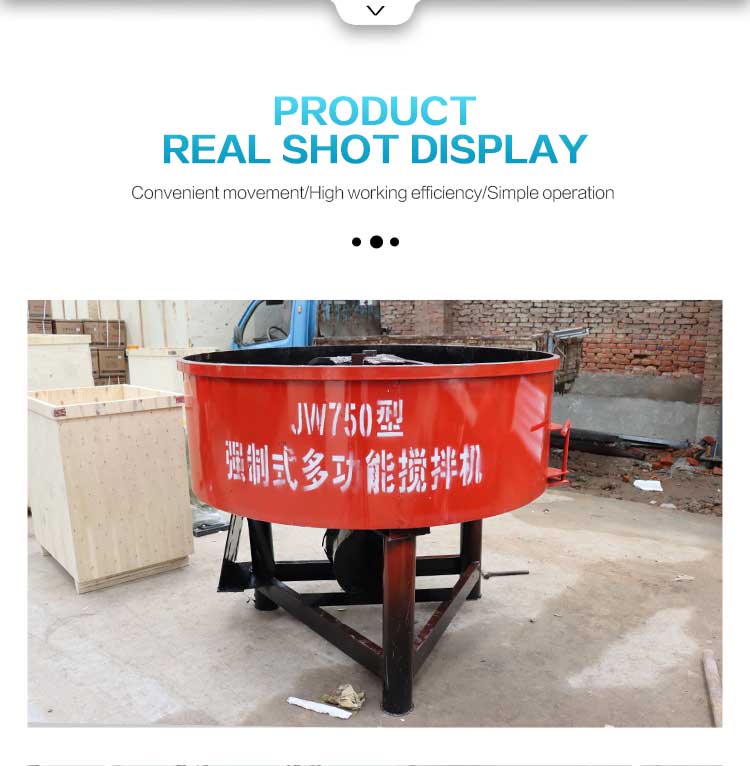

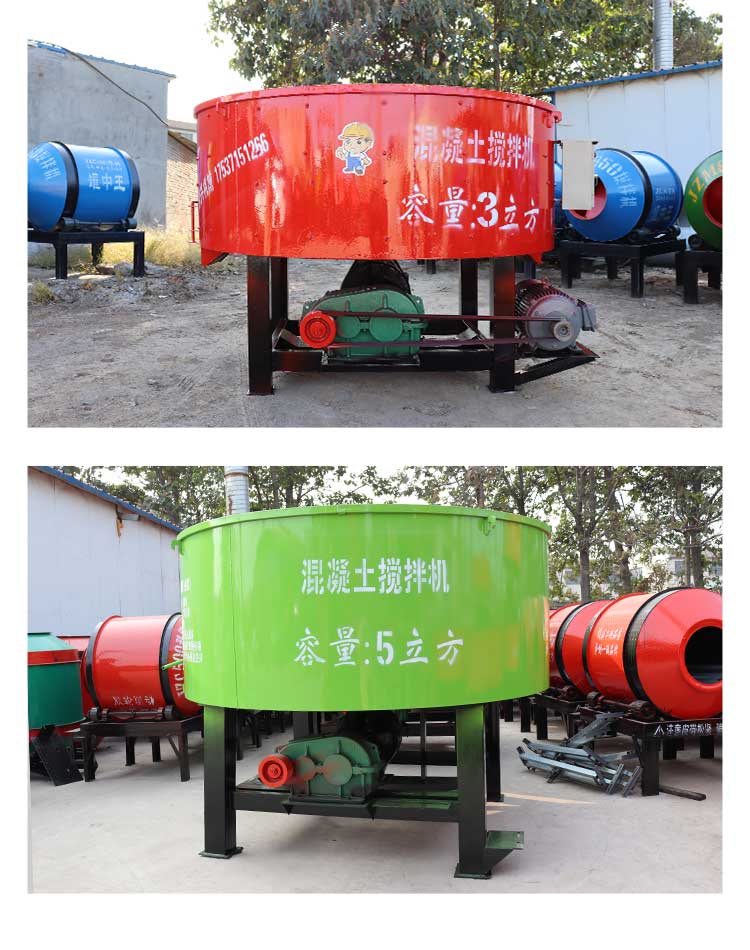

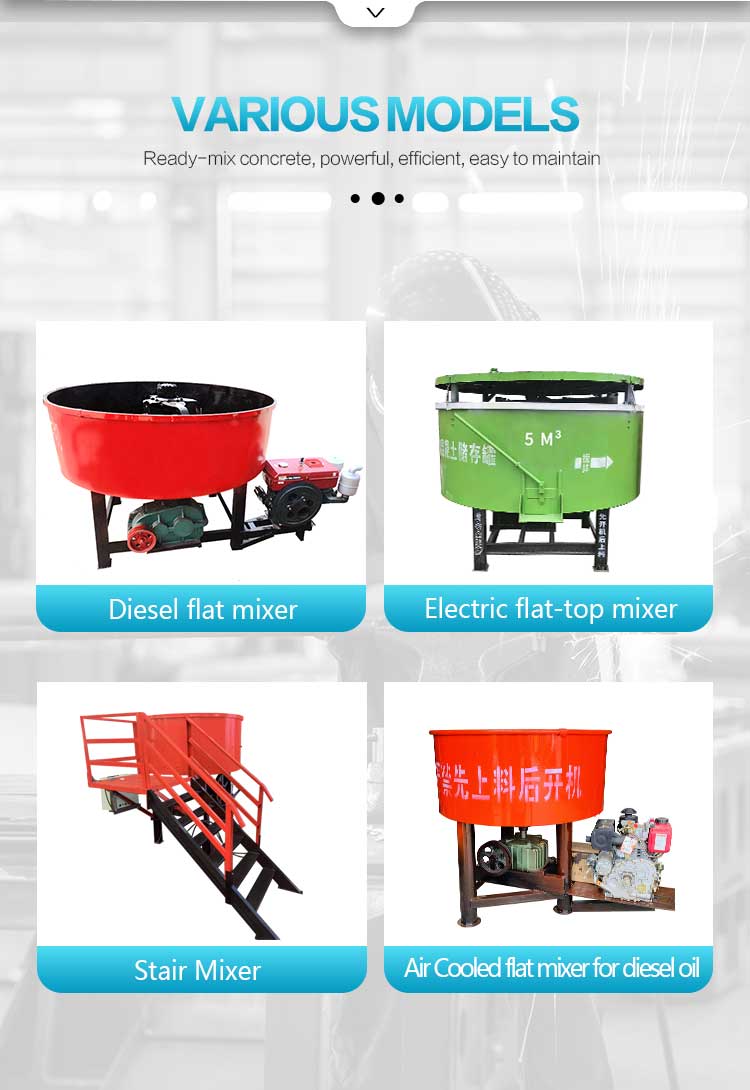

product display












applications

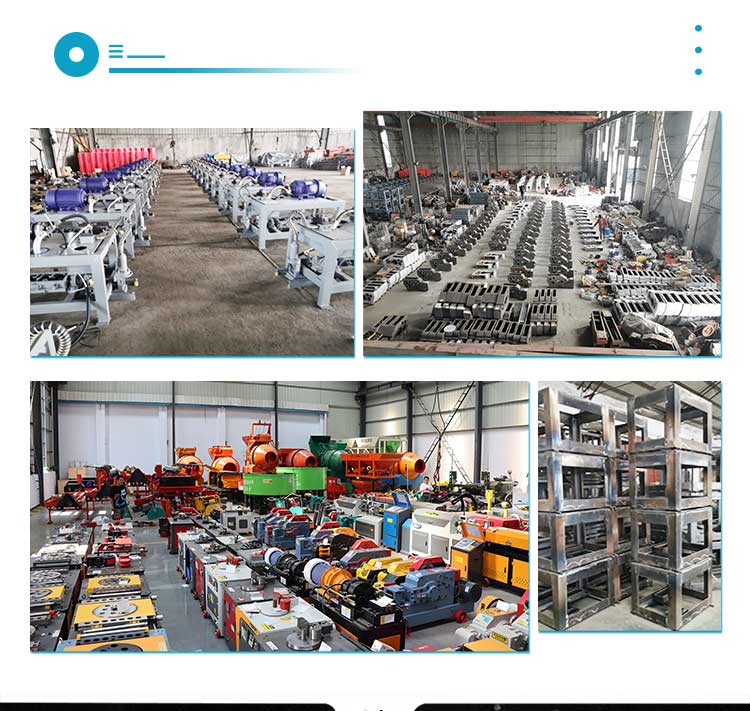

Company Information
