Prices vary by configuration, for more details please contact the customer service.
Products Description

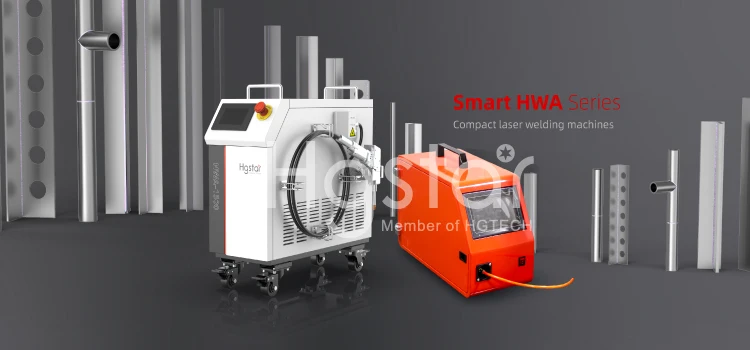

HGSTAR local after-sales laser welding machine andes welding machine laser welder for metal 1500W
The Air-cooled laser welding machines has the best fibre optic laser beam for fast welding speed, high quality welds and no consumables. No fear of tank freezing in low temperature areas, the air-cooled fibre laser welding machine is used for welding carbon steel, stainless steel, aluminium, copper and other metal plates.
VR
Product Paramenters
MACHINE MODEL | HWA-1500 |
Laser wavelength | 1080nm |
Laser power | 1500W |
Weldable materials | Carbon Steel, Stainless Steel, Aluminum |
Fiber | 20um, 10m |
Modulation frequency | 20KHz |
Energy Stability | <3% |
Cooling Media | N2,Air |
Net weight of the whole machine | 75kg |
Light spot diameter | 0-5mm |
Machine Model | HWA-1500 |
Laser wavelength | 1080nm |
Whole machine size (mm) | 352×700×666 (without wire feeder) |
Whole machine power | 6.5KW |
Recommended Environmen | Clean and dust-free, no vibration source, 5℃-40℃, humidity < 70% |
Standard Configuration

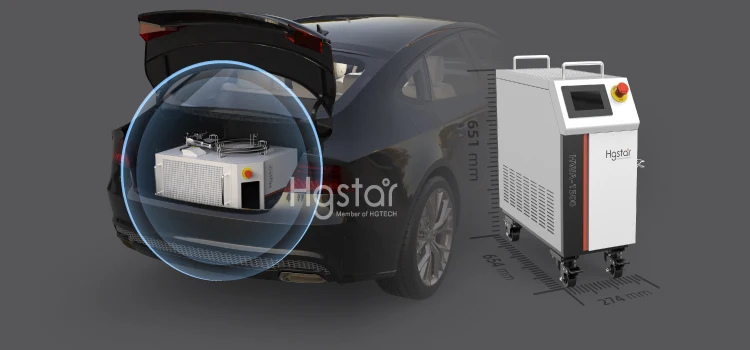

Compact fuselage design
The compact fuselage design makes it easy to transport to any construction site by putting it into the trunk of the car.

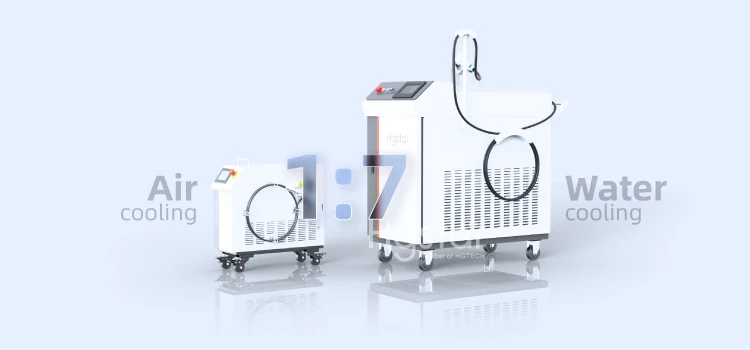

Ultra small size
The volume is 14% of the hand-held laser welding machine

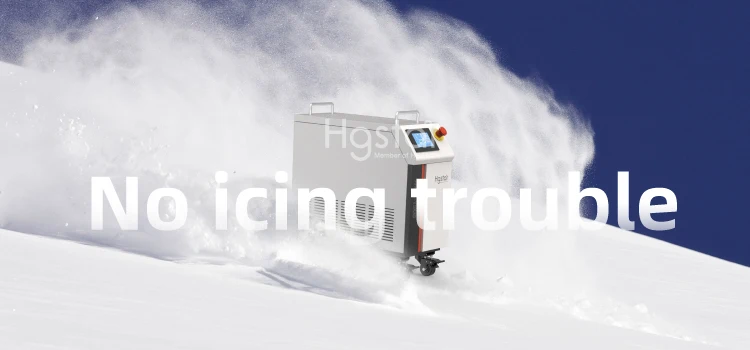

Preferred in cold regions
Compared with the icing problems often caused by water-cooled welding machines, Smart-HWA has more obvious advantages in cold areas

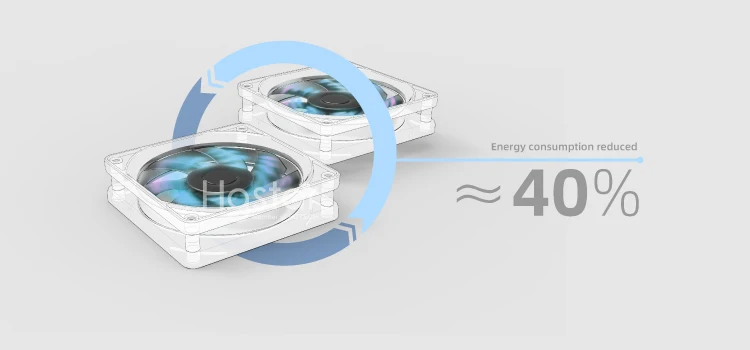

Air cooling & Energy saving
The dual fan design brings strong heat dissipation capacity and reduces energy consumption

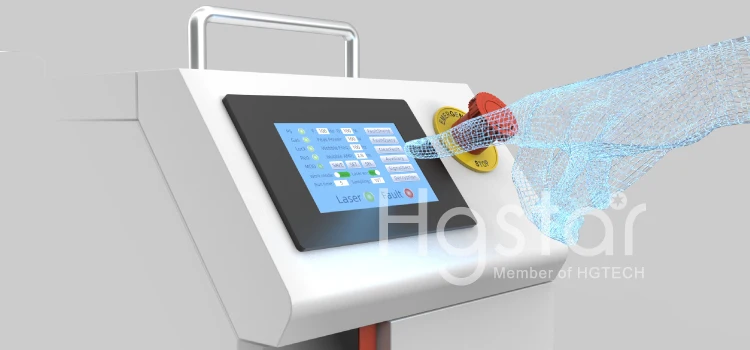

A powerful operating system
Simple and clear operation interface, easy to master and easy to adjust

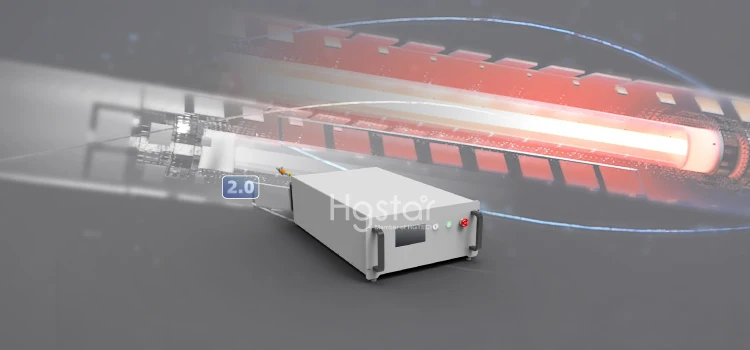

Higher photoelectric conversion efficiency
Second generation optical fiber transmission system
Better and more stable beam quality
Better and more stable beam quality
Ability Cutting parameter

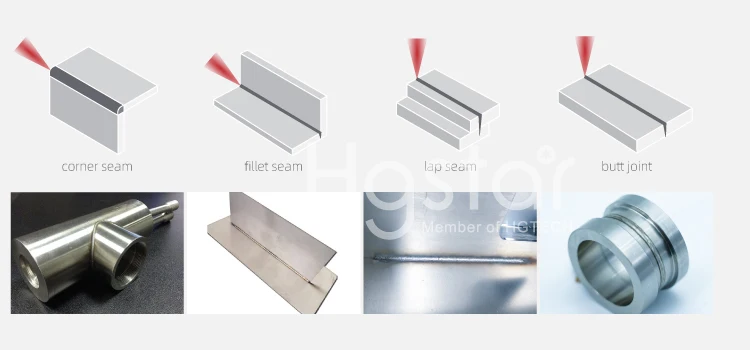

Welding Technology & Samples
Applicable to welding carbon steel, stainless steel, aluminum, brass , alloy metals, etc.
Service Quality Inspection
Bed Foot Installation
Adjust the height of the feet
according to the test results of the strip level to ensure the accuracy of subsequent installation
according to the test results of the strip level to ensure the accuracy of subsequent installation
Rail Installation
Use photoelectric autocollimator to detect the straightness and flatness of the guiderail to ensure that the detection value is within the standard range
Rack Installation
The relative position of the guide rail and the guide rail is locked and clamped by the measuring rod. Statistics and analysis of measurement data to ensure that they are parallel
Beam Installation
After the beam is installed . use a three-coordinate measuring
instrument to check the coaxiality to ensure the relative perpendicularity of the X / Y / Z three-axis
instrument to check the coaxiality to ensure the relative perpendicularity of the X / Y / Z three-axis
Positioning Accuracy Inspection
The laser interferometer tests the X-axis positioning accuracy to ensure the accuracy of the whole machine
Positioning Accuracy Inspection
The laser interferometer tests the Y-axis positioning accuracy to ensure the accuracy of the whole machine
Positioning Accuracy Inspection
The laser interferometer tests the Z-axis positioning accuracy to ensure the accuracy of the whole machine
72h Machine Aging Test
Simulate the high-intensity test of various harsh conditions in the actual use of the equipment , and at the same time , according to the requirements of use , rationalize the improvement to ensure the factory pass rate and improve the reliability of the equipment
Pack And Ship
Adopt sealed composite aluminum foil moisture-proof low-pressure packaging and thick wooden boards to protect the fuselage to prevent bumps and collisions during shipping , and minimize unnecessary mechanical losses that may occur during transportation
Service Delivery Process
1
Machine Inspection
2
Component Fixing
3
Protective Film Wrapping
4
Wooden Boxseal
5
Edge Reinforcement
6
Separate Packaging
7
Lifting Rail Transfer
8
Container Loading
9
Transportation

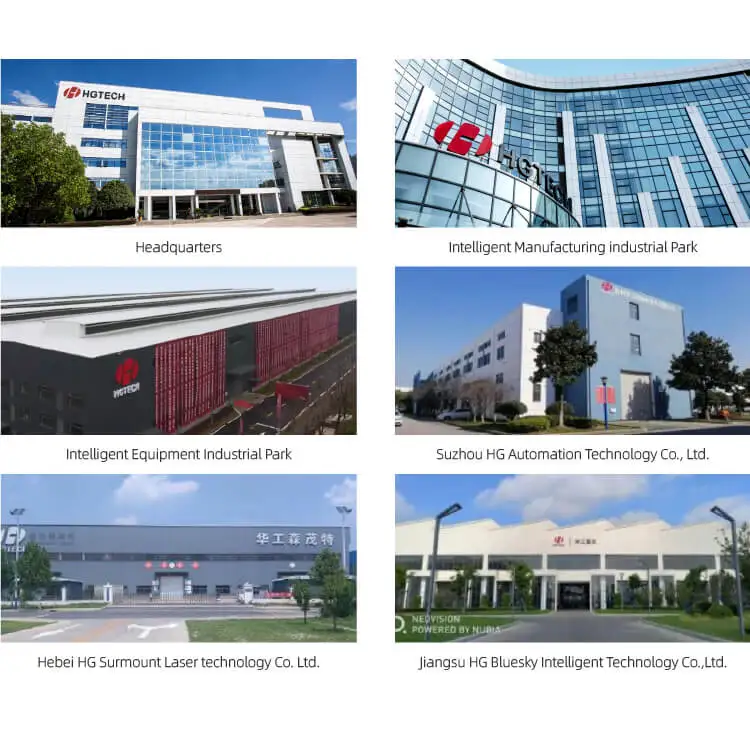

Company Profile
Q1. What's the difference between you and HGTECH?
A1.Hgstar is a subsidiary of hgtech. Considering the needs of users, hgstar mainly aims to improve the cost performance of products,smart series mainly focus on 1000w-6000w laser cutter ,and hgtech focus on high power laser equipment
Q2. How long is the delivery date?
A2.Each machine has 20 sets in stock and can be delivered quickly,if not in stock,the standard machine can be completed in 10-20 days,Customized models take about 30 days to be ready to ship.
Q3. What about machine warranty?
A3:5-year warranty,If the main parts are damaged by non-human factors, they can be replaced free of charge. You can choose to replace them at the local after-sales point or send them for repair
Q4. How to install and use?
A4.We provide 24-hour online service. You can install according to the machine's operation manual and installation video, or choose door-to-door installation service.
Q5. What about after-sales problems?
A5.Please contact us. We will assign you after-sales personnel in the corresponding language according to your country and region. You can directly describe your problem with the after-sales personnel. Replacement and maintenance within the scope of warranty are free of charge
Q6. What about wholesale price?
A6:If you are a wholesaler, distributor or agent, please contact us to obtain the wholesale price
A1.Hgstar is a subsidiary of hgtech. Considering the needs of users, hgstar mainly aims to improve the cost performance of products,smart series mainly focus on 1000w-6000w laser cutter ,and hgtech focus on high power laser equipment
Q2. How long is the delivery date?
A2.Each machine has 20 sets in stock and can be delivered quickly,if not in stock,the standard machine can be completed in 10-20 days,Customized models take about 30 days to be ready to ship.
Q3. What about machine warranty?
A3:5-year warranty,If the main parts are damaged by non-human factors, they can be replaced free of charge. You can choose to replace them at the local after-sales point or send them for repair
Q4. How to install and use?
A4.We provide 24-hour online service. You can install according to the machine's operation manual and installation video, or choose door-to-door installation service.
Q5. What about after-sales problems?
A5.Please contact us. We will assign you after-sales personnel in the corresponding language according to your country and region. You can directly describe your problem with the after-sales personnel. Replacement and maintenance within the scope of warranty are free of charge
Q6. What about wholesale price?
A6:If you are a wholesaler, distributor or agent, please contact us to obtain the wholesale price
