Product Description
Wood chipper is used for processing the round wood, wood logs, big board and branches into wood chips , it is widely used in paper making,flake board, Medium density fiber and other industrial production.
Specification
Model | CRS215 | CRS216 | CRS218 | CRS2110 | CRS2113 |
Diameter of knife roll(mm) | 500 | 650 | 650 | 800 | 1000 |
Blades(pcs) | 2 | 2/3 | 2/3 | 3/4/5 | 3/4/5 |
Inlet size(mm) | 180*400 | 240*540 | 310*680 | 500*680 | 500*700 |
Knife roll speed(r/min) | 590 | 590 | 650 | 500 | 500 |
Feeding speed(r/min) | 38 | 38 | 38 | 38 | 38 |
Max diameter of wood logs(mm) | 160 | 200 | 300 | 420 | 450 |
Length of wood chips(mm) | 35 | 35 | 35 | 15-35 | 30 |
Capacity(t/h) | 5-8 | 8-12 | 10-20 | 15-25 | 11-15 |
Motor power(kw) | 45 | 55 | 75 | 110 | 220 |
Feeding power(kw) | 2.2 | 4 | 4 | 11 | 77 |
Discharge power(kw) | 2.2 | 3 | 5.5 | 5.5 | 7.5 |
Weight(t) | 3 | 4 | 7.2 | 12.5 | 14.5 |

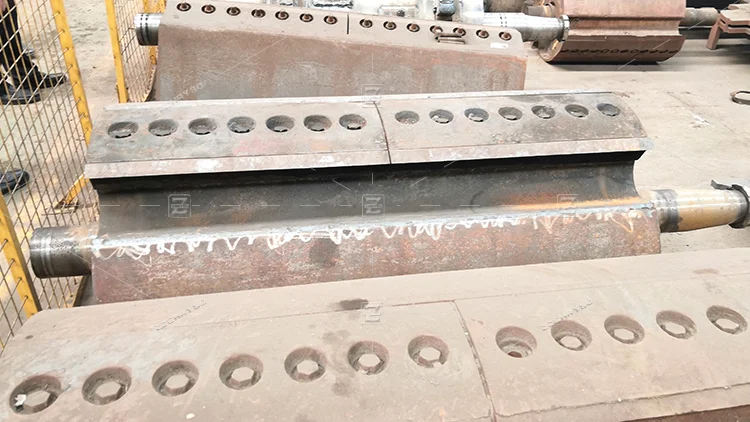

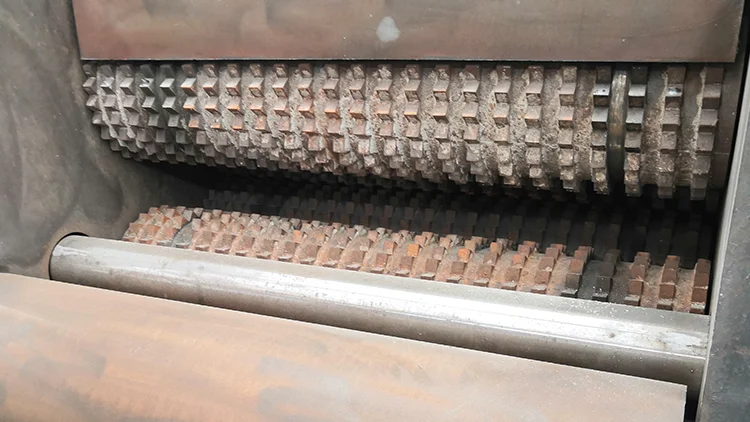

Details Images
Raw material and finished products
Packing & Delivery
1.Inner packing machine with wrapping film.
2.Outer packing with seaworthy fumigation-free wooden case or Plywood box
3.fixed in container
Depending on customers requirement for wood chipper
2.Outer packing with seaworthy fumigation-free wooden case or Plywood box
3.fixed in container
Depending on customers requirement for wood chipper
Related Product
Hammer mill-processing the wood chips ,small wood waste into wood sawdust
