ETCR050 Горячая продажа 10Гц 100 кГц точный зажим Большой
- Категории: Sensors >>>
- Поставщик: Guangzhou,ETCR,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Model | Input Current | Output Signal | Frequency | Secondardy Load | Accuracy Class | Series |
OmA～ 300A | 100mA | 0 ～ 10A≤500Ω 0 ～ 100A≤50Ω 0 ～ 1000A≤5Ω | 0.5 | L0501 | ||
OmA ～ 400A | 200mA | 0.5 | L0502 | |||
OmA～ 600A | 600mA | 0.5 | L0503 | |||
1A～ 600A | 1mV/A | ≥100kΩ | 1 | Y0501 | ||
300A | 1A | ≤2.5VA | 0.5 | L0520 | ||
500A | 1A | ≤2.5VA | 0.5 | L0521 | ||
600A | 1A | ≤2.5VA | 0.5 | L0522 | ||
300A | 5A | ≤5VA | 1 | L0523 | ||
500A | 5A | ≤5VA | 0.5 | L0524 | ||
600A | 5A | ≤5VA | 0.5 | L0525 |
Product Function
AC large current, high harmonic current, phase, electric energy, power, power factor and other industrial electricity consumption
and electricity metering detection.
Apply for industrial control device, oscilloscope, harmonic analyzer, path analyzer, double clamp earth resistance tester, cable
fault tester, power quality analyzer.
and electricity metering detection.
Apply for industrial control device, oscilloscope, harmonic analyzer, path analyzer, double clamp earth resistance tester, cable
fault tester, power quality analyzer.
Product Feature

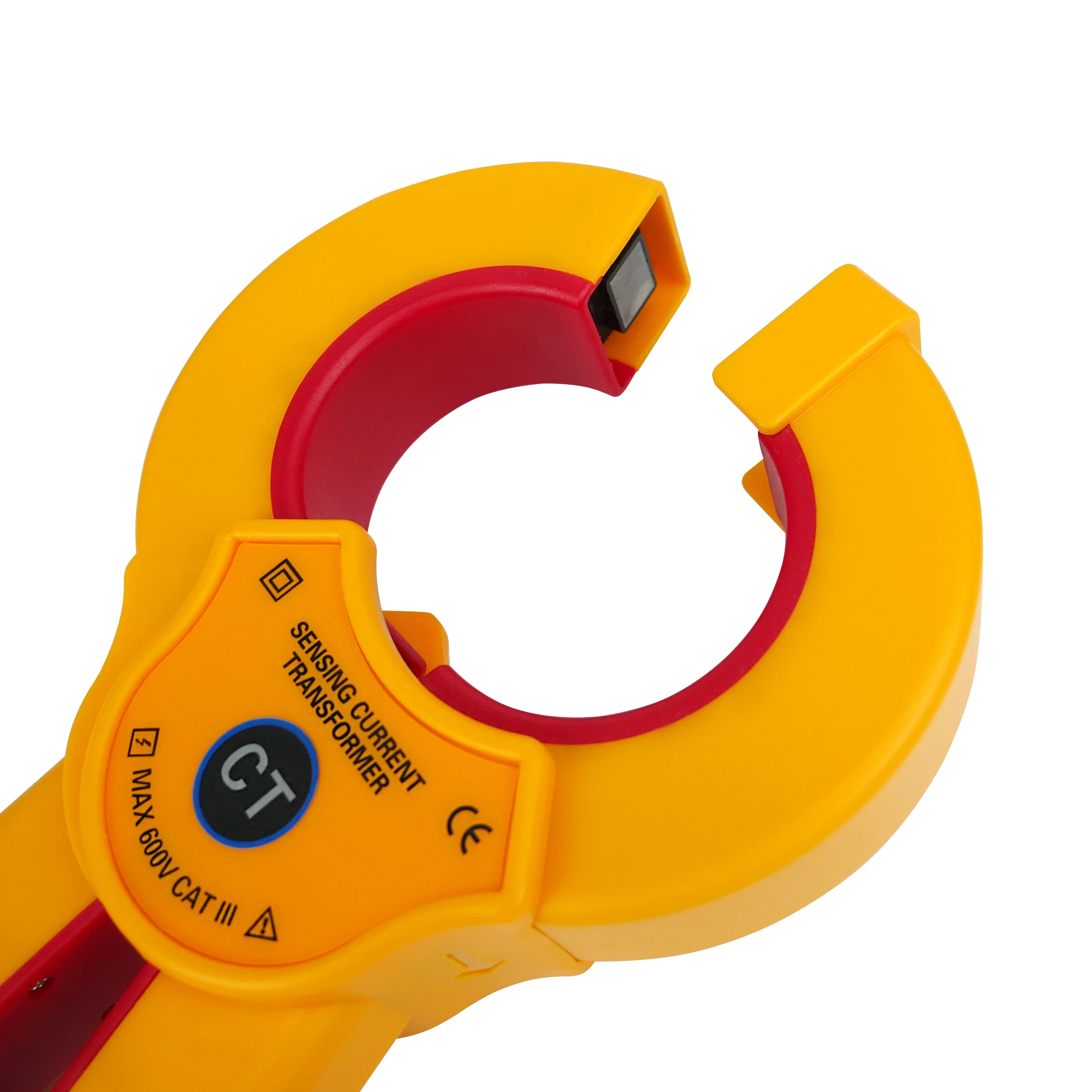

1. Clamp structure, no need to interrupt the power supply and disconnect the circuit in testing, easy to operate, fast, safe and reliable.
2. Input current range: 0mA ~ 600A, output signal: mA/A mV/A 1A 5A.
3. Output interface: BNC plug/ 4.0mm double banana plug/φ3.5mm Audio plug /Aviation plug(optional), wire length: 2m
4. CT Size: φ50mm.
5. Sensor Dimensions: 200mmX100mmX39mm
6. Weight:550g
7. Safety Level:CAT III 600V
8. Certificate:ROHS
9. Working temperature: -15°C 60°C
10.The input current, output signal and output interface of the sensor can be customized according to customer requirements.
2. Input current range: 0mA ~ 600A, output signal: mA/A mV/A 1A 5A.
3. Output interface: BNC plug/ 4.0mm double banana plug/φ3.5mm Audio plug /Aviation plug(optional), wire length: 2m
4. CT Size: φ50mm.
5. Sensor Dimensions: 200mmX100mmX39mm
6. Weight:550g
7. Safety Level:CAT III 600V
8. Certificate:ROHS
9. Working temperature: -15°C 60°C
10.The input current, output signal and output interface of the sensor can be customized according to customer requirements.
