Brand Name | Ganquan Barbed Wire |
Material | Q195 and Q235 High quality low carbon steel wire,stainless steel wire , medium carbon steel wire/ Iron Wire / steel wire |

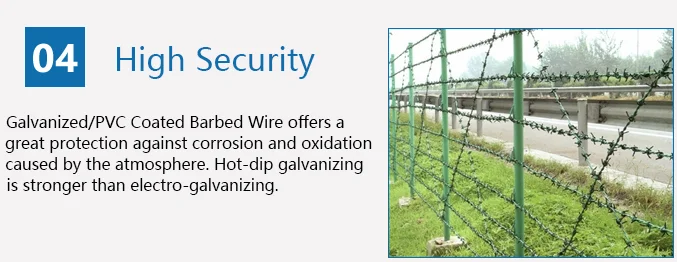

Surface Treatment | Galvanized/PVC coated |

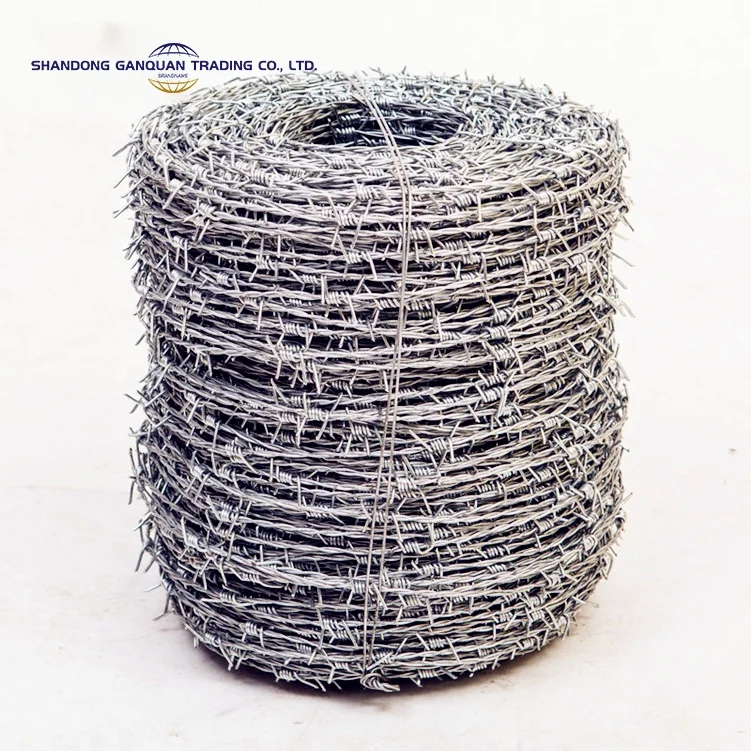

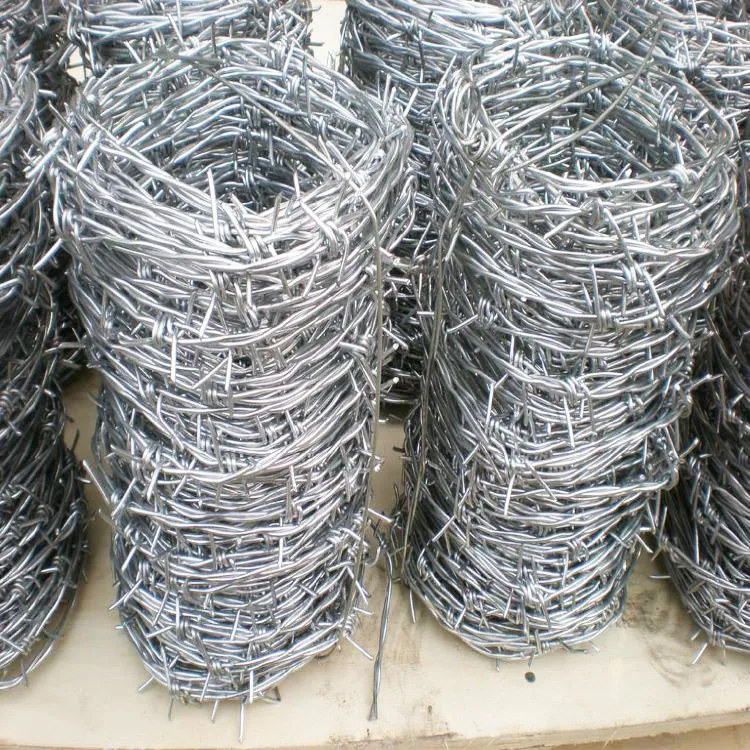

Type | Barbed Wire Coil |
barbed length | 10mm-65mm or Customized |
Length | 100-300m or Customized |
Barbed distance | 75mm~150mm or Customized |
aperture | 2.8mm~1.8mm or Customized |
wire gauge | 1.4mm~2.6mm or Customized |
Coil Diameter | 360-1000mm or Customized |
Surface Treatment | Hot-dipped Galvanized, PVC Painting or Customized |
Payment Term | T/T, D/A, D/P, L/C, or according to customer requirements. |
MOQ | 1Ton, If the purchase quantity is less than our MOQ, can be customized according to your requirements. |
Samples | Can provide samples |
Delivery time | Usually within 7 days, the time depends on the number of products. |
Certification | ISO9001,CE.ect. |

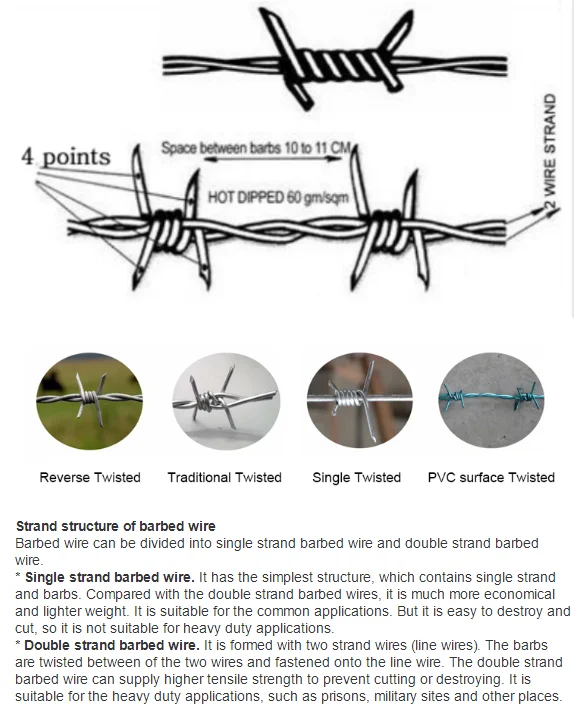

Specification of Barbed Wire | ||||||||
Gauge of Strand and Barb in BWG(Anne X3) | Approximate Length per kilogram in Meter | |||||||
Barbs Spacing 3'' | Barbs Spacing 4'' | Barbs Spacing 5'' | Barbs Spacing 6'' | |||||
12x12 | 6.0167 | 6.7590 | 7.2700 | 7.6376 | ||||
12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 | ||||
12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 | ||||
12-1/2x14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 | ||||
13x13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 | ||||
13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 | ||||
13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 | ||||
14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 | ||||
14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 | ||||
15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 | ||||
15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |

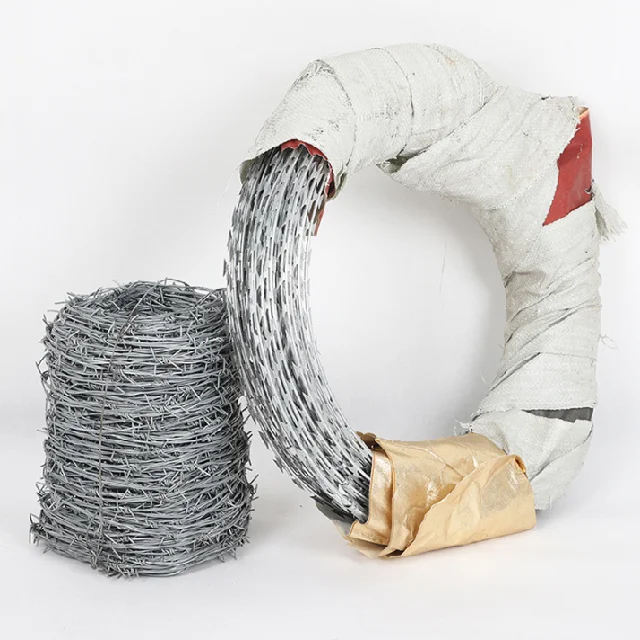

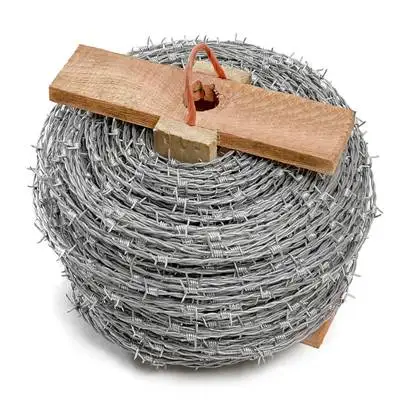

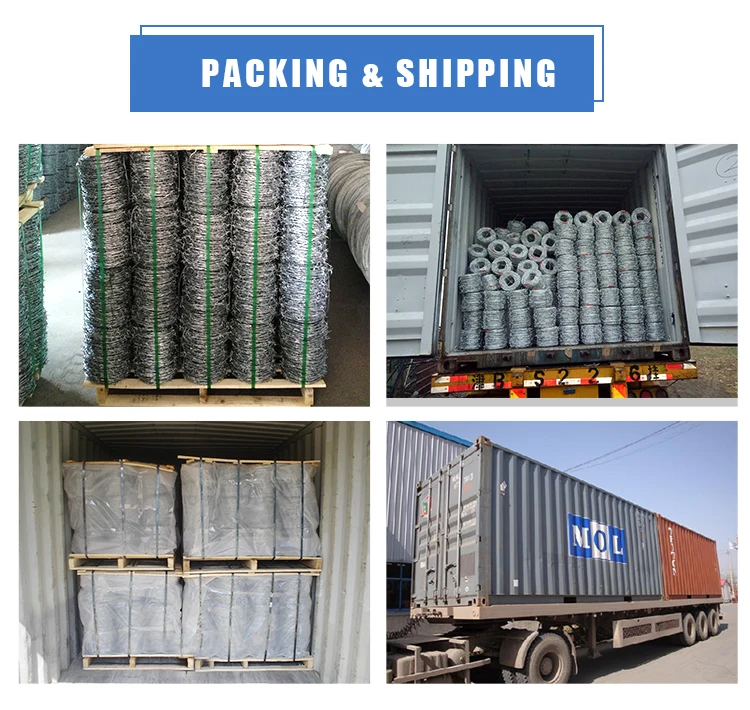

Package | Standard export seaworthy package,suit for all kinds of transport, or as required. |

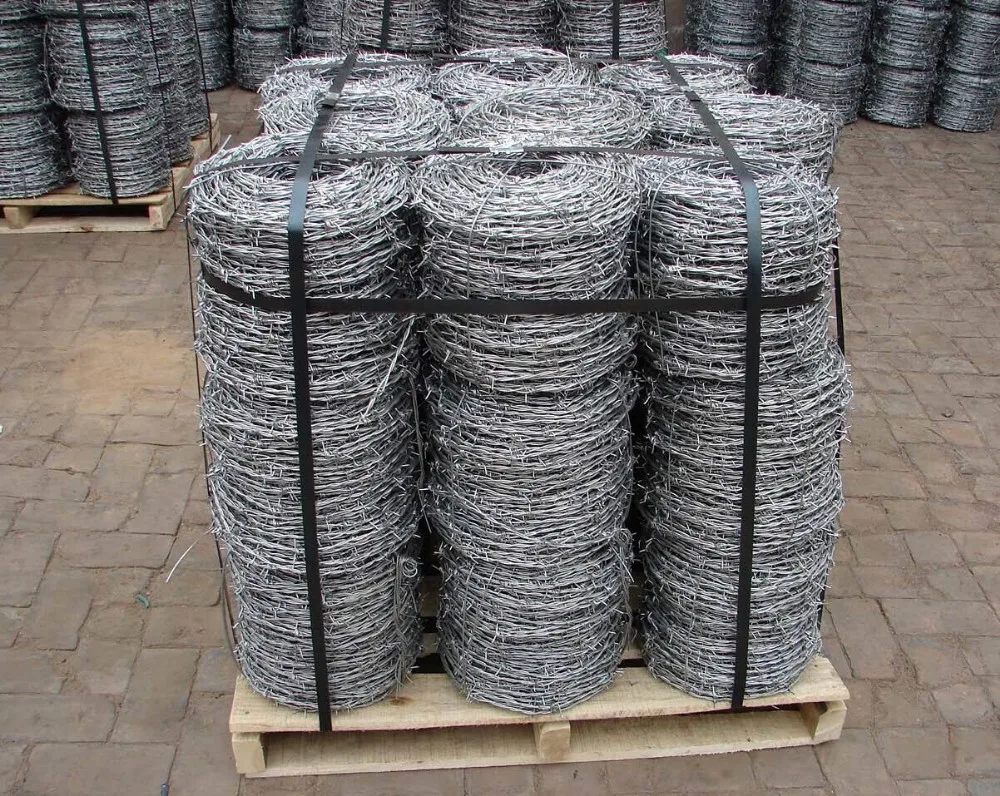

Water-proof Paper + Edge protection + Wooden Pallets | |
Bulk Size | Any size |
Loading Port | Tianjin, Qingdao Port or any China Seaport |
Container | 1*20ft container load Max. 25 Ton, Max. length 5.8m |
1*40ft container load Max. 25 Ton, Max. Length 11.8m | |
Delivery Time | 7-15 days or according to the order's quantity |
