Razor barbed wire
Razor barbed wire is a central strand of high tensile wire, and a steel tape punched into a shape with barbs. The steel tape is cold crimped tightly to the wire. Razor wire is manufactured with a galvanized tape (Zinc coating ranging from 120 gsm to 275 gsm) and Galvanized core wire (diameter: 2.5mm) with zinc coating 90 gsm to 275 gsm). For more critical razor wire applications, stainless steel tape and stainless steel core wire is used.
Razor barbed wire has been in use throughout the world at airports, military bases & borders for many years. It is a long lasting and very effective barrier, known and trusted by security professionals.
Product Details:

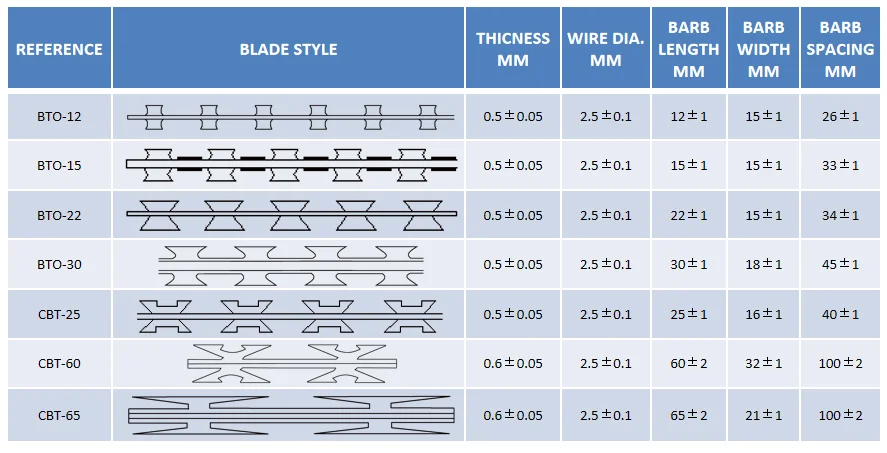

Reference Type Number | Thickness(mm) | wire diameter(mm) | Barb. length(mm) | Barb.width(mm) | Barb.spacing(mm) |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65 | 21±1 | 101±2 |
Outside Diameter | No.of Loops | Standard length per Coil | Type | Notes |
450mm | 33 | 8m | CBT-65 | Single Coil |
500mm | 41 | 10m | CBT-65 | Single Coil |
700mm | 41 | 10m | CBT-65 | Single Coil |
960mm | 53 | 13m | CBT-65 | Single Coil |
500mm | 102 | 16m | BTO-10,15,22 | Cross Ttpe |
600mm | 86 | 14m | BTO-10,15,22 | Cross Type |
700mm | 72 | 12m | BTO-10,15,22 | Cross Type |
800mm | 64 | 10m | BTO-10,15,22 | Cross Type |
900mm | 52 | 9m | BTO-10,15,22 | Cross Type |
Picture Advantages:

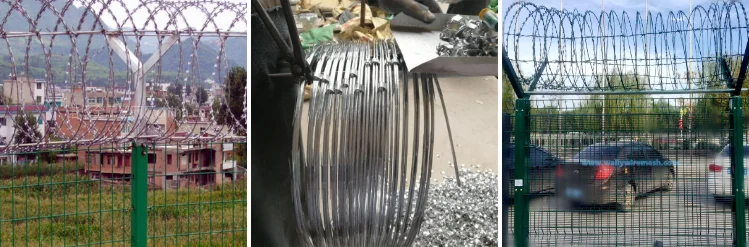

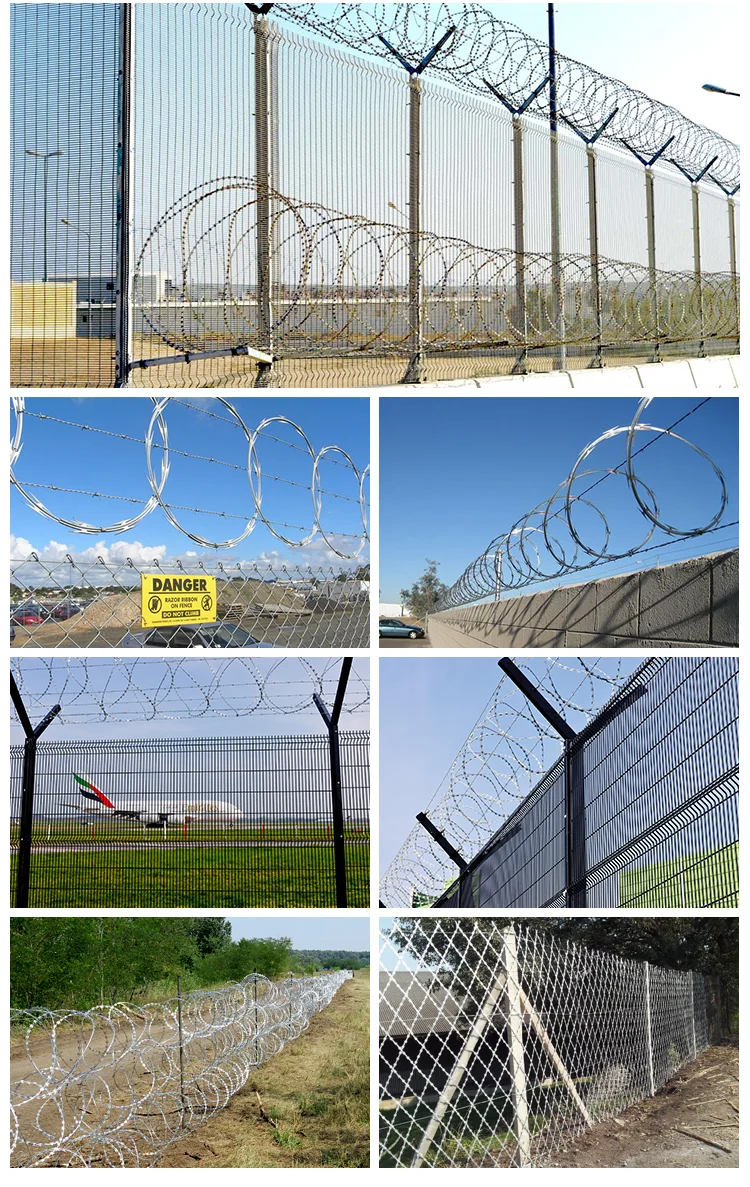

Widely used in military field, prisons, detention houses, government buildings and othernational security facilities. Also fencing of residences, villa wall and windows, express way.railway, national border lines, etc.
1.waterproof paper inside and woven bags outside;
2.In pallet;
3. Other special package according to customers' requirements.
