60 Вт-360 Вт Водонепроницаемый Импульсный источник питания 12 В 24 PFC постоянное напряжение алюминиевый корпус светодиодный
60 Вт-360 Вт Водонепроницаемый Импульсный источник питания 12 В 24 PFC постоянное напряжение алюминиевый корпус светодиодный
60 Вт-360 Вт Водонепроницаемый Импульсный источник питания 12 В 24 PFC постоянное напряжение алюминиевый корпус светодиодный
60 Вт-360 Вт Водонепроницаемый Импульсный источник питания 12 В 24 PFC постоянное напряжение алюминиевый корпус светодиодный
60 Вт-360 Вт Водонепроницаемый Импульсный источник питания 12 В 24 PFC постоянное напряжение алюминиевый корпус светодиодный
60 Вт-360 Вт Водонепроницаемый Импульсный источник питания 12 В 24 PFC постоянное напряжение алюминиевый корпус светодиодный
60 Вт-360 Вт Водонепроницаемый Импульсный источник питания 12 В 24 PFC постоянное напряжение алюминиевый корпус светодиодный

60 Вт-360 Вт Водонепроницаемый Импульсный источник питания 12 В 24 PFC постоянное напряжение алюминиевый корпус светодиодный


Поделиться:

Цена:2 531,56-3 122,63 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

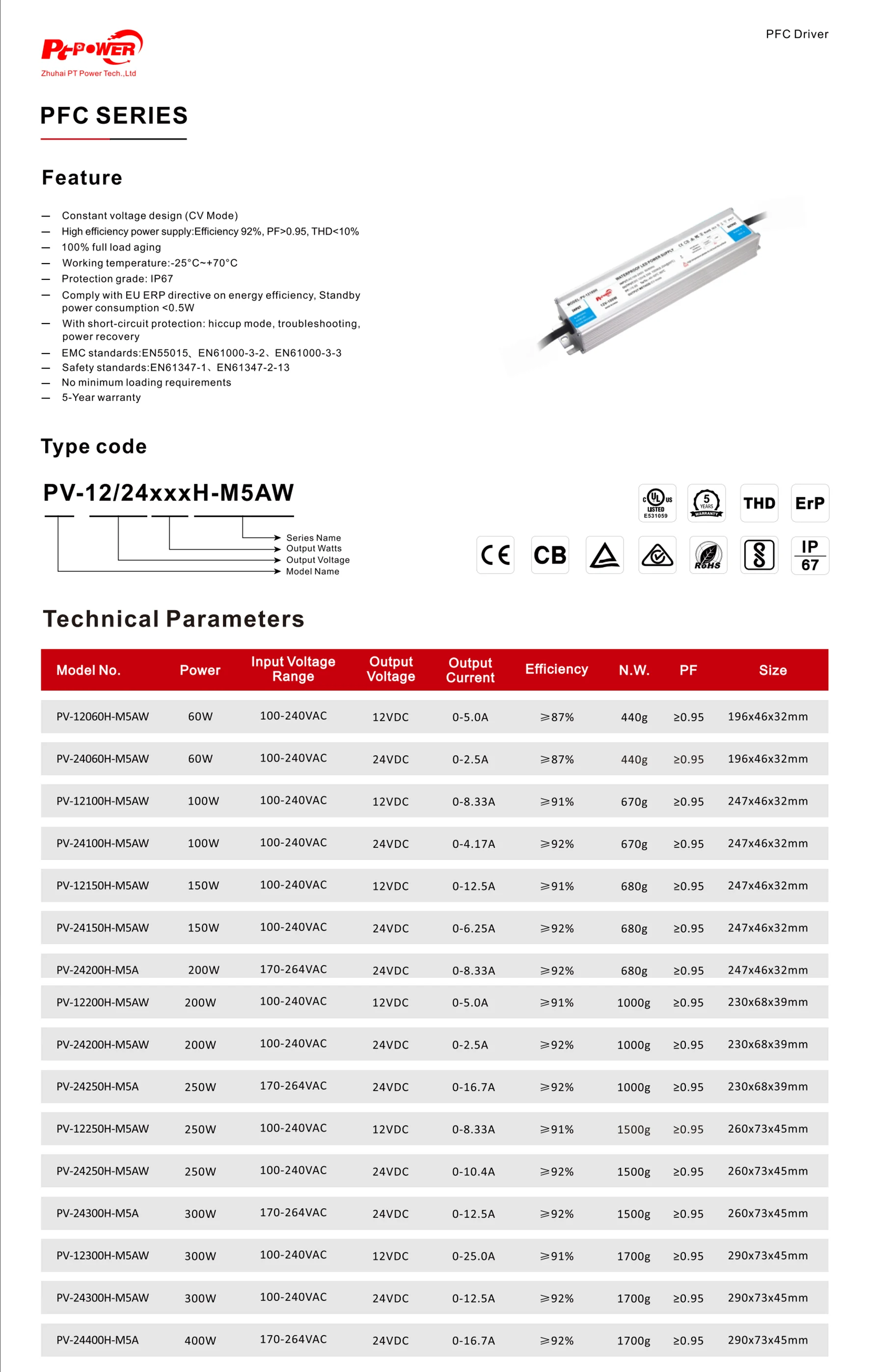

Model No.：
PV-12300H-M5AW
PV-24300H-M5AW
Output
Rated Output Voltage
12V
24V
Output current Range
0-25A
0-12.5A
Rated Output Power
300W
Output Voltage Precision
±3%
Output Ripple and Noise
＜120mVP-P
＜240mVP-P
Load Regulation
±2%
Start/Rise Time
<1000ms/230VAC
Retention Time
20ms/230VAC
Input
Input Voltage Range
100-240VAC
Input Frequency Range
50-60HZ
Power Efficiency
>91%
>92%
PF
＞0.95
THD
115Vac@THD＜10%, 230Vac@THD＜20%, 264Vac@THD＜20% (Full Load)
Standby Power Consumption
＜0.5W
Leak Current
＜0.7mA/230VAC
Protection
Overload Protection
When the load current exceeds 110-150% of the output current, the power supply will enter the protection state, and the protection
mode is hiccup mode
Short Circuit Protection
The protection mode is hiccup mode, when the short-circuit fault is removed, it will automatically resume work
Working Environment Protection
Working Temperature
-40℃~70℃ (Pls refer to "Derating Curve")
Storage Temperature
-40℃~80℃
Ingress Protection Rating
90%RH non condensing, refer to IP67
Shockproof Character
10-500HZ,2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes
Temperature Coefficient
±0.03%℃ (0-50℃)
Security Features
Security Standard
IEC 61347-2-13 2014+A1 IEC 61347-1 2015+A1
Withstand Voltage
I/P-O/P:3.75KVAC,I/P-FG:2KVAC,O/P-FG:1.5KVAC
Insulation Resistance
I/P-O/P:>100M Ohms/500VDC/25℃/70% RH
EMC
EN55015 EN 61000-3-2:2014 EN 61000-3-3:2013
Others
Wires
Input：《VDE》 H05RR-F 300/500V 3x1.0mm² L=200mm
Output：《VDE》 H05RR-F 300/500V 2x1.0mm² L=200mm
Outter Size
290*73*45mm(L*W*H)
Weight/PCS
1700g












FAQ


Q1: Are you a manufacturer? If yes, in which city?
A1: Yes, we are a professional manufacturer located in Zhuhai. Welcome to visit us. Please kindly inform us of your schedule before your arrival, and we will prepare to pick you up.

Q2. What is the warranty for your LED power supplies?
A2: We offer LED power supplies with warranties of 2 years, 3 years, and 5 years to accommodate various market demands.

Q3. Do you offer free samples?
A3: Yes, free samples are available, but the buyer is responsible for the shipping costs.

Q4. Does your LED power supplies are original?
A4: Yes, all of our LED power supplies are 100% brand new originals.

Q5. What is your delivery date?
A5: The delivery date for our products is typically between 3 to 15 days after payment receipt, depending on your order quantity.

Q6. Can you help me make my own design? How about the sample fee and sample time?
A6: Certainly, we have a professional development team dedicated to designing new projects. We offer OEM and ODM services to many customers. You can share your ideas or provide us with drawings, and we will develop it accordingly. Regarding samples, the lead time is typically around 15 to 30 days. The sample fee is determined based on the material and size of the product. If the sample meets your satisfaction, the sample fee can be refunded after regular mass orders.
