Nvvv LS-100W-24V вход 200 ~ 240Vac светодиодный драйвер выходной импульсивный источник питания импульсный светодиодного табло 24VDC Светодиодный для
- Категории: Lighting Accessories >>>
- Поставщик: Zhejiang,Junlin,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
DM-100W LED Driver | ||||||||||
project | Technical index | |||||||||
OUTPUT CHARACTERISTICS | Voltage | 12V DC | 24V DC | |||||||
Min. Load | 0A | 0A | ||||||||
Rated.Load（max） | 8.3A | 4.2A | ||||||||
Peak@10mS | 100W | 100W | ||||||||
Output power | 100W | 100W | ||||||||
Combined Load/Line Regulation | Min. Load | 0A | 0A | |||||||
Rated. Load | 8.3 A | 4 .2A | ||||||||
Line Regulation | ±3% | ±3% | ||||||||
Load Regulation | ±5% | ±5% | ||||||||
INPUT CHARACTERISTICS | Rated Input Voltage:200~240Vac | |||||||||
Rated Input Frequency | Rated Input Frequency:50/60Hz. | |||||||||
Ac Leakage Current | 3.5mA Max.At240Vac input. | |||||||||
ENVIRONMENTAL REQUIREMET | -25℃ to 40℃,Full load, Normal operation. | |||||||||
Relative Humidity | 5%(0℃)~90%(40℃)RH,72Hrs,Full load, Normal operating. | |||||||||

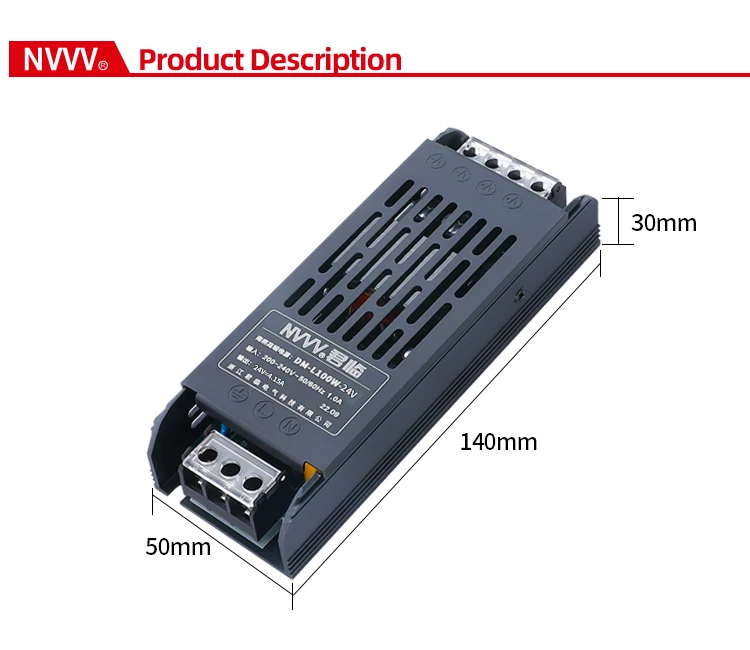

The power supply size | 141x50x29mm | |||||||||
weight | 0.173KG | |||||||||
Packing & Delivery

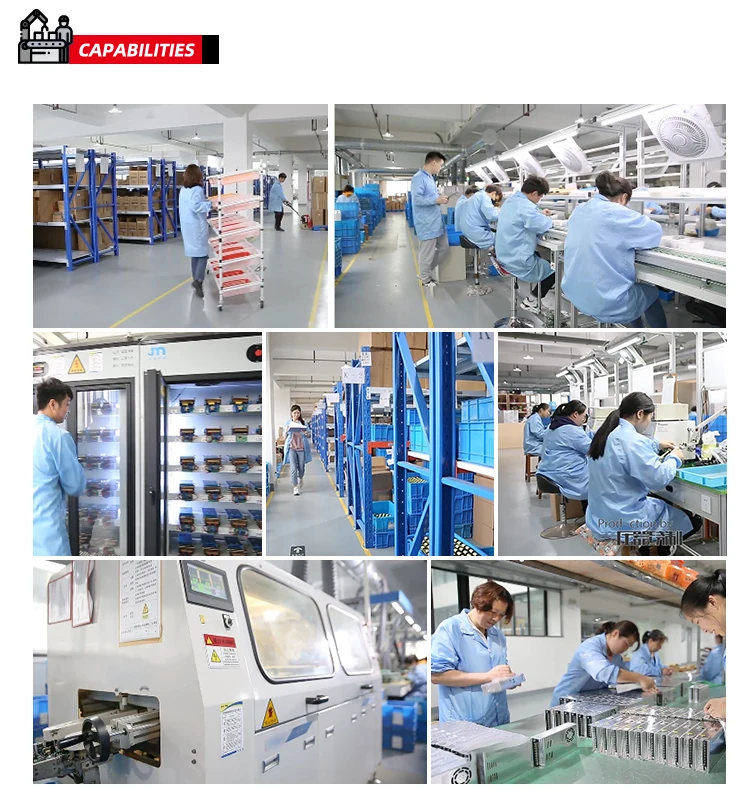

Company Profile
