Супер класс огнеупорности> 3000 градусов порошок нитрида бора 99% /
- Категории: Refractory >>>
- Поставщик: Tanyun,Aerospace,Materials,(yingkou),Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Identification | ||
Other names | BN HBN Hexagonal Boron nitride High temp Boron nitride Platelet Boron nitride Boron mononitrideBoron nitride White graphite | |
CAS | 10043-11-5 | |
EC | 233-136-6 | |
MW | 24.81 | |
Density(Theoretical) | 2.29 g/cm3 | |
Melting point: | 3000℃ (stable in inert atmosphere) | |
Crystal type | Hexagonal | |
* Boron nitride is a thermally and chemically resistant refractory compound of boron and nitrogen with the chemical formula BN.
* Hexagonal boron nitride has a layered structure similar to graphite. Within each layer, boron and nitrogen atoms are bound by strong covalent bonds, whereas the layers are held together by weak van der Waals forces.
* Unlike to grape, h-BN’s lubricity doesn’t rely on atmospheric condition which has potential application in vacuum.
Specification

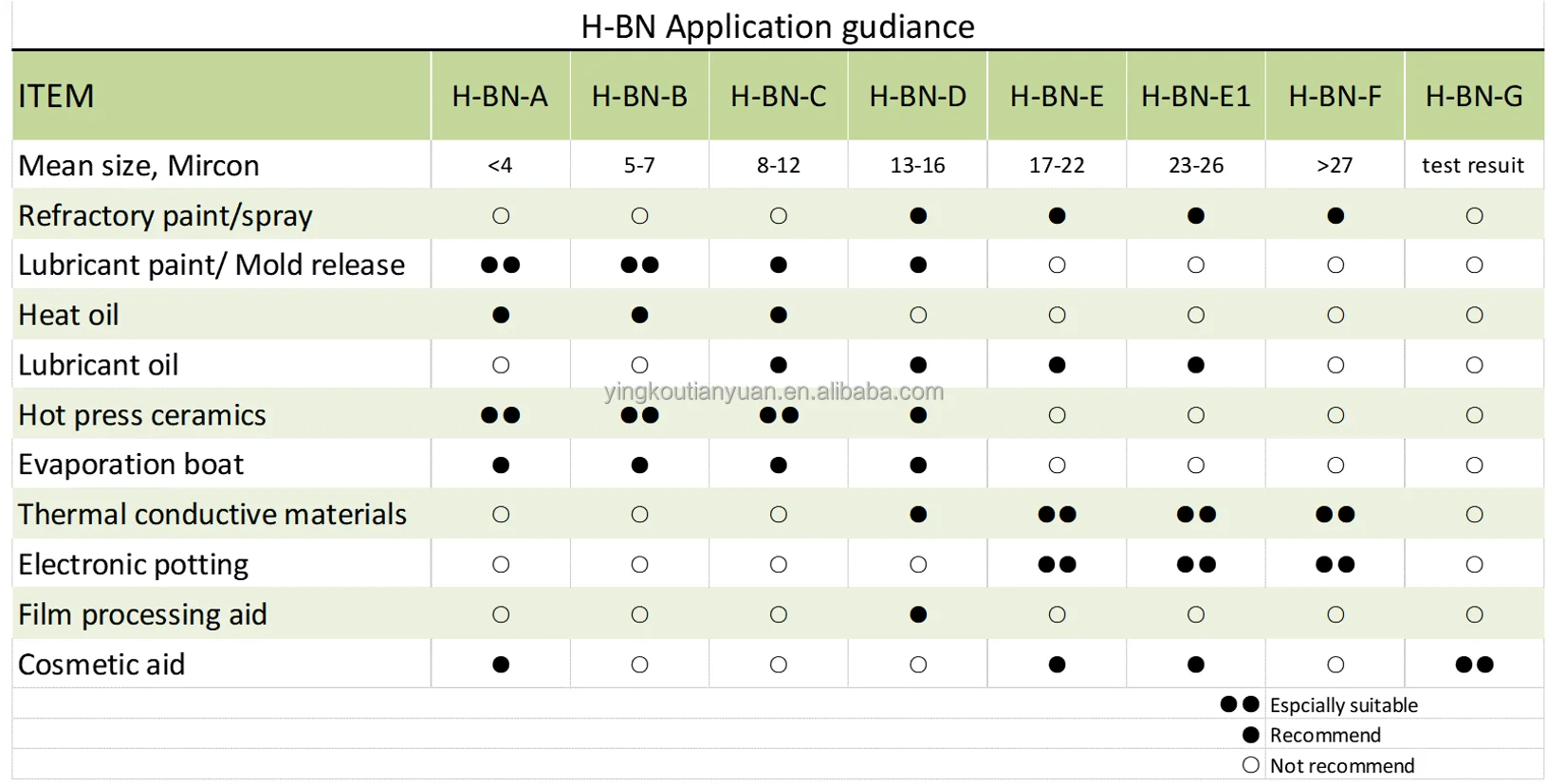

Item | H-BN-A | H-BN-B | H-BN-C | H-BN-D | H-BN-E | H-BN-E1 | H-BN-F | ||||||
BN, %(m/m) | ≥98.5 | ≥98.5 | ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 | ||||||
B2O3, %(m/m) | ≤0.5 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ||||||
Particle size, μm | ≤4 | 5-7 | 8-12 | 13-16 | 17-22 | 23-26 | ≥27 | ||||||

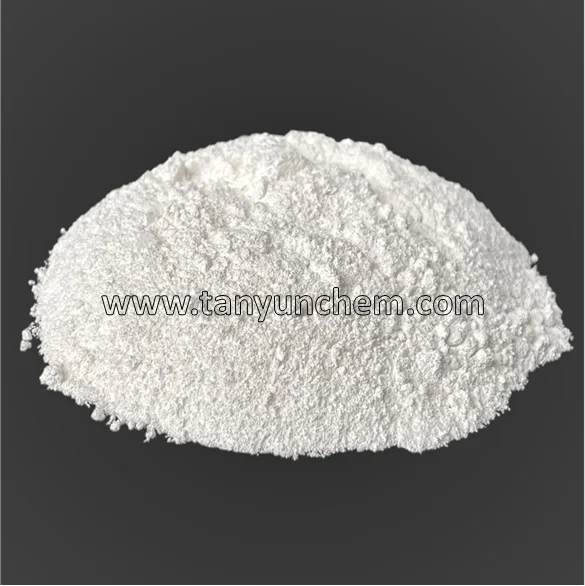

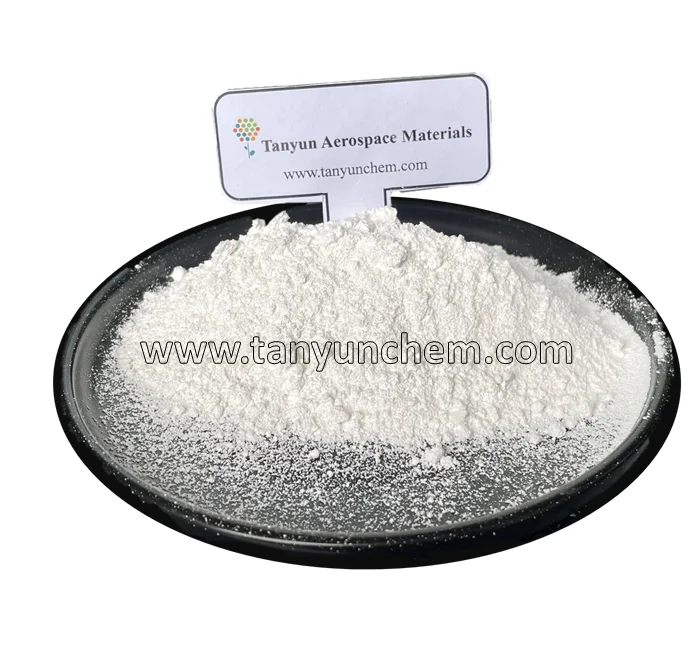

Appearance | White powder | ||||||||||||
H-BN-A, B, C
Medium crystallization, excellent high temperature resistance and oxidation resistance, its original particle size is small, agglomeration particle size is large. Because the particles are spherical, so it is particularly suitable for filler, mold release agent for casting and injection process. Composite ceramics, also easy to hot press into shape.
H-BN-D
Tight distribution of particle size; Because its particle size is similar to PTFE, so it is particularly suitable for
high-pressure switch nozzles: Superior thermal conductivity, it is very suitable for thermal conductive plastic or thermal
conductive rubber; Low oxygen content (generally less than 0.5%) is also particularly suitable as a material for special ceramics.
H-BN-E, H-BN-G
High crystallinity and tight distribution of particle size. Compared to other products, it is higher crystallinity and better
properties of thermal conductivity, insulation, lubrication, high temperature resistance and resistance to corrosion from molten metal. It can be used in various high-end fields, including cosmetics and thermally conductive materials. Replacement of other expensive HBN products.
H-BN-F
High thermal conductivity, electrical insulation, low dielectric constant, low expansion coefficient, and good stability, so it is often used as an additive in the electronics industry. Currently, other application areas of this product are being developed.
H-BN-D
Tight distribution of particle size; Because its particle size is similar to PTFE, so it is particularly suitable for
high-pressure switch nozzles: Superior thermal conductivity, it is very suitable for thermal conductive plastic or thermal
conductive rubber; Low oxygen content (generally less than 0.5%) is also particularly suitable as a material for special ceramics.
H-BN-E, H-BN-G
High crystallinity and tight distribution of particle size. Compared to other products, it is higher crystallinity and better
properties of thermal conductivity, insulation, lubrication, high temperature resistance and resistance to corrosion from molten metal. It can be used in various high-end fields, including cosmetics and thermally conductive materials. Replacement of other expensive HBN products.
H-BN-F
High thermal conductivity, electrical insulation, low dielectric constant, low expansion coefficient, and good stability, so it is often used as an additive in the electronics industry. Currently, other application areas of this product are being developed.
Application
Ceramic material provides better performance
* High performance radome
* Structural materials
* Thermal shields
* Engine nozzle
* Heat sinks
* High performance radome
* Structural materials
* Thermal shields
* Engine nozzle
* Heat sinks

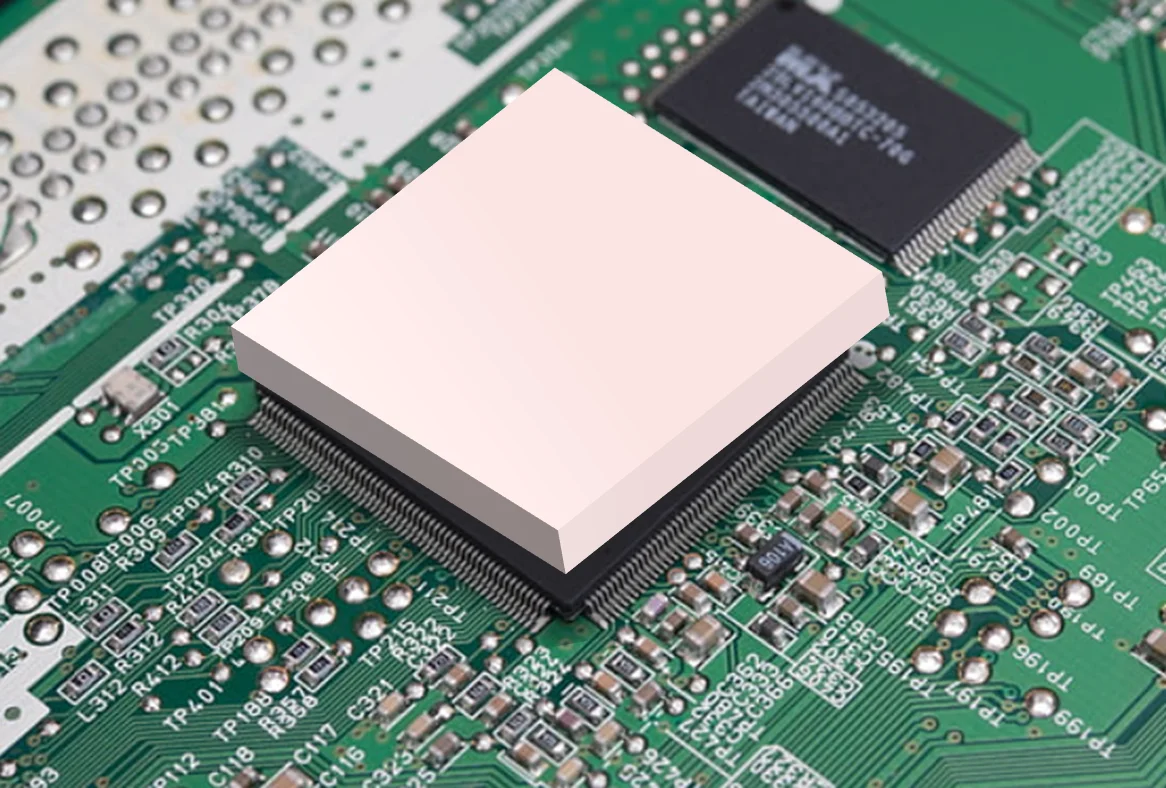

2, High powder semiconductor, heat control system
Used as thermal conductive filler for Thermal Interface Material(TIM), has thermal conductive, Electrical insulation properties.
*****Personal Electronic Devices*****
*****Telecommunication infrastructure*****
*****Automobile parts******
Mold release agent for nonferrous
Good performance even in high temperature widely used as coating of Aluminum casting,
Metalization： Vacuum evaporation
Sintering with Titanium Diboride which modified it's electric conductivity to meets the process requirement.
Features:
* Oil absorption
* Good adhesion, coverage and smoothness
* Oil absorption
* Good adhesion, coverage and smoothness

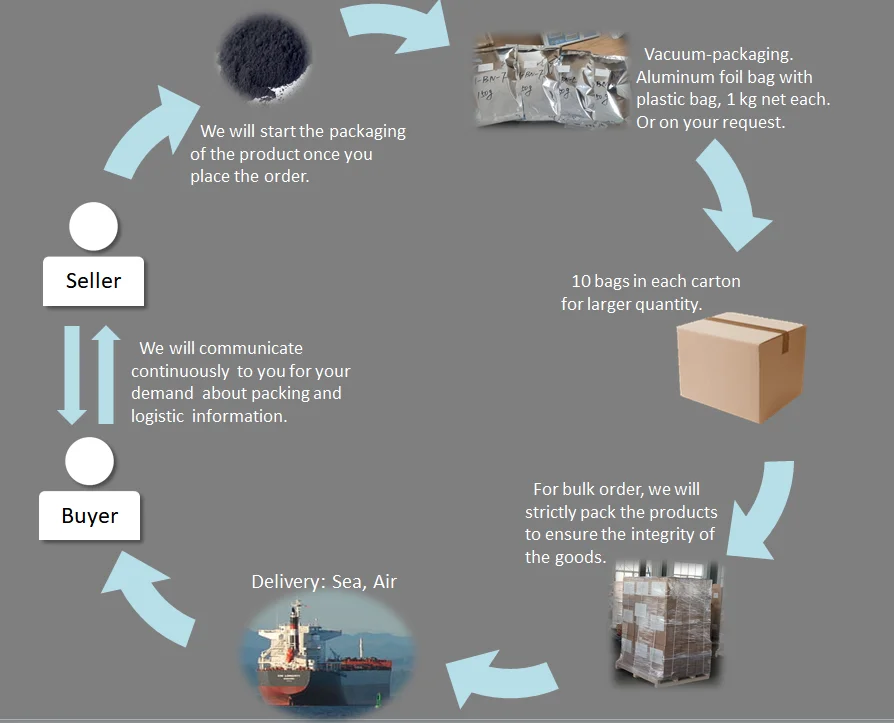

Packing & Delivery
Company Profile
FAQ
1. who are we?
We are based in Liaoning, China, start from 1995,sell to South Asia(12.50%),Eastern Asia(12.50%),Mid
East(12.50%),Africa(12.50%),Southeast Asia(12.50%),Eastern Europe(12.50%),South America(12.50%),North America(12.50%). There are total about 500-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fine chemicals, Specialty chemicals, Burn rate catalyst, Resin, Bonding agent, Boron compound
4. why should you buy from us not from other suppliers?
a. Manufacturer with more than 49 years' experience producing chemicals
b. Stable quality, pointed supply materials in domestic market and worldwide.
c. Accept small order and customized service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Liaoning, China, start from 1995,sell to South Asia(12.50%),Eastern Asia(12.50%),Mid
East(12.50%),Africa(12.50%),Southeast Asia(12.50%),Eastern Europe(12.50%),South America(12.50%),North America(12.50%). There are total about 500-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fine chemicals, Specialty chemicals, Burn rate catalyst, Resin, Bonding agent, Boron compound
4. why should you buy from us not from other suppliers?
a. Manufacturer with more than 49 years' experience producing chemicals
b. Stable quality, pointed supply materials in domestic market and worldwide.
c. Accept small order and customized service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese
