Профессиональный завод 2.1cbM самозагружающий смеситель погрузка небольшой
- Категории: Concrete Machinery >>>
- Поставщик: Shandong,Chinaway,Machinery,Co.,Ltd.Shandong,Ltd.
Поделиться:
Описание и отзывы
Характеристики

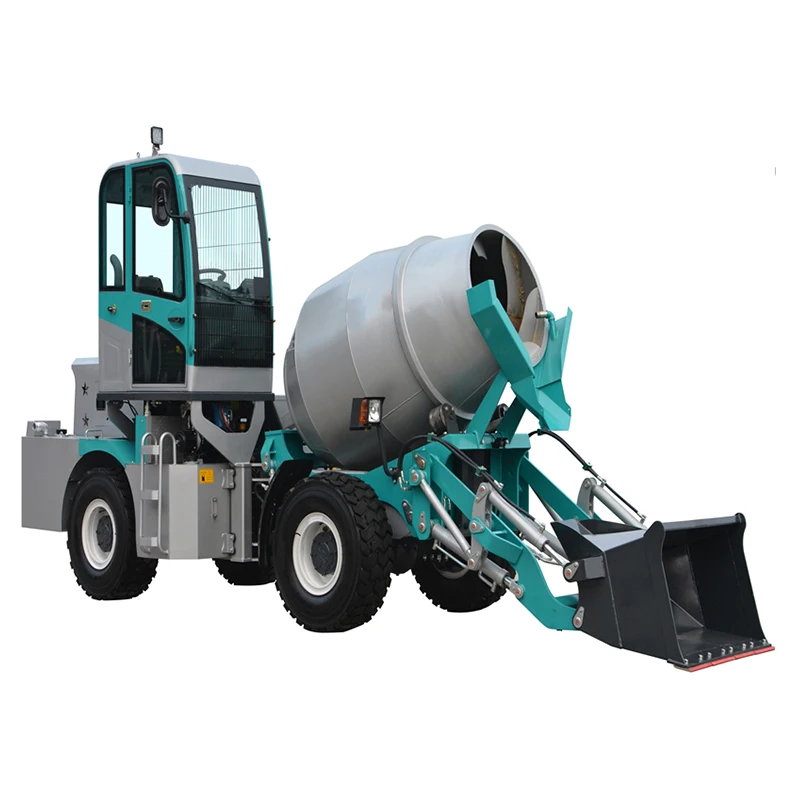

1. The Self Loading Concrete Mixer Truck is called cement self loading machine developed by us which combines concrete mixer, transit mixer and wheel loader together.
2.The diesel concrete mixer can automatically load, measure, mixing and unload concrete mixture.
3.The special hub reducer driving axle and full hydraulic transmission let the mixer truck travel well on kinds of complex off road way,and mixing the concrete more unity with the steady developed hydraulic system and double tires .
3.The special hub reducer driving axle and full hydraulic transmission let the mixer truck travel well on kinds of complex off road way,and mixing the concrete more unity with the steady developed hydraulic system and double tires .
4. The operator can drive construction concrete mixer to anywhere.
5. Easy operation,high productivity, save cost, smooth running. It suits general construction site, road, bridge and some small and middle concrete component factory.It save much labor ability and high efficiency working.High appreciated with so many customers, it help you in working and marketing sales.
5. Easy operation,high productivity, save cost, smooth running. It suits general construction site, road, bridge and some small and middle concrete component factory.It save much labor ability and high efficiency working.High appreciated with so many customers, it help you in working and marketing sales.
CONCRETE MIXING TRUCK QWM15C
QWM15C Concrete mixer truck is top configuration model of self loading mixing truck. It is Yuchai or Yunnei engine, Pilot joystick operation and Top Axle with hydraulic system. Your good choice for the working and sales.
Model | QWM15C | QWM26C | QWM35C | QWM40C | QWM55C | QWM65C | ||||
Geometric volume of drum | 1.8m³ | 3.5m³ | 4.5m³ | 5.5m³ | 7.8 | 9.2 | ||||
The ourpurt per batch | 1.5m³ | 2.6m³ | 3.5m³ | 4m³ | 5.5 | 6.5 | ||||
Shipment | 20GP container | 40HQ contaienr | 40HQ contaienr | 40HQ contaienr | 40HQ contaienr | 40HQ contaienr | ||||
Engine model | Yunnei 490 supercharged engine | Yuchai 4102 supercharged engine | Yuchai 4105 supercharged engine | Yuchai 4108supercharged engine | XICHAI6110 | DUETZ | ||||
Engine power | 55 KW | 78KW | 85KW | 92KW | 92KW | 110KW | ||||
Drive axle | Special wheel side reduction bridge for 8T mixer | Special wheel side reduction bridge for 10T mixer | Special wheel side reduction bridge for 15T mixer | Special wheel side reduction bridge for 20T mixer | Special wheel side reduction bridge for 20T mixer | Special wheel side reduction bridge for 20T mixer | ||||
Gearbox | 265 split gear, 4 forward 4 backward | 265 split gear, 4 forward 4 backward | 280 split gear, 4 forward 4 backward | 315 split gear, 4 forward 4 backward | 315 split gear, 4 forward 4 backward | 315 split gear, 4 forward 4 backward | ||||
Tire | 23.6-16 tires | 1670-20 tires | 12R22.5 vacuum steel wire tire | 12R22.5 vacuum steel wire tire | 12R22.5 vacuum steel wire tire | 12R22.5 vacuum steel wire tire | ||||
Overall Dimension (L×W×H) | 5350X1800X2900 | 5450x2700X2850 | 6600x2850x3350 | 6900X2850x3400 | 8450x3100x3640 | 8450x3050x3860 | ||||
Overall weight | 4500kg | 6500kg | 8500kg | 8800kg | 112,000 | 125,000 | ||||
Maximum speed | 30km/h | 30km/h | 30km/h | 35km/h | 42 | 42 | ||||
Gradeability | 30° | 30° | 30° | 30° | 40 | 40 | ||||
Fuel tank capacity | 65L | 115L | 100L | 100L | 120 | 120 | ||||
Total hydraulic system capacity | 65L | 115L | 120L | 120L | 140 | 140 | ||||
Water tank volume | 500L | 580L | 720L | 900L | 900 | 1460 | ||||
Geometric volume of drum | 1.8m³ | 3.5m³ | 4.5m³ | 5.5m³ | 7.8 | 9.2 | ||||
Drum speed | 18 rev / min | 16 rev / min | 16 rev / min | 16 rev / min | 16 rev / min | 16 rev / min | ||||
Q1: What Can I be available when I deal machine with you ?
A1: Factory price,Top machine,Professional service,Fast delivery;
Q2: What is your leading time?
A2: One standard unit leading time is 7 days as normal.The customized models will be negotiated as details.
Q3: What is your price comparing with other factory?
A3: We are a professional Team and offer the most competitive machine for agents and customers.
Q4: What is your payment?
A4：TT or L/C or Alibaba Credit Insurance order.
FOR MORE DETAILS,WELCOME TO CONTACT US AS FOLLOWING:
