Кварцевая высокотемпературная прозрачная кварцевая трубка
US $5.00-$8.00
Термостойкая прозрачная кварцевая стеклянная трубка высокотемпературная большого
- Категории: Quartz Tubes >>>
- Поставщик: Shanghai,Gongtao,Ceramics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Standard Clear Quartz Tube
The standard clear quartz tube is produced by high purified quartz sand. It has high purity, strong heat resistance, high
transmission rate, and precise dimension.
The standard clear quartz tube is applicable in many areas like lighting, and heating(halogen lamp, the mercury lamp, single-ended
lamp, automotive lamp, water treatment lamp).
transmission rate, and precise dimension.
The standard clear quartz tube is applicable in many areas like lighting, and heating(halogen lamp, the mercury lamp, single-ended
lamp, automotive lamp, water treatment lamp).
Customization:
Gongtao Quartz provides the service to customize the product according to customer's requirement, including cutting, end burning,
grinding, special-shaping and other processing.
grinding, special-shaping and other processing.
Purity | >99.99% |
Density | 2.2(g/cm3) |
Degree of hardness Moh' scale | 6.6 |
Melting point | 1732°C |
Working temperature | 1100°C |
Max temperature can reach in a short time | 1450°C |
Acid tolerance | 30 times than Ceramics , 150 times than Stainless steel |
Visible light transmittance | above 93% |
UV spectral region transmittance | 80% |
Resistance value | 10000 times than ordinary glass |
Annealing point | 1215°C |
Softening point | 1730°C |
Specification
Range of OD | Tolerence of OD | Range of WT | Tolerance of WT |
4-20 mm | ±0.2mm | 1-2mm | ±2% |
20-60mm | ±0.5mm | 1-2mm | ±2% |
60-150mm | ±1.0mm | 2-3mm | ±2% |
150-200mm | ±1.5mm | 3-4mm | ±2% |
200-300mm | ±2.0mm | 4-5mm | ±2% |

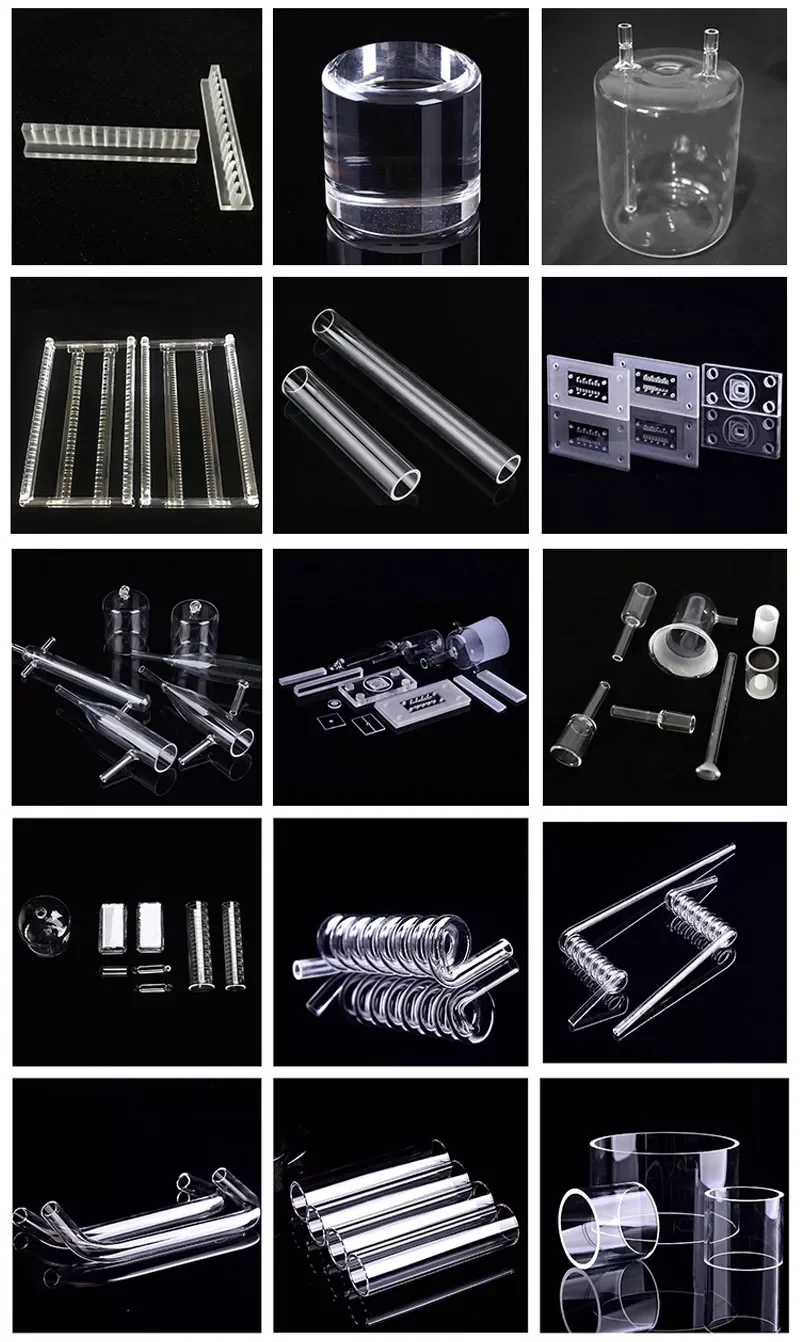

Product Show
Company Profile
Shanghai Gongtao Ceramics Co., Ltd. is one of the most leading and advanced ceramic material companies in China, integrating the design, manufacture and marketing of high-tech ceramics. Brand name "SHANGTAO" was formed more than 20 years ago. We specialize in Alumina products, Zirconia products, Magnesia products, Silicone Nitride products and Alumina Nitride products. We have developed advanced skills and technologies. Our products are widely used in electricity, information, power, automobile and other fields.
Range of Industrial Ceramics: alumina ceramics, zirconia ceramics, titanium oxide ceramics, silicone carbide ceramics, silicon oxide ceramics, special ceramics, high-frequency ceramics, mullite ceramics, general ceramics, refractory ceramics, electronic ceramics, textile ceramics, high purity alumina crucible, electrical ceramics, etc.
SHANGTAO strictly complies with ISO9001 quality management system. Our products are widely used in aerospace, mining machinery, lift, power, paper making, laboratory, nonferrous metal processing, electronics processing, textile machinery and other industries, SHANGTAO provides wholesale and retail services.
We have the largest stocks in shanghai,professional manufacturing experience,most complete industrial ceramics,rock bottom price,best service,speedy delivery.
Welcome to contact us for cooperation!Also welcome to visit us!
Range of Industrial Ceramics: alumina ceramics, zirconia ceramics, titanium oxide ceramics, silicone carbide ceramics, silicon oxide ceramics, special ceramics, high-frequency ceramics, mullite ceramics, general ceramics, refractory ceramics, electronic ceramics, textile ceramics, high purity alumina crucible, electrical ceramics, etc.
SHANGTAO strictly complies with ISO9001 quality management system. Our products are widely used in aerospace, mining machinery, lift, power, paper making, laboratory, nonferrous metal processing, electronics processing, textile machinery and other industries, SHANGTAO provides wholesale and retail services.
We have the largest stocks in shanghai,professional manufacturing experience,most complete industrial ceramics,rock bottom price,best service,speedy delivery.
Welcome to contact us for cooperation!Also welcome to visit us!
FAQ
1. who are we?
We are based in Shanghai, China, start from 2010,sell to North America(35.00%),Eastern Europe(10.00%),Western Europe(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South America(5.00%),Eastern Asia(2.00%),Central America(2.00%),South Asia(2.00%),Southeast Asia(00.00%),Africa(00.00%),Oceania(00.00%),Mid East(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ceramic Tube,Ceramic Connector,Silicon Carbide Tube
4. why should you buy from us not from other suppliers?
Our company has the largest stocks in shanghai,more than 20 years professional manufacturing experience,most complete industrial ceramics,rock bottom price,best service,speedy delivery.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Shanghai, China, start from 2010,sell to North America(35.00%),Eastern Europe(10.00%),Western Europe(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),South America(5.00%),Eastern Asia(2.00%),Central America(2.00%),South Asia(2.00%),Southeast Asia(00.00%),Africa(00.00%),Oceania(00.00%),Mid East(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ceramic Tube,Ceramic Connector,Silicon Carbide Tube
4. why should you buy from us not from other suppliers?
Our company has the largest stocks in shanghai,more than 20 years professional manufacturing experience,most complete industrial ceramics,rock bottom price,best service,speedy delivery.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
