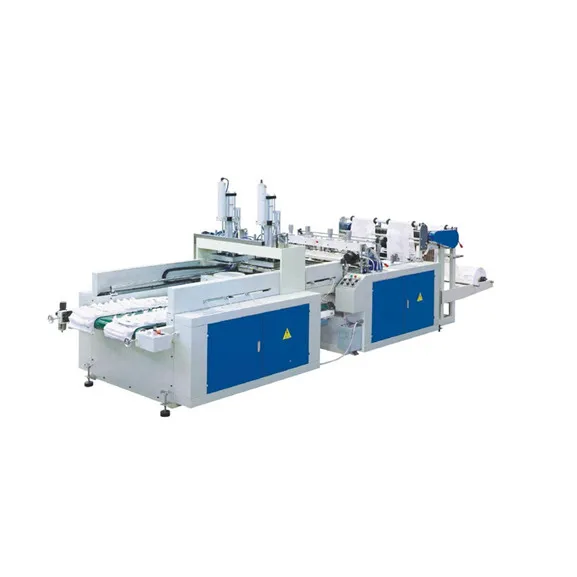

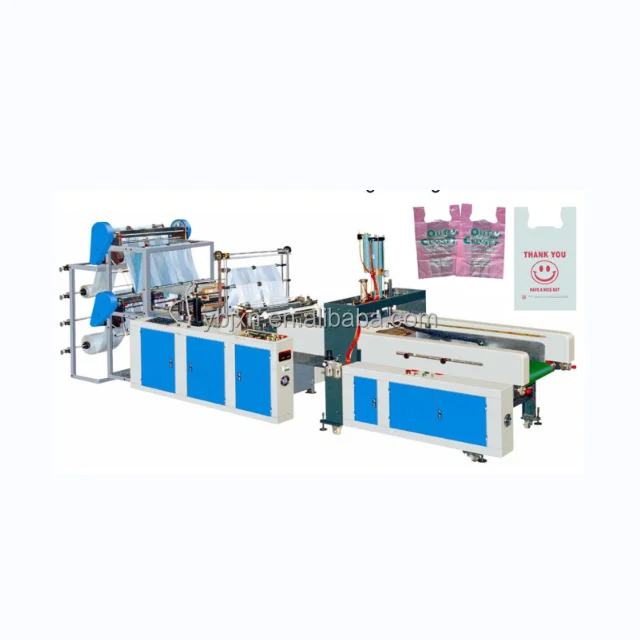

Automatic Double Layer Four Lines Bag Making Machine(SHXJ-D600)

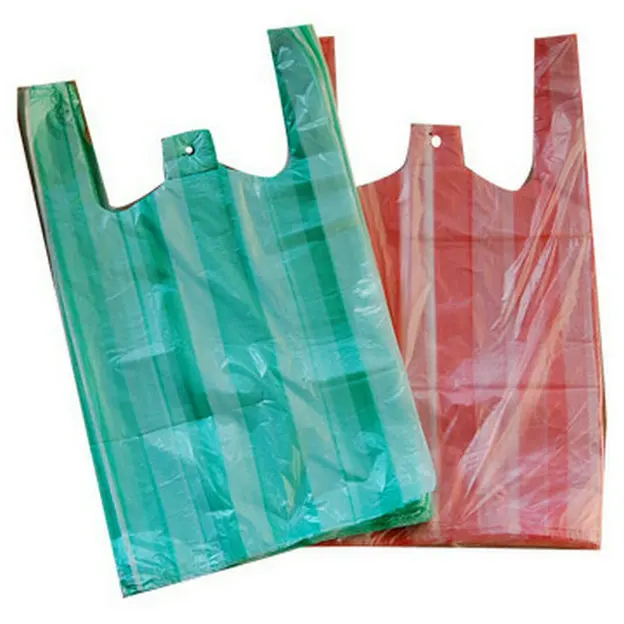

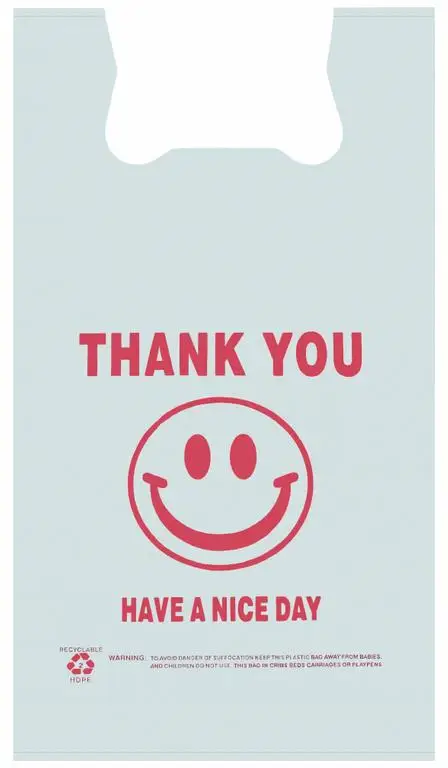

This machine is applied to manufacturing and printing the uncolored vest bags made of HDPE,LDPE roll film.It adopts PLC control,double servo step motor fixed length and the liquid crystal touch screen actual display to finish the feeding,sealing,cutting,punching holes and transporting only in one process.It is of high degree of automation and clood economic result.
Specification
Model | SHXJ-600 | SHXJ-700 | SHXJ-800 | SHXJ-900 | SHXJ-1000 |
Sealing And Cutting Width | 500mm | 600mm | 700mm | 800mm | 900mm |
Sealing And Cutting Length | 700mm | 1200mm | 1200mm | 1400mm | 1600mm |
Bag-making Speed | 700pcs/min | 240-400 pcs/min | 60-100 pcs/min | 50-100 pcs/min | 40-100 pcs/min |
The number of | 4 | 4 | 4 | 4 | 4 |
Motor Power | 1.1kw | 1.5kw | 1.5kw | 2.2kw | 2.2kw |
Weight of Machine | 700kg | 850kg | 850kg | 1000kg | 1100kg |
Overall Dimension(L*W*H) | 3200*1200*1700mm | 3200*1300*1700 mm | 3500*1300*1800mm | 3700*1600*2000mm | 3800*1800*2100mm |
Details Images

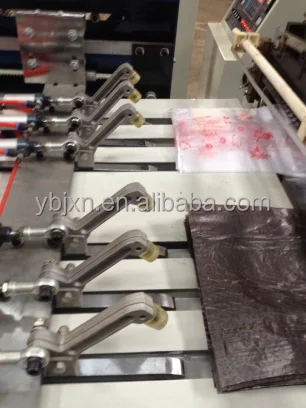

Double-Layer Four-Lines
1.The machine is suitable for producing PE/PP/PVC plastic bag,
2.photoelectric controlled automatic feeding for printed bag
3.photoelectric color-code follow-up ,double feeding and double sealing
4.The machine adopts the stepping motor to control the speed and bag length
servo motor control the machine synchronization,Inverter control the speed of machine
2.photoelectric controlled automatic feeding for printed bag
3.photoelectric color-code follow-up ,double feeding and double sealing
4.The machine adopts the stepping motor to control the speed and bag length
servo motor control the machine synchronization,Inverter control the speed of machine
Company Profile

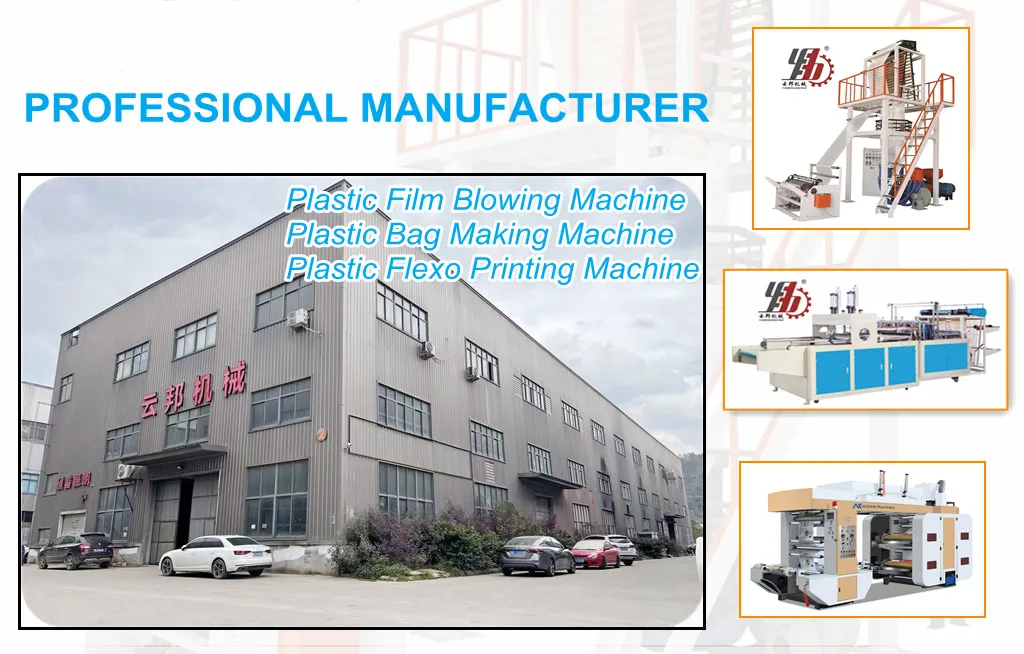

Zhejiang Ruian Yunbang Machinery Co.,Ltd.is located in the scenic East China Sea-Ruian City,is a professional manufacturer of plastic packaging machinery main prodcuts are series of plastic film blowing machine,plastic film bag making machine ,embossing presses series,plastic granulator series full set of equipment.
Products sold throughout the country and exported to dozens of countries and regions in Southeast Asia,the Middle East,Central Asia,Russia,Europe,South America,North America,Africa,the market has responded favorably to legendary customer .
With the cooperation of a number of high-end technology,ranking domestic leading level,perfect product user prouction will improve the qualiy,efficiency ,and will create a better economic benefits.Provide timely and thoughtful pre-sale,sale,service,free onsite equipment installation and commissing , technical training,experenced technical instructors on standby,and the escirt if your equipment operating techniques,innovation,continous development,ans constantly improve efforts to "first-class mangament, first-class products,first-class service"dedicated to the community
With the cooperation of a number of high-end technology,ranking domestic leading level,perfect product user prouction will improve the qualiy,efficiency ,and will create a better economic benefits.Provide timely and thoughtful pre-sale,sale,service,free onsite equipment installation and commissing , technical training,experenced technical instructors on standby,and the escirt if your equipment operating techniques,innovation,continous development,ans constantly improve efforts to "first-class mangament, first-class products,first-class service"dedicated to the community
Certifications
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory
A: We are a factory
2. Q:Does your machine with CE certificate?
A:Yes.
3. Q: How dose your factory do regarding quality control?
A: Strict quality control system, factory products for full inspection
4.Q: How long is the warranty period?
A: All of our products have one year warranty.
5.Q: What is your delivery time?
A: Normally, It needs about 20-30 days. The exact time depends on production management.
6.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem ASAP.
8.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
A:Yes.
3. Q: How dose your factory do regarding quality control?
A: Strict quality control system, factory products for full inspection
4.Q: How long is the warranty period?
A: All of our products have one year warranty.
5.Q: What is your delivery time?
A: Normally, It needs about 20-30 days. The exact time depends on production management.
6.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem ASAP.
8.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
MORE ABOUT US
The Related Machines
Customer Photos

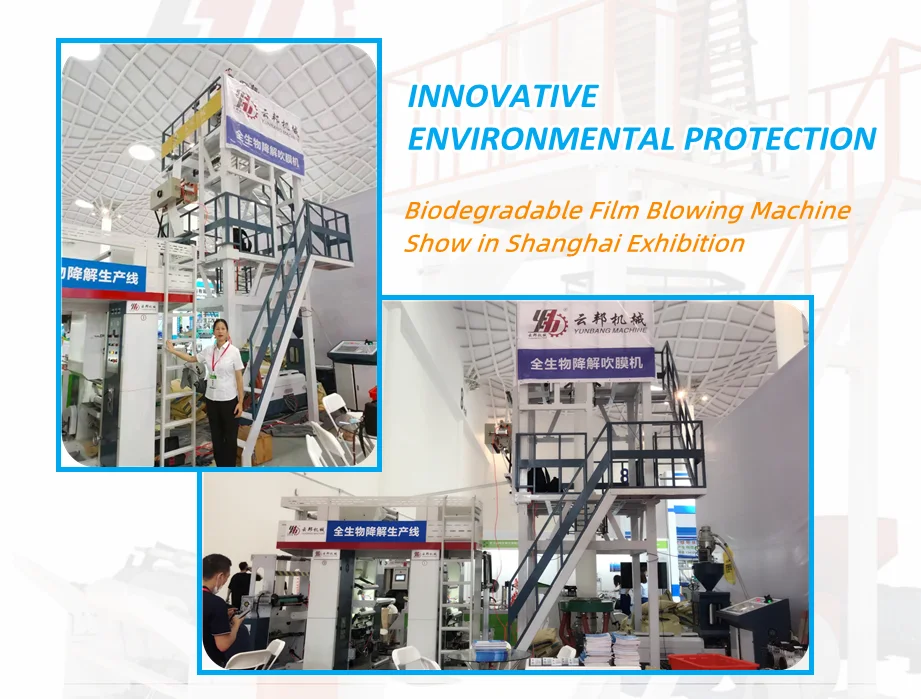

Exhibition
