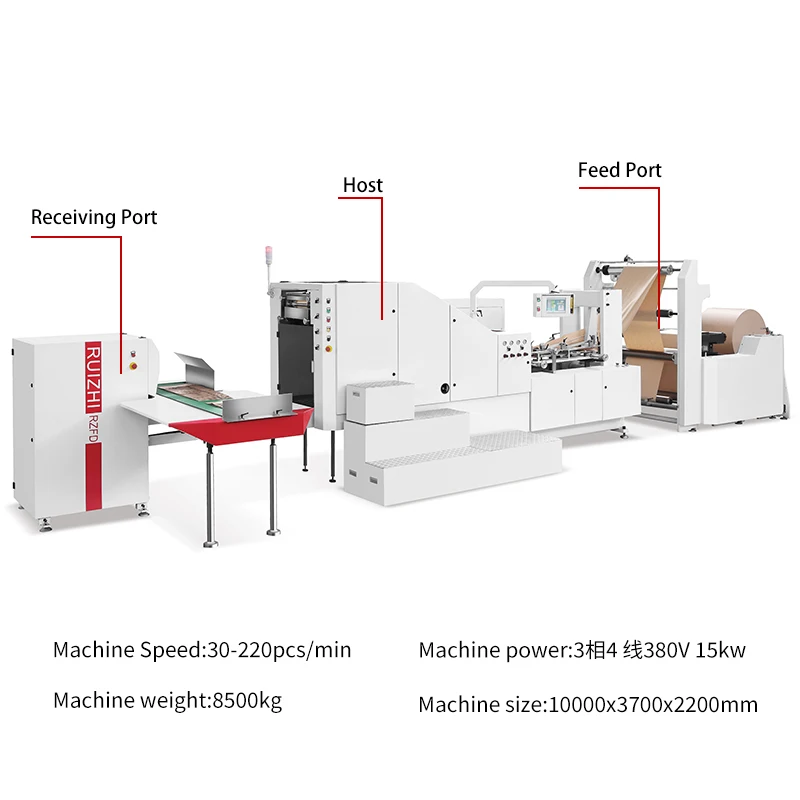

RZFD-330 широкий диапазон размеров мешков с квадратным дном бумажный мешок машина для формирования
- Категории: Packaging Material Making Machine >>>
- Поставщик: Wenzhou,Ruizhi,Packing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Enterprise Exhibitor Information
Product Paramenters
Mechanical parameters
Model | RZFD-330 |
Cutting length | 270-530mm |
Paper bag width | 120-330mm |
Paper bag bottom width | 70-180mm |
Paper thickness | 60-140g/m2 |
Paper bag speed | 30-180 pcs/min |
Paper roll Maximum width | 1050mm |
Roll paper diameter | 1200mm |
Machine power | 3phase 4line 380V 15kw |
Machine weight | 7200 kg |
Machine size(mm) | 9200x3700x2000 |
Main Electrical Components List
Control System | ||||||
Name | QTY | Original | Brand | |||
PC Program Controller | 1 | Germany | REXROTH | |||
Human computer touch screen interface | 1 | Schneider | FRANCE | |||
Servo Motor | 1 | Germany | REXROTH | |||
Servo Driver | 1 | Germany | REXROTH | |||
Traction Servo Motor | 2 | Taiwan | DELTA | |||
Servo Driver | 2 | Taiwan | DELTA | |||
Motor Frequency Converter | 1 | Switzerland | ABB | |||
Positioning Photoelectric Eye | 1 | Germany | SICK | |||
Low Voltage Electrical Apparatus | 1 | USA | EATON | |||
Button&Junction Box | 1 | Germany | ||||
Photoelectric Sensor | 1 | Switerland | Baumer | |||
Deviation correction and tension control system | ||||||
EPC Controller | 1 | Italy | SELECTRA | |||
Servo EPC Motor | 1 | Italy | SELECTRA | |||
Ultrasonic Sensor | 1 | Italy | SELECTRA | |||
Magnetic Powder Brake | 1 | China | WEIZHENG | |||
Transmission | ||||||
Synchronous Belt | 1 | China | BELDI | |||
Synchronous Wheel | 1 | China | MTED | |||
Bearing | 1 | Germany | FALA | |||
Guide Roller | 1 | China | BAIXIAO | |||
Gear | 1 | China | MTED | |||
Roll Pneumatic Shaft | 1 | China | ||||
Finished Bag Conveyor belt | 1 | Switzerland | ||||
Glue position | ||||||
Bottom Glue(Paste bottom white latex) | 1 | China | MTED | |||
The center of the water spraying gun (dense adjust Glue gun ) | 1 | China | MTED | |||
Water White latex | 1 | China | MTED | |||
Products Description
Properties and Uses
1.Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles.
2.It is suitable for mass production of shopping bags in industries such as food and clothing.
3.The one-line process consists of twisted handles making from paper rolls and twisted rope.delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making.
4.The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing.bottom forming and bag delivery.
5.This machine adopts German imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve.
6.It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.
4.The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing.bottom forming and bag delivery.
5.This machine adopts German imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve.
6.It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.
Main features
1.Use France SCHNEIDER touch screen human-computer interface, making the machineeasy to operate and control.
2.Adopt Germany original LENZE PC control, integrated with optical fiber. Thus ensurestable and high speed running.
3.Adopt Germany original LENZE servo motor and German original SICK photoelectriceye correction, tracking printing bag accurately.
4.Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts autotension control.
5.Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.
2.Adopt Germany original LENZE PC control, integrated with optical fiber. Thus ensurestable and high speed running.
3.Adopt Germany original LENZE servo motor and German original SICK photoelectriceye correction, tracking printing bag accurately.
4.Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts autotension control.
5.Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.

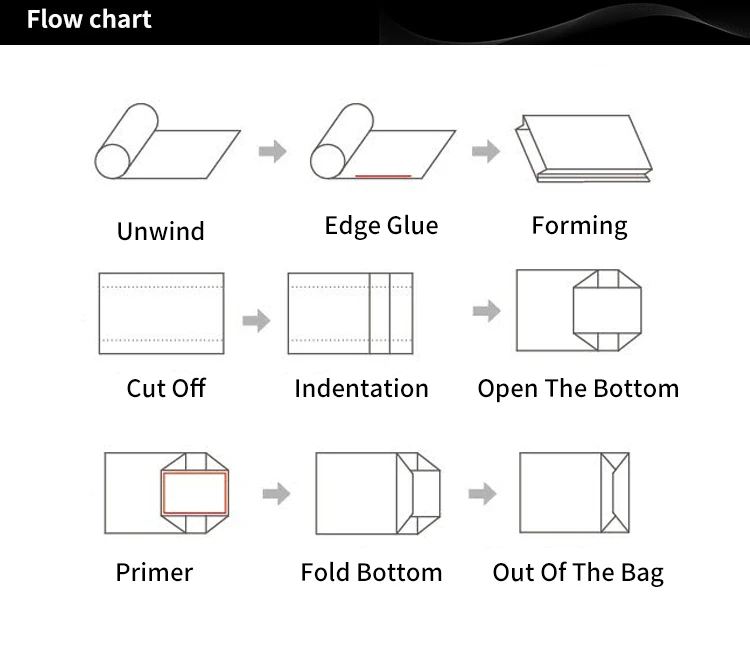

Production Flow Chart
Enterprise Advantage
We will send technician to your factory to install the machine, and teach your workers to use it
Exhibition
Product packaging
FAQ
Q: Are you a factory or trading company?
A：We are a factory, established in 2003, with a professional team to solve various problems of environmentally friendly paper bags for you
Q: How does your factory do regarding quality control?
A: We have a professional QC department in charge of products' quality.
Q: How long is the warranty period?
A: 12 months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to replace，beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q: How to install the machine?
A: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in WENZHOU city,. We will provide transporation service during your visit at our factory.
Q: What information should I let you know if I want to get a quotation?
A: First, Paper raw material: Reel paper or Sheet Paper. Second, sizes of the paper bag, thickness of paper.
Send sample bag picture if available. Then we will recommend the right machine to you!
A：We are a factory, established in 2003, with a professional team to solve various problems of environmentally friendly paper bags for you
Q: How does your factory do regarding quality control?
A: We have a professional QC department in charge of products' quality.
Q: How long is the warranty period?
A: 12 months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to replace，beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q: How to install the machine?
A: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in WENZHOU city,. We will provide transporation service during your visit at our factory.
Q: What information should I let you know if I want to get a quotation?
A: First, Paper raw material: Reel paper or Sheet Paper. Second, sizes of the paper bag, thickness of paper.
Send sample bag picture if available. Then we will recommend the right machine to you!
