Product Description

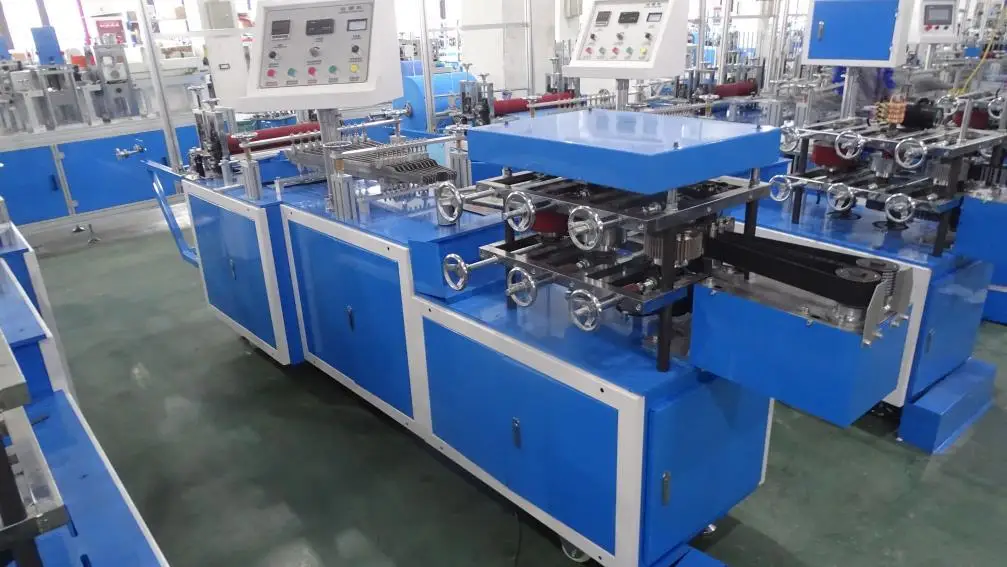

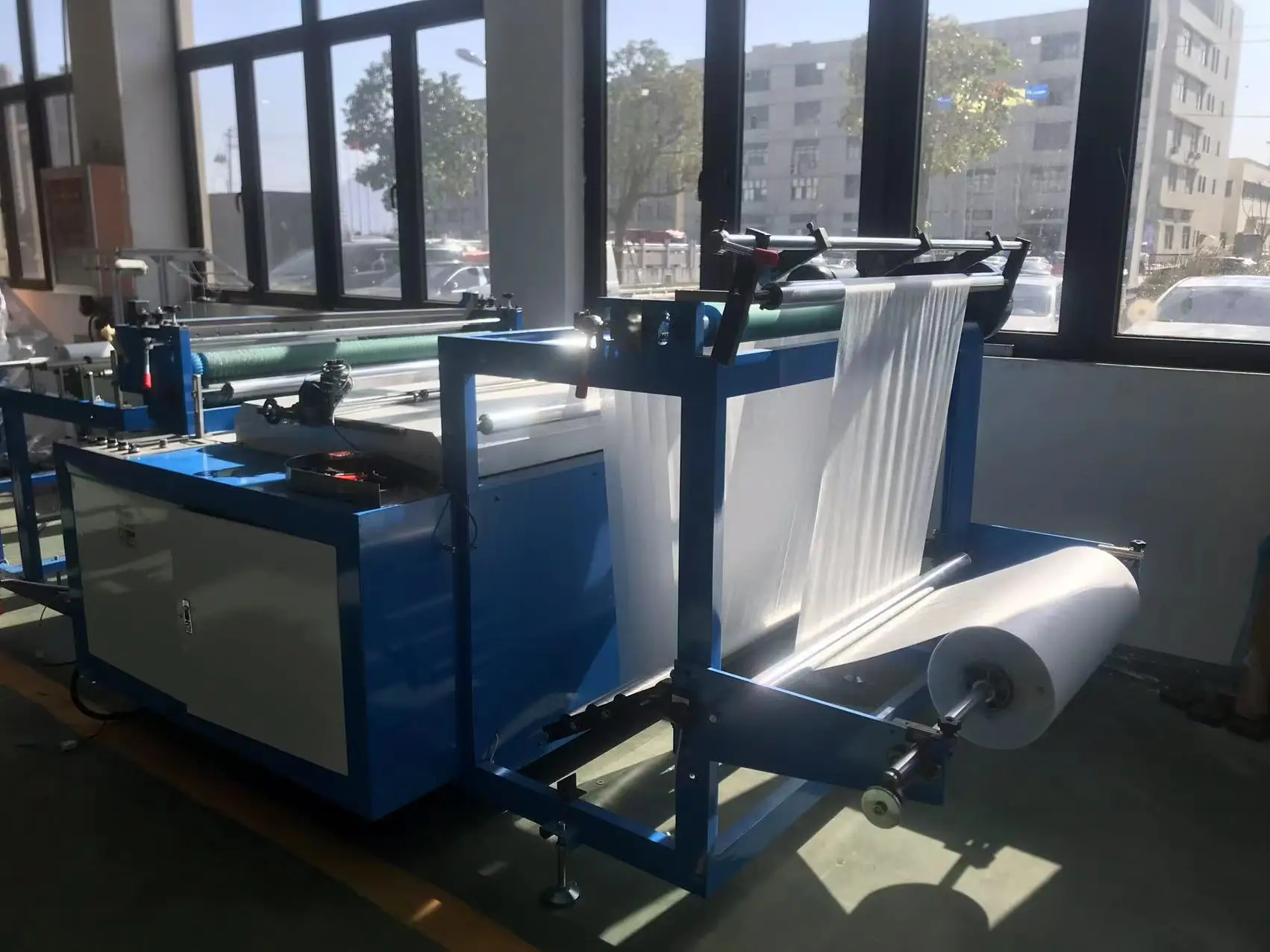

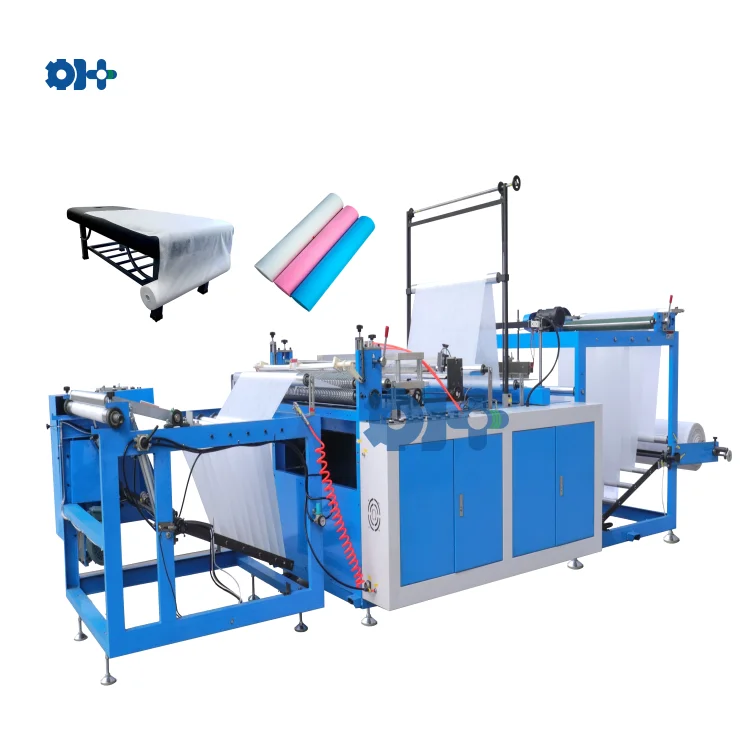

AUTOMATIC BED SHEET ROLLS MAKING MACHINE
1. PLC control system, touch screen man-machine interface operation,easy to operate, humanized design. 2. Through the man-machine
interface to adjust speed, the size of the finished product, and Stacking quantity.
3. Full servo motor drive, air shaft feeding, stable and easy operation.
4. With Chinese and English operator interface.
interface to adjust speed, the size of the finished product, and Stacking quantity.
3. Full servo motor drive, air shaft feeding, stable and easy operation.
4. With Chinese and English operator interface.

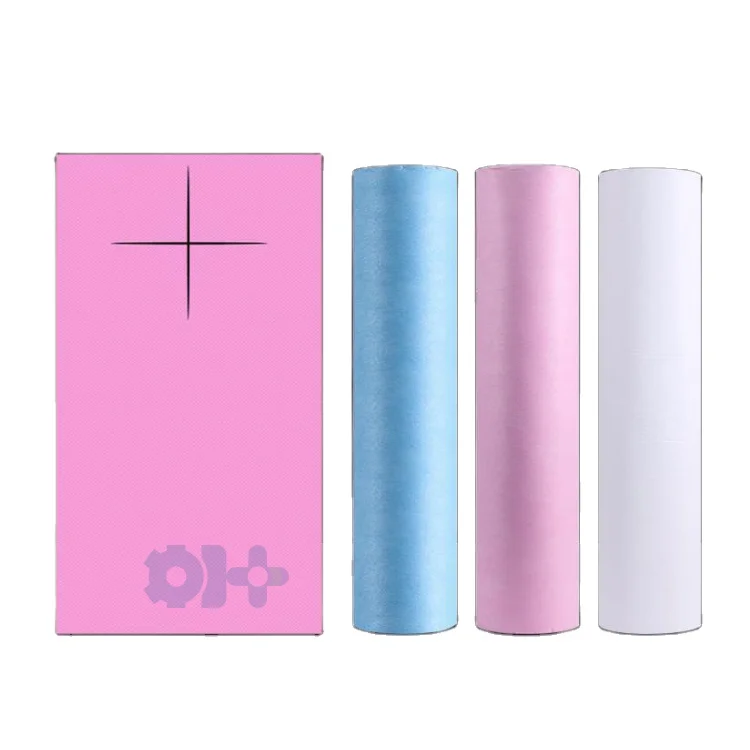

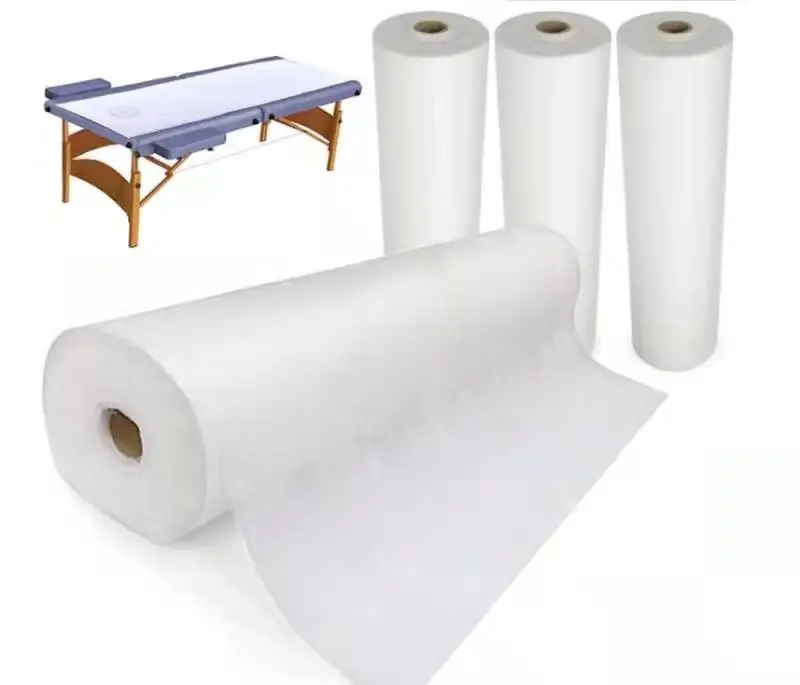

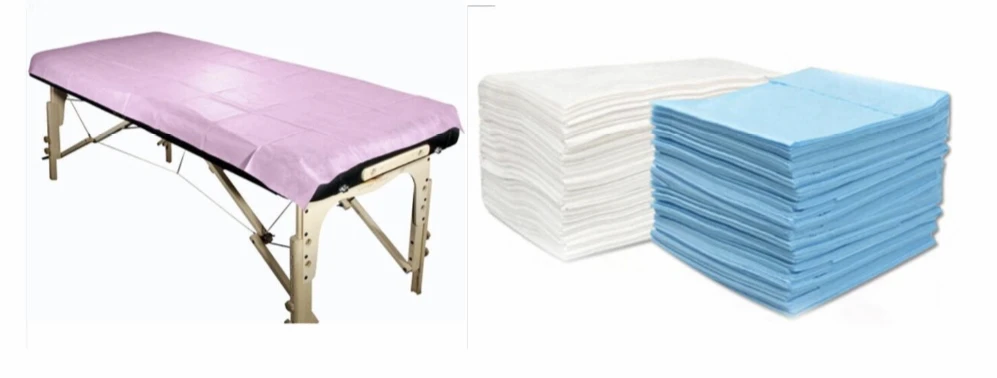

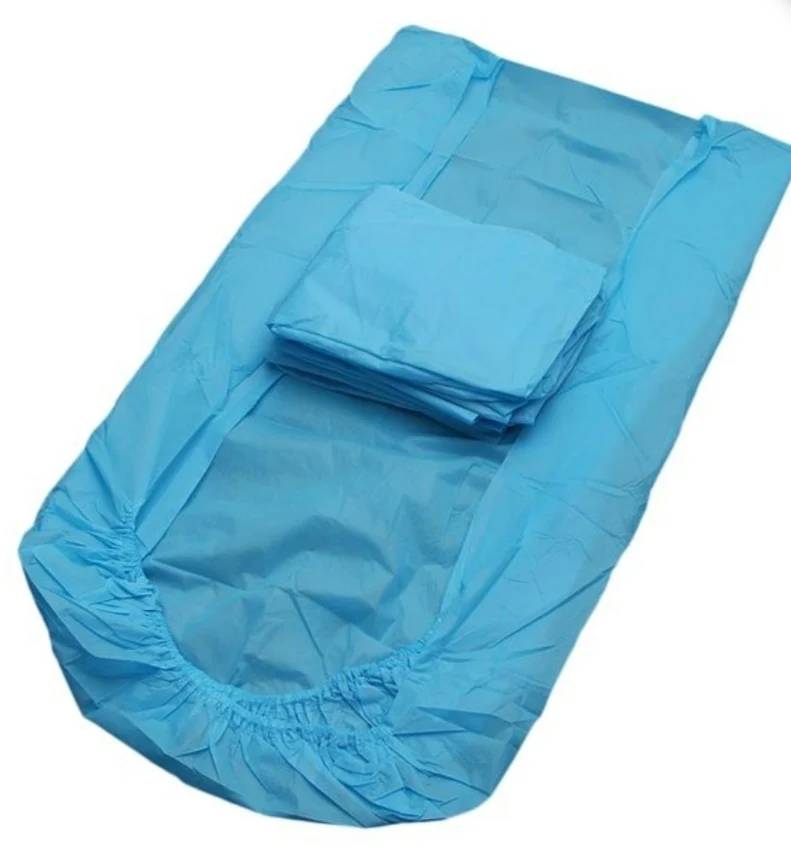

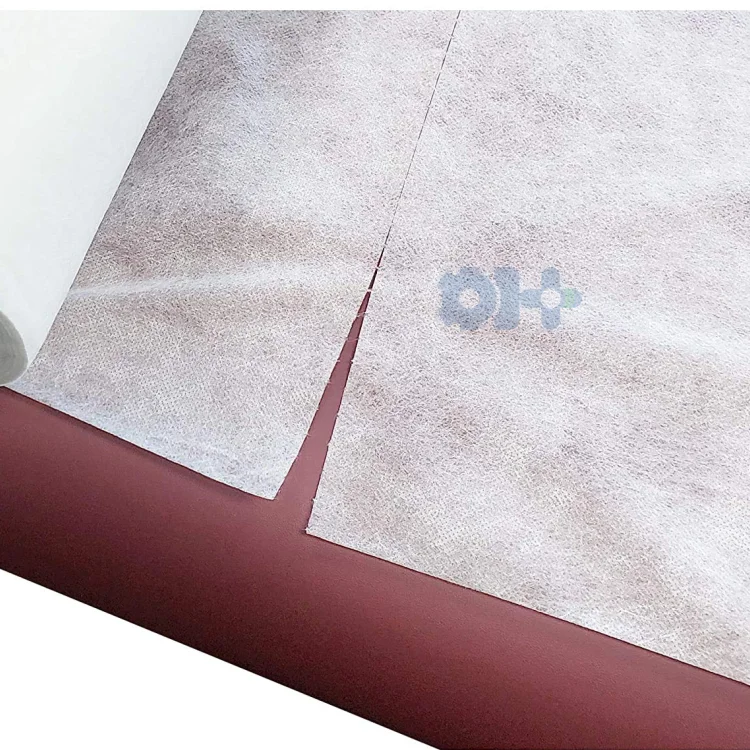

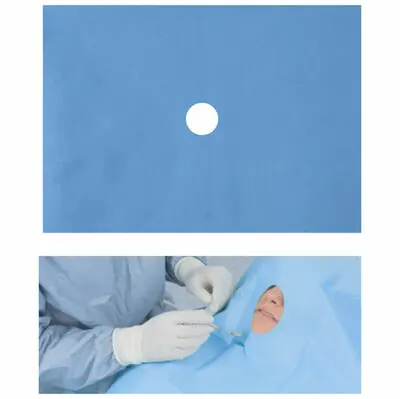

Samples
Specification
Machine Type | DH-C700 |
Machine Speed | 15-30m/min |
Power | 5kw |
Voltage | 220v/50hz |
Machine Size | 4700*1600*1750mm |
Machine Weight | 950kg |

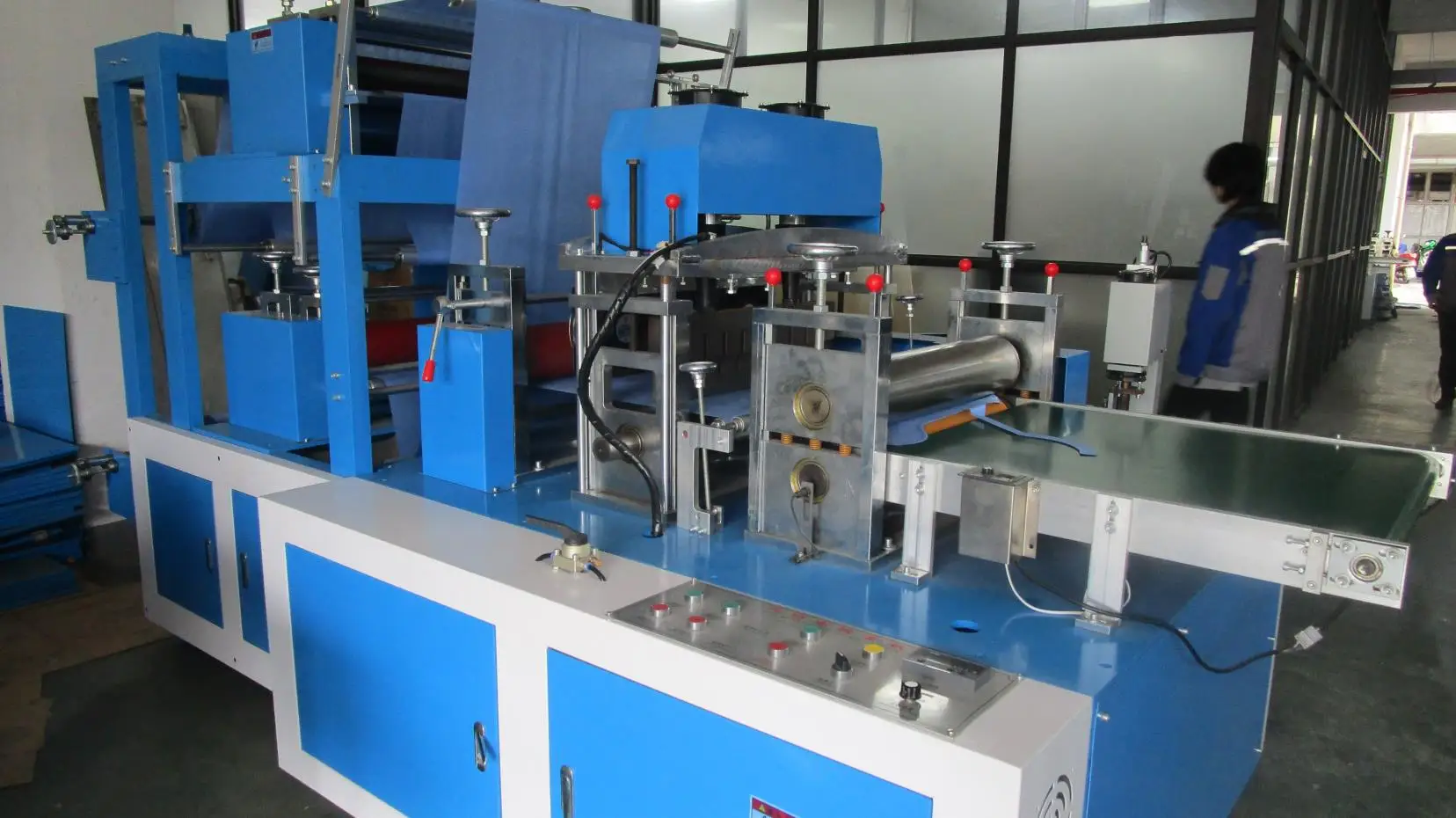

Automatic Bed Sheet Folding Machine
This machine is suitable to produce single piece folded bed sheet.
Specification
Machine Type | DH-C |
Brand Name | deheng |
Voltage | 380v |
Power | 5W |
Dimension(L*W*H) | 9900*2400*2150 |
Weight | 5000KG |
Warranty | 1 Year |
Production Capacity | 1-40m/min MAX 65m/min |
Function | bed sheet folding forming cutting |
Machine Type | Automatic |
Material | non woven fabric composit paper |
Product size | custom made |
Operation:5KG magnetic powder controls the unwinding tension, and a 0.75KW servo motor drives the first set of traction rollers to
feed. The material is folded through the inserting mechanism. The second 0.75KW servo motor drives the second set of traction
rubber rollers to feed through the third
A servo-driven hob cuts the product (the length of the product is independently controlled by the hob and the size is adjustable).
After the product is cut, it is conveyed by 6 groups of conveyors driven by 2KW. During the conveying period, three groups of
0.75KW servo motors drive their respective half-folding mechanisms to fold the product three times in half. After the half-folding
is completed, the product is sent out by a conveyor driven by a 0.12KW speed-regulating motor.
Main Standard material report
NO | Material | Diameter(mm) | Tube Diameter(mm) | Width | Thickness | Weight(kg) |
1 | Non woven | 500-1000 | Φ76.2 | 500-2200 | 20-80gsm | 25-50kg |

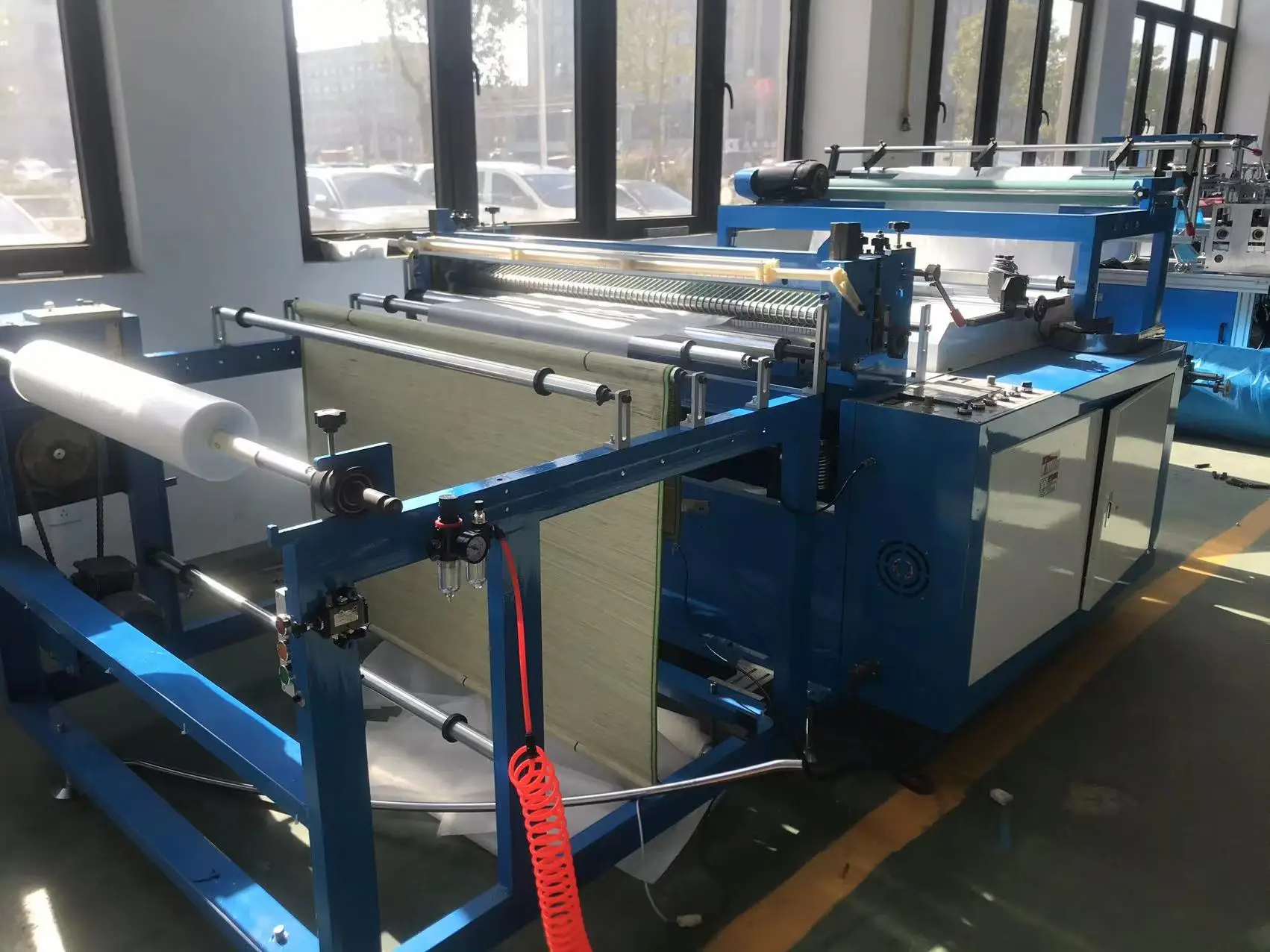

Standard Bed Sheet Folding Forming Cutting Machine

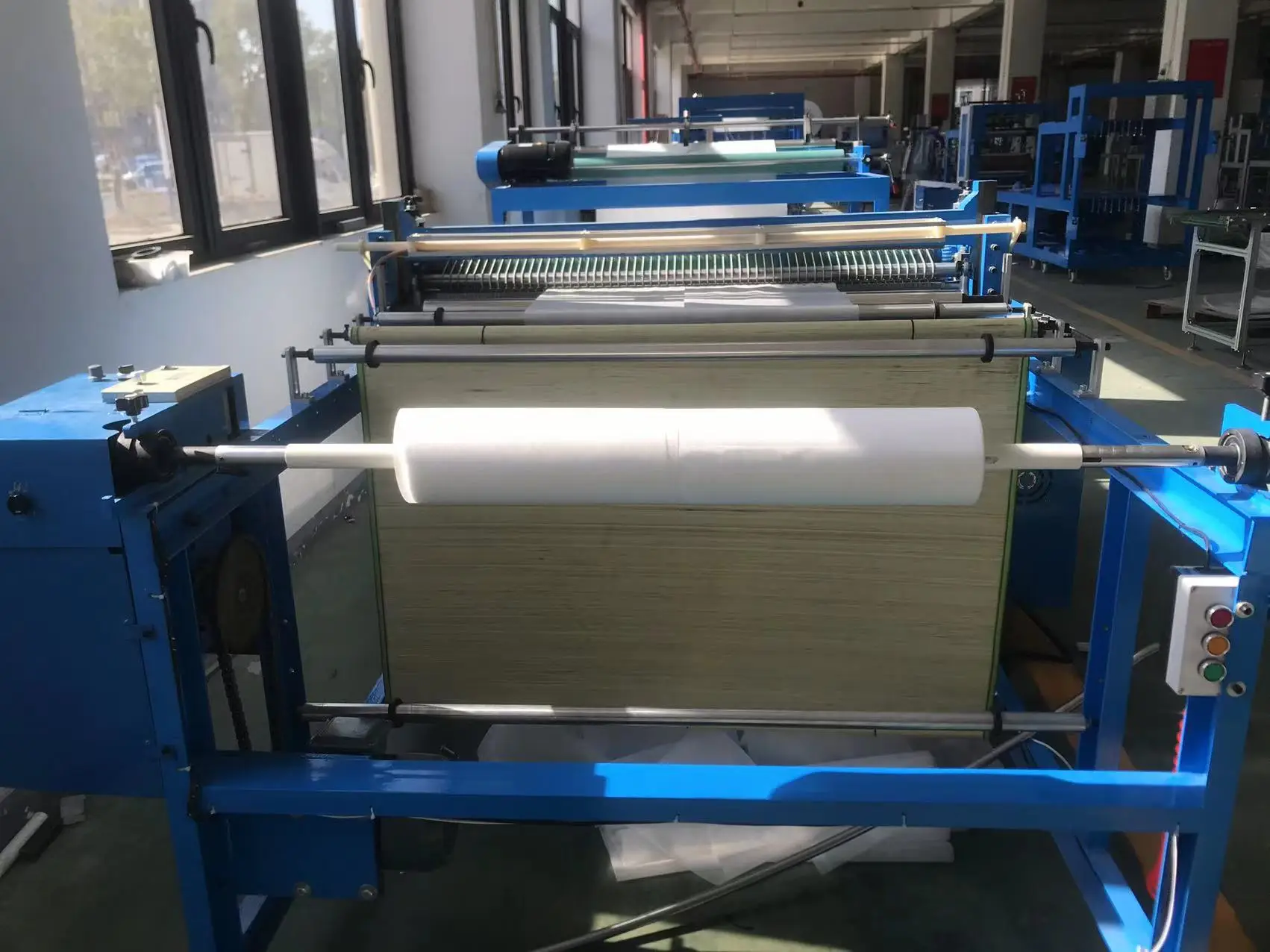

Machine Detail:
STEP 1
Put the non woven raw materials on the feeding rack,feeding rack can be increased or reduced according to customer requirement
STEP 2
This part is side(horizontal) folding ,can be folded in2-16fold,folding way like W
STEP 3
This part is Length (Vertical)fold,can be folded 3-5 fold
STEP 4
The product is sent out by conveyor belt
Sheet can be added with welt or perforated according to customer's request
Sheet can be added with welt or perforated according to customer's request

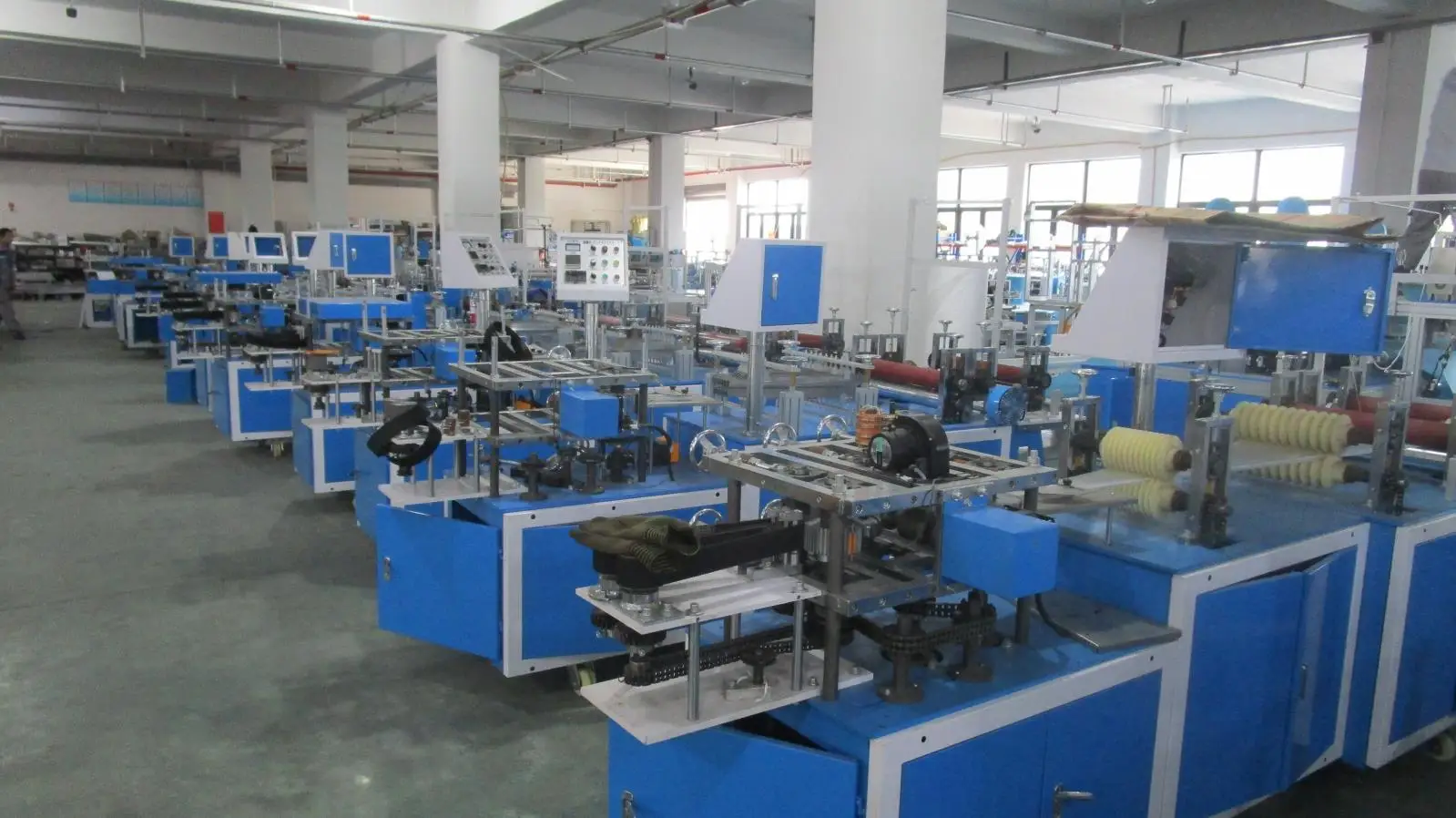

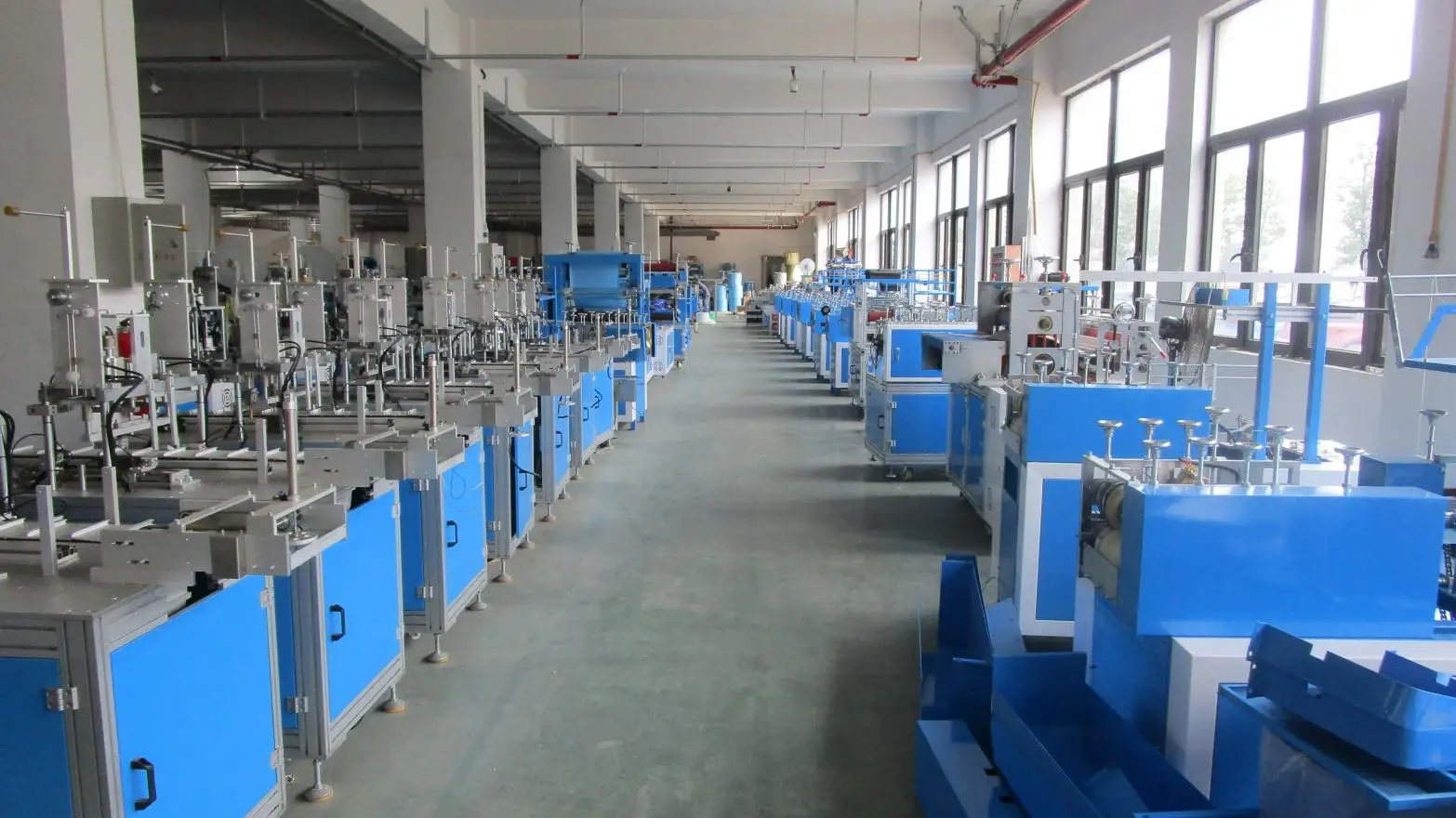

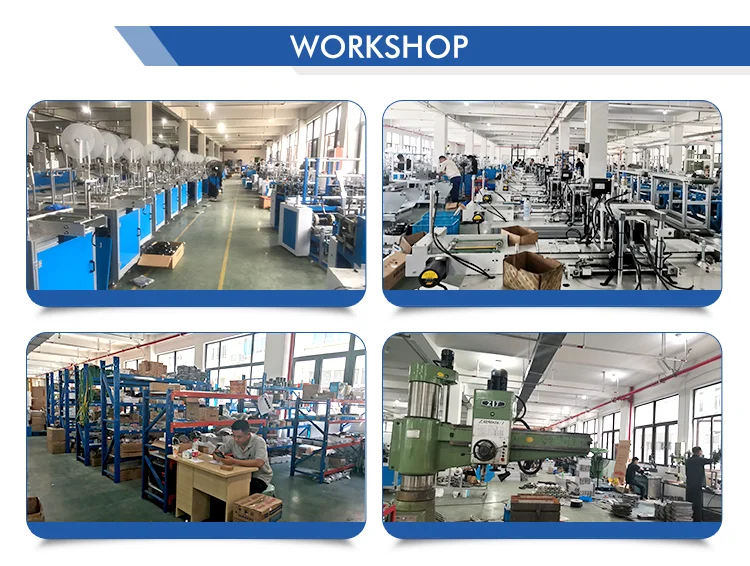

Company Profile
