Цифровой Орел YFT-CZ70 Дрон VTOL с неподвижным крылом Drone круиз скорость
- Категории: Aircraft >>>
- Поставщик: Jiangsu,Digital,Eagle,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification

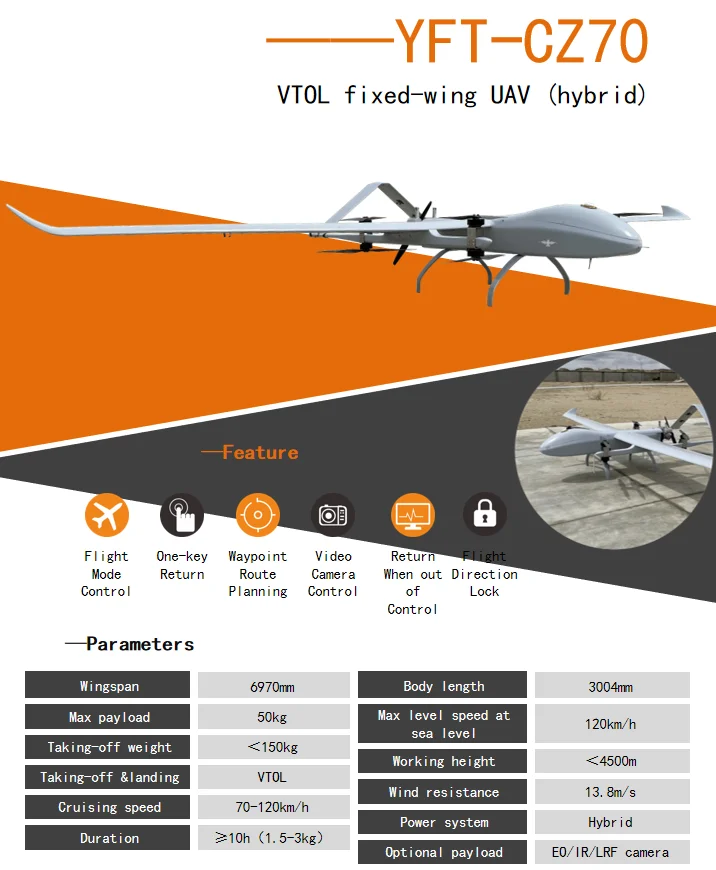

VTOL Fixed Wing Drone YFT-CZ70 | ||||||
Wingspan | 6970mm | Max climb rate | 5m/s | |||
Max payload | 50kg | Max level speed st sea level | 120km/h | |||
Taking-off weight | ＜150kg | Max working height | 4500m | |||
Taking-off & landing | VTOL (vertical) | Wind resistance | 20.8m/s | |||
Cruising speed | 70-120km/h | Power system | hybrid | |||
Duration | 10-15h | Optional payload | POD/PTZ camera | |||
Usage | Surveillance, Monitor, Patrol, Border defense, Inspection, Mapping, Forest fire prevention, Public security, Survey | |||||
1. High-strength carbon fiber composite process technology, adapt to the operation condition in high and low temperature.
2. Aerodynamic design and smooth surface ensure a low air resistance, make the flight stable, reliable and safe.
3. Modular design, fast assembly and disassembly, portable transport.
4. Highly advanced aerodynamic design and performance, effectively increases the endurance flight time.
5. Vertical takeoff and landing, Not subject to site constraints, not require the track. The flyer can operate the drone at anywhere and under extreme terrains.
6. Fully autonomously flight controlled through the professional flight control and GCS system.
5. Vertical takeoff and landing, Not subject to site constraints, not require the track. The flyer can operate the drone at anywhere and under extreme terrains.
6. Fully autonomously flight controlled through the professional flight control and GCS system.
Details Images

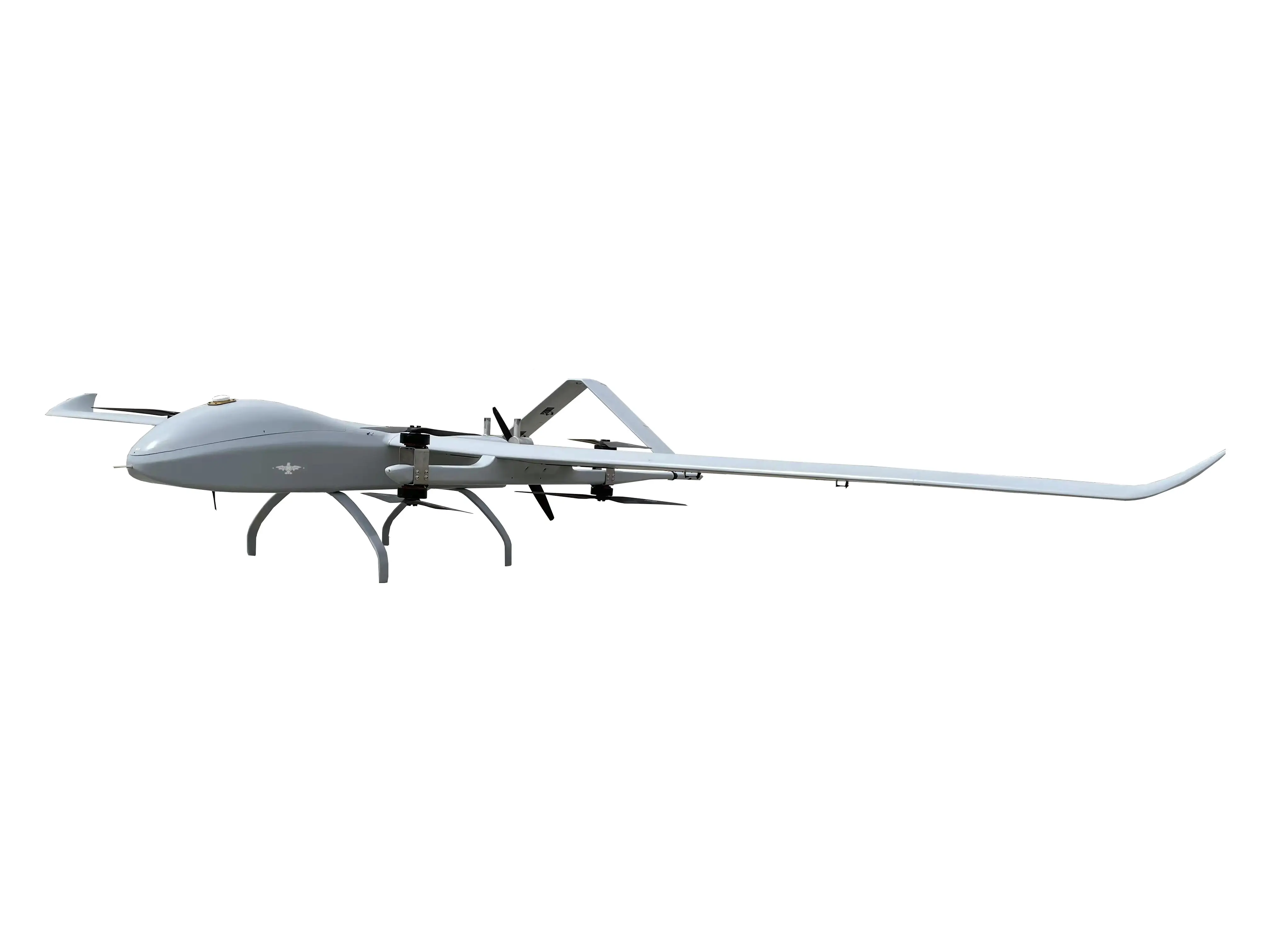

The vertical take-off and landing(VTOL) fixed wing drone adopts a composite aerodynamic layout of four-rotors and fixed wings, combines the advantages of VTOL of the four-rotors models and the long range of the fixed-wing models. So that the drone can adapt to various complex take-off and landing conditions and own excellent duration.

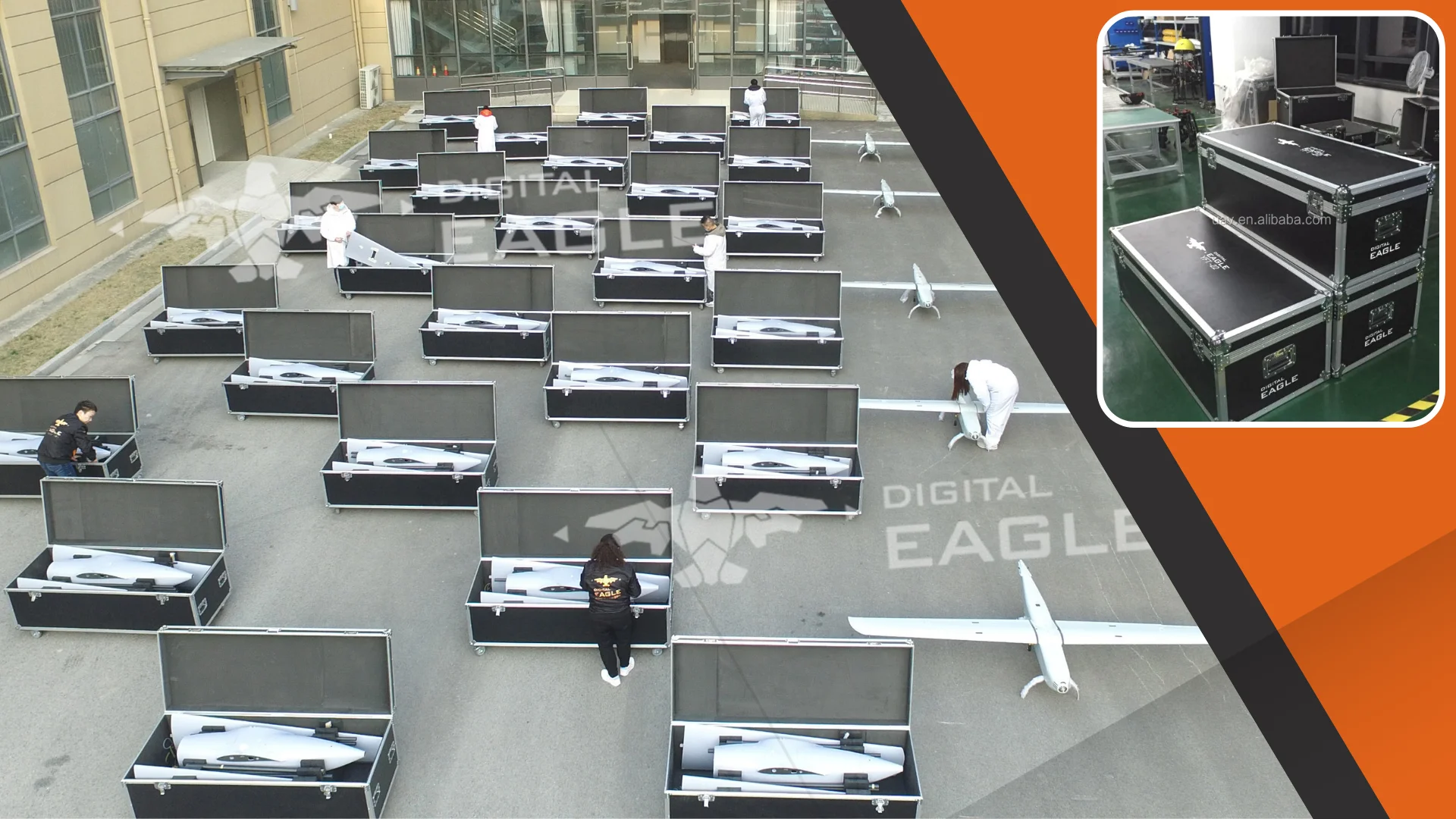

Product packaging
Related Products
CZ33 | CZ35 | CZ45 | CZ55 | |
Power | battery | hybrid | hybrid | hybrid |
Wingspan | 3300mm | 3600mm | 4500mm | 5323mm |
Max payload | 3kg | 4kg | 20kg | 30kg |
Cruising speed | 70-100km/h | 70-100km/h | 70-120km/h | 70-120km/h |
Duration | 2h-2.5h | 4h | 6-8h | 8-9h |
Max climb rate | 5m/s | 70-100km/h | 70-120km/h | 70-120km/h |
Max working height | 4000m | 4000m | 4000m | 4500m |
Wind resistance | 8-13.8m/s | 8-13.8m/s | 8-13.8m/s | 8-13.8m/s |
