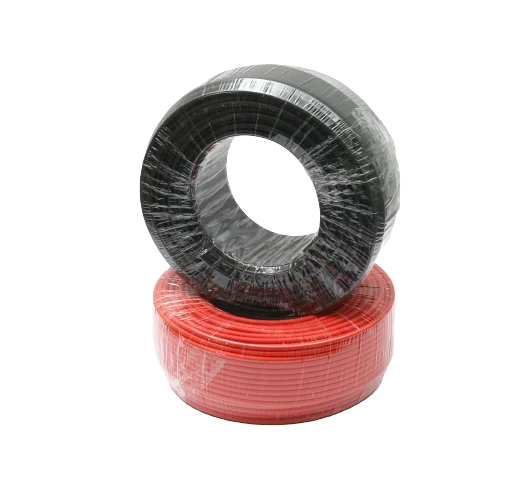

Product Description




Specification


item
value
Place of Origin
China
Brand Name
ZOII
Model Number
ZYPVSC series
Insulation Material
PVC
Type
LOW VOLTAGE
Application
EPC,Photovoltaic power station,connector,inverter,combiner box
Conductor Material
Copper
Jacket
PVC
Conductor Material
Tinned copper
Voltage
1500 V DC
Application
PV Systems connector
Executive Standards
EN50618/IEC62930
Temperature Range
-40°C~+125°C
nsulation Material
XLPE
Packing
100M/roll,500M/wooden or iron drum
Nominal cross-section
1.5~35mm2
Conductor material
99.99% pure copper wire or tinned copper
Certificate
TUV/CE


7 Advantage
99.9% High-purity Oxygen-free Copper
High quality tin-plated copper, high purity, anti-aging, high Electrical conductivity, low loss, strong current carrying capacity,
High corrosion resistance, and can adapt to the outdoor harsh Environment.
Low Eccentricity
Thickness uniformity, effectively prevent the current breakdown Fire, to ensure safety.
Double Protection
The solar photovoltaic cable adopts insulation and Jacket double Protection structure to extend the service life of the cable
High-performance Polymer Materials
Insulating and jacket all use environmentally friendly low-smoke Halogen-free flame-retardant cross-linked polyolefin materials,
With wear-resistant, high temperature, oil, ozone, UV, high flame Retardant properties.
Strong Flexibility
Cable has a pressure, bending, strong toughness.
Long Service Life
Normal outdoor use, service life> 25 years
Advanced Equipment
The company has advanced foreign production, scientific research Equipment, passed the ISO9001-2015 quality management System
certification.

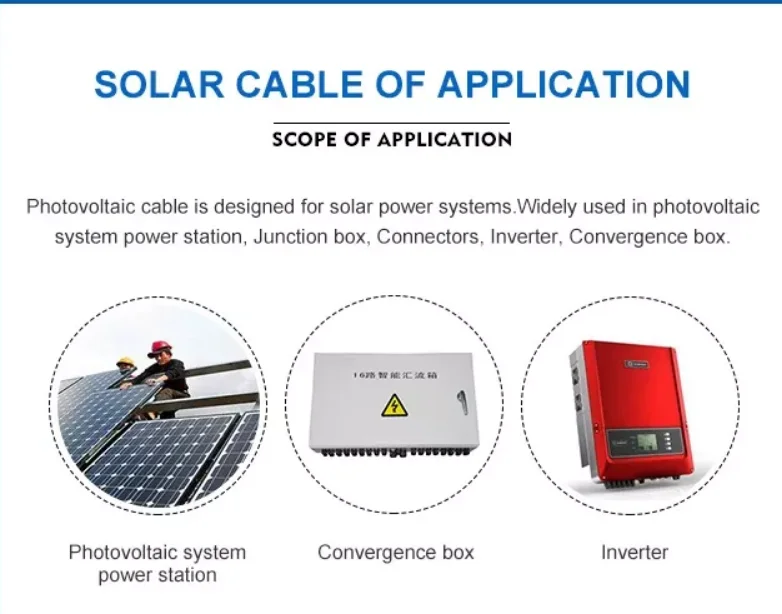

Application




Certifications

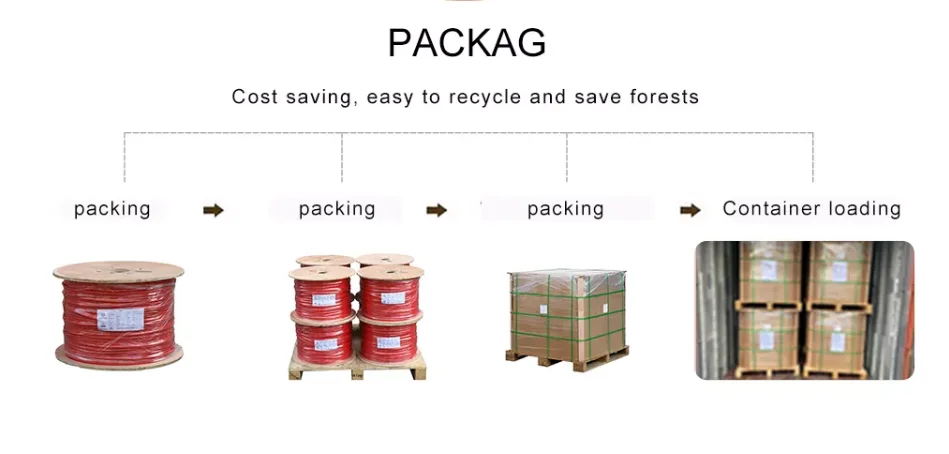

Packing & Delivery

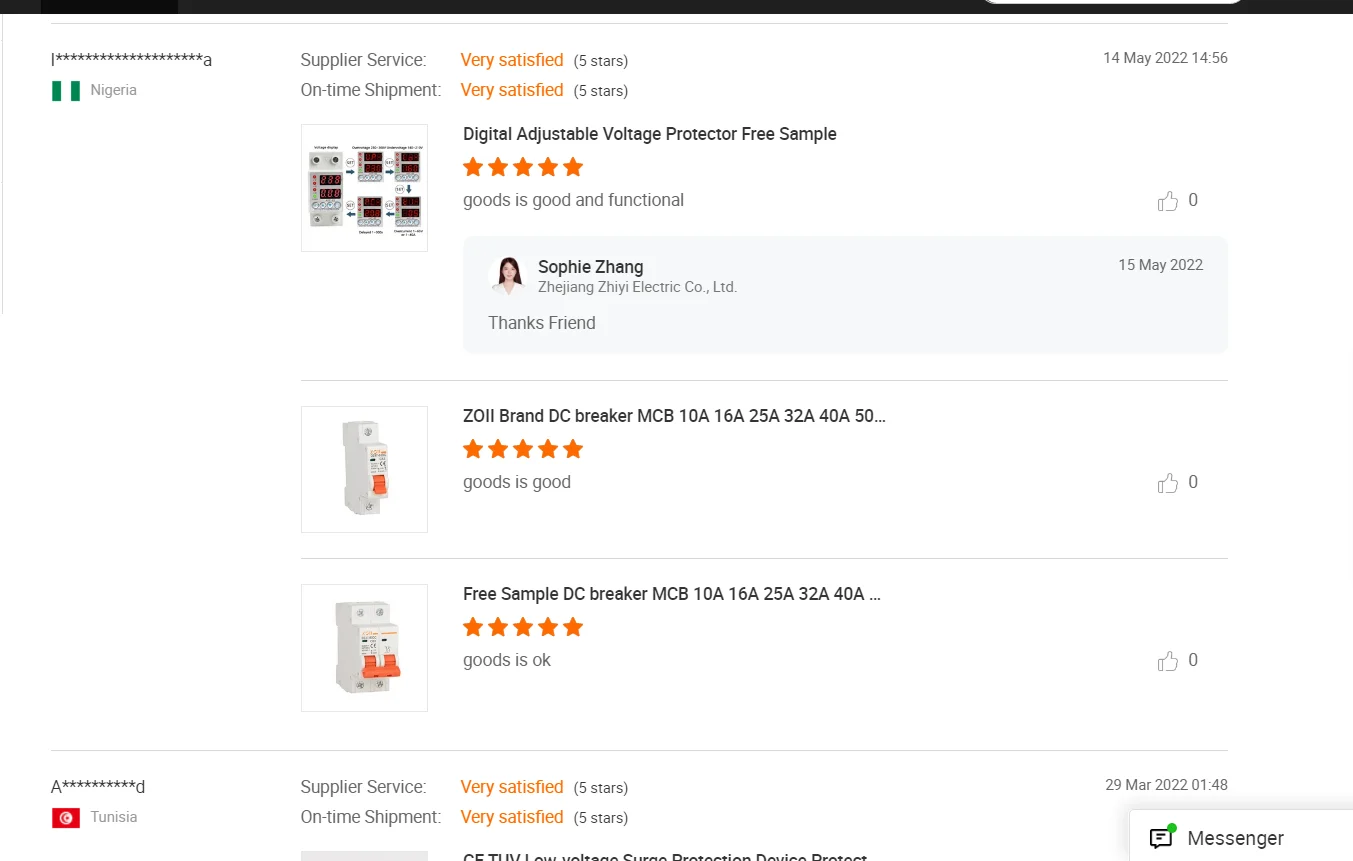

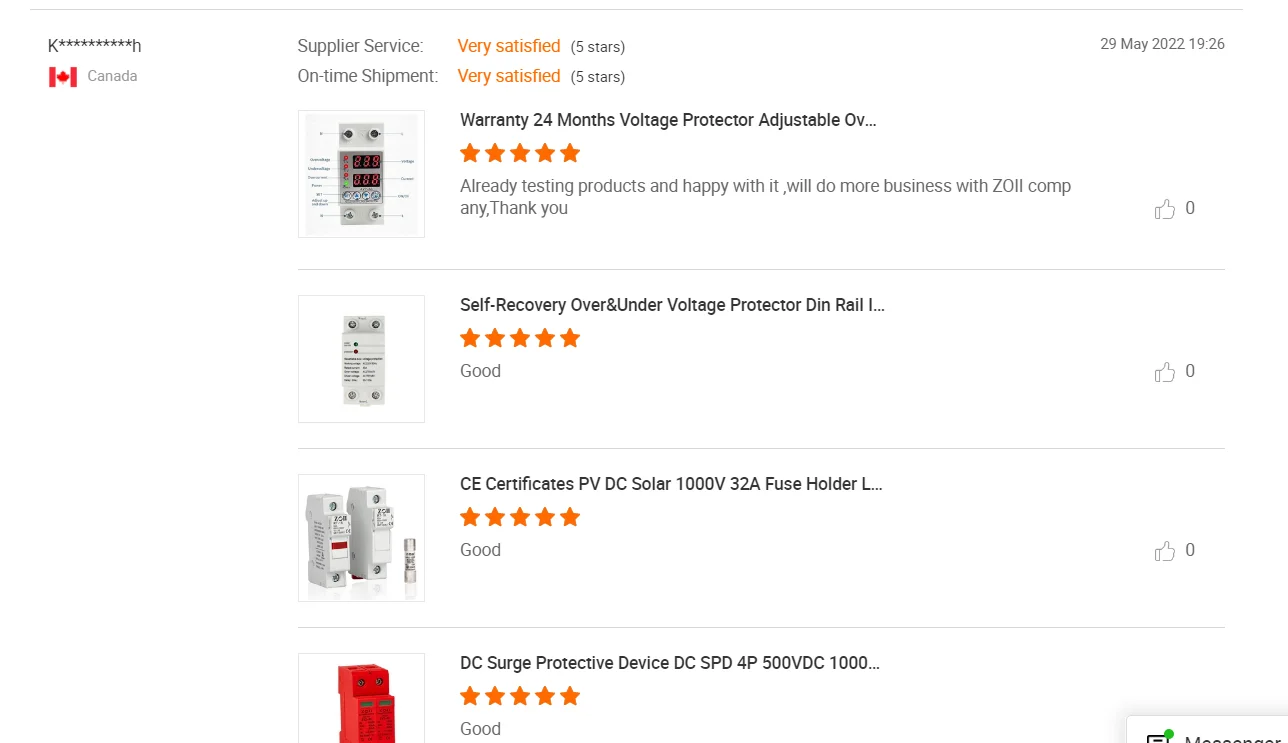

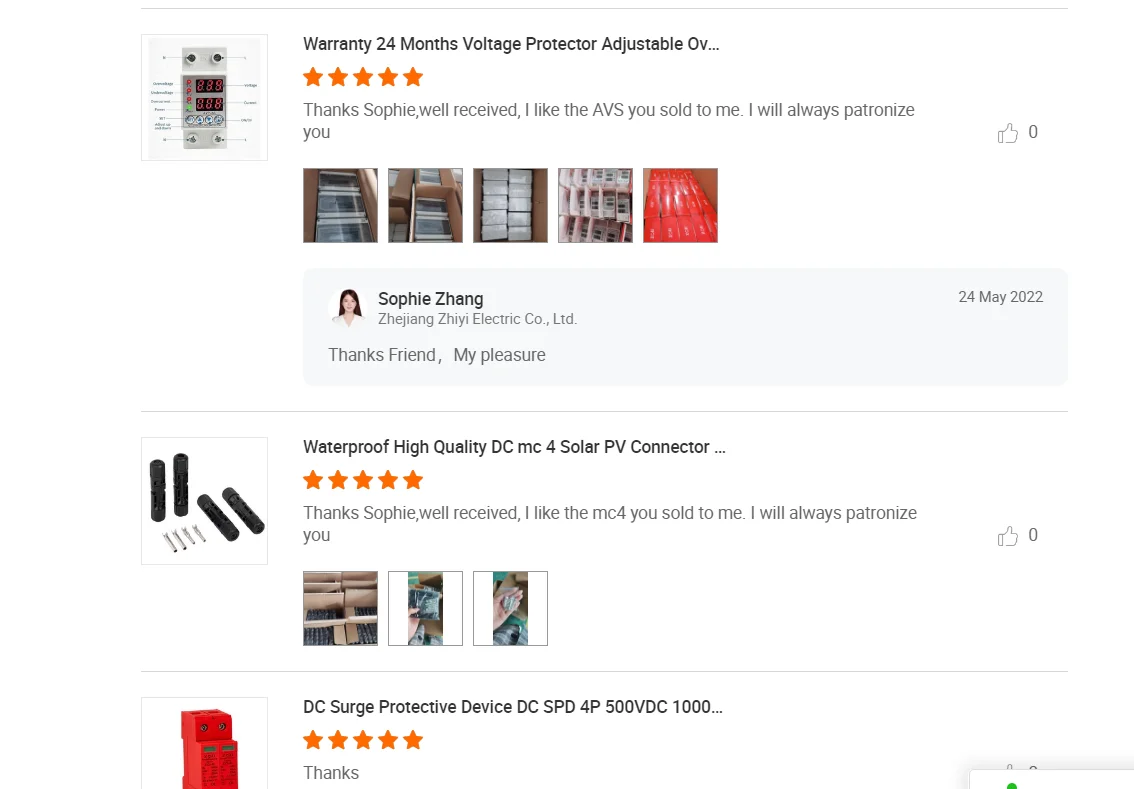

Feedback from Customers








FAQ


1. who are we?
We are based in Zhejiang, China, start from 2012,sell to Mid East(30.00%),Africa(25.00%),Eastern Asia(10.00%),South Asia(10.00%),South America(10.00%),Eastern Europe(10.00%),North America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
AC & DC Surge Protective Device,Adjustable Voltage Protector,AC & DC Mini Circuit Breaker,soalr connector,DC Fuse,solar cable.

4. why should you buy from us not from other suppliers?
Zhejiang Zhiyi Electric Co.,Ltd(ZOII) build in 2012 ,We have more than 10 year experience development and production of Solar Power system accessories ,such as DC SPD,DC MCB,DC MCCB,DC FUSE,PV combiner box,Solar cable and so on.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
