Product Description
Power System
The installed Cummins electronic control engine conforms to China-III/EU StageⅢA emission regulation and features stronger power and higher energy-saving and environmental friendliness. The fuel system with three-stage filter guarantees good adaptability to low-quality diesel in Southeast Asian markets.
Shantui’s hydrostatic drive optimization technology is applied to achieve maximum working efficiency and most reasonable fuel economy:
Control system
The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and reliability.
The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten the downtime.
The service software with distinct access hierarchy features high simpleness and practicability and easy learning and understanding.
| Parameter name | DH10-C2 XL (Extended version) | DH10-C2 LGP(Super-wetland version) |
| Performance parameters | ||
| Operating weight (Kg) | 9680kg/21341lb (With traction frame) | 10140kg/22355lb (With traction frame) |
| Ground pressure (kPa) | 44.4 | 34 |
| Engine | ||
| Engine model | QSF3.8 | QSF3.8 |
| Rated power/rated speed (kW/rpm) | 86/2200 | 86/2200 |
| Overall dimensions | ||
| Overall dimensions of machine (mm) | 4442*2860*2885 | 4442*3200*2885 |
| Driving performance | ||
| Forward speed (km/h) | 0~9km/h(5.6mph) | 0~9km/h(5.6mph) |
| Reversing speed (km/h) | 0~9km/h(5.6mph) | 0~9km/h(5.6mph) |
| Chassis System | ||
| Center distance of track (mm) | 1650 | 1790 |
| Width of track shoes (mm) | 460 | 630 |
| Ground length(mm) | 2320 | 2320 |
| Tank capacity | ||
| Fuel tank (L) | 197 | 197 |
| Working device | ||
| Blade type | PAT | PAT |
| Digging depth (mm) | 450 | 450 |
| Ripper type | Three-tooth ripper | Three-tooth ripper |
| Ripping depth (mm) | 340 | 340 |

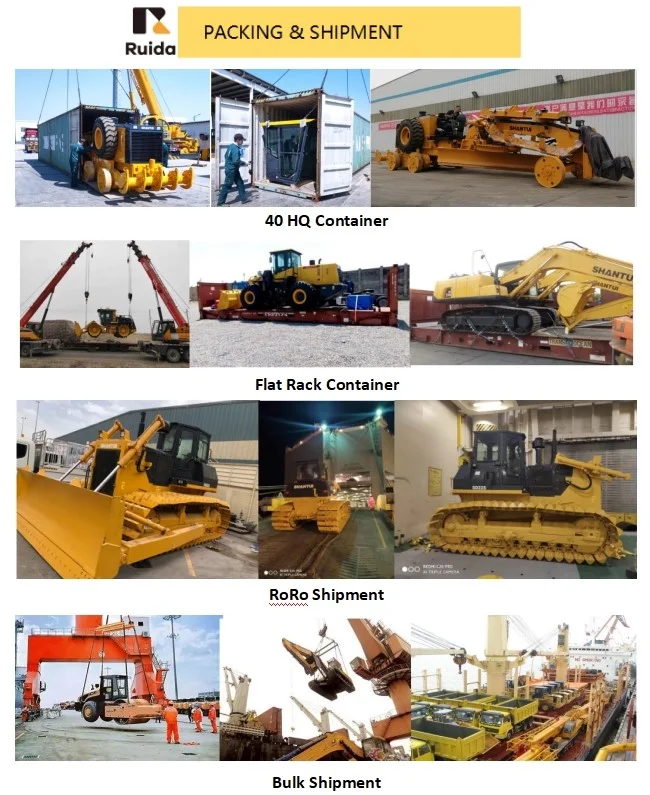

Packing & Shipping
Our Services
FAQ
