Products Description
Solar Cable丨pv 1f cable supplier 4mm2 6mm2 10mm 10km red black sloar cable
Operating characteristics：
Rated voltage:AC 0.6/1kV;DC 1.8kV, AC 1.0/1.0kV;DC 1.5kV.
Operating temperature:—40 ~90℃;
Max.short circuit temperature:+120℃;
Max.conductor temperature:200℃;
Service life shall not be less then 25 years;
Ozone resistant andacid-resistant;
Good insulation resistance;
Good performance of cold bend and cold winding;
Low-smoke;
Environmentally friendly,conforms to RoHS compliant.
For installation, the ambient temperature shall be not less than -20℃.
Bending radius of cable:4D(D:Overall diameter).
Recommend Products
Product Paramenters
Product Name | XLPE insulated XLPE sheathed solar photovoltaic cable |
Model | PV1-F |
Conductor | Class 5 tinned copper conductor |
No. of Cores | 1 |
Conductor Type | stranded |
Insulation | 125℃ cross-linked polyolefin |
Jacket(Sheath) | 125℃ cross-linked polyolefin |
Standards | 2PfG 1169/08.2007 |
DC | 1.8kV |
AC | 0.6/1kV |
Nominal cross-sectional area of conductor(mm²) | 1.5~35(mm²) |
Application | Photovoltaic power generation system |
Colors | Red Black or custom |
Ambient temperature | -40℃ ~+90℃ |
Max. Temperature at conductor | +120 ℃ |
Details Images
Manufacturing Technique
cross sectional area mm2 | (tinned copper) conductor type | Calculated conductor overall diameter(mm) | Calculated cable overall diameter (mm) | Calculated cable weight(kg/km) | Max.DC resistance at 20℃ |
1.5 | 5 | 1.6 | 5.1 | 41 | 13.7 |
2.5 | 5 | 2.0 | 5.5 | 53 | 8.21 |
4 | 5 | 2.6 | 6.2 | 73 | 5.09 |
6 | 5 | 3.2 | 6.8 | 96 | 3.39 |
10 | 5 | 4.2 | 7.9 | 149 | 1.95 |
16 | 5 | 5.5 | 9.2 | 208 | 1.24 |
25 | 5 | 7.2 | 11.2 | 310 | 0.795 |
35 | 5 | 8.2 | 12.2 | 411 | 0.565 |
Company Profile

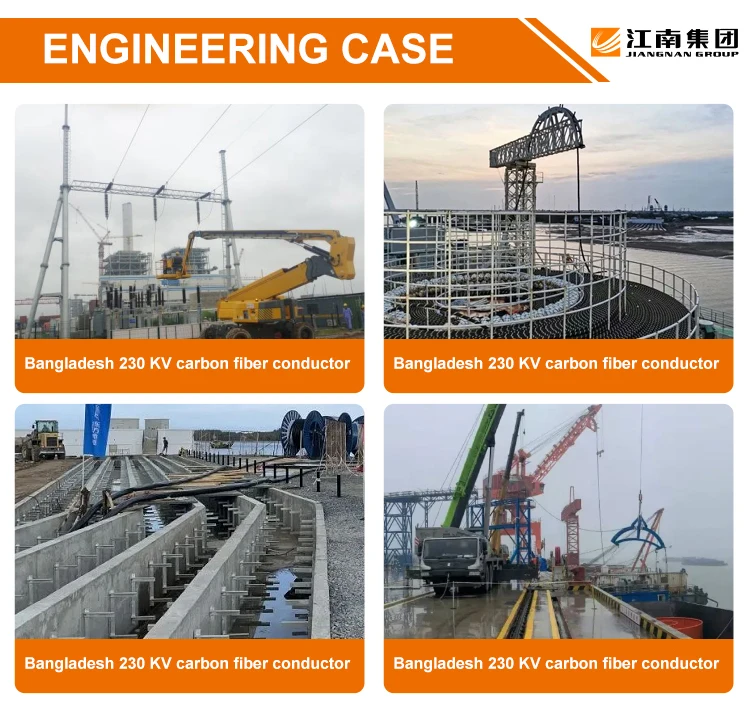

Customer Photos

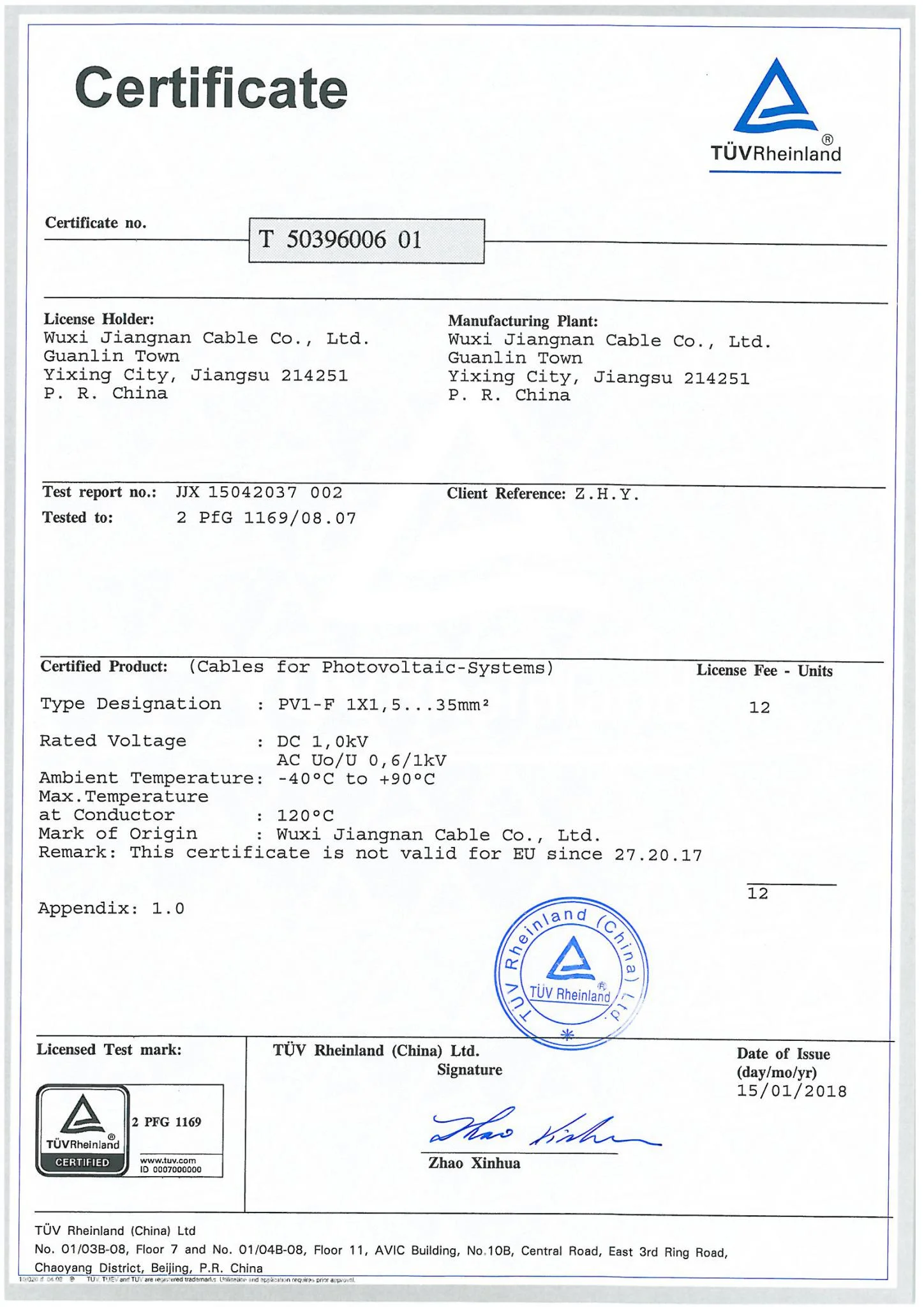

Certifications
