Product Description

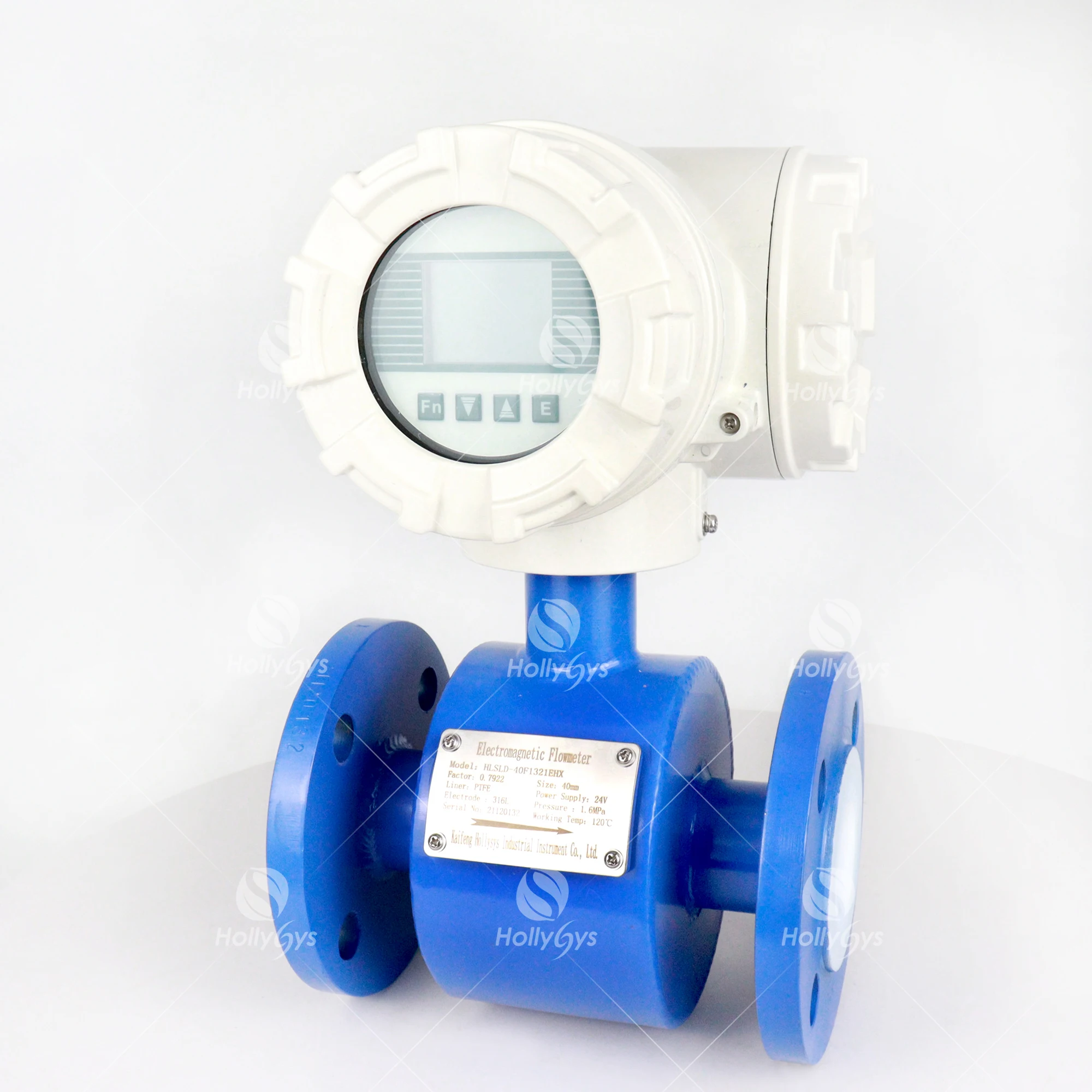

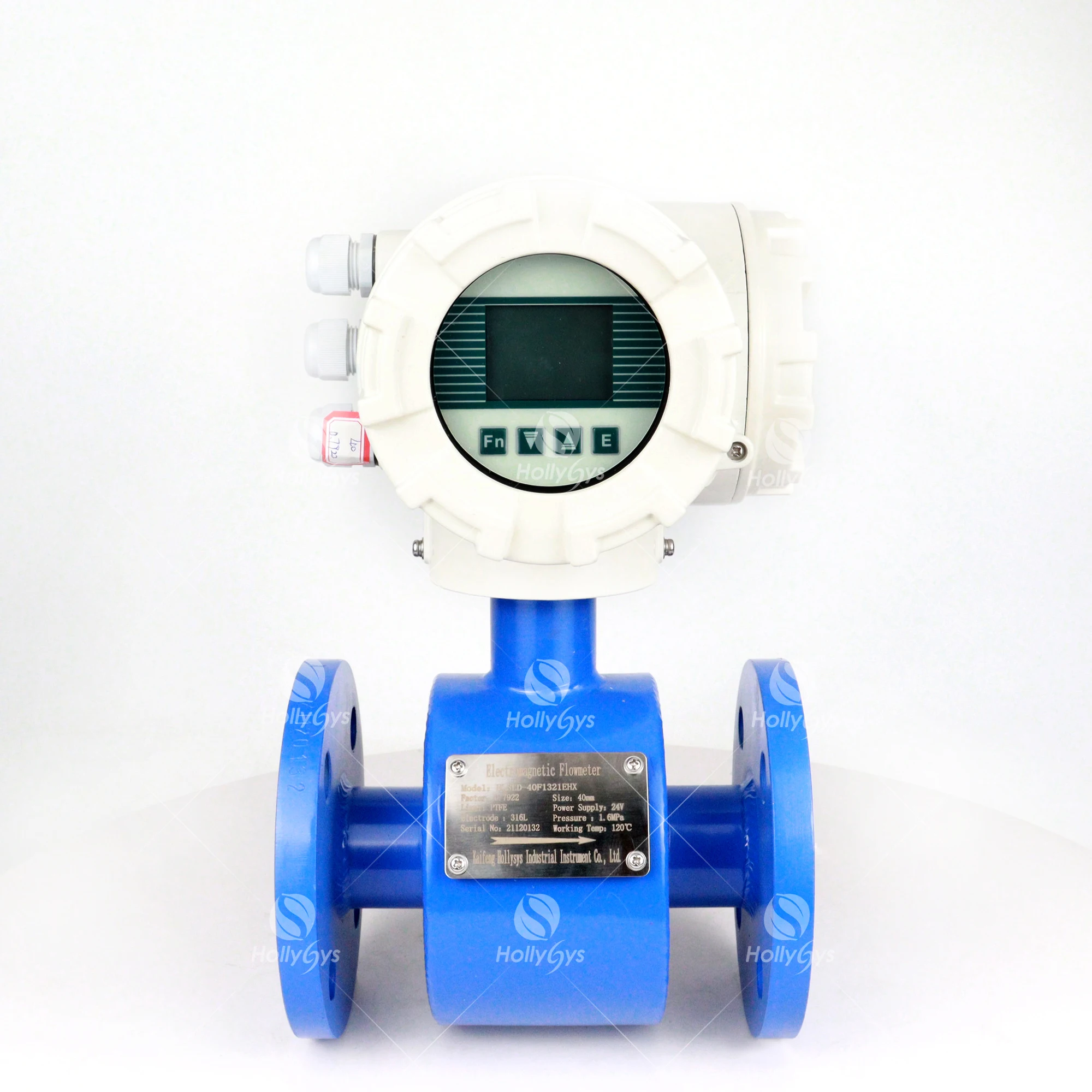

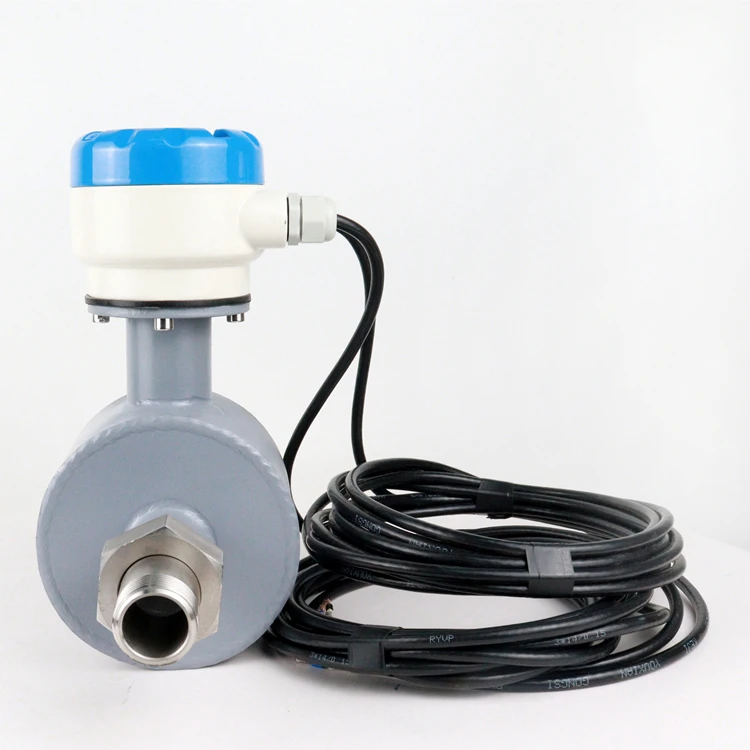

Electromagnetic Flow meter
Variety of power supply methods 220VAC/ 24VDC/battery and signal output using RS485 serial communication interface , and support MODBUS/RTU protocol, GPRS and other way of communications as well as accumulative pulse output.
It is Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,Papermaking, water supply and drainage, food, medicine and other industries.
It is Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,Papermaking, water supply and drainage, food, medicine and other industries.
Electromagnetic flow meter | ||||||
Performance | Technical Parameters | |||||
Nominal diameter | DN3——DN3000mm | |||||
Accuracy | ±0.5% of indicated value, optional ±0.3% or ±0.2% of indicated value | |||||

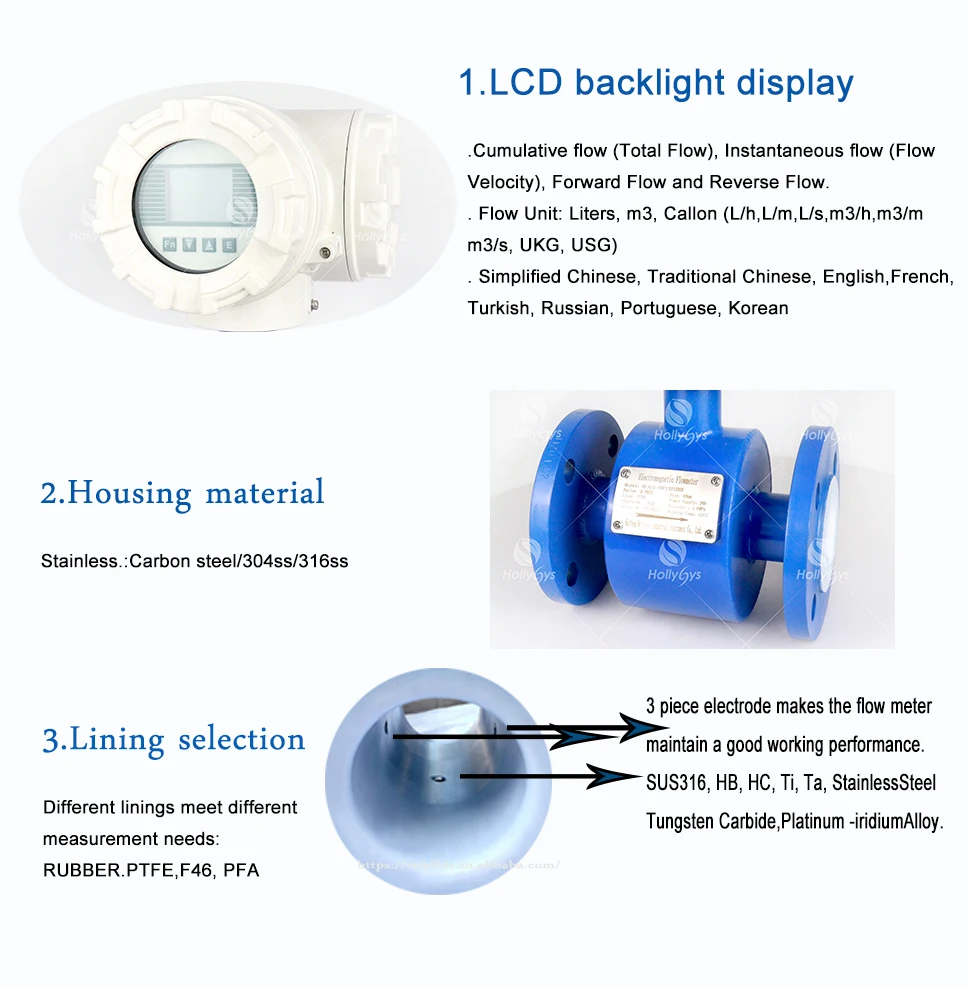

Display | HD LCD, instantaneous flow, cumulative flow, etc | |||||
Language | Chinese, English, Spanish, Russian, etc.; minor languages can be customized. | |||||
Signal output | Pulse; 4~20mA | |||||
Communication | RS485,GPRS,Hart | |||||
Lining material | Polytetrafluoroethylene, PFA, F46, neoprene, polyurethane rubber, high temperature rubber | |||||

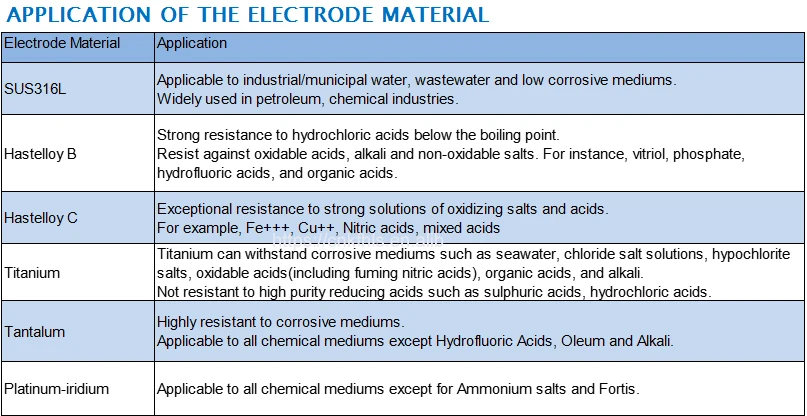

Electrode material | SUS316, Hastelloy B/C, titanium, tantalum, platinum-iridium alloy, stainless steel coated with tungsten carbide | |||||
Electrode form | Standard type, scraper type, replaceable type | |||||

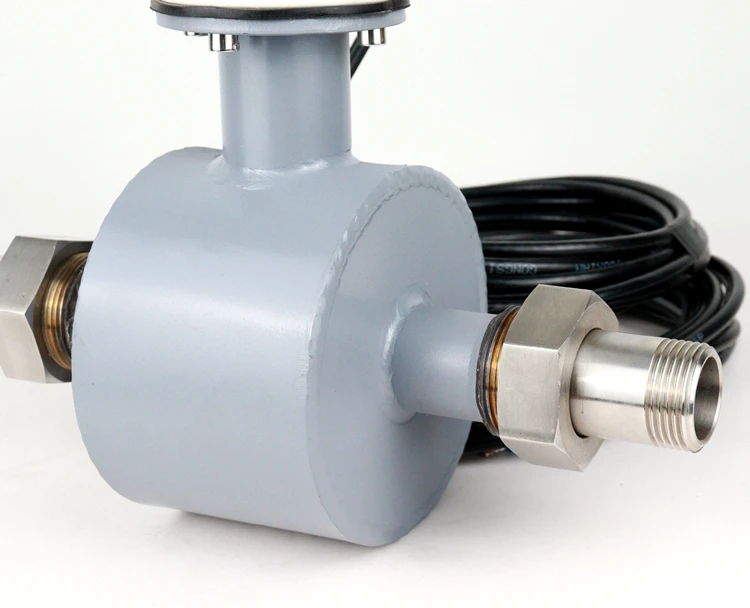

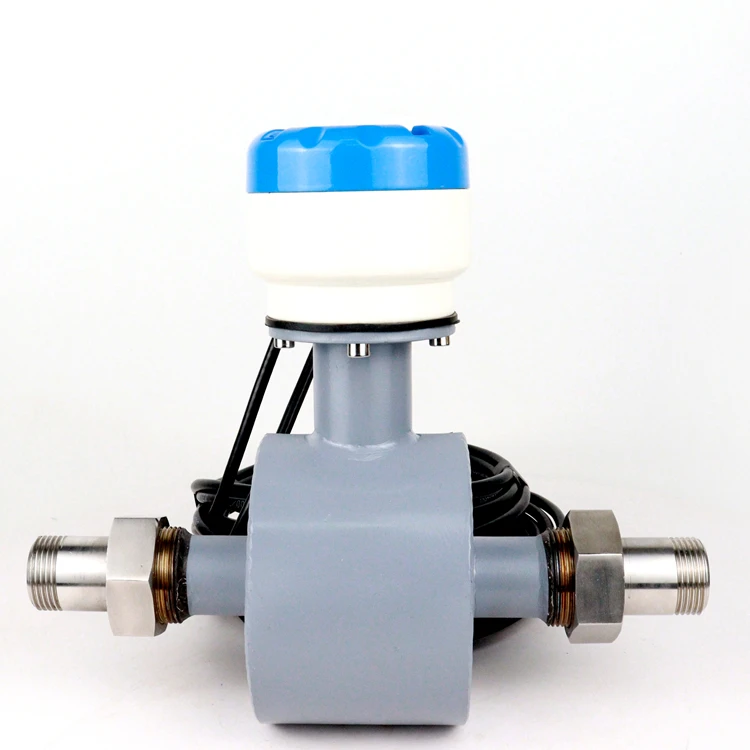

Connection method | Flange connection, plug-in connection, clamp connection, thread connection, flange clamp connection | |||||
Medium temperature | Integrated Split | -20℃～+60℃ | ||||
Neoprene lining, polyurethane lining | -10℃～+80℃ | |||||
PTFE lining, PFA lining, F46 lining | -10℃～+160℃ | |||||
Nominal pressure | 0.6～4.0Mpa (special pressure can be customized) | |||||
Ambient temperature | -25℃～+60℃ | |||||
environment humidity | 5～100%RH (relative humidity) | |||||
Dielectric conductivity | ≥20μs/cm | |||||
Measuring range | 1500: 1 Flow velocity setting <15m/s | |||||
structure type | Integrated type, split type, immersion type, explosion-proof type | |||||
Protection level | IP65, IP68 optional | |||||
Explosion-proof mark | ExmdIIT 6 | |||||
Other Lining material: | ||||
Lining material | Main Performance | Applications | ||
PTFE | 1.The most steady material in plastics which is resistibal to boiling hydrochloric acid,vitriolandqua fortis as well as strong alkali and organic impregnates. | Strong corrosive mediums such as strong acid and alkali | ||
2.Not be perfect in abrasion resistance. | ||||
PFA | Having the same abrasion resistance with PTFE. | Applicable in state of load pressure | ||
Having strong ability of load pressure resistance. | ||||
Neoprene | 1.Be of good elasticity,retractility and abrasion resistance. | Water,sewage and slurry,mineral | ||
2.Be resistant to .low aicd,alkali and salt but not for oxidation mediums | ||||
Polyurethane | 1.Be of good abrasion resistibility. | Applicable in mineral serosity,slurry | ||
2.Not be perfect in acid/alkali resisitance. | ||||
3.Can't be used for water mixed with organic impregnants | ||||
relational production
Contact US
Company Introduction
After Sales Service.
We promise to deliver the following after-sales service:
1.Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to
manufacturing quality;
manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at
our discretion based on actual charges incurred such as travel expense;
our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not
arising from manufacturing quality issues or meter damages not within the scope of warranty.
arising from manufacturing quality issues or meter damages not within the scope of warranty.
Supplier's popular products
Click to contact us
packaging&shipping
FAQ
Q1: Can you accept OEM service ?
A:We professional provide OEM service for electromagnetic flow meter.
Q2: Could I get samples?
A:Yes,we can arrange production and delivery as soon as possible to help you get the sample.
Q3:How about the quality of themagnetic flow meter?
A:Every magnetic flow meter is five-pionted calibrated in flow meter calibration equipment,we'd provide factory certification test to you.
Q4: Could you provide me the shortest lead time?
A:Generally delivery is 2-3 working days after received payment,if urgently required,we will try our best to satisfy you.
Q5: Could I visit your factory?
A:Welcome to visit us,we will guide your visit in our factory.
Q6:What is your MOQ?
A:To start our cooperation, sample order is acceptable.
