Product Description
Industrial toothpick production machine automatic toothpicks product line machine big capacity toothpick making machines

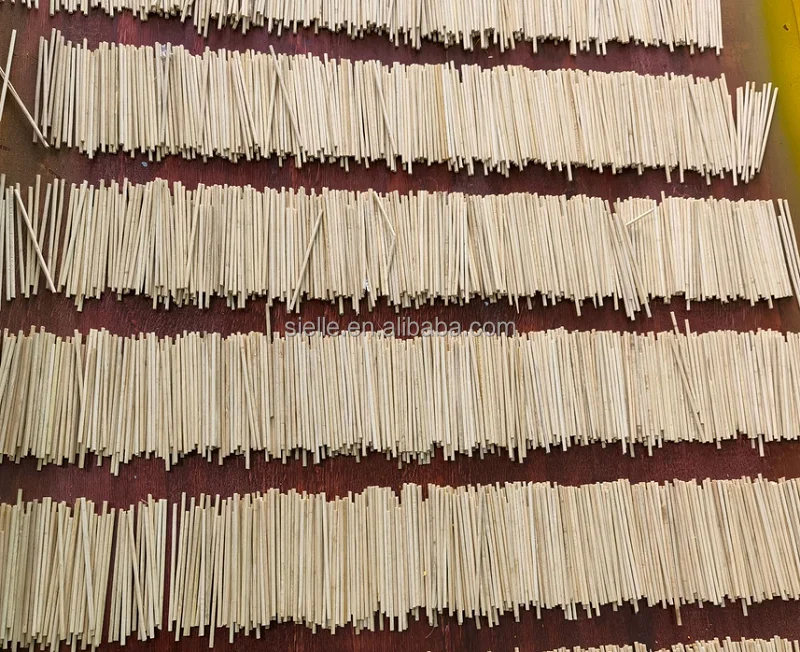

Process: original bamboo, saw cut, cut bamboo strips, knotting and widening opening, forming, bleaching, drying, cutting, fixed length, polishing, finishing sharpening, packaging and delivery.

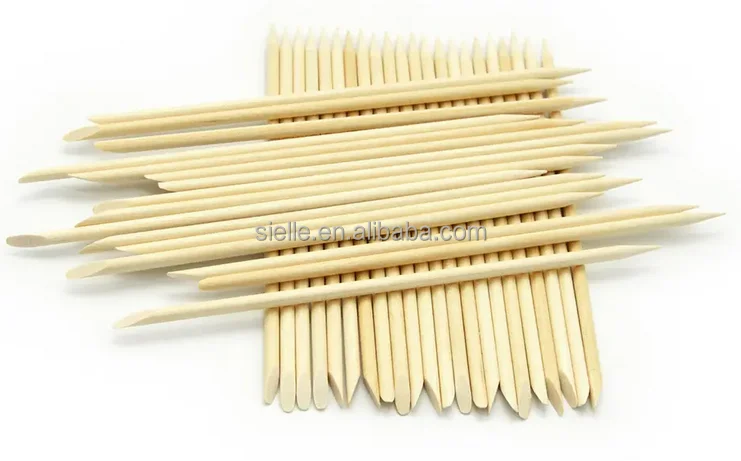

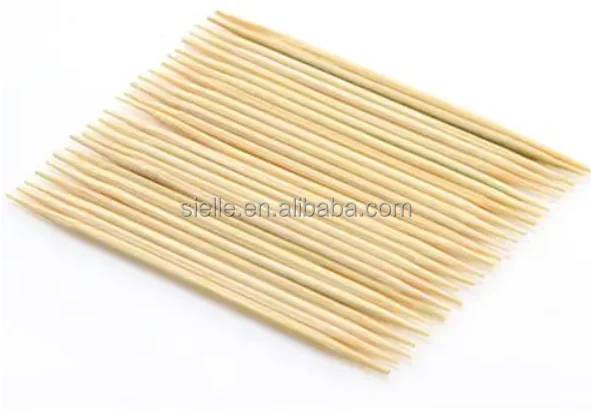

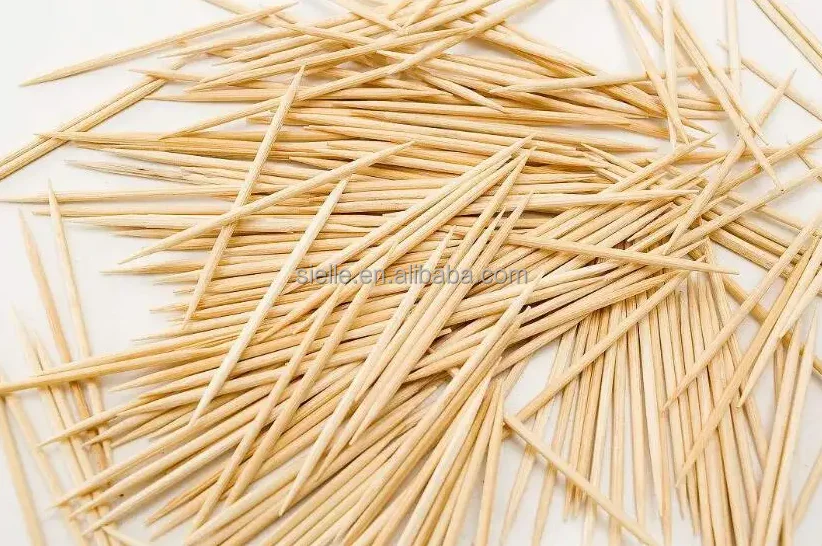

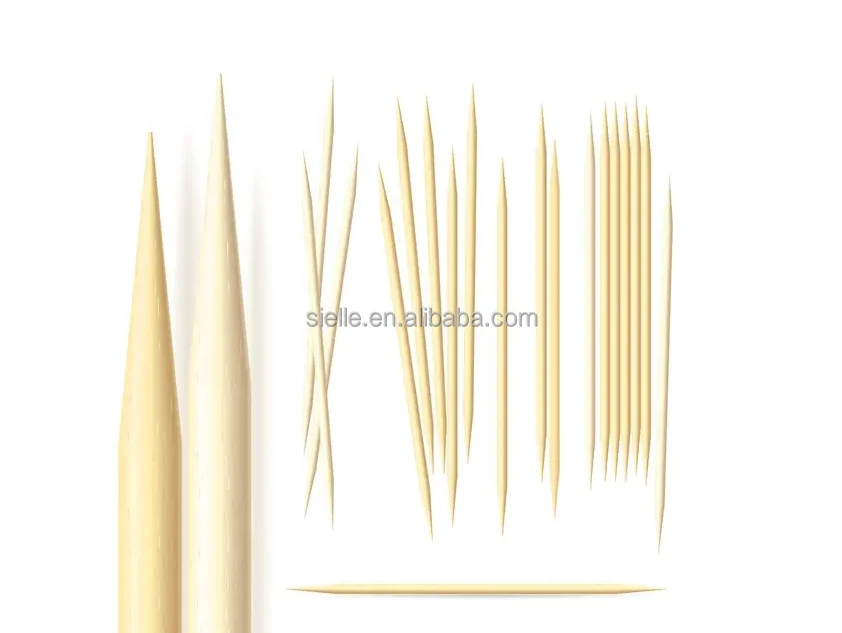

Remarks:This machine is used for two head point type bamboo toothpicks.
Normal specification :dia 2.0 mm,length 65 mm.
The capacity of the entire production line : 800,000 sticks/ 8h.
We also have wood toothpick process machine ,if need, please contact me too.

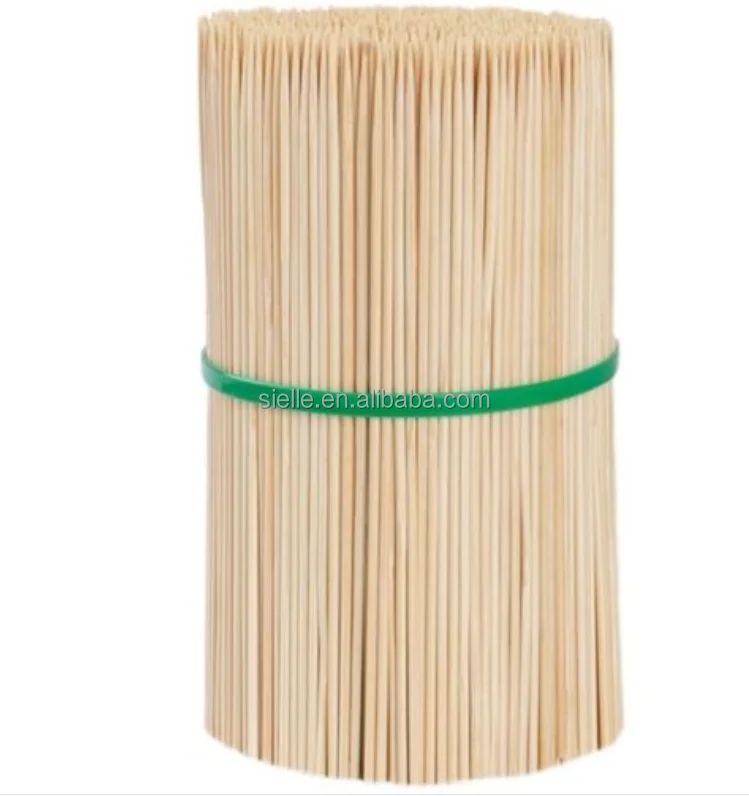

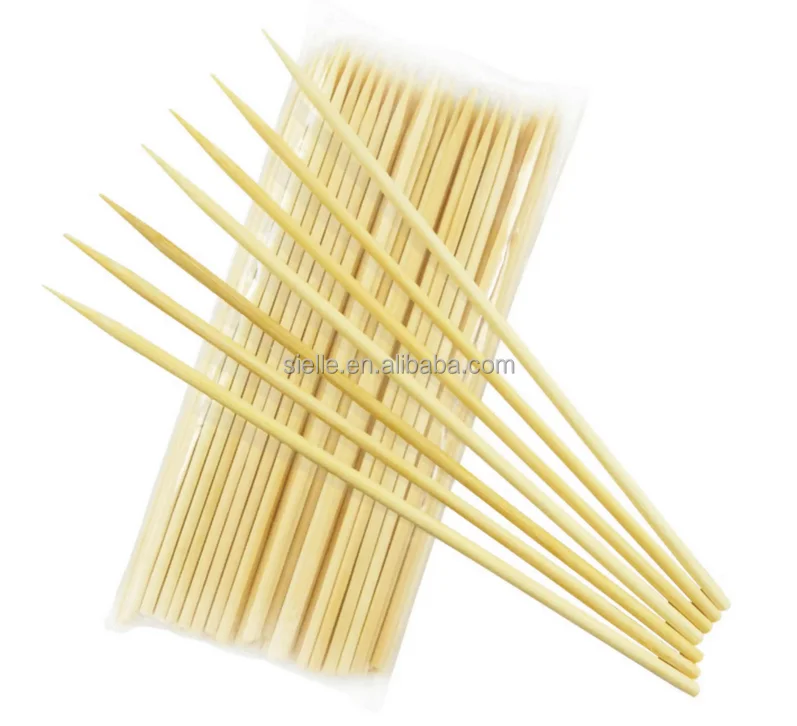

Our machine can also made : BBQ skewer stick , incense stick, swab stick etc.
Normal specification :dia 2.0 mm,length 65 mm.
The capacity of the entire production line : 800,000 sticks/ 8h.
We also have wood toothpick process machine ,if need, please contact me too.
Our machine can also made : BBQ skewer stick , incense stick, swab stick etc.
Product Parameters
No. | Product name | Model | Power (kw) | Weight (kg) | Size (mm) | Parameter |
1 | Bamboo sawing machine | SIEL-111 | 1.5 | 60 | 750*500*1200 | Saw cutting depth:150mm |
2 | Bamboo dissection machine | SIEL-102 | 3.0 | 530 | 3000*950*1200 | Round-trip frequency: 14 times/min |
3 | Two in one wire drawing machine | SIEL-336 | 4.0 | 700 | 2030*620*1060 | Movement speed: 60-80 m/min |
4 | Bamboo filament set-size machine | SIEL-105 | 9.1 | 450 | 1050*650*990 | High speed |
5 | Toothpick set-size machine | SIEL-114 | 2.75 | 140 | 900*700*950 | Movement speed: 6-10 RPM/min |
6 | Toothpick polishing machine | SIEL-80 | 1.5 | 110 | 1050*1050*1200 | Feeding speed: 28 RPM/min |

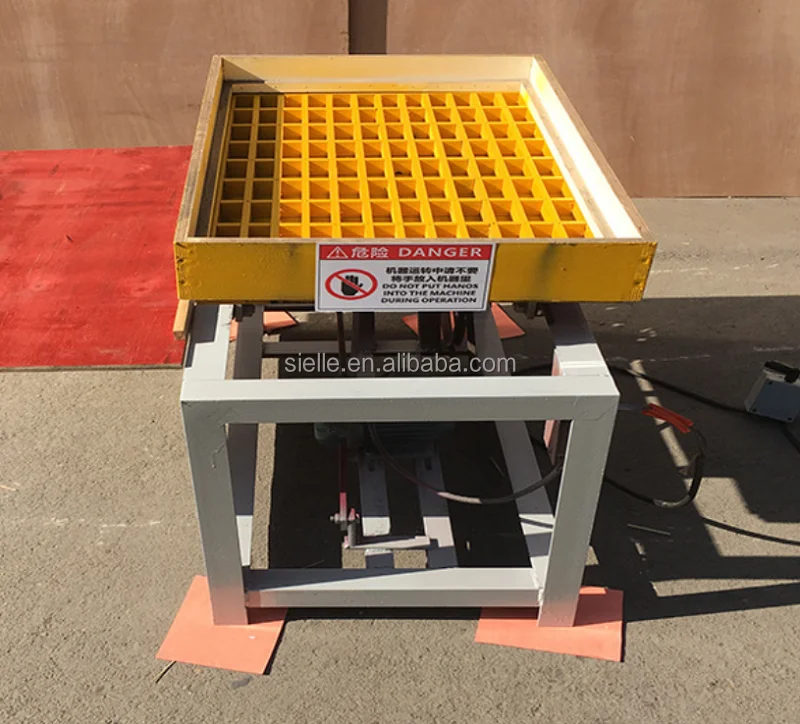

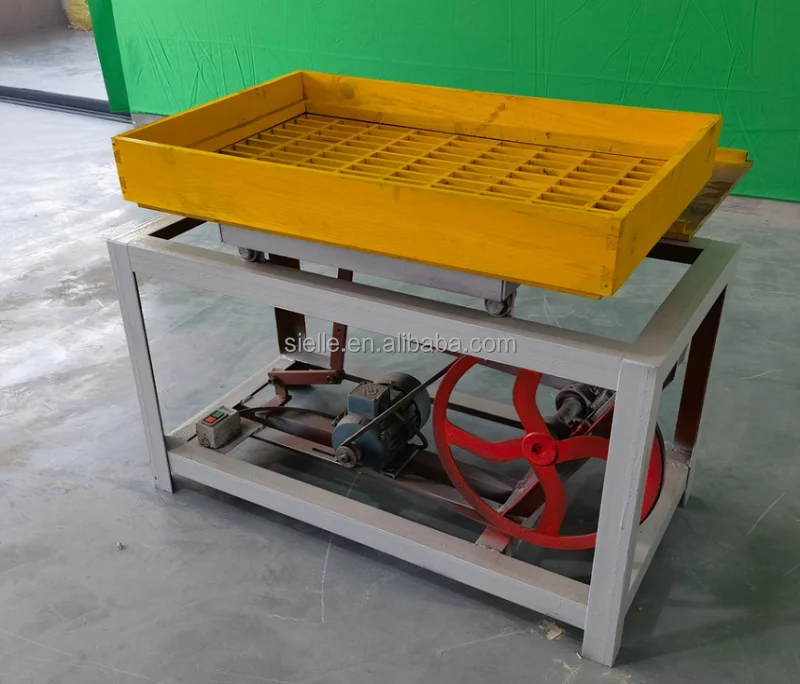

7 | Toothpick sorting machine | SIEL-113 | 0.37 | 65 | 1050*900*850 | Movement speed: 2000 pcs/min |
8 | Tooth pick mincing machine | SIEL-268 | 1.11 | 210 | 1000*610*1000 | 1400-1600 pcs/min |
9 | Sharpen machine | SIEL-112 | 0.55 | 65 | 700*500*850 | Feeding speed: 2800 RPM/min |

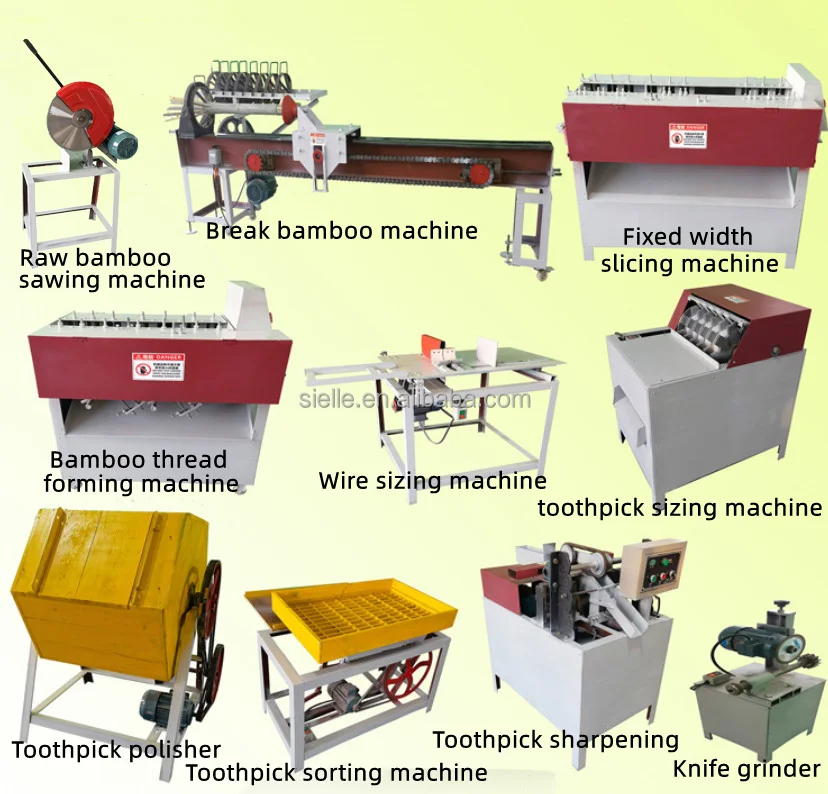

Toothpicks Making Machine includes 9 machines totally.

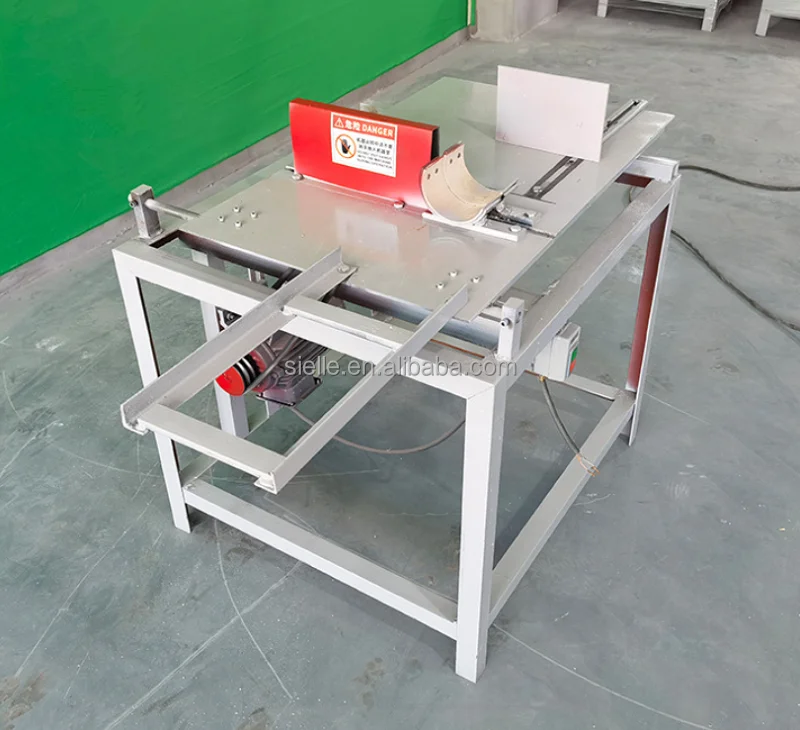

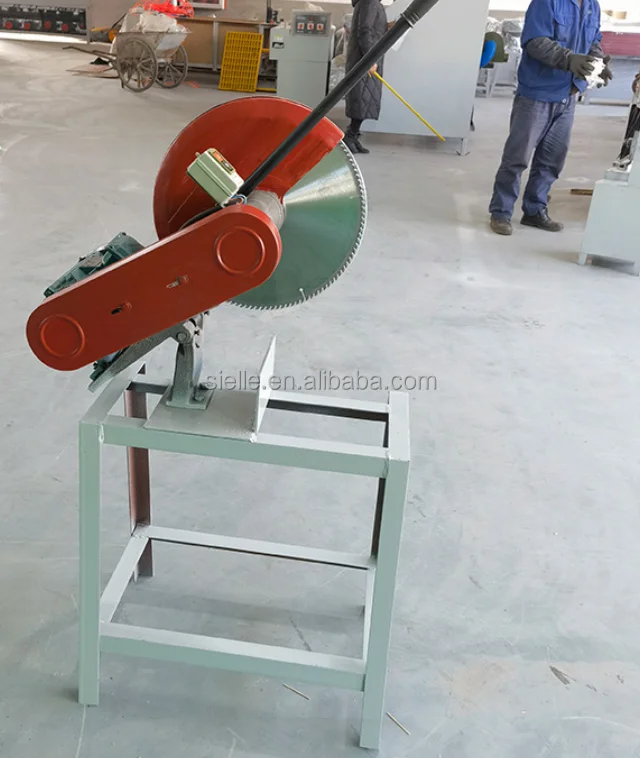

1. Raw bamboo sawing Usage: Sawed used for feeding and cutting bamboo, better length is 1-1.2m.

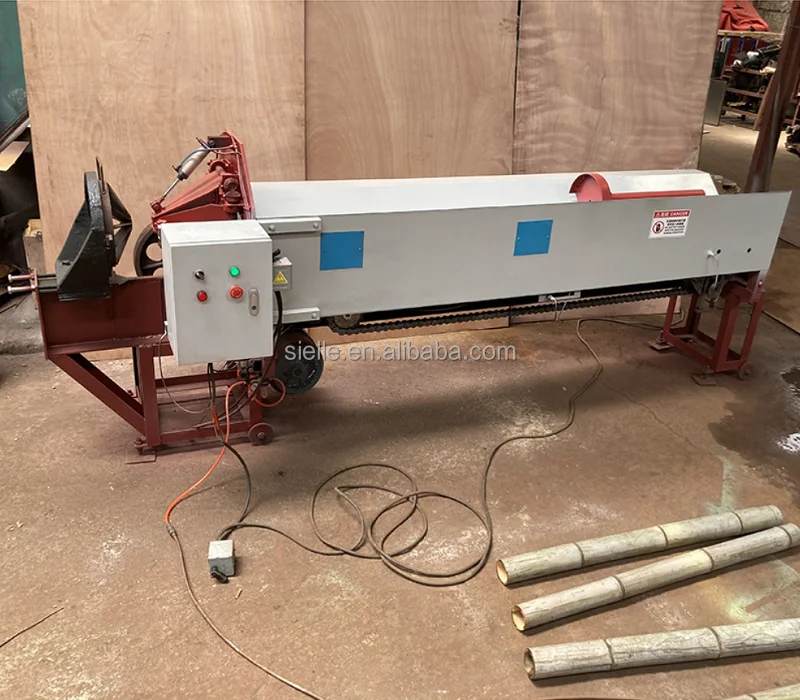

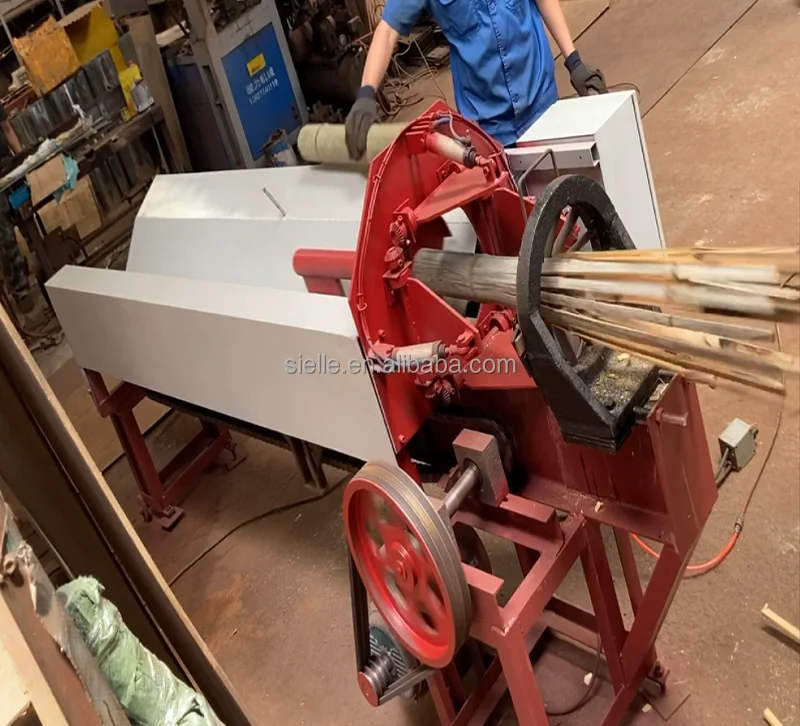

2. Bamboo dissection machine Usage: Dissection cutter head(9-18 heads) total 10, put the finished bamboo into the suit cutter head according to the size and Polish them into bamboo flakes, width from 20 mm to 22 mm, speed of feeding is 57 m/min.
3.Two in one wire drawing machine usage: Usage: Take appropriate amount of thin slices and put them into the machine directly, the width is 3-4mm, the feed speed is 87m /min, grinding and forming directly. Combining two machines into one saves space, time and cost.
4. Bamboo filament set-size machine Usage: The normal standard is 2*2.2 mm, speed of feeding is 87m/min.
5. Toothpick set-size machine Usage: Set the filament, length of 34 mm.

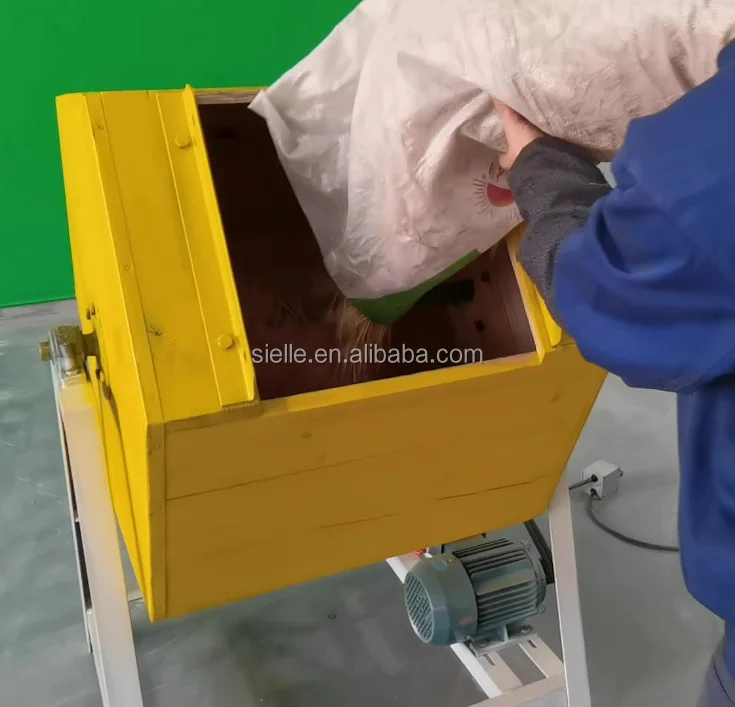

6. Polishing machine Usage: Polish the raw toothpick after the set-size.
7. Toothpick sorting machine Usage: Saw web300 mm X 120 T, the normal length of toothpick is set 65 mm.

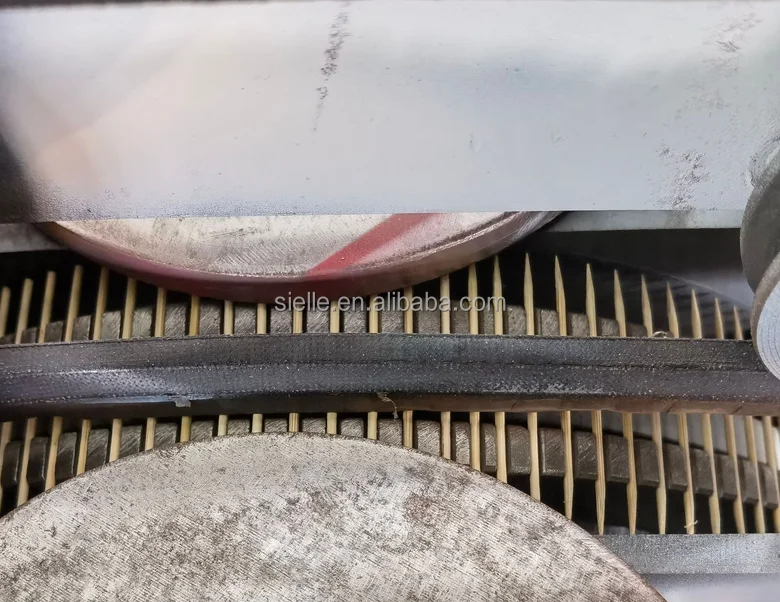

8. Tooth pick mincing machine Usage: Sharp the toothpick, feeding automatically, 1500 PCS/min.

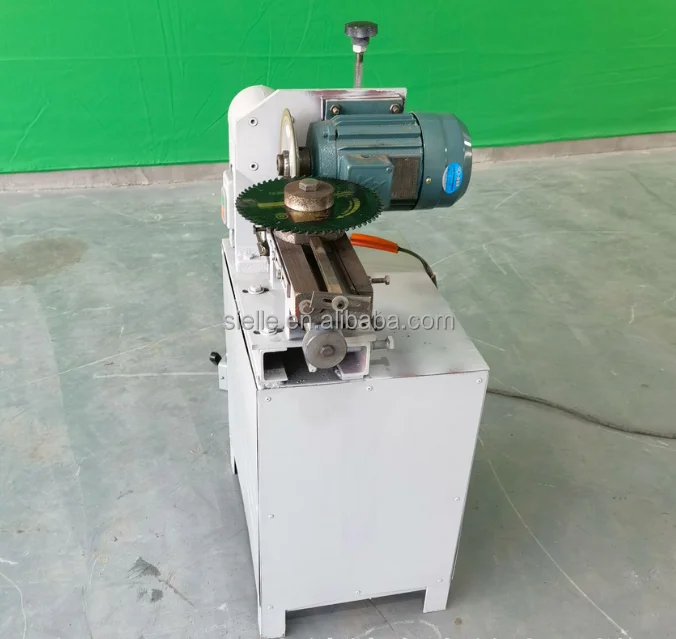

9. Sharpen machine Usage: Special for divided slice and set-sized raw web.
1. Raw bamboo sawing Usage: Sawed used for feeding and cutting bamboo, better length is 1-1.2m.
2. Bamboo dissection machine Usage: Dissection cutter head(9-18 heads) total 10, put the finished bamboo into the suit cutter head according to the size and Polish them into bamboo flakes, width from 20 mm to 22 mm, speed of feeding is 57 m/min.
3.Two in one wire drawing machine usage: Usage: Take appropriate amount of thin slices and put them into the machine directly, the width is 3-4mm, the feed speed is 87m /min, grinding and forming directly. Combining two machines into one saves space, time and cost.
4. Bamboo filament set-size machine Usage: The normal standard is 2*2.2 mm, speed of feeding is 87m/min.
5. Toothpick set-size machine Usage: Set the filament, length of 34 mm.
6. Polishing machine Usage: Polish the raw toothpick after the set-size.
7. Toothpick sorting machine Usage: Saw web300 mm X 120 T, the normal length of toothpick is set 65 mm.
8. Tooth pick mincing machine Usage: Sharp the toothpick, feeding automatically, 1500 PCS/min.
9. Sharpen machine Usage: Special for divided slice and set-sized raw web.

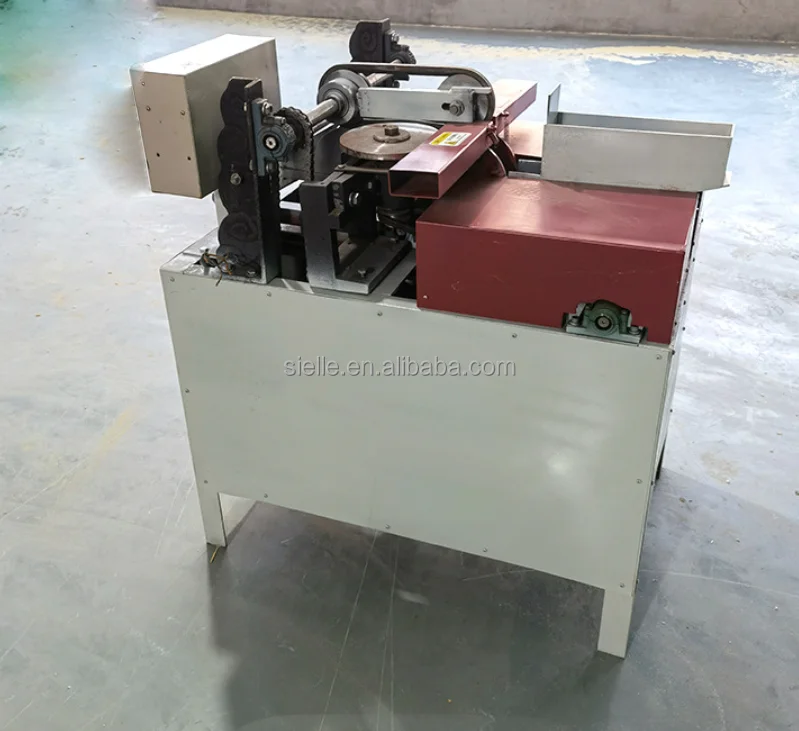

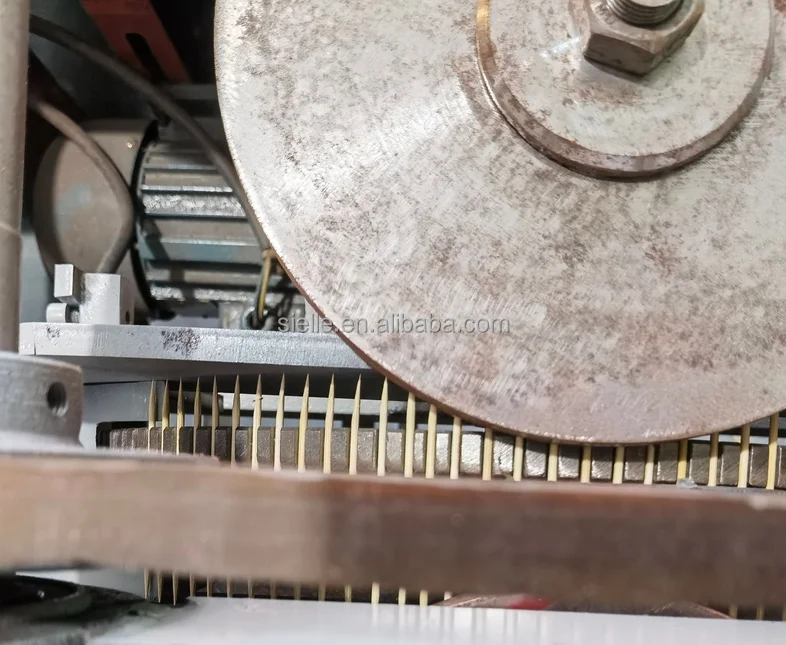

Details Images
Order and Feedback
Reviews from customers:
We have won the trust of our customers with our high quality products.In the manufacturing we choose quality materials to let customers buy at ease, in the price of our high quality price has been favored by customers, in the service we patiently solve all the problems for customers, Thanks for the customer's 5-star review (5 is the highest rating)! thank you for the customers continue to buy again!
About us:Industrial toothpick production machine automatic toothpicks product line machine big capacity toothpick making machines
In the product design and service, we are constantly improving and innovating. The company has been awarded the honorary titles of "National Model Unit of Emphasizing quality and keeping credit" and "AAAAA brand Enterprise of Quality and integrity", and products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Australia, Egypt, Turkey, Romania, Sweden, Finland, Italy, Germany, etc. about more than 100 countries and area. We have won good reputation depends on our best qualified products and after-sales.Industrial toothpick production machine automatic toothpicks product line machine big capacity toothpick making machines
Product packaging
Because of long distance transportation and handling, toothpick making machines will be packed in standard export wooden case to ensure the safety in the process of transportation. So that you can receive a perfect machine!Industrial toothpick production machine automatic toothpicks product line machine big capacity toothpick making machines
FAQ
1,The payment
Our company accepts T T, L/C, D/P, D/A, Western Union for clients.
2,The delivery time
Generally it is 5-7 days if the Products are in stock. Or it is 7-15 days if the products are not in stock, it is according to quantity.
3,About quality
Welcome to our factory and check the quality of products. Besides, we will send you the video and pictures before shipment after your order.
4, Equipment warranty
Equipment with 12 months warranty, which can be extended to 15-18 months as request.
Our company accepts T T, L/C, D/P, D/A, Western Union for clients.
2,The delivery time
Generally it is 5-7 days if the Products are in stock. Or it is 7-15 days if the products are not in stock, it is according to quantity.
3,About quality
Welcome to our factory and check the quality of products. Besides, we will send you the video and pictures before shipment after your order.
4, Equipment warranty
Equipment with 12 months warranty, which can be extended to 15-18 months as request.
5, How to install and run the machine?
Our technicians have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. It's very easy to install them.
Our technicians have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. It's very easy to install them.
6, Don't know which type you need?
Please send us your requirement or contact us directly! We will choose the right model for you.
Please send us your requirement or contact us directly! We will choose the right model for you.
