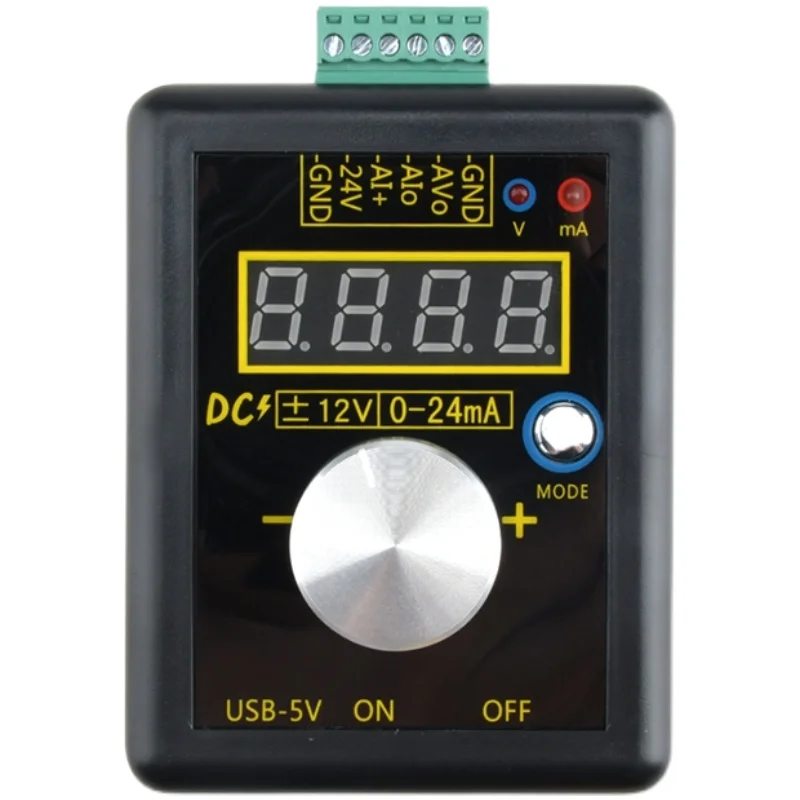

Digital 4-20mA 0-10V Voltage Signal Generator 0-20mA Current Transmitter Professional Electronic Measuring Instruments

This small portable voltage and current signal generator can be used in scientific research, laboratories, enterprise factories, electrical maintenance, etc. Come and try.

Feature:

The voltage and current signal generator is the most commonly used electrical test instrument for electrical engineers and technicians during on-site installation, commissioning, overhaul and maintenance of electrical equipment.

Plug-in terminal blocks, safe and convenient wiring.

4-digit high-definition digital tube, the brightness of the screen is evenly adjustable (brightness of 1-8).

Aluminum knob cap, electroplating button, high quality film, charge indicator, battery switch.

Three power methods: external power supply, DC5V micro USB, integrated lithium battery (only when type 1 is selected, the charging mode of the built-in lithium battery can be used). As long as you work all the way, you can also connect at the same time.

EXTERNAL power supply DC 15-30V, which can share the 24V power supply of the PLC and other equipment.

MicroUSB universal interface, can be connected to mobile power, charger, computer USB port, etc.

On the normal operation screen, save a voltage and current value, click on the encoder to save, and after releasing the "OK" button, the screen displays "...", indicating that the save is successful. After restarting, the saved value will be displayed directly, and there is no need to adjust the parameters each time when starting, which is very practical.

Easy to carry and small in size, it is the best choice for on-site debugging.

Specification:

Material: ABS

Color: Black

Voltage output: 0-10V

Current output: 0-22mA

Type: 1-2 (optional)

Charging method: Built-in lithium battery (Type 1 only), external power supply, micro USB DC5V

Battery: 1 * Lithium battery, 3.7V, 1100mAh (type 1 only included)

Size: about 89*69*28mm/3.5*2.7*1, 1in

Packing size: about 90*70*38mm/3.5*2.8*1, 5in

Weight:

Type 1: About 95g/3.4oz

Type 2: About 115g/4.1oz

Packing list: (optional)

Type 1:

1 * Voltage and Current Generator (not including battery)

Neither

Type 2:

1 * Voltage and Current Generator (includes battery
