Точный Настольный осциллограф с двойной трассировкой ультратонкий инженерный научно-исследовательский дизайн техническое

Описание и отзывы

Характеристики

Weight with packaging: 1.6kg Outer packaging size 37x20x12.5cm
Without charge or magnetism
A full box of 10, weighing approximately 17.3kg, box size: 65x39.5x42.5cm

Specifications and dimensions	Individual packaging data	Full container specification data
number	1	10 pcs
net weight		16kg
gross weight	1.6kg	17kg
size	37x20x12.5cm	65x39.5x42.5cm

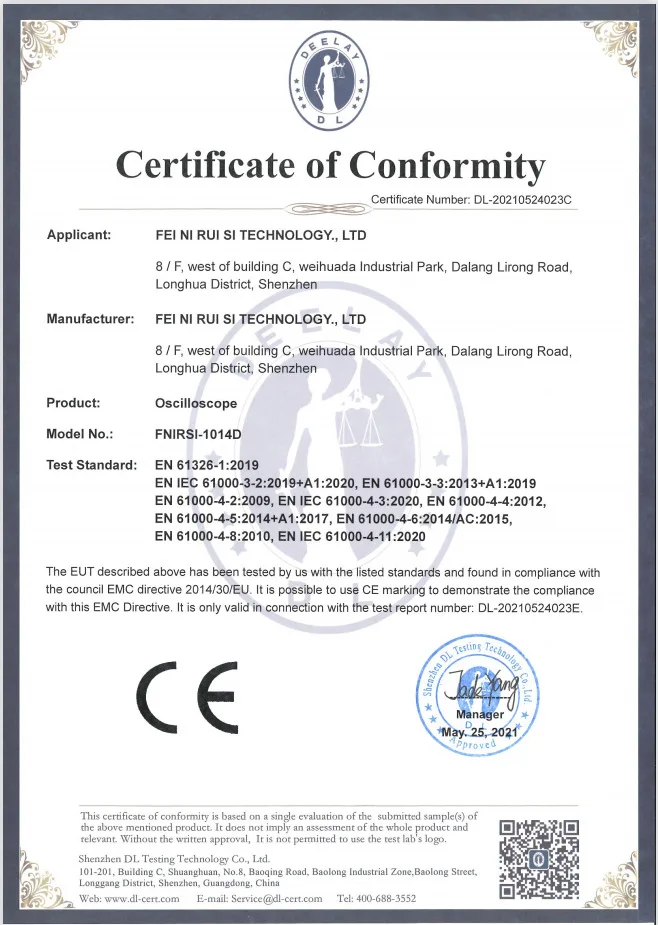

CE certification certificate:

European standard adapter

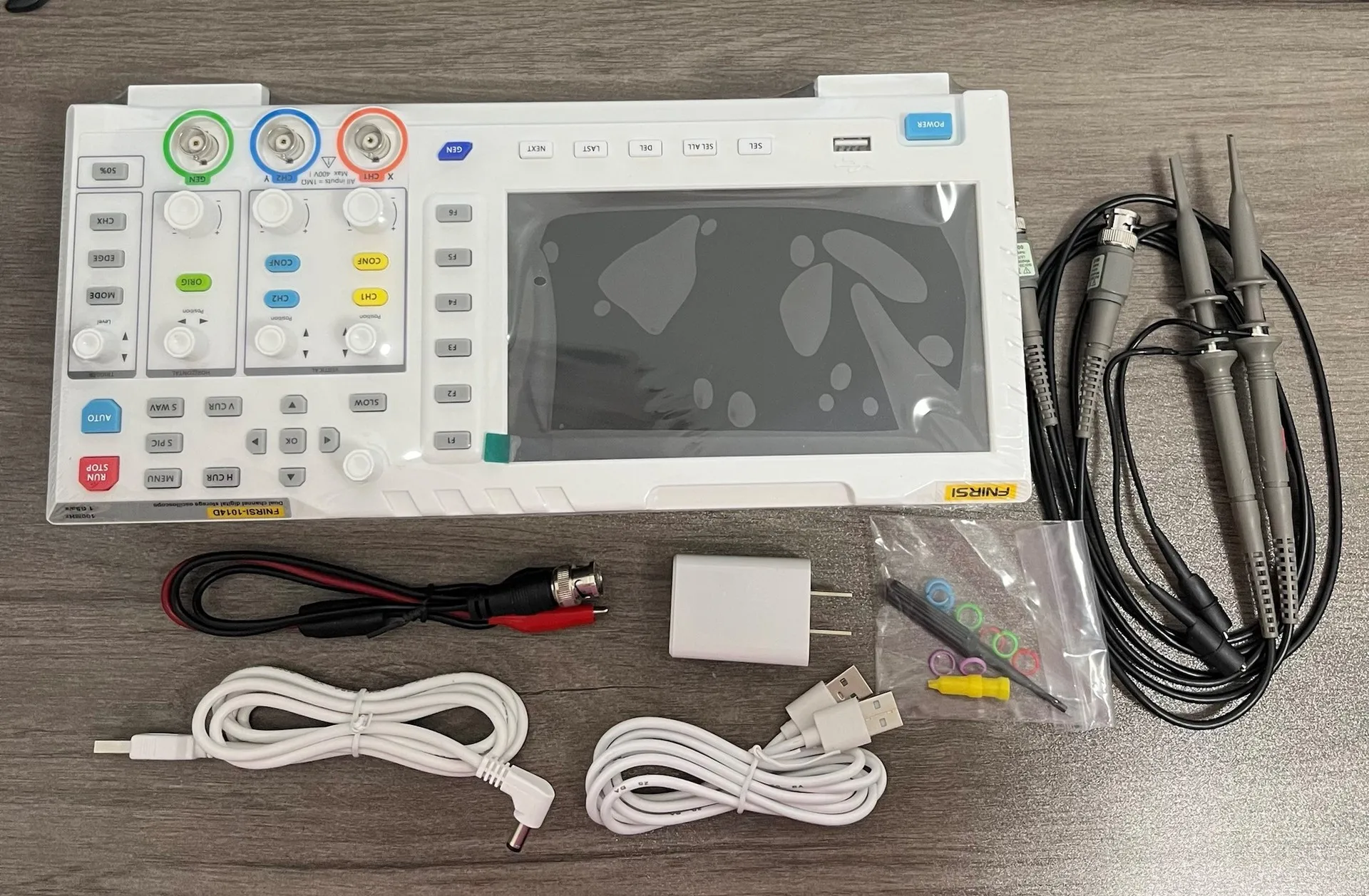

Physical packaging accessories display: 1014D standard desktop oscilloscope





FNIRSI-1014D is a two in one oscilloscope and signal generator launched by FNIRSI. It has comprehensive functions and high practicability. It is a cost-effective dual channel desktop oscilloscope for the maintenance industry and R & D industry. The oscilloscope has a real-time sampling rate of 1GSa / s and 100MHz* 2 analog bandwidth; complete trigger function (single time / normal / automatic), both for periodic analog signal and aperiodic digital signal can be used freely; built in DDS function signal generator and the industry's original chopping output (@ 2.5vpp), all signal frequency step is 1Hz, support 14 kinds of standard function signal and a customizable chopping signal, chopping The output device intercepts part or the whole part of the complex signals measured by the oscilloscope as the output signal of the signal generator, which can store up to 1000 customized cut-off signals; the built-in high-voltage protection module can tolerate up to 400V continuous voltage, without worrying about the oscilloscope burning accident caused by the probe not moving to 10x gear. Large time base scrolling mode, which can monitor slow level changes; equipped with efficient one button auto, which can display the measured waveform without tedious adjustment; display high-definition LCD with 7-inch 800 * 480 resolution; cursor measurement function, when manually reading amplitude and frequency parameters, it does not need to read the background scale unit and quantity, and it does not need to convert to directly get peak to peak and frequency Extremely convenient screen capture and waveform storage function, built-in 1GB storage space, can store up to 1000 screen capture pictures + 1000 groups of waveform data, the storage process is simple and fast, save the current waveform with only one click, no cumbersome prompts and choices to save the current data, very convenient; powerful waveform image manager, support thumbnail browsing, view, view details The functions of page turning, deleting and waveform enlarging, reducing and moving are convenient for secondary analysis. The fuselage is equipped with USB interface, which can be connected with the computer to realize the sharing of its own screen capture pictures and the computer, which is convenient for secondary analysis; Li Shayu's graphic display function can be used to compare and judge the amplitude, frequency and phase of two groups of signals; FFT viewing function can estimate the harmonic component of signals; Li Shayu's graphic display function can be used to compare and judge the amplitude, frequency and phase of two groups of signals;



Key features:

1:Built in DDS signal generator, support 12 kinds of function signal

2:Industry's original [Capture output signal] function,can store up to 1000 capture signals

3:Targeted high intelligent decoding algorithm, the encoder life is infinite

4:Intelligent anti-burn,1X Can withstand up to 400V withstand voltage

5:100MHz analog bandwidth @ 1GSa/s sampling rate(1X = 5MHz,10X = 100MHz)

6:Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast

7:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V,100X can measure 0 ~ 4000V

8:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Period

9:Cursor measurement function, it is convenient to manually measure the period and frequency and voltage

10:Complete triggering function (single, normal, automatic)

11:At any time, the waveform display (pause function) is frozen

12:Equipped with high efficiency One-button AUTO

13:One-button waveform storage and screenshot

14:Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data

15:Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.

16:Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis

17:Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals

18:FFT display function, can analyze the spectral characteristics of the signal

19:Memory compression technology, waveform refresh screen does not flicker

20:Screen brightness adjustment

21:Background grid brightness adjustment

22:Ultra thin, easy to carry

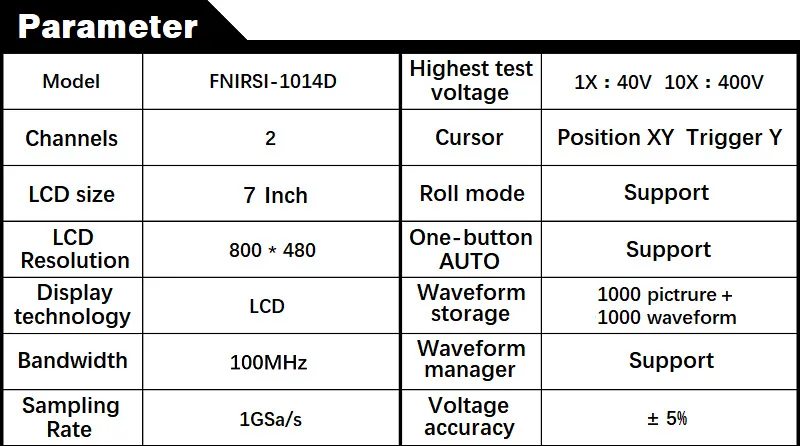

Specifications:
1:Analog band width: 100MHz * 2
2:Number of channels:2 channels
3:Maximum real time sampling rate: 1GSa/s
4:Vertical sensitivity: 50 mV/div ~ 500 V/div
5:Horizontal time base range: 50S/div ~ 10nS/div
6:Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
7:Storage depth: 240Kbit
8:Input resistance: 1MΩ
9:ADC precision: 8bits
10:Coupling mode: AC/DC
11:Trigger mode: Single, Normal, Auto
12:Trigger edge: Rising edge/Falling edge
13:External trigger voltage 0 – 40 V
14:Display: 7 inch - 800*480
16:Extension ports:USB picture export
18:Size: 340mm x 140mm x 70mm
19:Body weight: 1.5kg

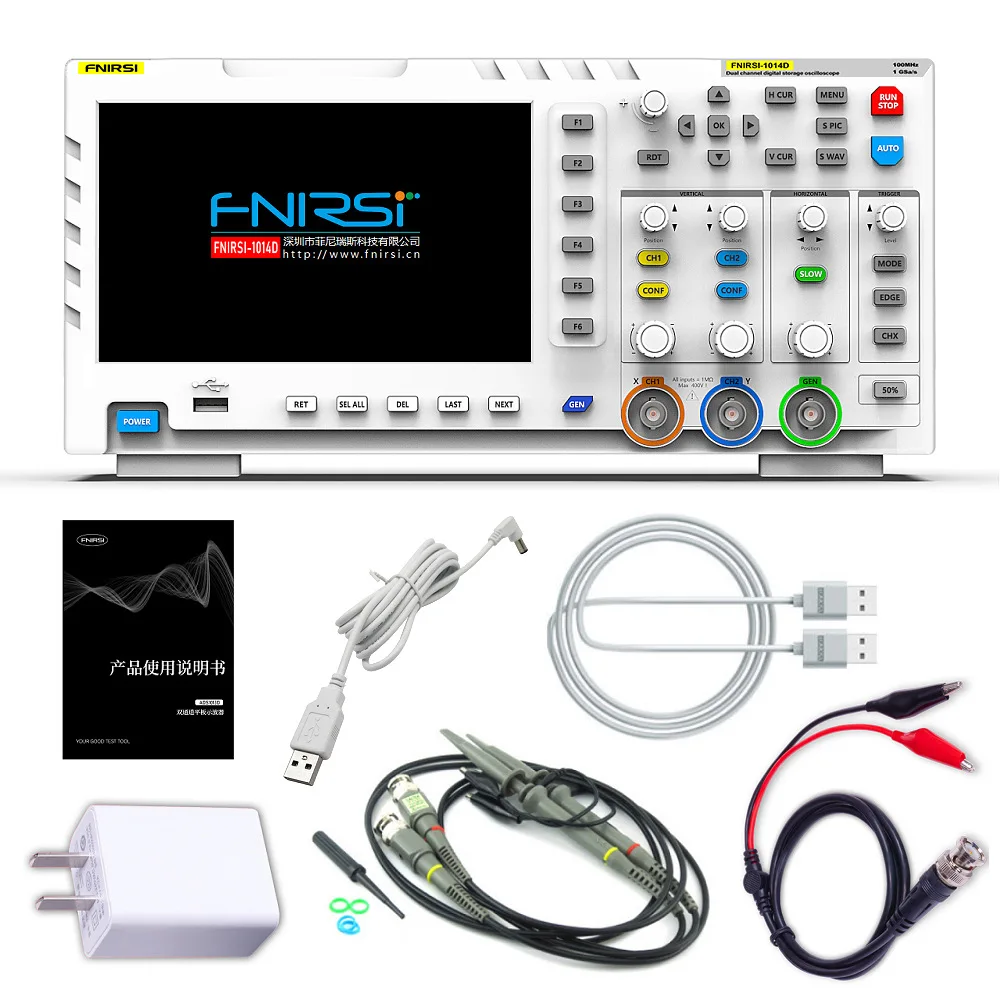

Package includes:
1 x FNIRSI-1014D oscilloscope host
2 x Matching 100MHz probe(1X and 10X)
1 x Crocodile clip
1 x 5V2A Power Adapter
1 x USB data line
1 x User manual (English)
