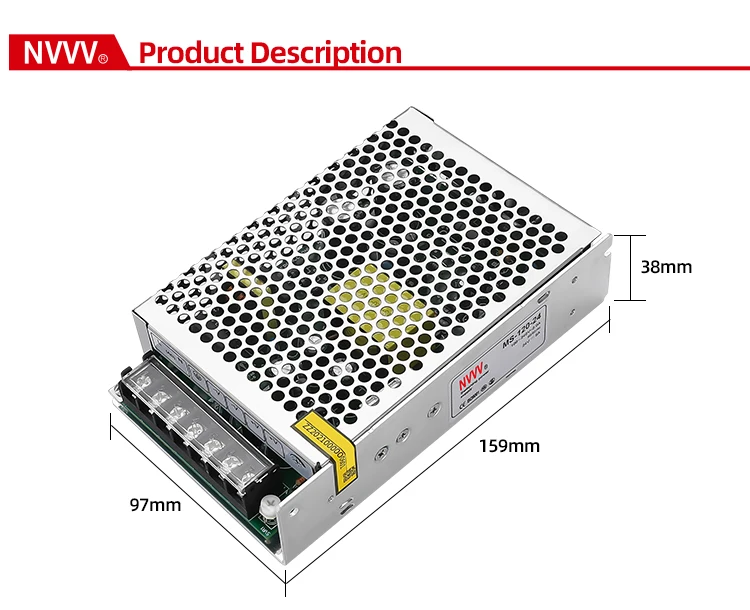

Product Description














Specification

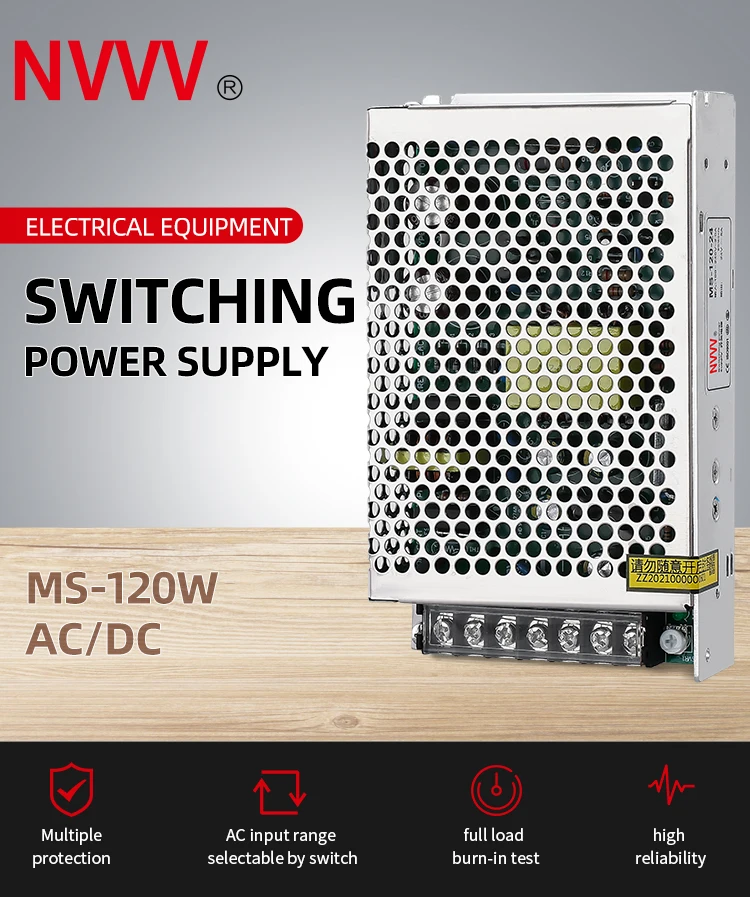

MS-120 120W Switching Power Supply
Project
Technical index





Output
DC voltage
12V
24V
48V
Rated current
10A
5A
2.5A
Rated power
120W
120W
120W
Ripple and noise ①
＜120mV
＜150mV
＜150mV
Voltage accuracy
±1%
Output voltage regulation range
±10%
Load adjustment rate
＜±1.5%
＜±0.5%
＜±0.5%
Linear adjustment rate
＜±0.5%


Input
Voltage range
85-264VAC 47Hz～63Hz (120VDC～370VDC)
Efficiency (typical) ②
＞82%
＞84%
＞84%
Working current
＜2A 110VAC ＜1.3A 220VAC
Impulse current
110VAC 18A， 220VAC 36A
Start, rise, hold time
200ms、50ms、20ms ：220VAC

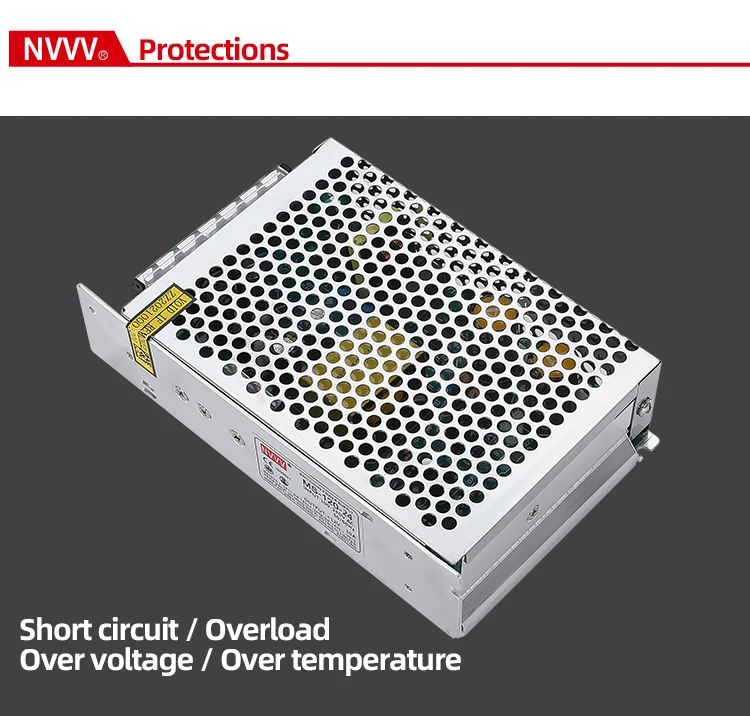

Protect
overload protection
105% - 150% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again
Short circuit protection
+VODrop to undervoltage point to close output

Environmental Science
Working temperature and humidity
-10℃～+50℃；20%～90RH
Working temperature and humidity
-20℃～+85℃；10%～95RH



Safety
regulations
Withstand voltage
Input output: 1.5kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute
Leakage current
Input output 1.5KVAC时 ＜5mA
Leakage current
Input output 220VAC时 ＜1mA
Isolation resistance
Input output，Input - Housing， Output - Housing ：500VDC/100MΩ
