Переключатель уровня воды в стиральной машине
US $1.00-$3.00

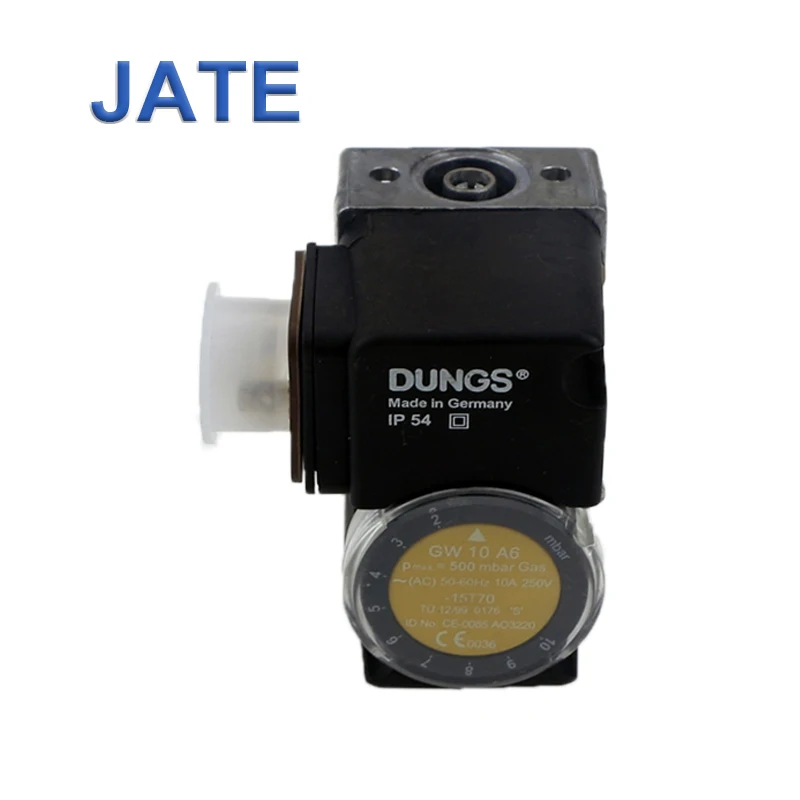

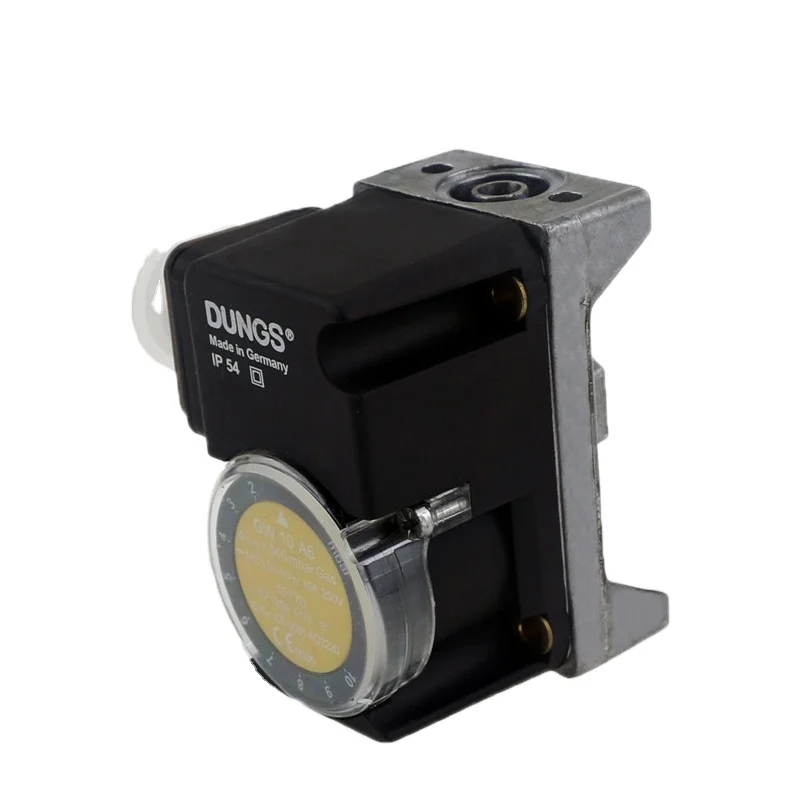

Переключатель регулировки дифференциального давления природного газа Dungs GW10A6
- Категории: Pressure Switches >>>
- Поставщик: Shenzhen,Jate,Burners,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

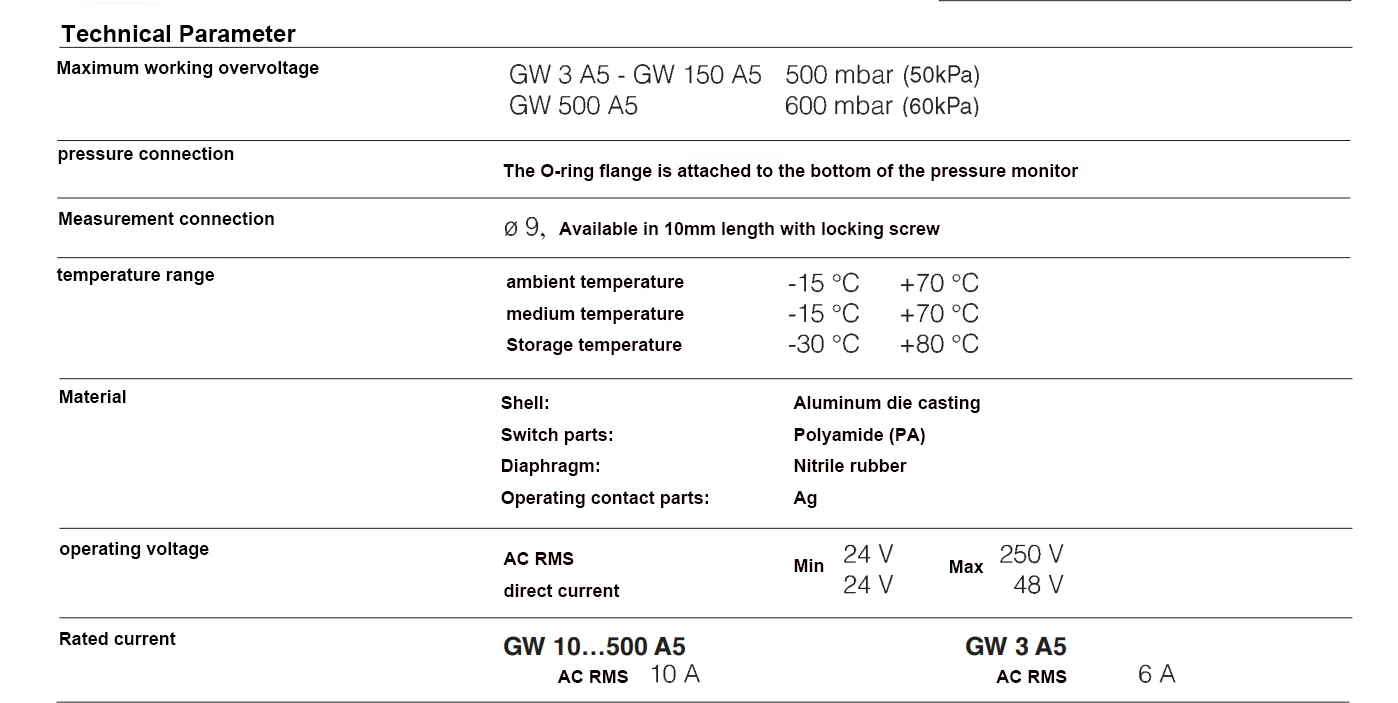

PRODUCT SPECIFICATIONS
Model | GW10A6 |
Supply Voltage | AC220-230V |
Environment Tem | -15℃-+70℃ |
Maximum Working Overvoltage | GW 3 A5-GW 150 GW 500 A5 |
Usage | gas burner accessories |
Technology:
The pressure monitor GWA5 is a compact pressure monitor for DUNGS duplex regulators.This pressure monitor is suitable for opening, closing and switching of circuits when the actual pressure value changes to the adjusted switching point (nominal value).
The switch point can be adjusted on the dial for convenience and time saving without the need for a pressure gauge.
Use:
Pressure monitor for DUNGS multi-regulator GasMultiBloc and double solenoid valve DMV.
A variety of installation methods can be installed directly on the housing or through adapters.
It is suitable for gas in gas category 1, 2, 3 and other neutral gaseous media.
Characteristic:
Function
Pressure monitors can work in overpressure areas. This pressure monitor operates without auxiliary energy.
Switching Characteristics
GW...A5
Short response time when pressure fluctuates.
Pressure monitors can work in overpressure areas. This pressure monitor operates without auxiliary energy.
Switching Characteristics
GW...A5
Short response time when pressure fluctuates.
GW...A5/1

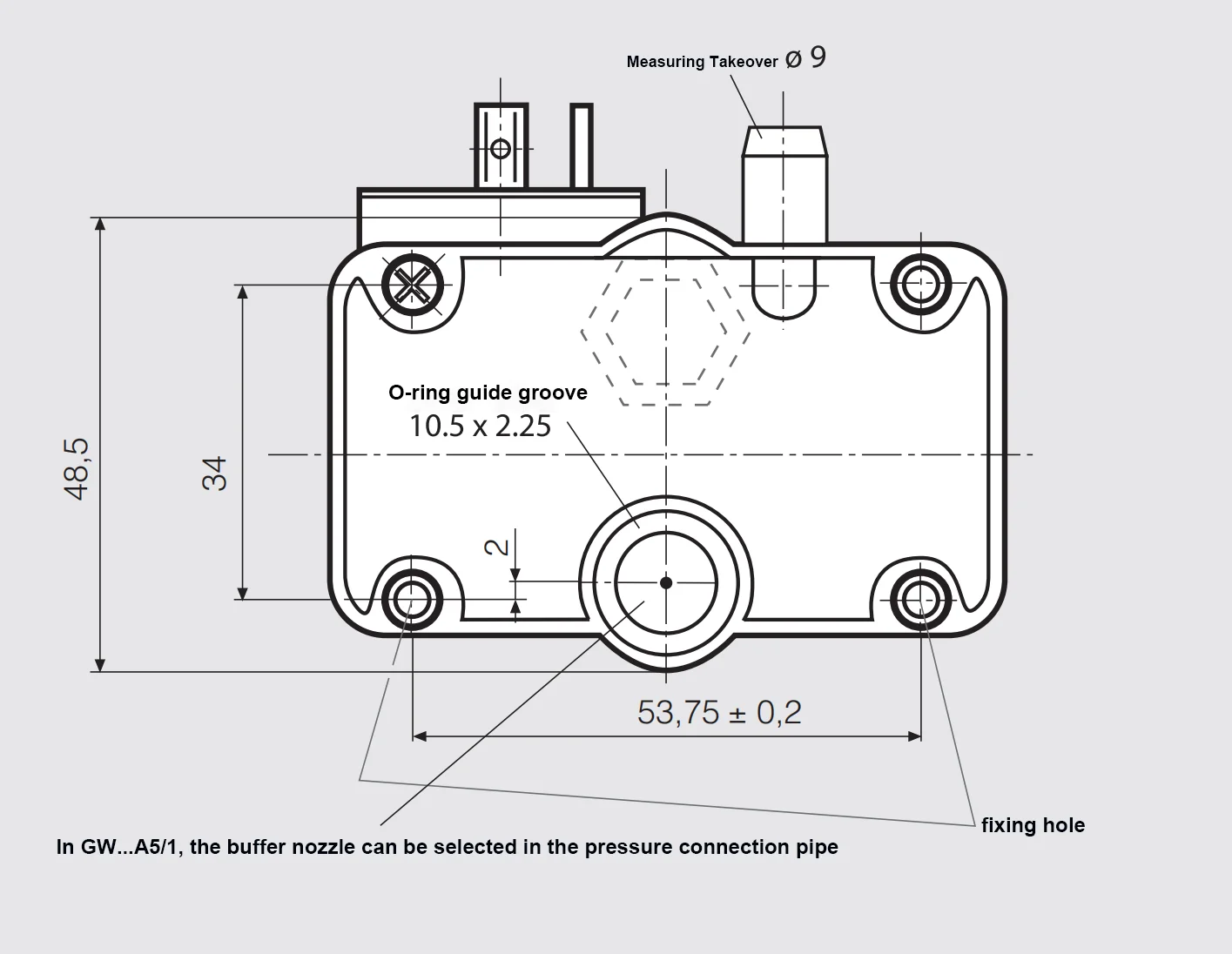

With the additional use of additional buffer nozzles, pressure fluctuation times are short and reaction times long.
Overvoltage Monitor
GW…A5 is a pressure monitor that can easily work in overpressure areas. The switchgear reacts to overvoltage. It switches or switches a circuit when it exceeds or falls below a set rating.
With the additional use of additional buffer nozzles, pressure fluctuation times are short and reaction times long.
Overvoltage Monitor
GW…A5 is a pressure monitor that can easily work in overpressure areas. The switchgear reacts to overvoltage. It switches or switches a circuit when it exceeds or falls below a set rating.
Compact Pressure Monitor DUNGS 225 939 & GW50A5 Pressure Switch For Gas Burner Parts
GW10A6
GW10A6
Recommend Products
AUD15C1000
AUD15C1000

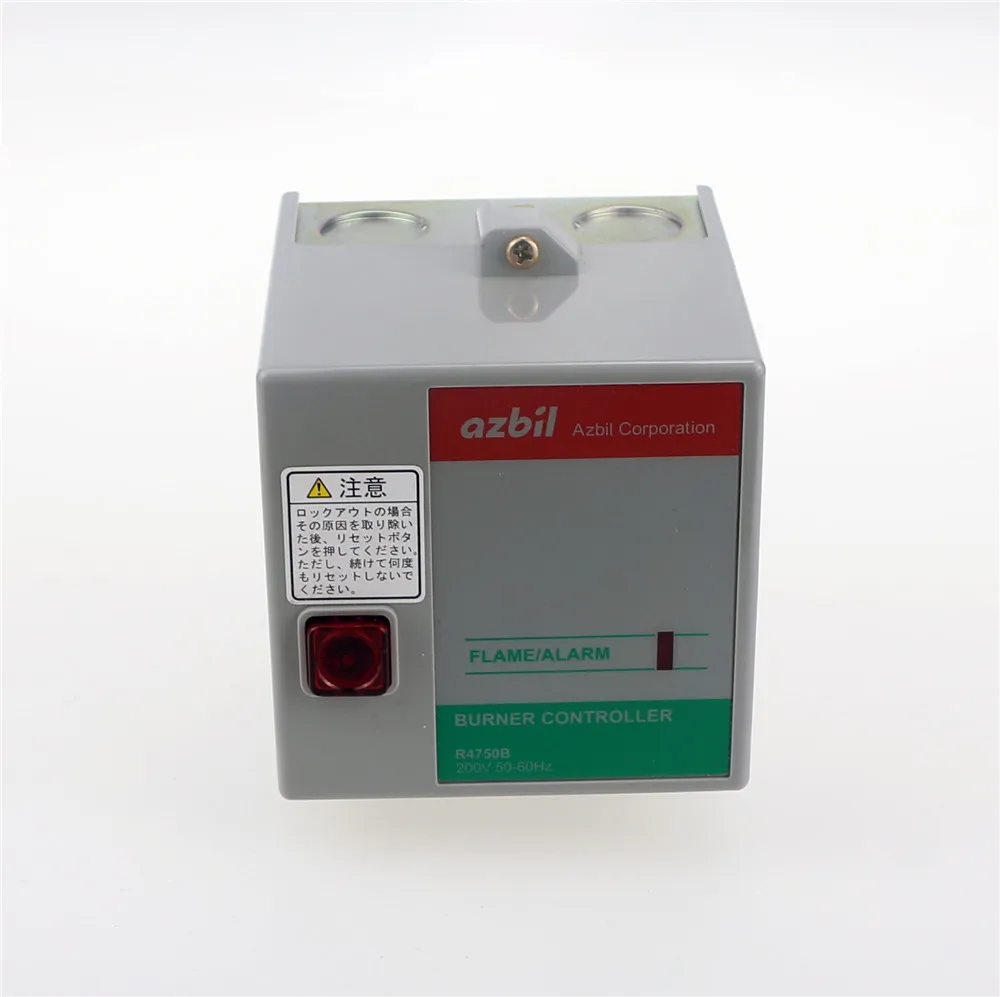

R4750 Controller
