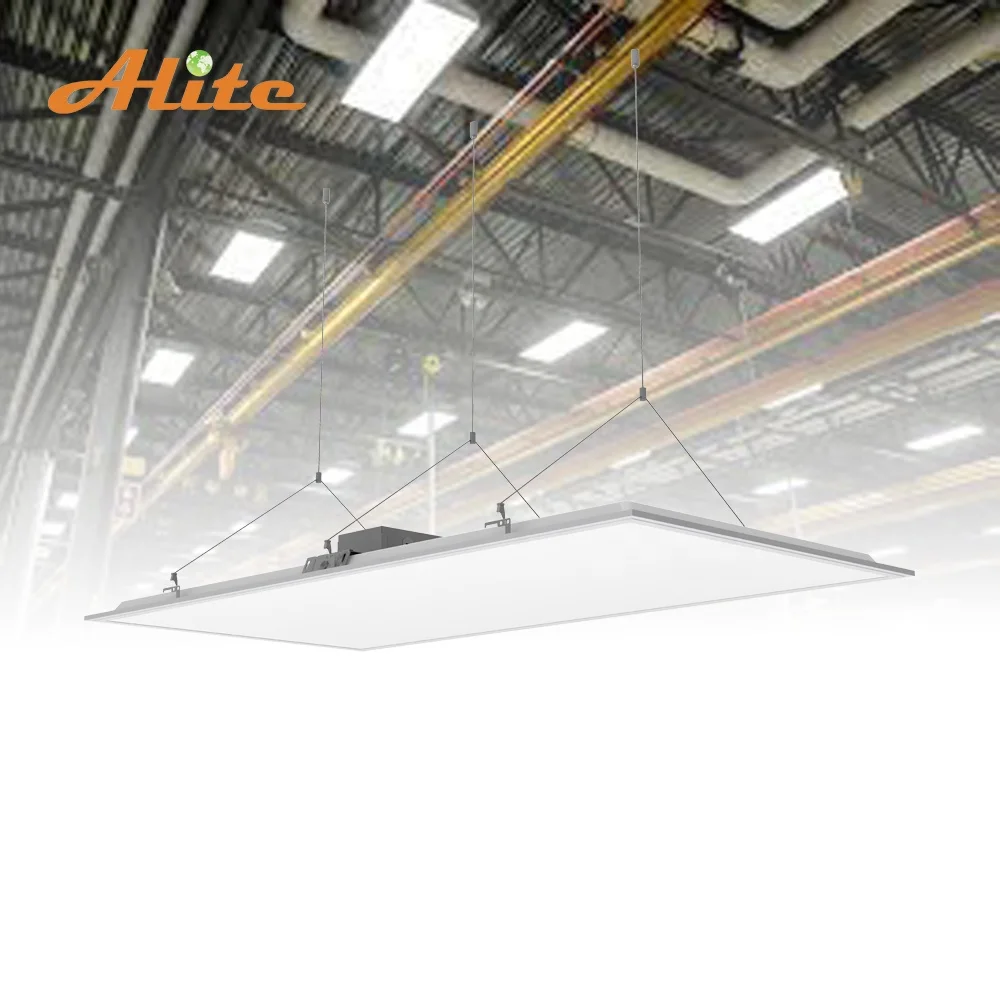

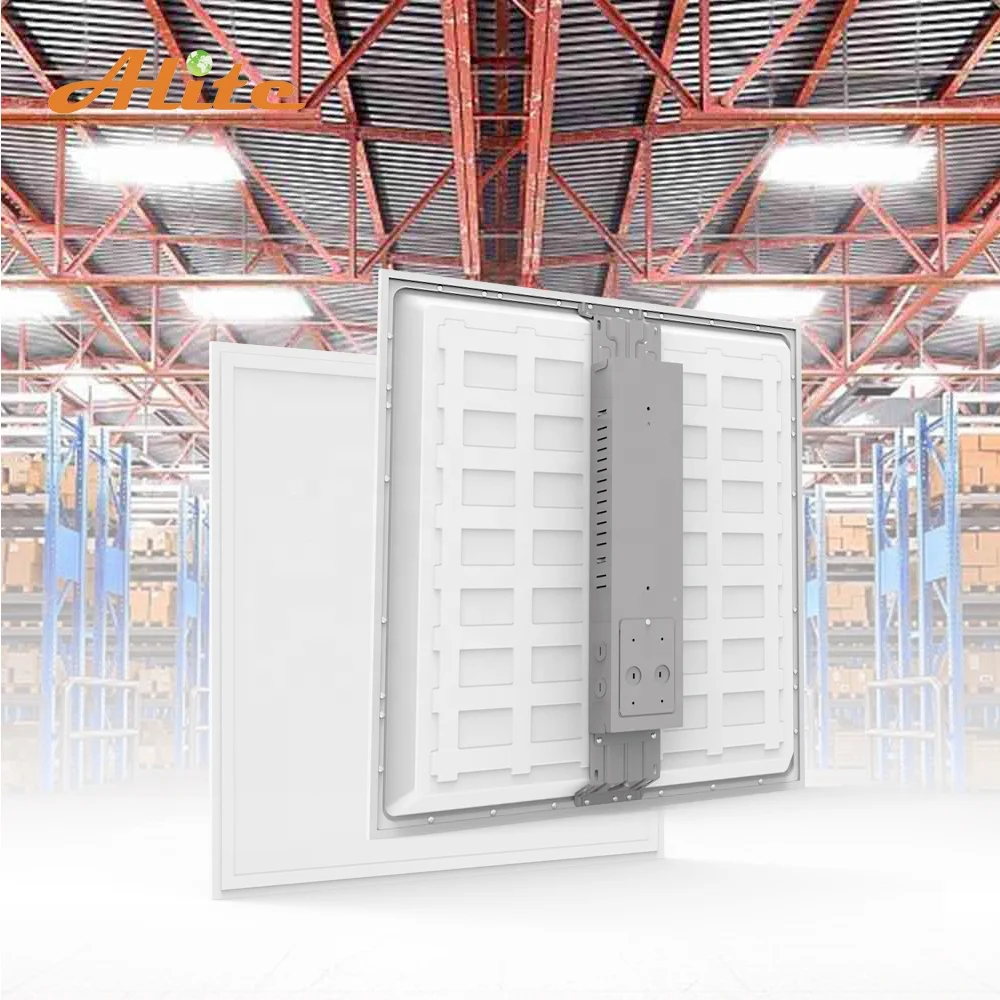

Alite 50000H Square flush mount suspended 2x4 170lm/w Led Panel Light with DLC ETL
Show details

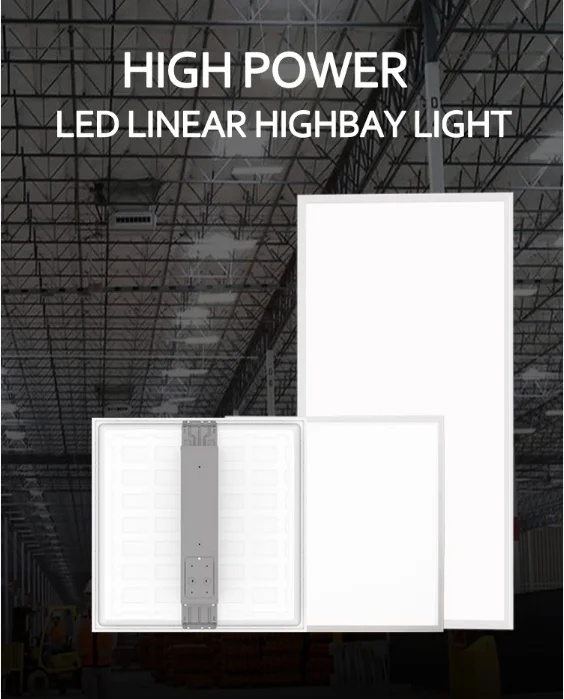

Product Features of linear high bay light
High reliability,consistent optical parameters,high power and efficacy over 170Lm/W;

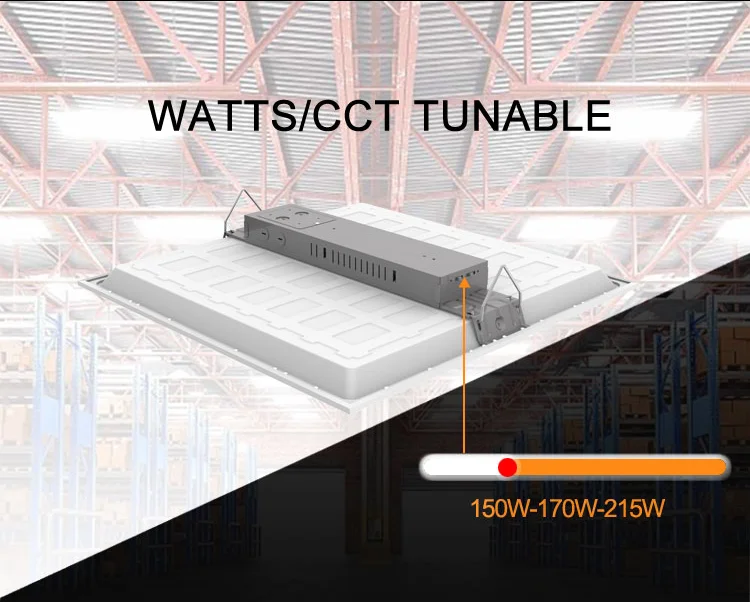

Wattage and CCT adjustable:Equipped with a dip switch for stepwise adjustment of power and color temperature;

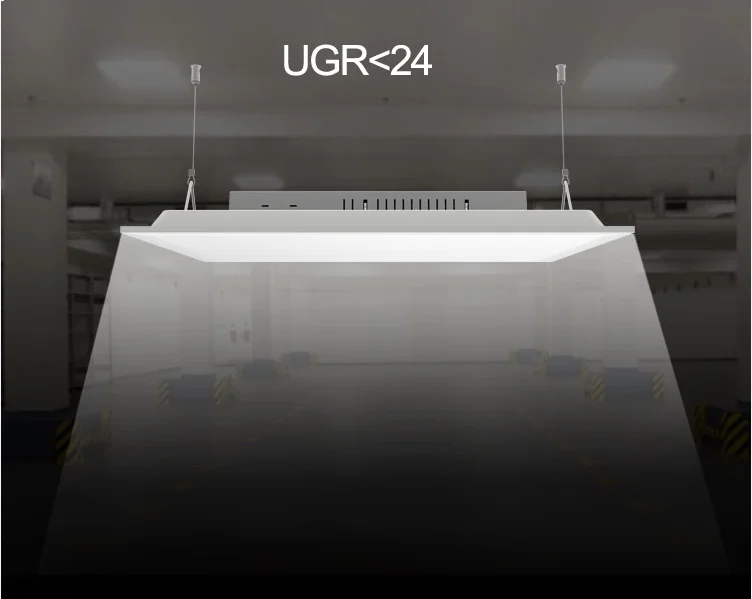

Lower Flicker:UVG<24;
Small package:Save shipment cost;
Cost-effective:More competitive price at the same level quality;
Full range of function:Sensor,Emergency,0-10V Dimmable flexible combination functions.
High reliability,consistent optical parameters,high power and efficacy over 170Lm/W;
Wattage and CCT adjustable:Equipped with a dip switch for stepwise adjustment of power and color temperature;
Lower Flicker:UVG<24;
Small package:Save shipment cost;
Cost-effective:More competitive price at the same level quality;
Full range of function:Sensor,Emergency,0-10V Dimmable flexible combination functions.
If you would like to know more details please contact Nicole- nicole@aliteled.com.
Specification
Product Name | linear high bay light |

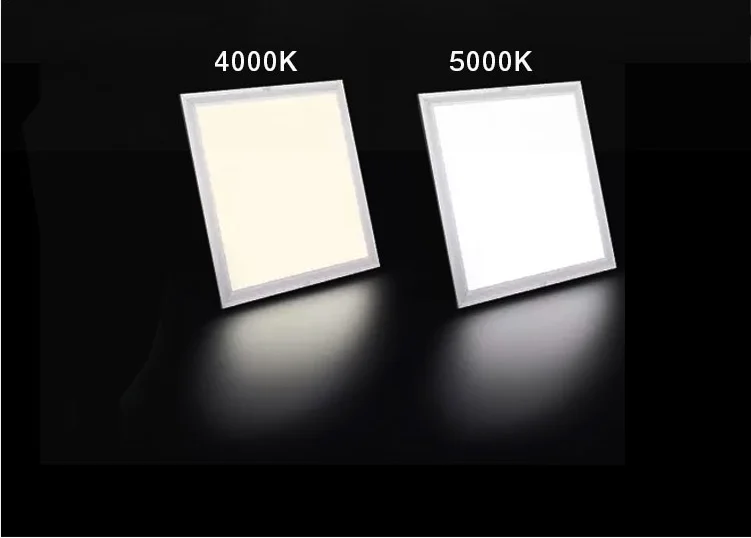

Color Temperature(CCT) | 4000K/5000K/4000K-5000K adjustable |
Lamp Luminous Efficiency(lm/w) | 170 |
Color Rendering Index(Ra) | >82 |
Support Dimmer | Yes |
Lifespan (hours) | 50000 |
Light Source | LED |
Input Voltage(V) | 100-277V/347VAC/100-240VAC |
Lamp Luminous Flux(lm) | 25500-55250Lm |
Working Temperature(℃) | -25°~+40° |
Warranty(Year) | 5-Year |
Size | 2X2FT/2X4FT or customized |
Power | 215W/325W/150-170-215W or 260-290-325W Adjustable |
Installation method | Built in/Suspended/Surface Mount |
Beam angle | 120° |

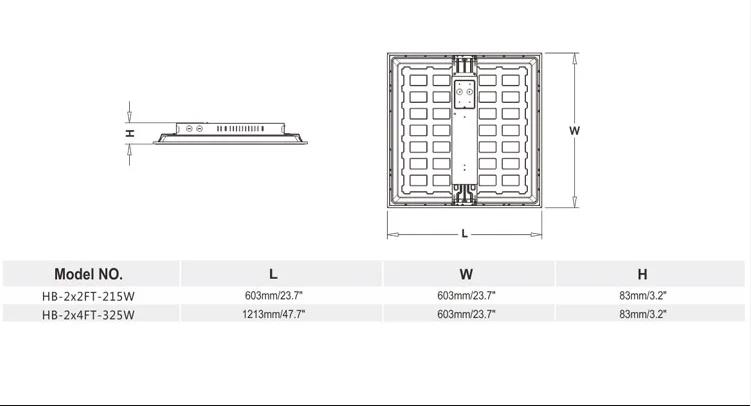

Dimension
Function shpows

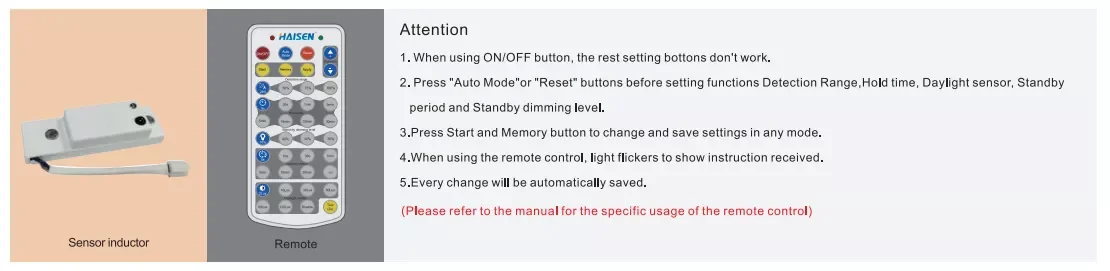

Function desription-motion sensor module
Microwave sensor,detecting distance 5-10M
Sensor module can be installed by user(Please refer to the manual for the specific installaion method.)
Sensor fixture can be set to various sensor modes by remote(operation details as remote instruction)
Sensor module can be installed by user(Please refer to the manual for the specific installaion method.)
Sensor fixture can be set to various sensor modes by remote(operation details as remote instruction)
Emergency
1.Full 20W backup power over 90minutes opraton time.
2.Lithium iron phosphate(Life PO4)battery,high safety performance.
3.Suitable for apolication with compact room as well.
4.Remote control test,no need for test switch wiring,easy operation save wiring cost and mantain cost.Refer to figure.
5.Connect to AC input end directly,easy wiring.
6.Good compatibulity,work with all 0-10V dim LED products(<350W)
2.Lithium iron phosphate(Life PO4)battery,high safety performance.
3.Suitable for apolication with compact room as well.
4.Remote control test,no need for test switch wiring,easy operation save wiring cost and mantain cost.Refer to figure.
5.Connect to AC input end directly,easy wiring.
6.Good compatibulity,work with all 0-10V dim LED products(<350W)

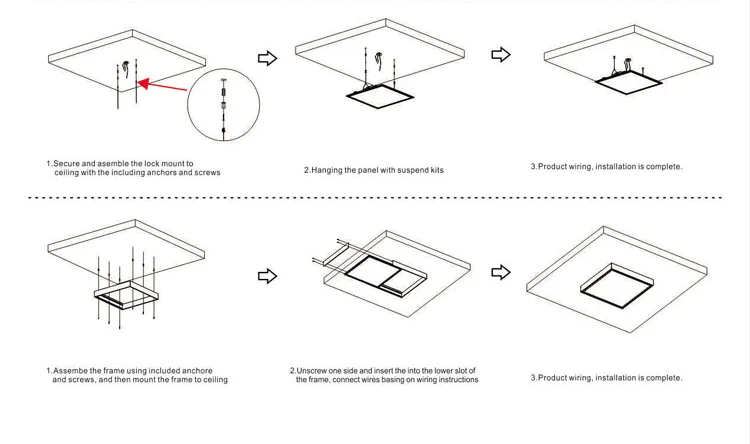

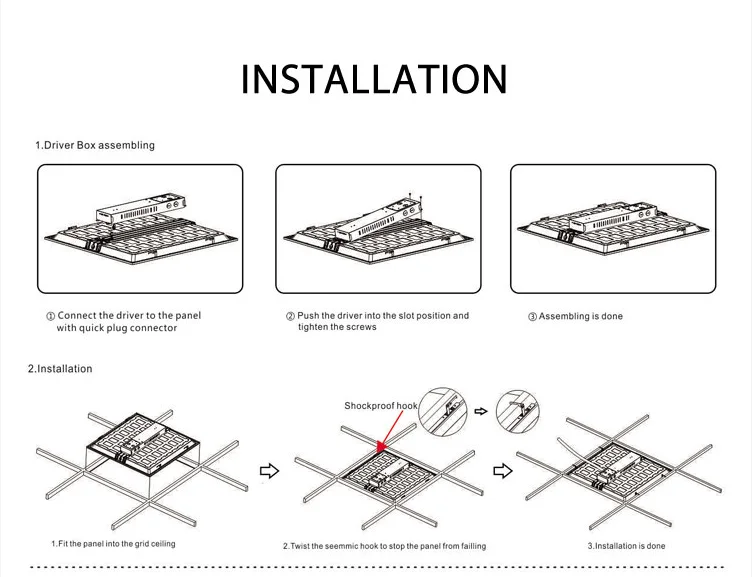

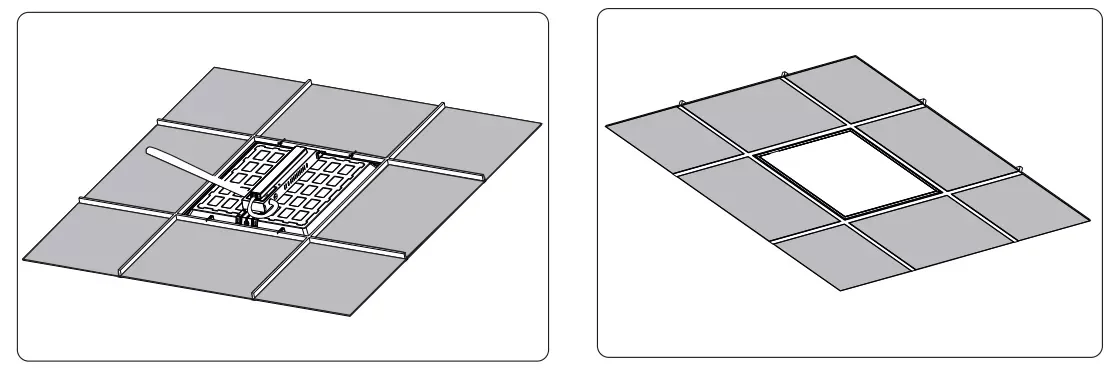

Installation

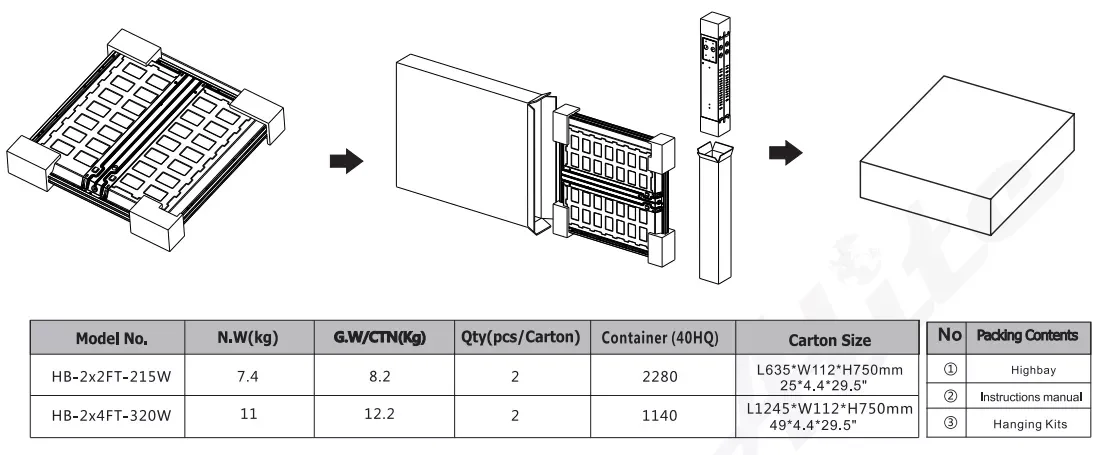

Package
Package of linear high bay light
Company Profile
Alite is a Tech-leading manufacturer specializing in reasearching, manufacturing and sale of LED lights.

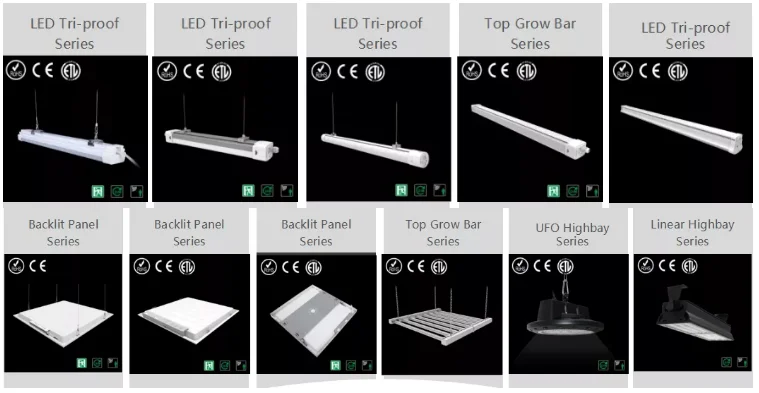

We continiously provide high quality products with good cost efficiency. Main products are LED Panel , ledTri-proof light, LED Tube, troffer LED PL lamps, highbay etc,with EnergyStar, North America need certificates, PSE, SAA, ERP, FCC, CE, ROHS certifications, also got ISO9001:2008 international standard quality system certification.
Our factory have 5000 sq. m and 150 workers ,which are assuring the great production capability and prompt delivery time. Although We are not from Taiwan, but we could promise for our products, and also we have very good warranty Policy for our clients.
Look forward to being your reliable partner.
We continiously provide high quality products with good cost efficiency. Main products are LED Panel , ledTri-proof light, LED Tube, troffer LED PL lamps, highbay etc,with EnergyStar, North America need certificates, PSE, SAA, ERP, FCC, CE, ROHS certifications, also got ISO9001:2008 international standard quality system certification.
Our factory have 5000 sq. m and 150 workers ,which are assuring the great production capability and prompt delivery time. Although We are not from Taiwan, but we could promise for our products, and also we have very good warranty Policy for our clients.
Look forward to being your reliable partner.
Our services
With the functions of 0-10v dimmable, Non-dimmable, Emergency Backup and sensor, they could be
mixed as your requirements.
5-7 days for sample orders, 15-20days for bulk orders.
Customized label ( or silk printed) with your logo.
Customized packages and details. ODM available.
mixed as your requirements.
5-7 days for sample orders, 15-20days for bulk orders.
Customized label ( or silk printed) with your logo.
Customized packages and details. ODM available.
FAQ
Q: What’s the advantages of the products ?
A: Emergency backup and sensor are inside, not outside, easier installation.
Q: What’s the battery used ?
A: The nickel-metal hydride batteries.
Q: What's the sensor function ?
A: 100%---> low light (10-20% customized)---->off
A: Emergency backup and sensor are inside, not outside, easier installation.
Q: What’s the battery used ?
A: The nickel-metal hydride batteries.
Q: What's the sensor function ?
A: 100%---> low light (10-20% customized)---->off
