14000 15500 люмен IP65 водонепроницаемый 100W мачтовое освещение подвесной светильник типа High Bay

Описание и отзывы

Характеристики



LED Light Source	3030 Version	5050 Version
LED Qty/ Current	152units/ 105mA	78units/ 51mA
Power	100W	100W
Luminaire Efficacy (+/- 5%)	140 lm /w	155 lm /w
Lumen Output (+/- 5%)	14000 lm	15500 lm
Input Voltage	100-240V /277VAC , 50 /60Hz
Driver Brand	Meanwell HBG Series
Beam Angle	60° (PC Lens) ;  110° (Tempered Glass)
CCT (K)	3000K / 4000K / 5000K / 5700K
Lifetime (h)	>100,000 (L70)
Working Environment	-40ºC ~ +50ºC    10%~90%RH
Storage Temperature	-40ºC ~ +50ºC
Rating	Class I / IP66 / IK10
CRI	>70
Power Factor	>0.95
Power Efficiency	>90%
Material	Housing: Die-cast aluminum;  Lens: Tempered glass /PC
Pole Diameter	60mm

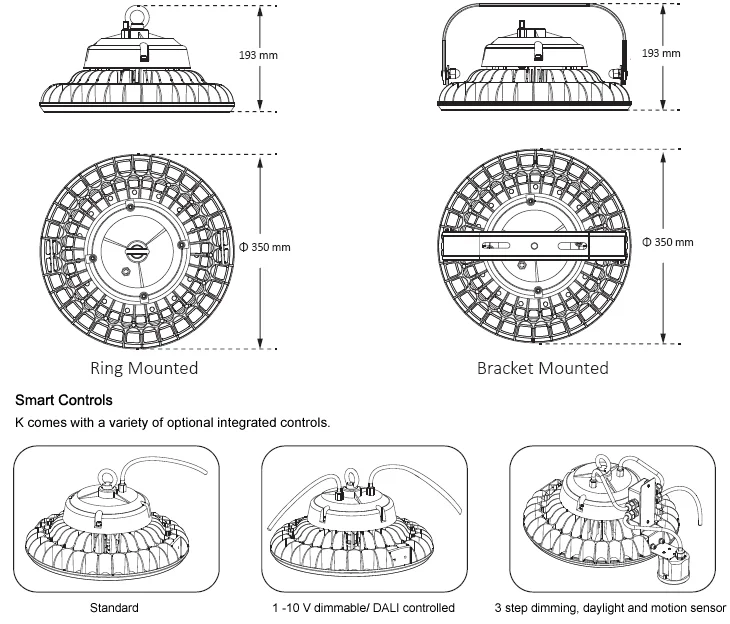

Product Dimensions	350*350*193mm
Carton Size	365*365*210mm
N.W	4.4Kg (Ring mounted) ; 5.2Kg (Bracket mounted)
G.W	5.2Kg (Ring mounted) ; 6.0Kg (Bracket mounted)







Dimming Optional



1) 1-10V Dimming [ All the models are available ]
2) PWM Dimming [ All the models are available ]
3) Potentiometer Dimming [ All the models are available ]
Meanwell dimmable driver will be used if dimming function is requested.
Multiple dimming functions are integrated (1-10V DC, PWM Signal or potentiometer ).
