Product Description


Product Name
1.8mm 400P Endoscope Camera Module
Sensor
1/10.6”CMOS Sensor
Resolution
400*400P@30FPS
FOV（Diagonal）
120°
Depth of field
5mm to 100mm, 10-100mm, 3-50mm can be optional
LED
4PCS
Cable  Length
500-5000MM （Only AV output can be 5 meters）
Waterproof Level
IP67
Separately from the PCBA
Camera Module + PCB
Supporting image processing board
USB, AV


  • Product performance description


Out diameter 1.8mm 400P endocspe camera module is used for CMOS OV6930 1/10.6″ sensor. Separately from the PCBA : PCB decoder + Camera moudule. Depth of Field can be 5mm to 100mm, 10-100mm ( Customized 3-50mm, 30mm-80mm ). Application for Industrial endoscopic, for Medical endoscope. Like: Endoscopy of digestive tract; Hysteroscopy; Anorectal endoscopy; Urinary endoscopy; Disposable endoscopy and so on. If you want to get diameter 1.48mm,2.0mm 2.8mm 400P endocspe camera module. kindly contact us whether there is raw material inventory.




Details Images


Diameter 3.9mm endoscope camera module is used for OV6930 CMOS image sensor , the reslution is 400*400, frame rate is 30FPS.




FOV is 120 degree. It can be with 4PCS led.

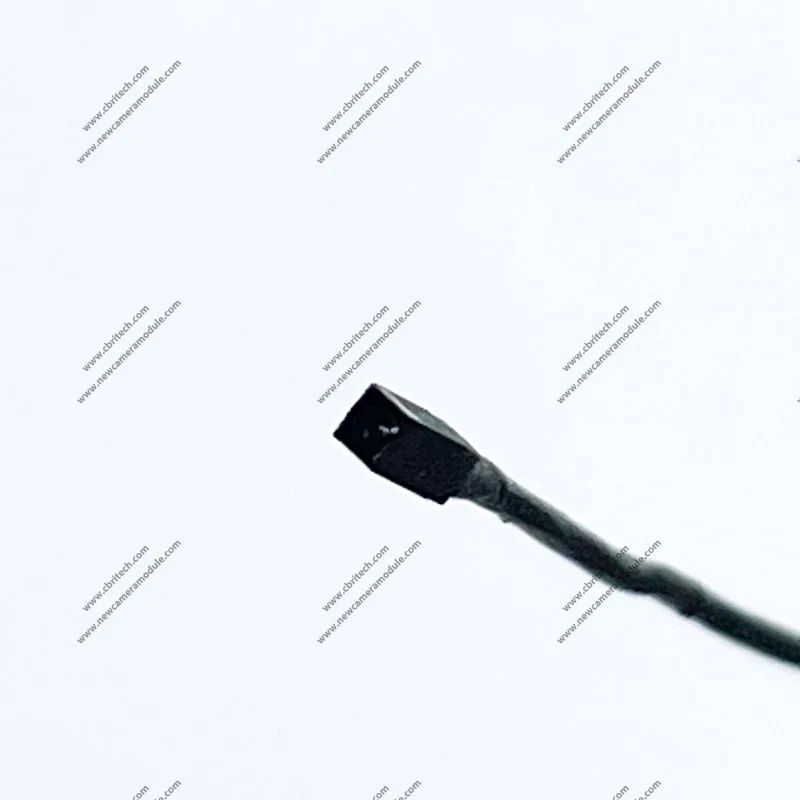

The out diameter is 2.0mm with Stainless Steel Sleeve. The waterproof level is IP67.

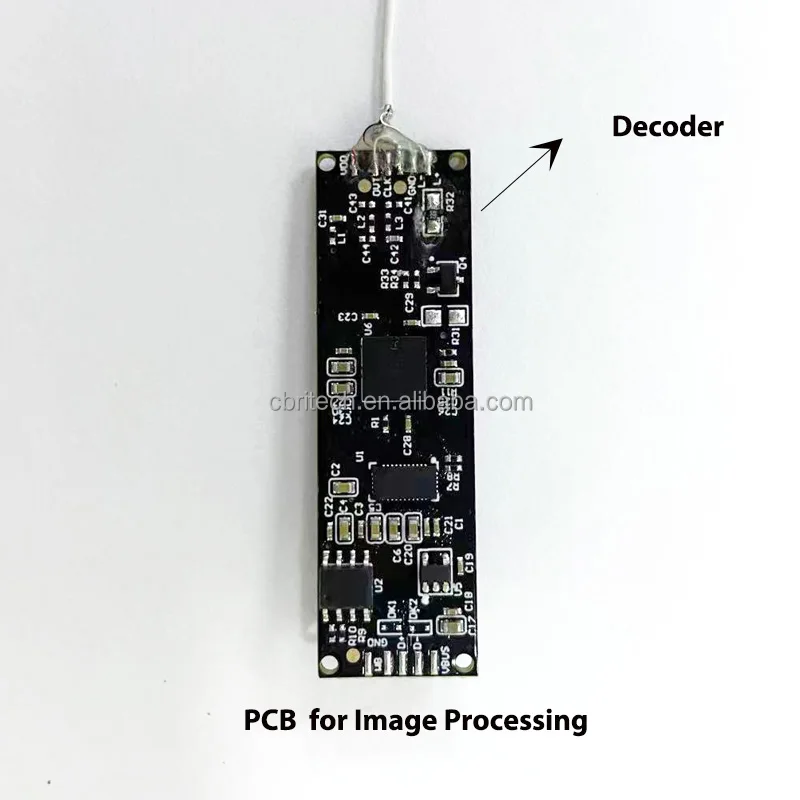

USB Image Processing Board for
2.0mm Endoscope camera module can be support AV, USB output.


Product Application


Medical Endoscopic Camera
720P 3.9mm endoscope camera module mainly application for Medical endoscope. Like: Endoscopy of digestive tract; Hysteroscopy; Anorectal endoscopy; Urinary endoscopy; Disposable
endoscopy and so on.
Industrial Endoscopic Camera
720P 3.9mm endoscope camera module also can be apply for Industrial Endoscope Camera,Military Endoscope Camera, Criminal Investigation Endoscope Camera, Survey Endoscope Camera, Tube Endoscope Camera, Inspection Endoscope Camera and so on.


Packing&Shipping


100pcs per carton

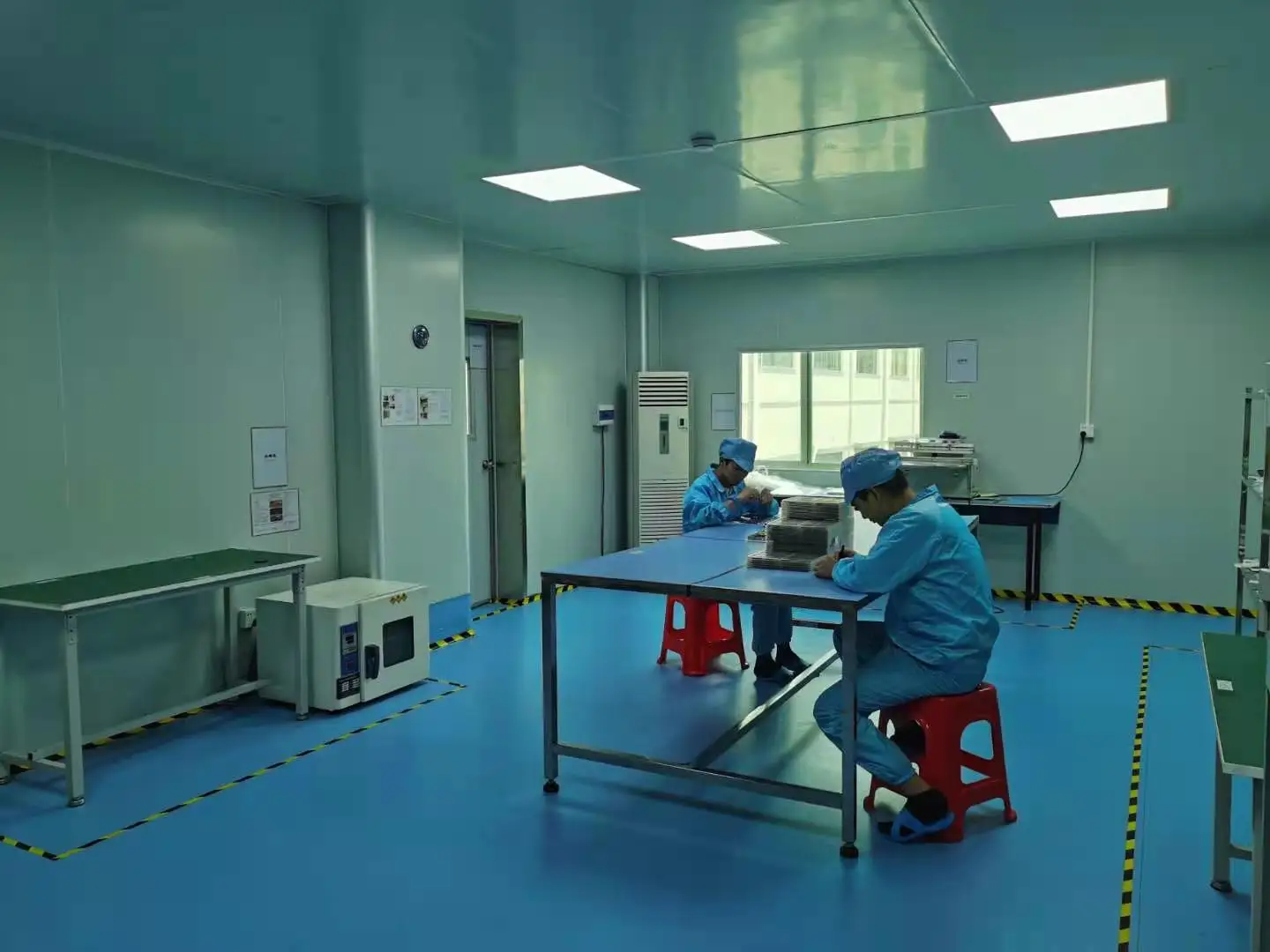

Company Introduction


Shenzhen Brilliant CMOS Technology Co., Ltd. is specialized in manufacturing camera module, mainly providing USB interface camera module, MIPI / DVP interface camera module, miniature endoscope module. We can provide SDK for most USB camera modules,support OEM service.




Our Services & Strength
R&D Department: 5 people, we can support SDK for USB Camera module
Lable: Different styles lable for your choice


FAQ


1. How to buy our product?
You can buy the products from our company directly. Normally the procedure is, sign the contract, make
the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.

2. What's the warranty?

The free warranty is 2years from the date of commissioning qualified. During the free warranty period, if there's any fault
because of our produce, it's our duty to repair it and change the fault assembly for free.

3. Can we visit your camera module manufacturer?

Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best tomake your trip worthwhile.

4. How to customize camera modules as our requirement?

For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
