Автоматическая паллетная машина поддон Штабелируемая сумка паллетирующая с дозатором паллет и готовой системой
- Категории: >>>
- Поставщик: Zaozhuang,Fuliang,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
The high level palletizer comes complete with a rugged platform to operate the PLC control cabinet, an elevated platform and an advanced palletizer head, a pallet dispensor, a pallet outbound roller conveyor, a reversal bag conveyor, an incline conveyor, a vibration and flatten conveyor.
The bags are oriented by a cross or clamp, then layers are built row-by-row based on your chosen bag pattern. The modular design can be upgraded to change outputs and pallet patterns.
Product Description
Product Name | Palletizer Stacking Line |
Power supply | 380V 50Hz 3PHA, customized according to customer needs |
Operating power | 11KW |
No. of layer | 1-10 layer |
Palletizing height | Max. 1.6m |
Air supply pressure | 0.6-1.0Mpa |
Equipment weight | 2400Kg |
Size | L7700mm×W2200mm×H3100mm |
Pallet Dispensor
Pallet Outbound System
Bag Reversal Conveyor
Palletizer Head
PLC Control Cabinet
Pallet Lifting System

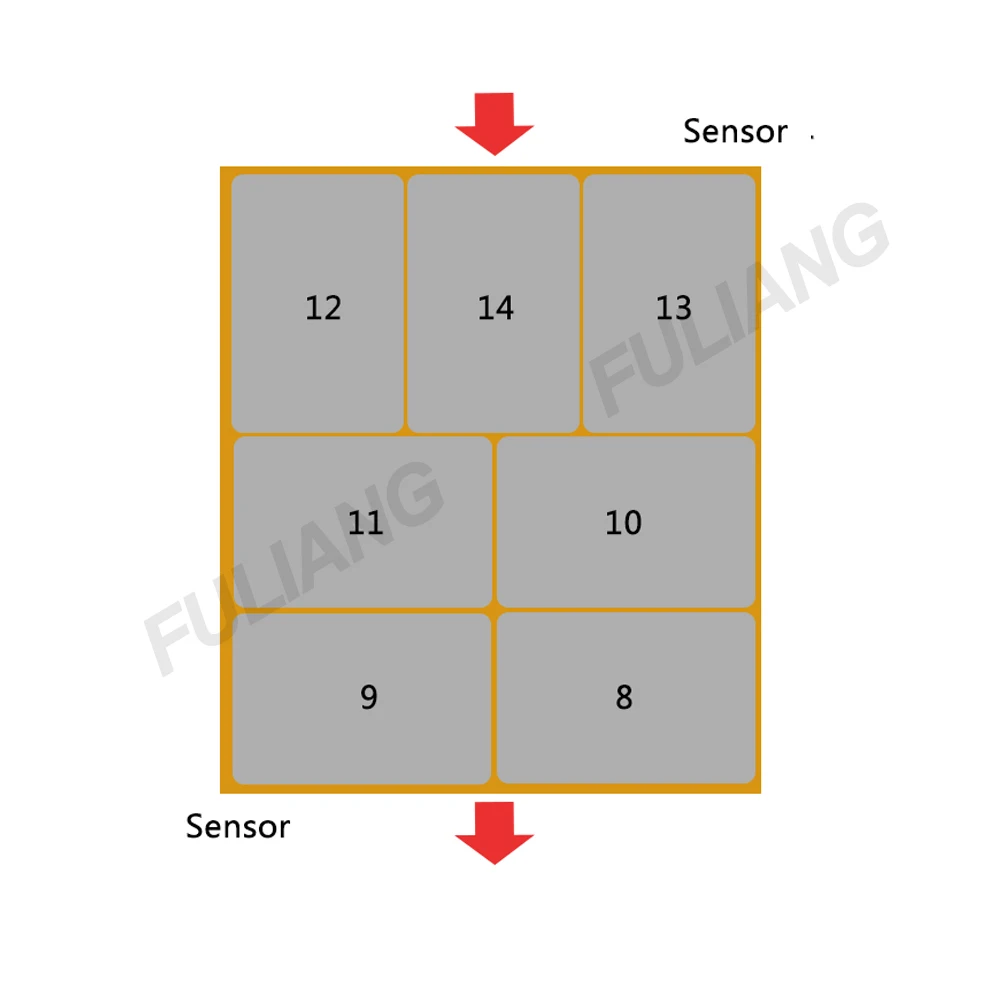

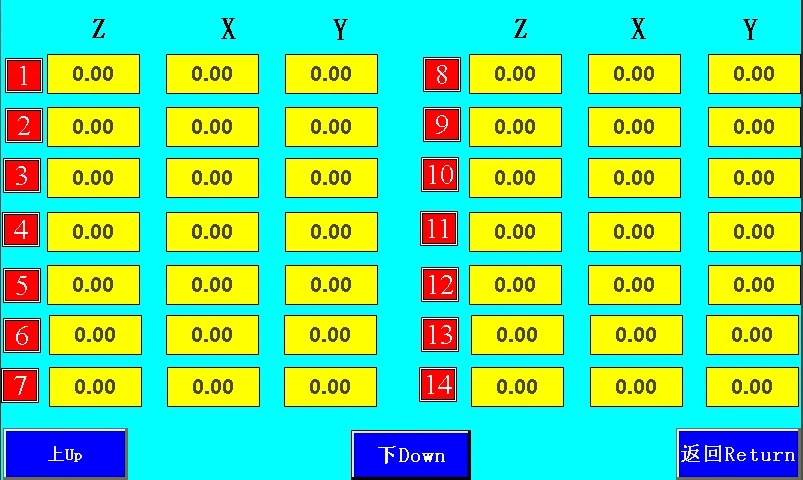

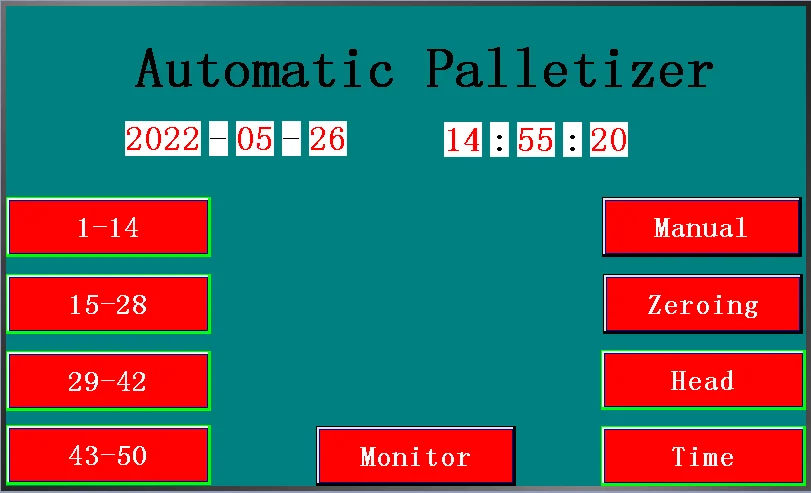

Programmed Stacking Pattern Setting

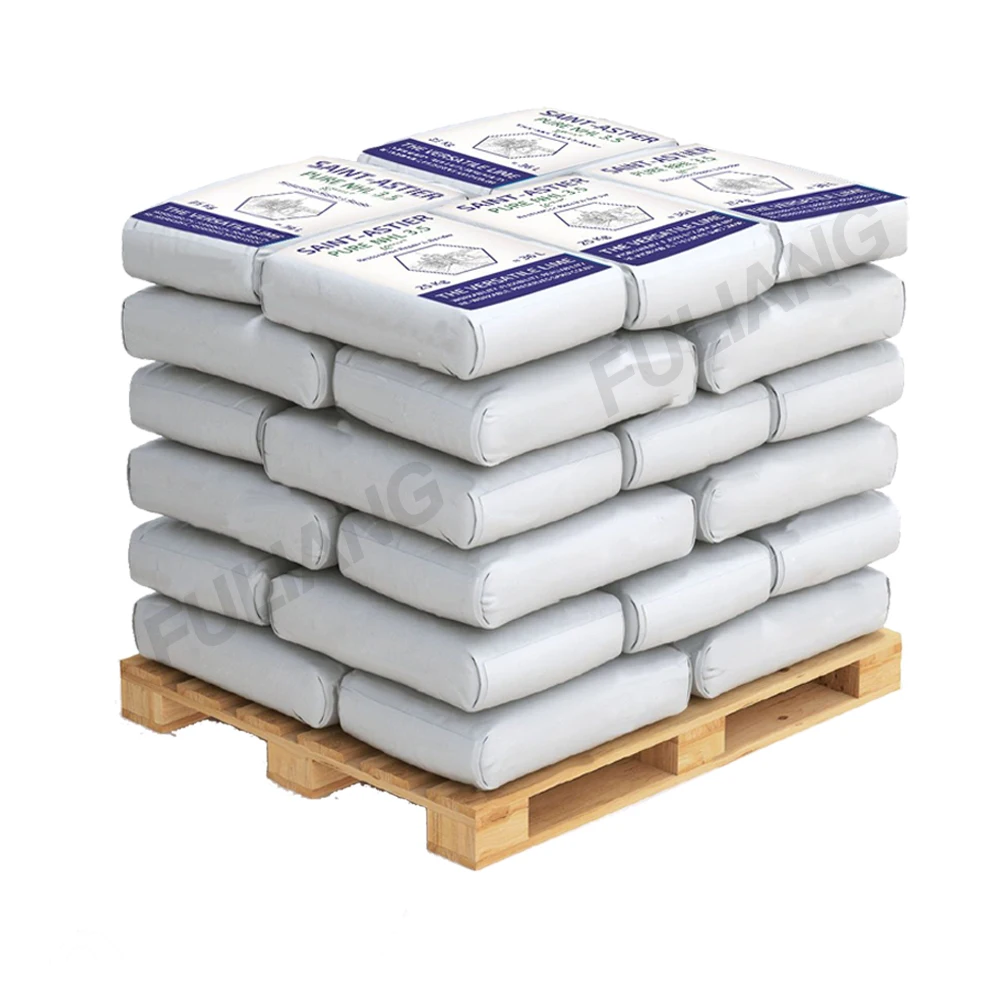

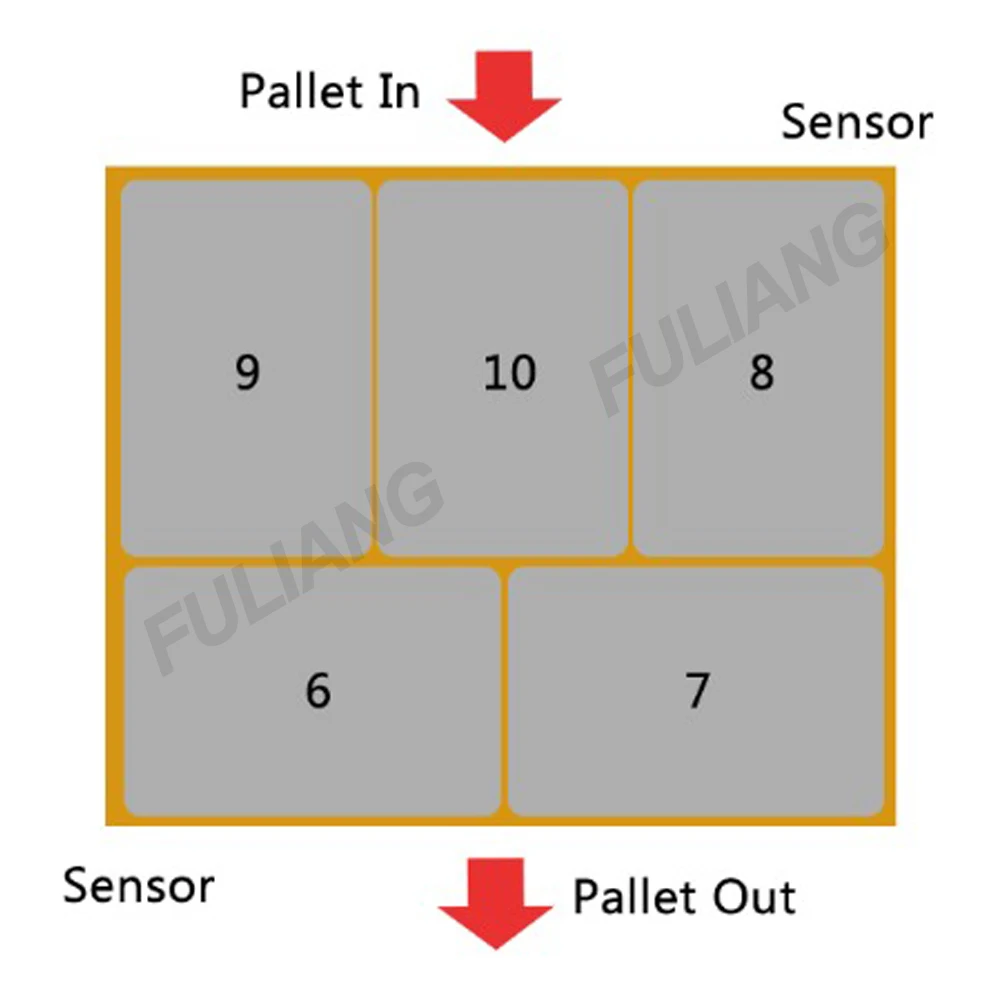

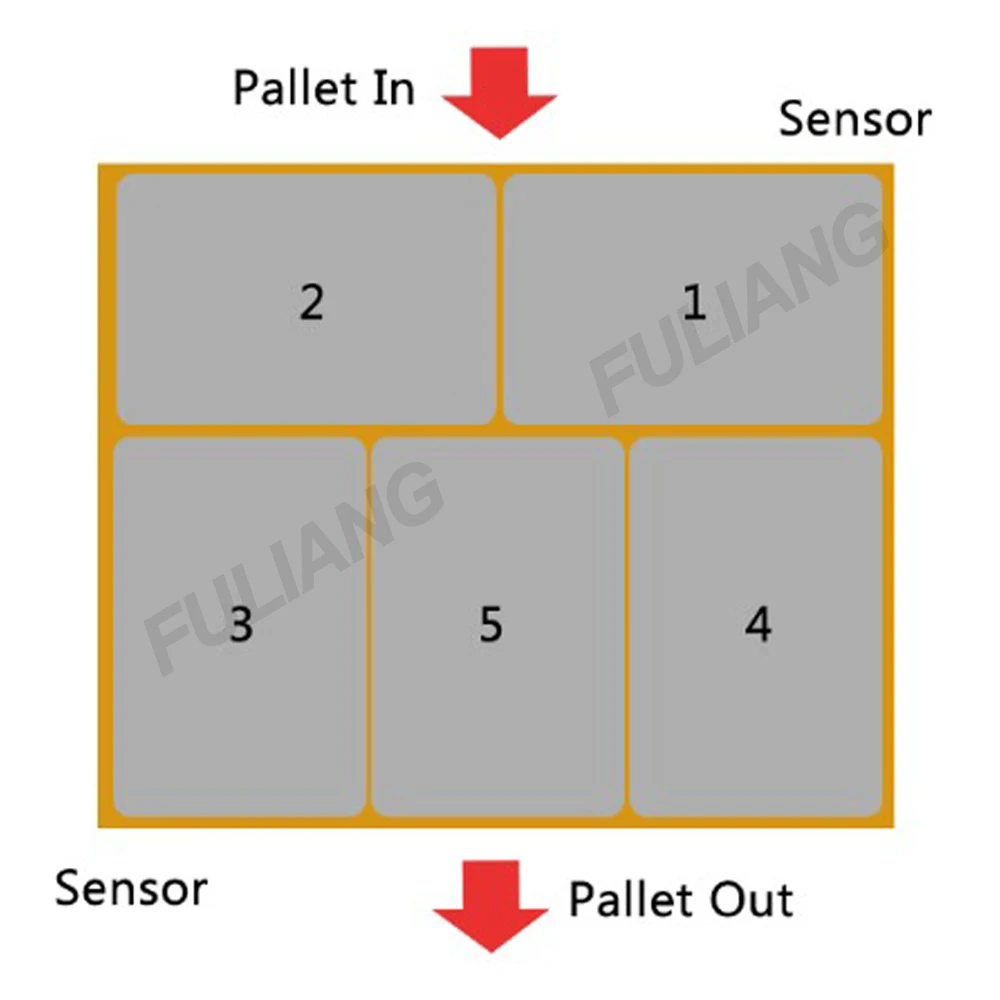

5 bags per layer stacking
Reference Pallet size: 1200x1000mm

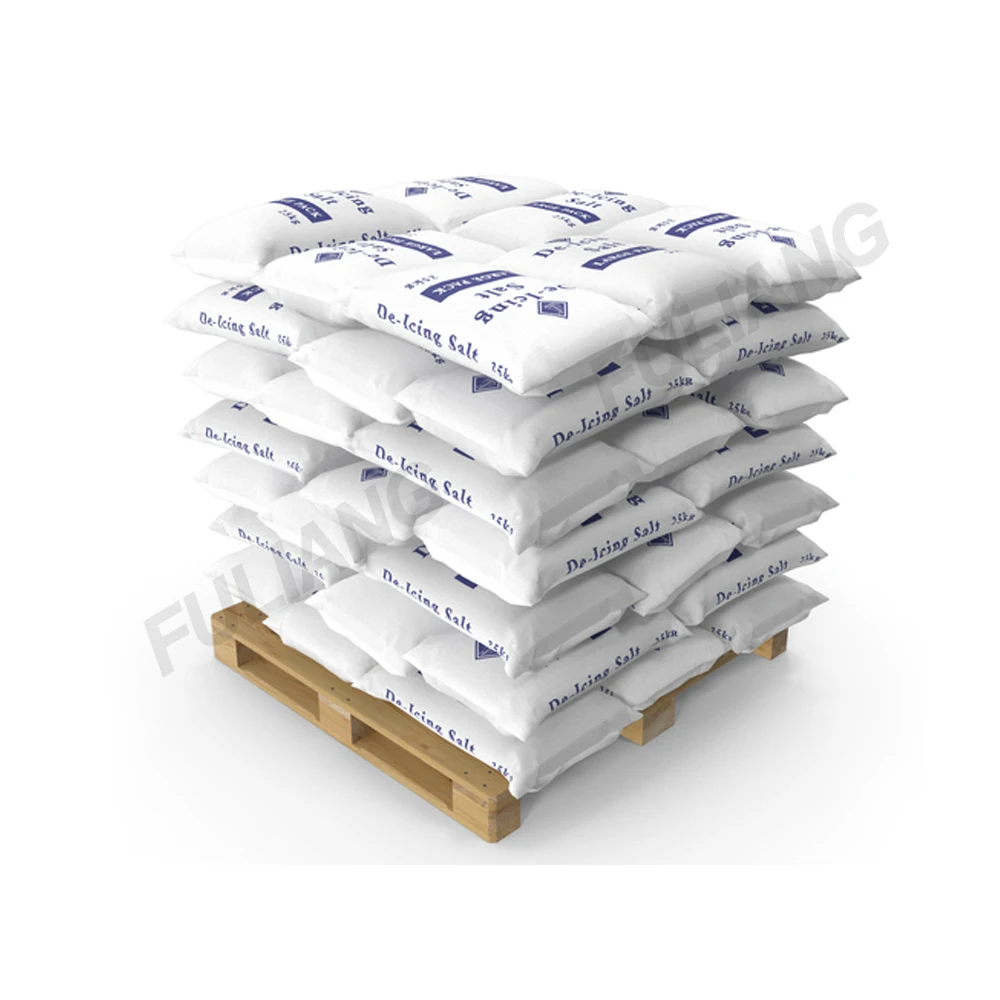

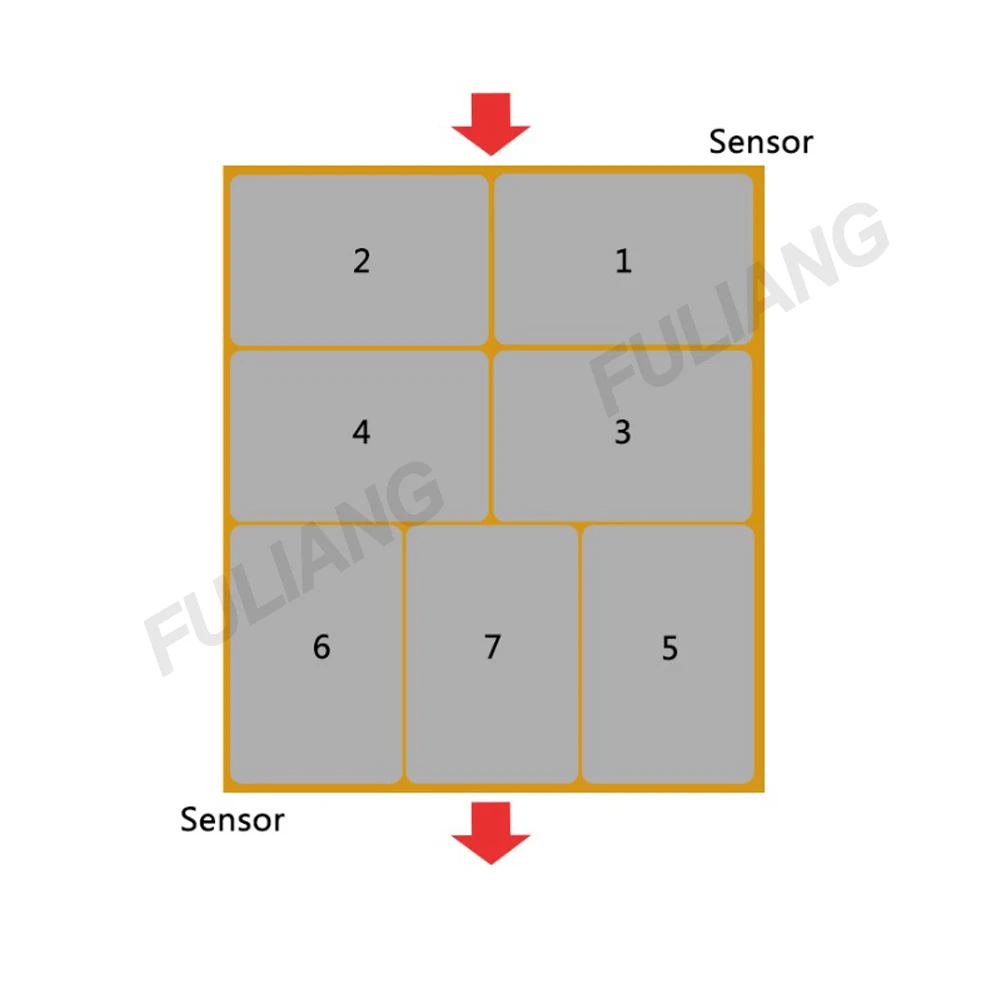

7 bags per layer stacking
Reference Pallet Size: 1400x1200mm

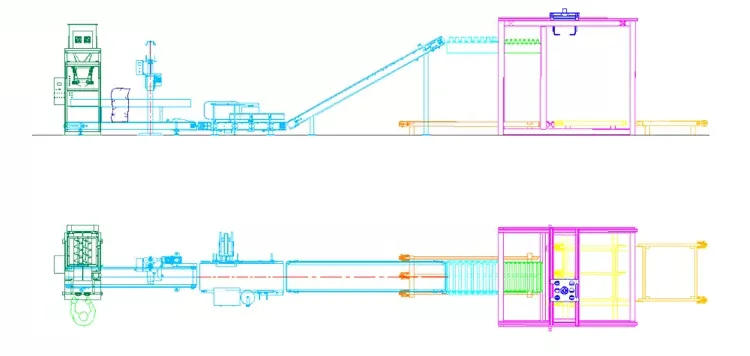

Production Process
Process
→Bag filling and sealing
→Bag reversal conveyor
→Bag incline conveyor
→Bag shape vibrated and flattened
→Pallet into stacking position
→Pallet lifting
→Pallet automatic stacking
→Pallet down
→Pallet outbound system
→Finished pallet wrapping

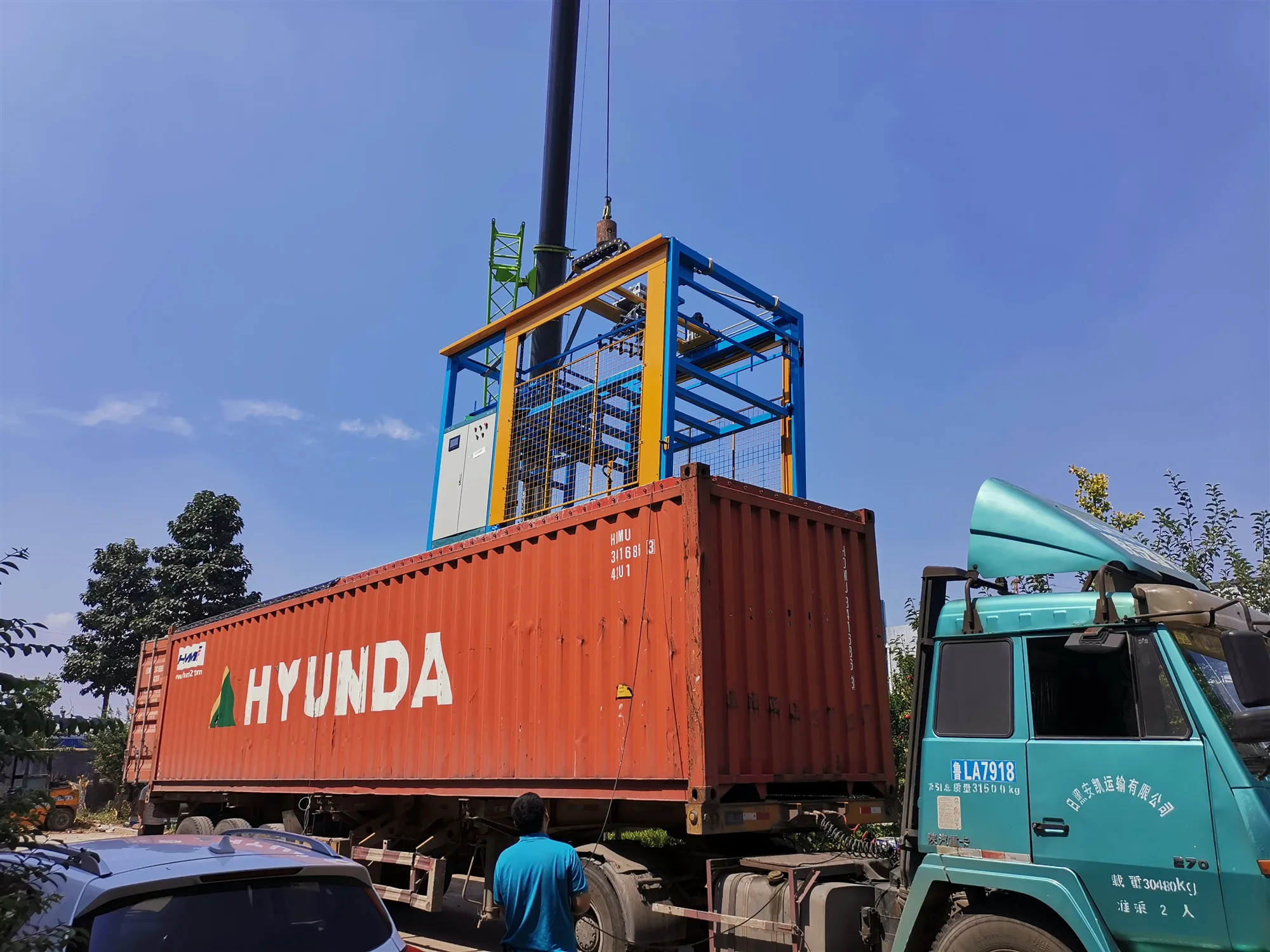

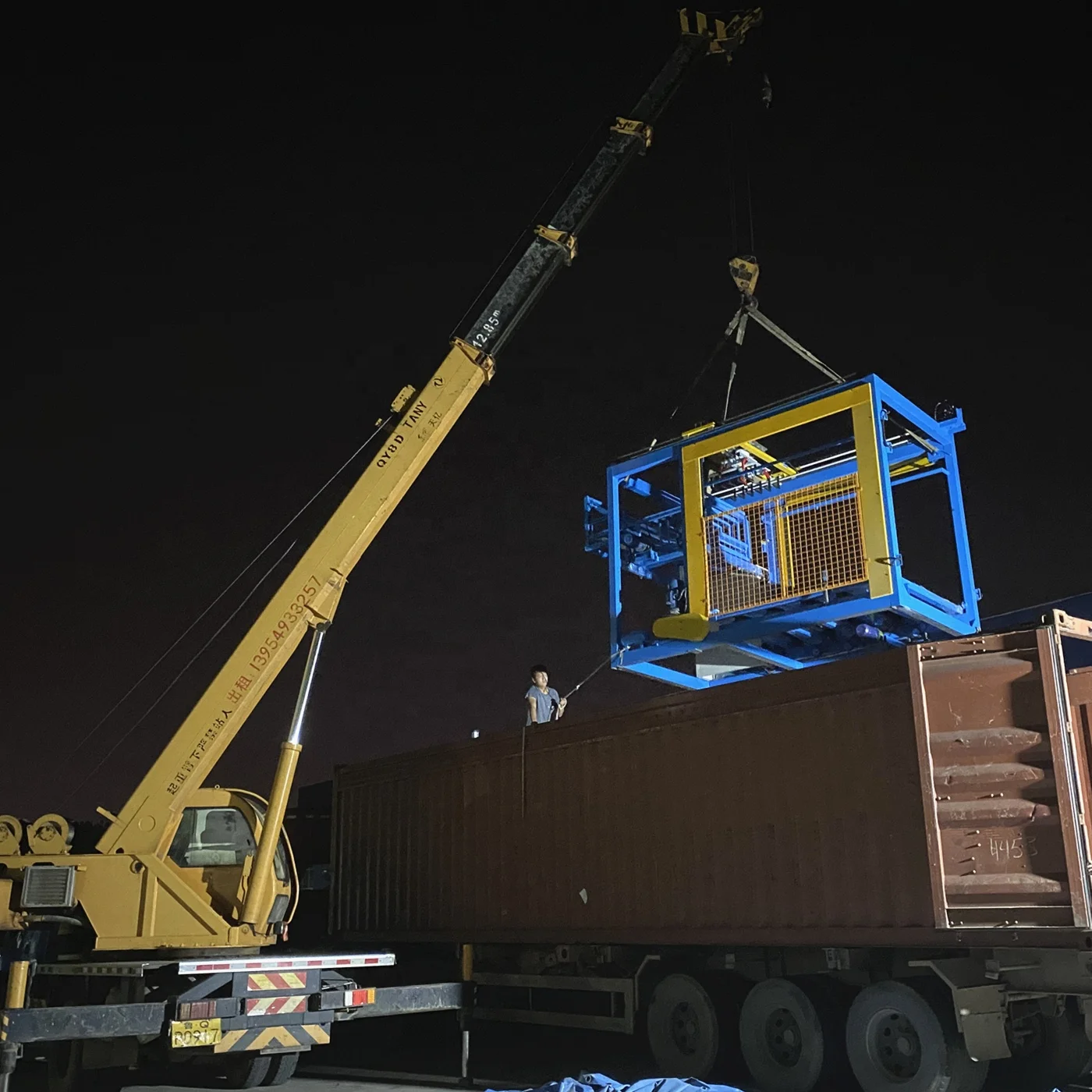

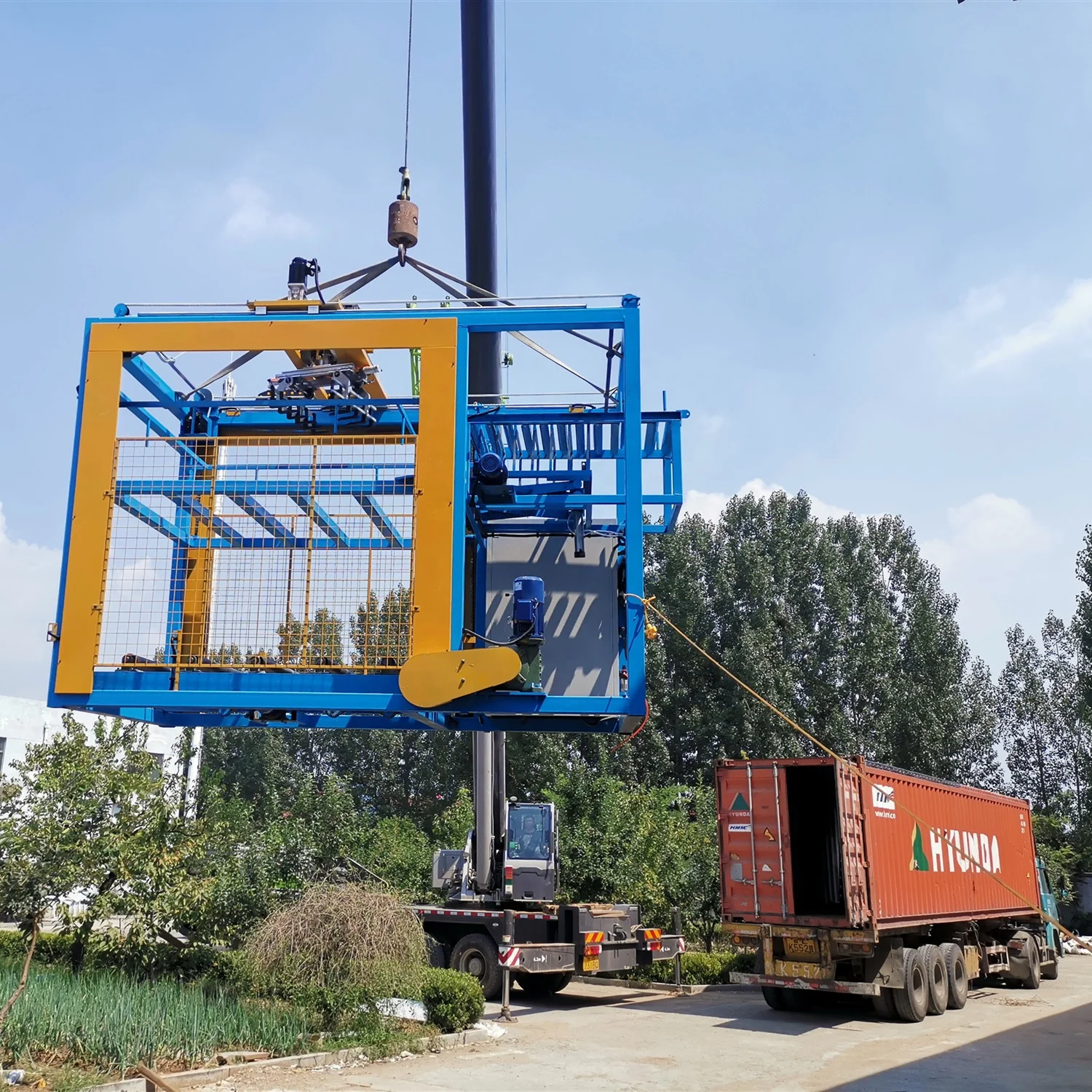

Packing&Shipping
Company Introduction
FAQ
Q: Are you trading company or manufacturer?
A: We are factory with best prices, strict QC inspection, guaranteed quality, custom service based on site environment and professional advice for best solution.
Q: Do you inspect the finished products?
A: Yes. Each step of production and finished products will be carried out inspection by QC dept.
Q: Can you offer oversea service?
A: Engineers available to service overseas.
Q: How about the guarantee period?
A: One year whole machine guarantee.
Q: What is the lead time?
A: 10-20 days after received the deposit.
A: We are factory with best prices, strict QC inspection, guaranteed quality, custom service based on site environment and professional advice for best solution.
Q: Do you inspect the finished products?
A: Yes. Each step of production and finished products will be carried out inspection by QC dept.
Q: Can you offer oversea service?
A: Engineers available to service overseas.
Q: How about the guarantee period?
A: One year whole machine guarantee.
Q: What is the lead time?
A: 10-20 days after received the deposit.
