Products Description




Introduction of Hot Sale Mine Transport Equipment Coal Stacker Tripper Conveyors 80 Meters Scraper Coal Conveyor
SGB scraper coal conveyor apples to slow gently inclined thin coal seam working face conveyor of coal. Mining height is broken floor to 0.6 m, dip angle of coal seam is not more than 25 degrees.
SGB scraper coal conveyor is more suitable for hard coal, large blocks or more inner dirt band conveyor coal. The scraper coal conveyor is designed to mainly for horizontal transportation in the underground coal mining industry and metallurgical mine.We provide coal conveyor, coal stacker, portable coal conveyor, tripper conveyor, coal conveyor system, coal conveyor belt, coal conveyor roller, pulleys, etc.zmwm15

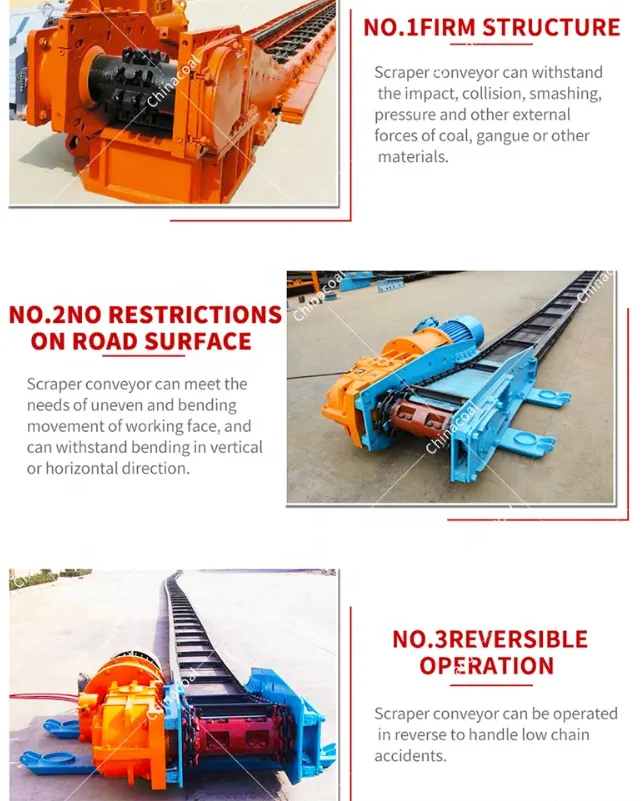

Main Characteristics of Hot Sale Mine Transport Equipment Coal Stacker Tripper Conveyors 80 Meters Scraper Coal Conveyor
1. Solid structure: SGB scraper coal conveyor can withstand coal and waste rock or other materials of blunt, hit, and other external force.
2. It can adapt to the coalface floor rugged, bending goes needs, can withstand the vertical or horizontal bending.
3. Body short, easy to install.
4. It can double as the shearer running the orbit .
5. SGB scraper coal conveyor can reverse operation, easy to deal with bottom chain accident.




Product Paramenters




Model
SGB420/22
SGB420/30
SGB420/40X
SGB620/40
SGB620/55
SGB620/80
Delivery Capacity (t/h)
60
80
100
150
150
150
Standard length(m)
80
100
100
100
100
160
Chain speed(m/s)
0.88
0.88
0.86
0.86
0.86
0.86
Electric motors
Model number
JDSB-22
JDSB30
JDSB40
DSB40
DSB55
DSB40
Power(kW)
22
30
40
40
55
2*40
Voltage(V)
220/380
380/660
380/660
380/660
380/660
380/660
Scraper chain
Form
Side double-stranded
Side double-stranded
Side double-stranded
Side double-stranded
Side double-stranded
Side double-stranded
Chain size(mm)
14*50
14×50
18×64
18×64
18×64
18×64
Breaking load(KN)
≥250
≥250
320
≥320
≥320
≥320
Middle Flute size (L x W x H)
1200×420×150
1200×420×150
1200×420×180
1500×620×180
1500×620×180
1500×620×180
Total weight(t)
8.5
10.6
16
17.8
17.9
28.6


Details Images

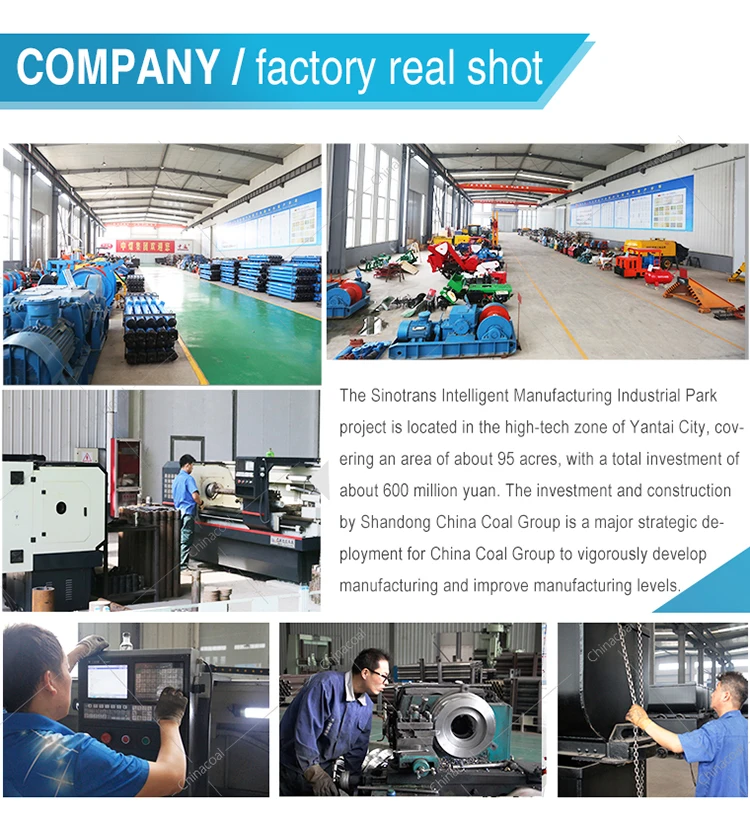

Company Profile




Our Advantages






Customer Photos




FAQ


1. You are a manufacturing factory or trading company?
China Coal Group is a manufacturing factory base of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment and other products.

2. Where is your factory located?
Currently we have one factories in China. One located in Jining, Shandong Province, China . You are warmly welcome to visit us at any time.

3. What are your main products?
We provide coal conveyor, coal stacker, portable coal conveyor, tripper conveyor, coal conveyor system, coal conveyor belt, coal conveyor roller, pulleys, etc.

4. How long is the production leadtime?
Generally it is 15-20 days for goods in stock. In the case of out of stock or large orders, it will take 20-30 days. QTY of the orders will be taken into consideration.

5. What payment terms do you accept?
Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment), bank transfer, Paypal, L/C etc.

6. How do your quality control systems operate?
We have professional designer team, and employ experienced engineers to strictly guarantee the production. Meanwhile our factory owns ISO9001 and is CE and SGS certified.
