UH-5075-S standard paint line overhead conveyor chain
roller chain
As supplier of overhead trolley conveyor, we also supply chain conveyor, as well full set of conveyor parts, such as chain, track, drive device,take-up device,hanger. GOOD SERVICE FOR CUSTOMER, THE PROSPECTIVE WITH US.
Product Description
Excellent performance of roller chain
- Low noise
- Less power consumption
- Stable operate performance
- User-friendly and safe use
- Excellent extensity
- Make full use of space
- Large angle bending space
- High mechanization & automatization
- Close -up continual conveying equipment
- Work perfectly together with the ground facilities
- Make any turns on both horizontal plane and vertical planes
Specification of roller chain
| UH-5075-S | UH-5075-HH | UH-5075-HV | Uh-5075-HA | |
Separation of suspension (mm) | 150+(150 × N) | 150+(150 × N) | 150+(150 × N) | 150+(150 × N) |
Chain's weight (kg/m) | 4.2 | 4.58 | 4.83 | 5.3 |
Single-span weight (≤kg) | 35 | 40 | 45 | 50 |
Chain's allowable pull force ( ≤kgf ) | 3000 | 3000 | 3000 | 3000 |
Chain's catastrophic pull force (≥kgf) | 5500 | 5500 | 5500 | 5500 |
Working temperature (≤°C) | 250 | 300 | 300 | 400 |
| Applicable | general conditions | large bending; high temperature; | high temperature; heavy work pieces; frequently lifted; | high temperature; heavy work pieces; complicated routes; |

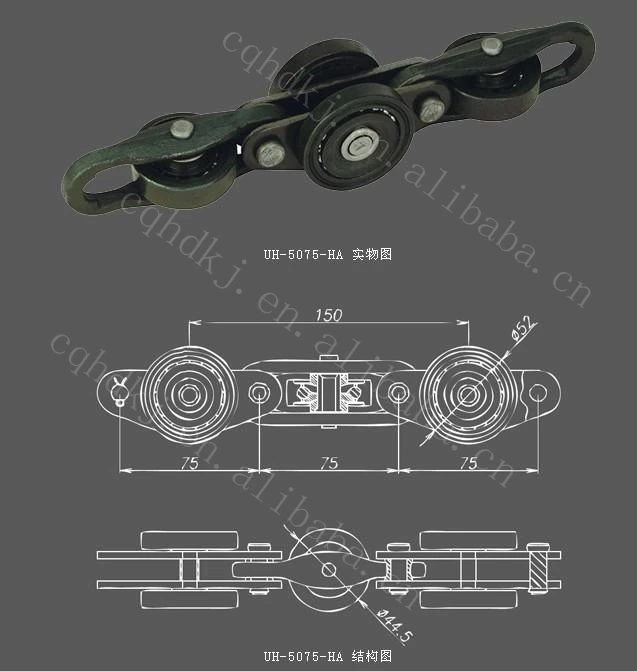

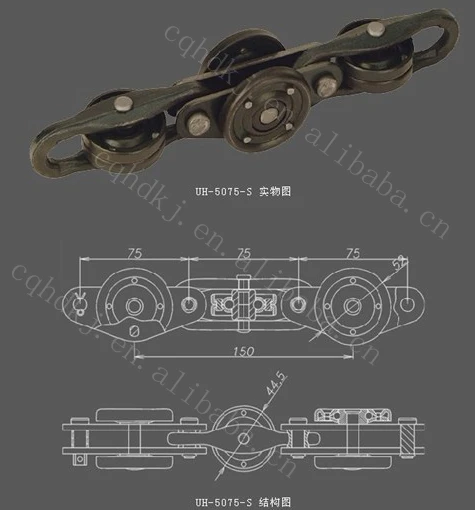

Pictures UH-5075-S and UH-5075-HH have same product picture;UH-5075-HA same with UH-5075-HV.
Introduction
UH-5075 series overhead trolley conveyor, is close-loop continual conveying equipment widely applied for continual convey of various industrial work pieces, such as surface treatment, powder coating, paint spraying, drying, oven, cooling room and plaing the finished products off the line, furniture factories, bicycle plants,electronic products factory, hardware factory.
It have excellent extensity and is capable of making any turn on both horizontal planes and vertical planes.Based on the actual needs of various process flows, the conveyor has been deliberately designed to run across relatively long routes and abstruction objects to transmit the work pieces along the scheduled route all the way to their destinations. In this way, UH-5075 can integrate all separate production steps into an automatic production line, which has greatly improved efficiency and product quality level and strengthen the management as well.
Our Services

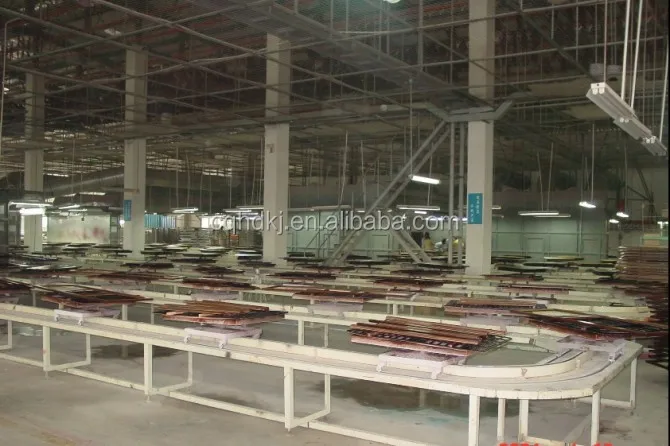

The whole conveyor line:

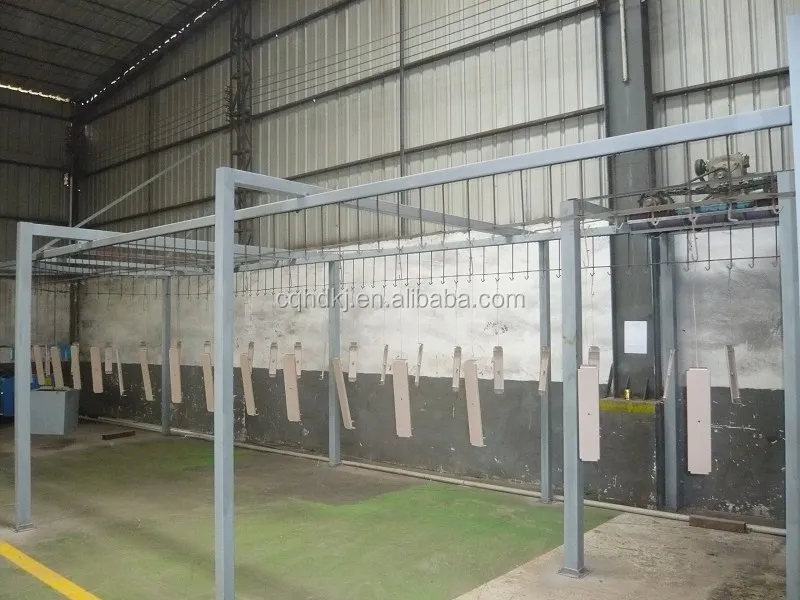

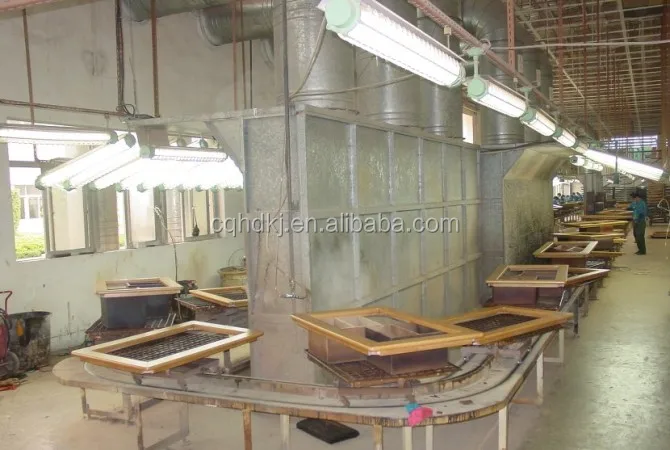

For Powder coating line, Drying, Oven line:
FAQ
- Chain Material:16# Medium-carbon steel, Steel A3
- Track material: Steel A3
- The drive system better to be 5~7 meters after the adjust seat
- If dont move, check if any straight and curve rails; check the motor and chain; check if use high temperature chain lubricant
- If chain fall of the drive, check the driving wheel

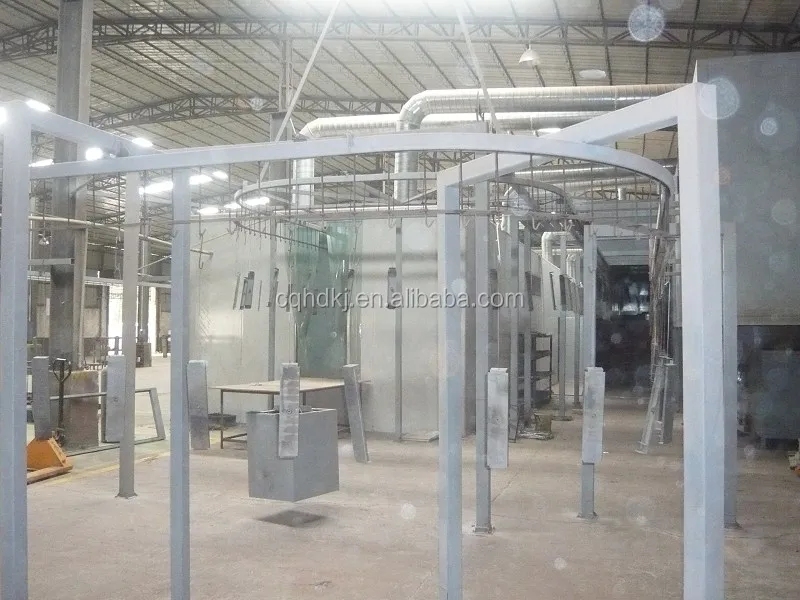

Application Show
