Product Parameters
Model | KRTS1200D | KRTS1500D | KRTS1900D | KRTS2600D |
Motor power(2motors) | 45+45kw | 55+55kw | 75+75kw | 110+110kw |
Main shaft rotary speed | 9rpm | 9rpm | 9rpm | 6rpm |
Working capacity (tire ) | 4-6t/h | 5-7t/h | 7-10t/h | 10-20t/h |
Weight | 6500kg | 12500kg | 16600kg | 42600kg |
Blade diameter | 530mm | 550mm | 600mm | 720mm |
Max tire feeding size | Dia.<1200mm | Dia.<1500mm | Dia.<1900mm | Dia.<2600mm |
Shredded size | ≤80mm | ≤80mm | ≤80mm | ≤80mm |
Feeding tank size (L*W) | 1400*1000mm | 1450*1050mm | 2300*2000mm | 2300*2000mm |
Dimensions (L*W*H) | 4*3*2M | 1.9*2.8*3.3m | 6*2.4*3.3m | 7.2*2.8*4.5m |
Product Display

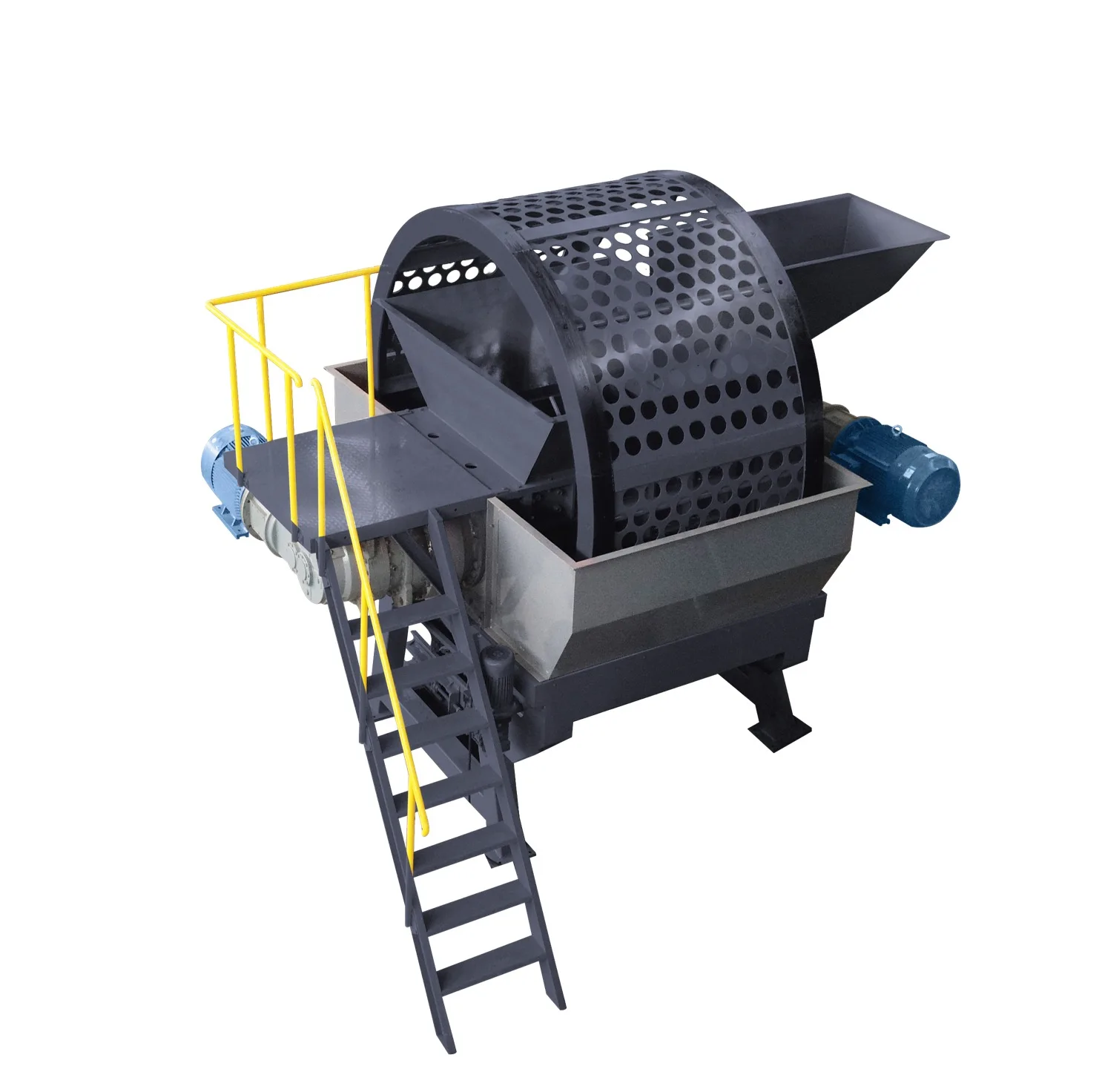

Planetary gearbox dual shaft changeable blade corner economical tire shredder
double shaft shredder-coarse crushing

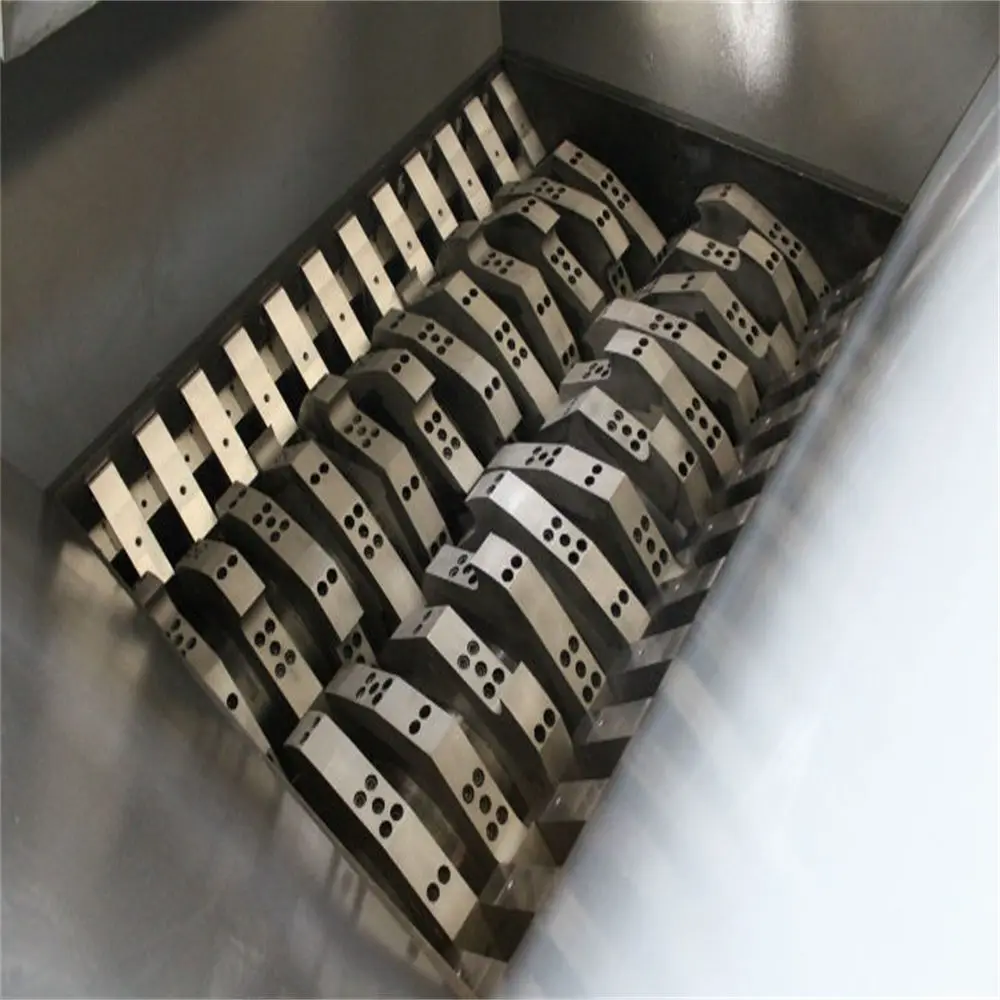

KRTS twin shaft tire shredder, equipped Cr12mov/H13K knives, suits for shredding waste tire contents steel,
KRTS1200D/1500D/1900D/2600D can process scrap car tire, truck tire, ORT tires which diameter, waste tire steel drawing machine
pull off steel in tire sidewall in advance for decreasing the wearing of tire shredder knives, KRTS tire preliminary shredder has

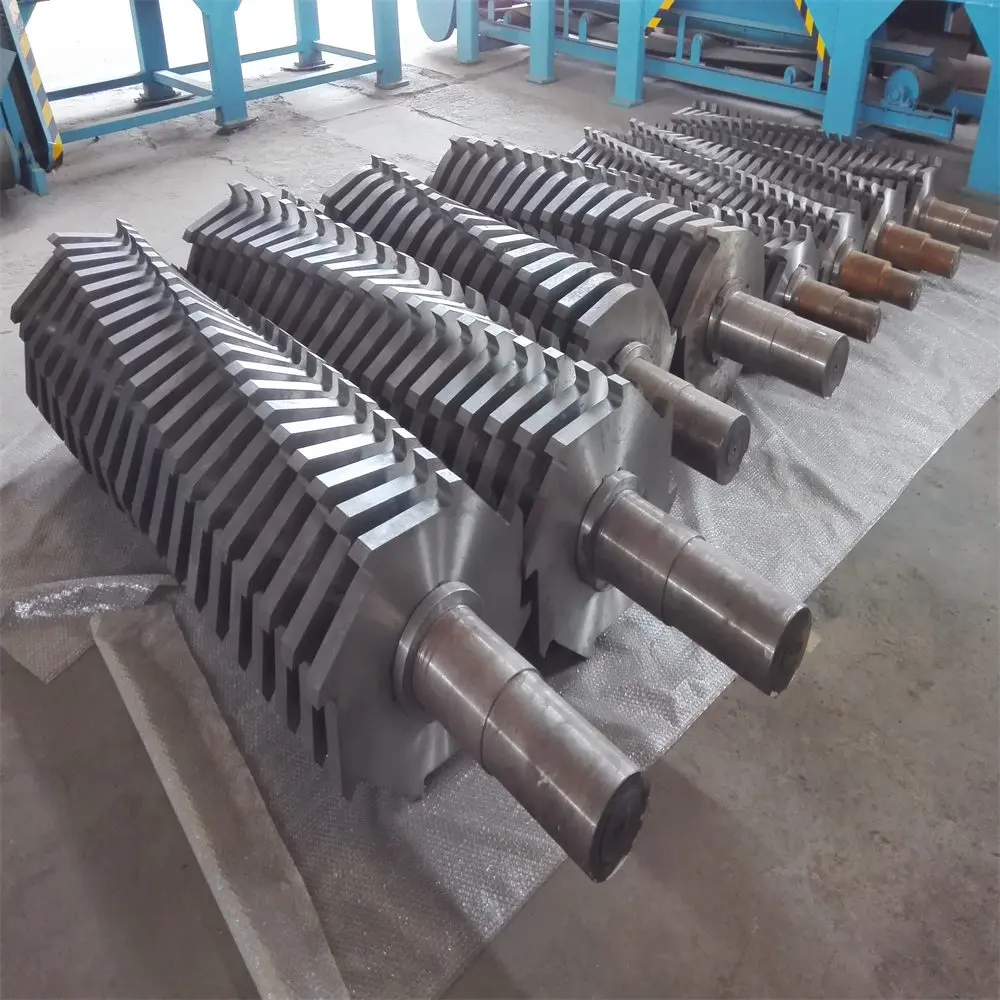

two rotors built into the machine that rotates at low speeds and high torques, shredding size controlled by screens(standard size:
50X50mm), screen rotary around shredding chamber, oversize material turn back into shredding chamber. KRTS twin shaft shredder
also suitable for plastic waste, wood processing scrap, medical waste, paper, cardboard or almost any type of waste, which need
uninformed end size, materials can be dumped into the hopper and processed with no further operator interaction.
KRTS1200D/1500D/1900D/2600D can process scrap car tire, truck tire, ORT tires which diameter, waste tire steel drawing machine
pull off steel in tire sidewall in advance for decreasing the wearing of tire shredder knives, KRTS tire preliminary shredder has
two rotors built into the machine that rotates at low speeds and high torques, shredding size controlled by screens(standard size:
50X50mm), screen rotary around shredding chamber, oversize material turn back into shredding chamber. KRTS twin shaft shredder
also suitable for plastic waste, wood processing scrap, medical waste, paper, cardboard or almost any type of waste, which need
uninformed end size, materials can be dumped into the hopper and processed with no further operator interaction.
Right elevation
Left elevation
Front elevation

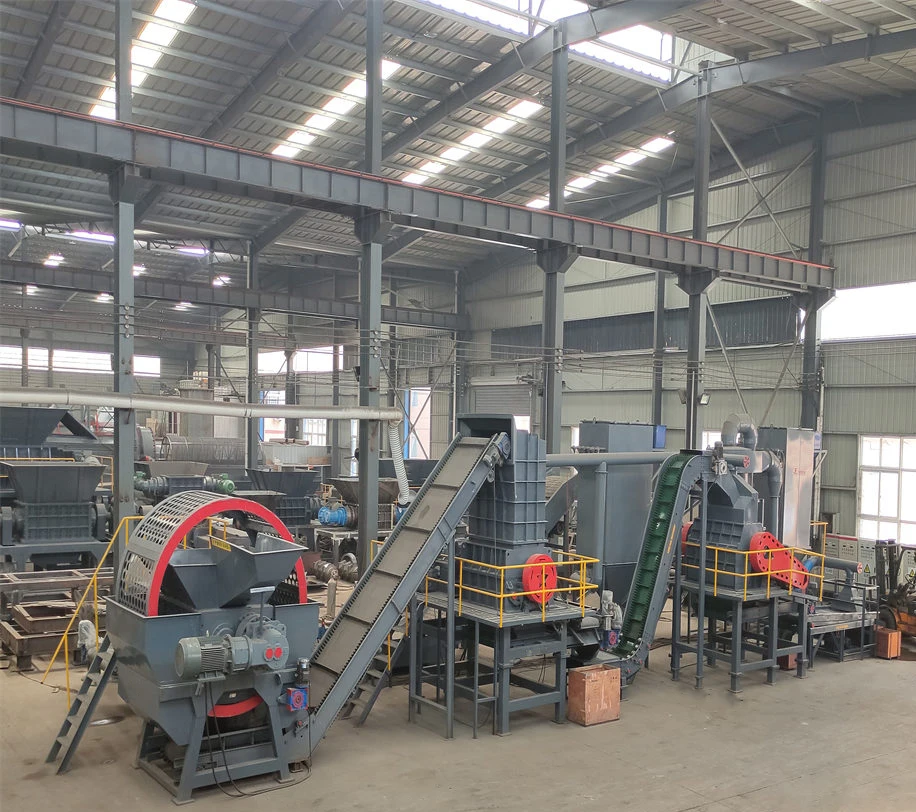

For different tire characteristics and productivity requirements, the equipment may include:
1. Fully automatic wire drawing machine: remove tire rims.
2. Conveying equipment: conveyor belt, screw conveyor and air pressure transmission system.

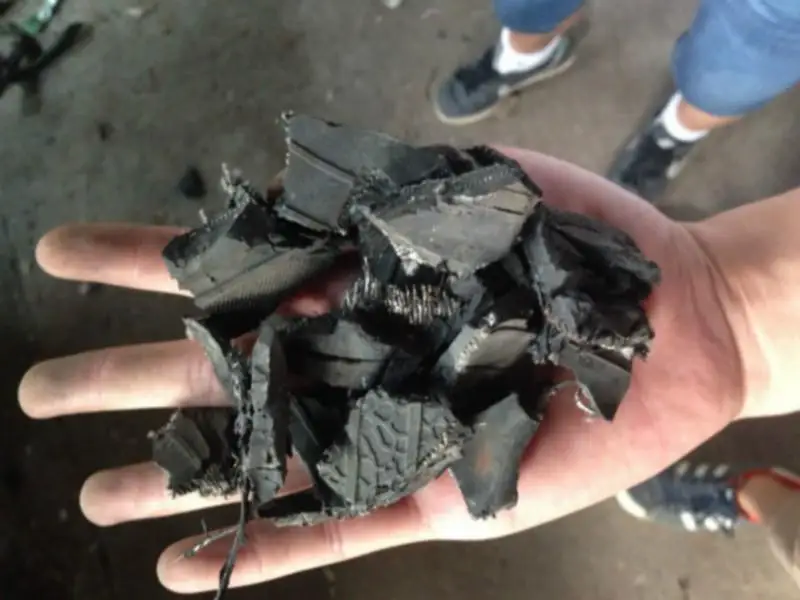

3. Tire shredder: shred tires into film (50mm-150mm).
1. Fully automatic wire drawing machine: remove tire rims.
2. Conveying equipment: conveyor belt, screw conveyor and air pressure transmission system.
3. Tire shredder: shred tires into film (50mm-150mm).
Related Products
Company Profile
FAQ
Q1: Can you customize this machine for me according to my needs?
Of course, it is our pleasure to solve problems for every customer. You can also tell us your specific needs. For example, raw material type, raw material diameter, hourly output, finished product diameter, etc. We can customize the solution for you.
Of course, it is our pleasure to solve problems for every customer. You can also tell us your specific needs. For example, raw material type, raw material diameter, hourly output, finished product diameter, etc. We can customize the solution for you.
Q2: What about the machine installation?
For a single machine or a simple production line, we will provide you with basic drawings, installation instructions or pictures or videos of successfully installed machines; For large machines and complex production lines, we can send engineers to guide the installation when necessary.
For a single machine or a simple production line, we will provide you with basic drawings, installation instructions or pictures or videos of successfully installed machines; For large machines and complex production lines, we can send engineers to guide the installation when necessary.
Q3: What about spare parts?
We provide some free spare parts, such as belts, gaskets and other small parts, blades, knives, shafts and other important worn parts. We suggest that customers buy some with the machine to save transportation costs, and we have enough spare parts in stock.
We provide some free spare parts, such as belts, gaskets and other small parts, blades, knives, shafts and other important worn parts. We suggest that customers buy some with the machine to save transportation costs, and we have enough spare parts in stock.
Q4: What should we do if there is something wrong with the operation of the machine after we buy it?
Corey has dedicated after-sales service personnel. If customers outside China have problems working on machines, please send us pictures or videos, and we will provide you with solutions within 24 hours.
Corey has dedicated after-sales service personnel. If customers outside China have problems working on machines, please send us pictures or videos, and we will provide you with solutions within 24 hours.
Q5: Can we visit your factory and test the machine?
We warmly welcome you to visit our factory at any time. We are glad to test our machines with your raw materials.
We warmly welcome you to visit our factory at any time. We are glad to test our machines with your raw materials.
