Изготовление на заказ печатная плата дистанционного управления для электронной техники искусственного интеллекта
- Категории: Rigid PCB >>>
- Поставщик: Shenzhen,Ilinkglobe,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Name | PCB PCBA manufacturer |
Application | Telecom、Medical、Industrial Control、New Energy、Automobile、Robot、 5G Server、UAV |
Rigid | FR-4、High Tg FR4、High CTI FR4、Halogen FreeFR4、Copper Aluminum plate |
Flexible | Rogers、Arlon、Taconic、Nelco、Isola |
PCB Layer | 1-40layers |
PCB Shape | Rectangle、square、Round、Irregular |
PCB Size | 50*50mm-910mm*600mm |
PCB Thickness | 0.1mm-8mm |
Max Finished Copper Thickness (Inner and outer) | 120OZ |
Min Base Copper | 1/3OZ |
Min Drilling Diameter | 0.1mm |
Min Drilling Tolerance | +/-2mil |
Min Interlayer Tolerance | +/-3mil |
Min Line Width/Spacing | 3mil/3mil |
Min Space (Hole to inner or outer side conductor) | 6mil |
Min BGA Diameter | 8mil |
HDI | 1-3steps Anylayer |
Surface Finished | HASL、Lead-free HASL、ENIG、 Ni/Au Plating、Gold Finger、Immersion Silver/Tin、 OSP、ENIPG |
Manufacturer Service
Project Development Service
ILINKGLOBE offers product research and development services according to the customer’s specification requirements. If the project feasibility assessment is OK, the whole solutions including the software、hardware will be output. After the sample is made and tested, it will be further provided to customer for verification or scheme revision. Finally, it is determined to end the research and development program, or continue to carry out the production of batch products according to the customer’s demand.
The following files are required for project development:
1: Detailed function description
2: Technical parameters description
3: Design cycle requirements
4: Batches cost requirements
1: Detailed function description
2: Technical parameters description
3: Design cycle requirements
4: Batches cost requirements
PCB Design Service
ILINKGLOBE offers PCB design services according to the customer’s specification requirements. The customer provides DSN/SCH schematic file and PCB package library file, or the corresponding device DataSheet. The customer shall provide PCB board structure files in DXF format, structure restriction instructions, electrical design instructions and other matters needing attention. After the project is started, our engineers shall conduct DRC inspection of schematic drawings, structural check and other electrical design requirements. If there is any problem, feedback EQ record to the customer as soon as possible. In the process of project design, our engineers' daily work progress files are sent to customers for confirmation. Customers can see the design status every day, and can find problems in time and deal with them. After the Pcb Layout design is completed, our engineers will conduct mutual inspection, including DFM inspection, QA inspection and EMC inspection. After the customer confirms OK, we will issue GERBER and other production documents. After the customer confirms OK, our engineers will output ASM assembly files, SMT patch files, PCB design original files, GERBER files, EQ engineering communication records, etc.
The following files are required for PCB design:
1: DSN/SCH format Schematic diagram
2: PCB footprint
3: Package library file/main devices datasheet
4: Outline structure drawing/DXF format/DWG format
5:Layout/wiring/timing/frequency/speed/current and other electrical design requirements
6: Reference board/PCB or BRD format
1: DSN/SCH format Schematic diagram
2: PCB footprint
3: Package library file/main devices datasheet
4: Outline structure drawing/DXF format/DWG format
5:Layout/wiring/timing/frequency/speed/current and other electrical design requirements
6: Reference board/PCB or BRD format
PCB Fabrication Service
ILINKGLOBE offers PCB production services. We can make 1-40Layers Rigid,1-8Layers Flexible to 2-12Layers Rigid-Flex PCB. The materials include standard FR-4, High Tg FR-4, Halogen FreeFR-4, Copper& Aluminum plate, Polyimide, PTFE, High speed and frequency and so on.
Components Sourcing Service
ILINKGLOBE offers components sourcing service. Components are purchased from reliable distributors, such as Digikey，Mouser, Arrow, Avnet. The quality of all components can be assured after 10years experience.
PCB Assembly Service

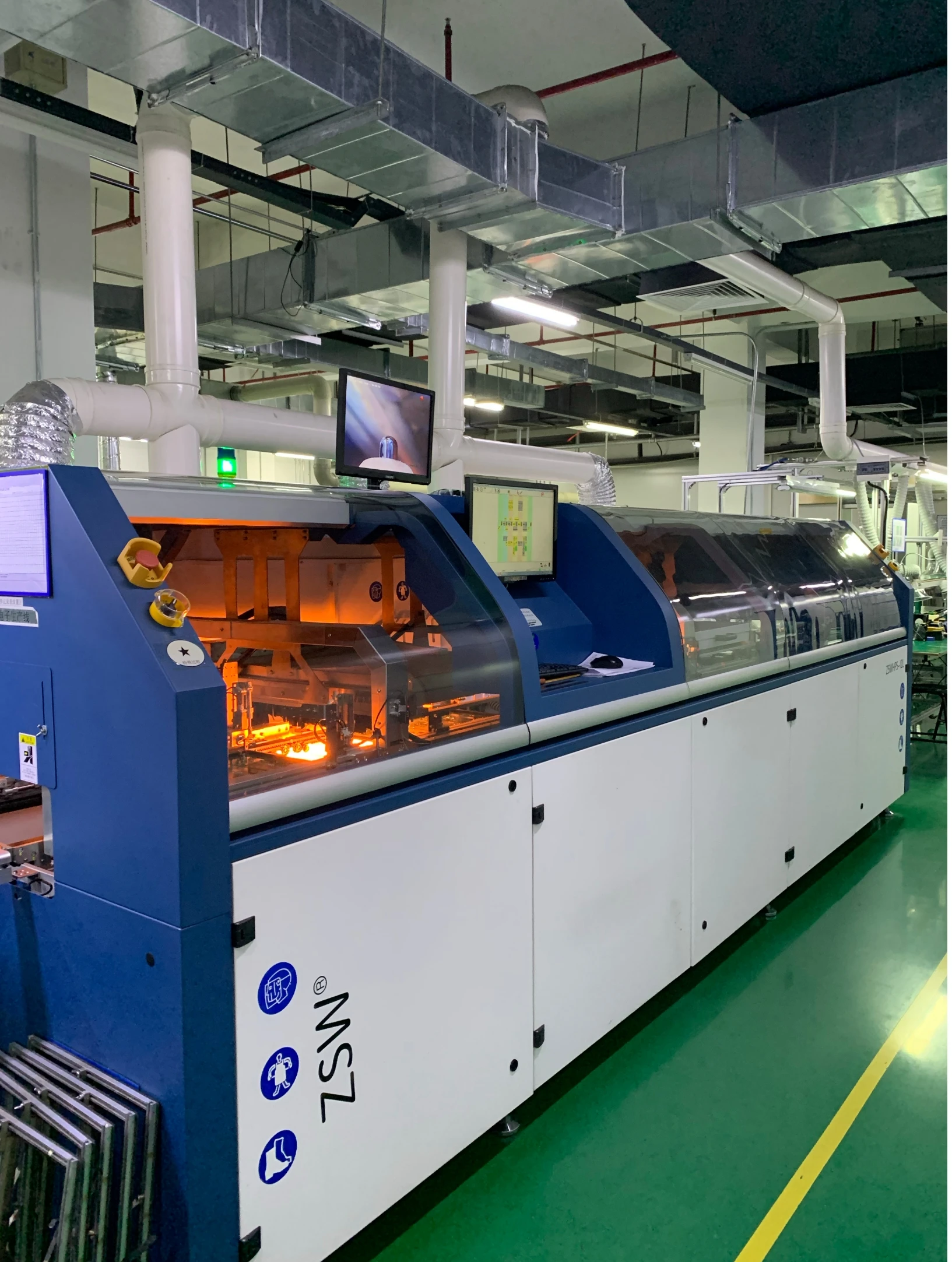

ILINKGLOBE offers PCB assembly services from prototypes to mass quantity production. Components ranges from 01005, BGA、LGA、QFN to DIP through holes. SPI, AOI, FA and X-Ray are equipped to ensure the quality. SMT stencil and cable assembly services can be provided together.
Programming ＆Testing
ILINKGLOBE offers programming and function testing services. Equipped with a SPI FLASH programmer using Type-C communication interface and ISP/ATE multiplexing interface, available for all kinds of SPI NOR FLASH, I2C/Micro Wire and other EEPROM. Function testing can be proceeded after receiving detailed testing instruction and documents.
Application Field
Company Profile
ILINKGLOBE is a EMS service provider focusing on high-precision, high-reliability electronic products of "multi-variety, sample and serial production, fast delivery“.
Its based in Shenzhen, relying on the perfect supporting conditions and scientific research development prospects of Shenzhen's high-tech development.
We integrate PCB design, PCB manufacturing, electronic component procurement, PCBA samples and serial production in one-stop service, which can effectively improve customer R&D and meet multi mode production demands. The product filed covers Industrial
Control、Telecom、Medical、Automotive、Computer、Robot、Power equipment etc. The quality system certification obtained including the ISO9001、IATF16949.
Its based in Shenzhen, relying on the perfect supporting conditions and scientific research development prospects of Shenzhen's high-tech development.
We integrate PCB design, PCB manufacturing, electronic component procurement, PCBA samples and serial production in one-stop service, which can effectively improve customer R&D and meet multi mode production demands. The product filed covers Industrial
Control、Telecom、Medical、Automotive、Computer、Robot、Power equipment etc. The quality system certification obtained including the ISO9001、IATF16949.
Certification
FAQ
1. Are you a factory or a trading company?
We are a manufacturing company located in Shenzhen.
We are a manufacturing company located in Shenzhen.
2. What does Ilinkglobe do?
We provide one-stop service for PCB design, PCB fabrication, electronic component procurement, PCBA samples and mass production.
3. What is needed for PCB PCBA production?
PCB(printed circuit board): Quantity, Gerber file and Technic requirements(material, surface finish treatment, copper thickness, board thickness…)
PCBA(printed circuit board assembly): PCB information, BOM, (testing documents…)
4. What file formats do you accept for PCB PCBA production:
Gerber file: CAM350 RS-274X, (PCB files are also available as long as you can export Gerber RS-274X and NC Drill files.)
PCB file: Protel 99SE, P-CAD 2001 PCB, DXP
BOM: EXCEL, PDF, WORD, TXT
5. Are my files safe?
Your files are held in complete safety and security. We protect the intellectual property for our customers in the whole process. All documents from customers are never shared with any third parties.
6. Which payment methods are acceptable?
We can accept a variety of payment methods, such as wire transfer, letter of credit, VISA and Western Union.
