3G4G Wi-Fi маршрутизатор LTE CPE с порта LAN (локальной сети 4G/5G высокой скорости 2 в 1 для маршрутизатора помещении 300
- Категории: Computer Hardware & Software >>>
- Поставщик: Shenzhen,Danone,Xintong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Model No.: CPF101 (have stock)
Main Features:

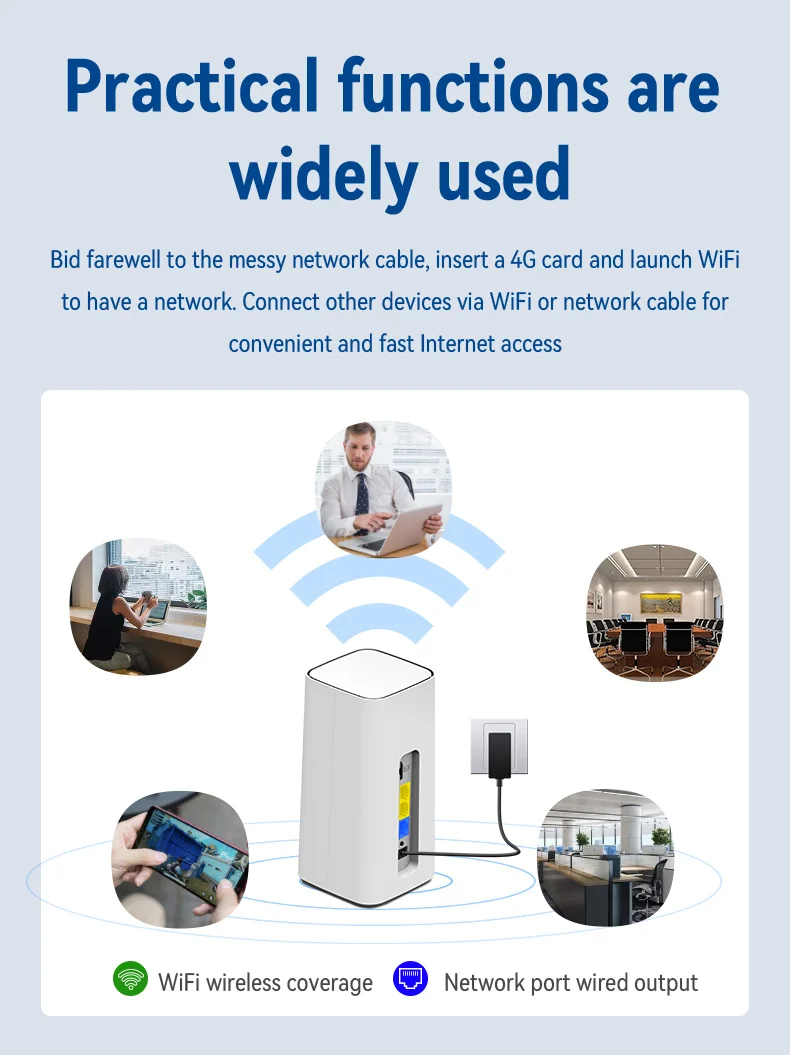

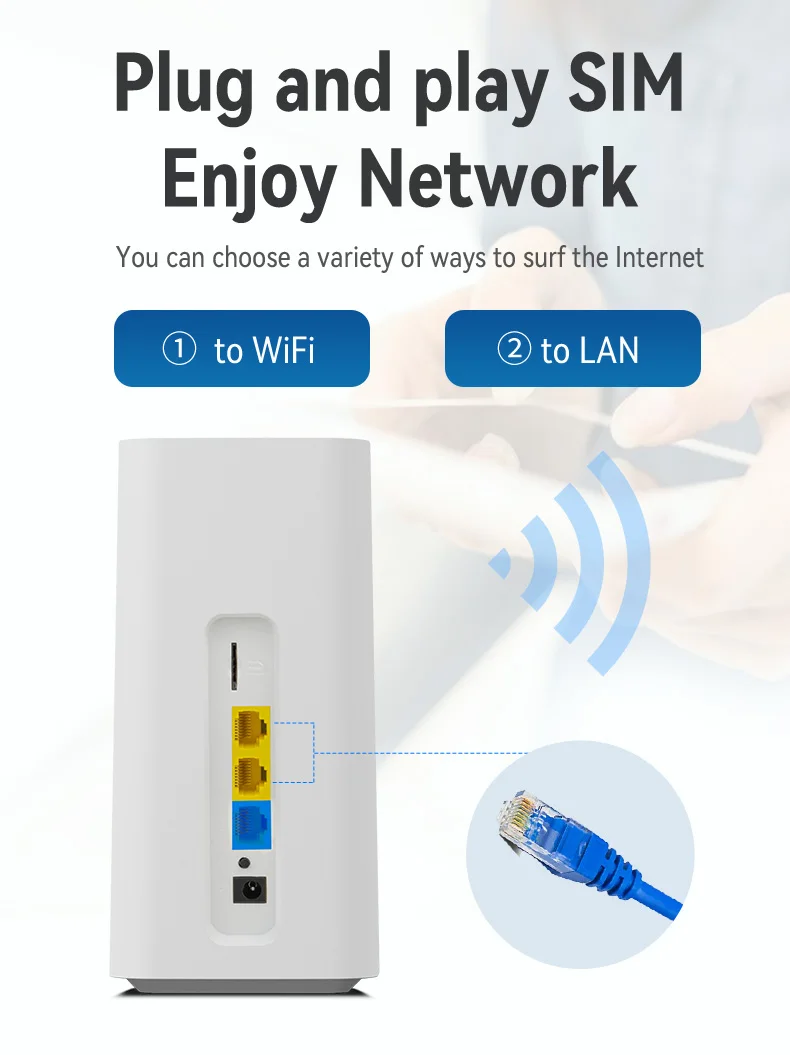

1. Switch from 4G to WIFI without pulling the network cable
2. 4G all-netcom, discount optional
3. LTE CAT.4 up to 150Mbps.

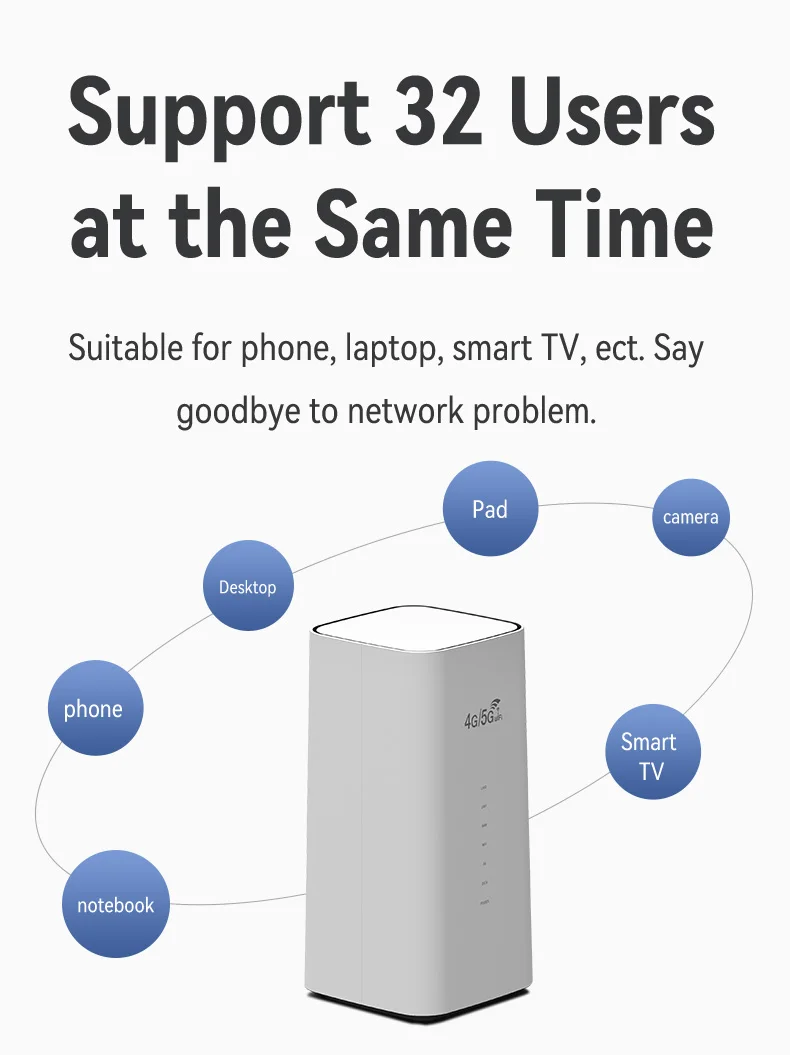

4. Support up to 32 users to access internet.

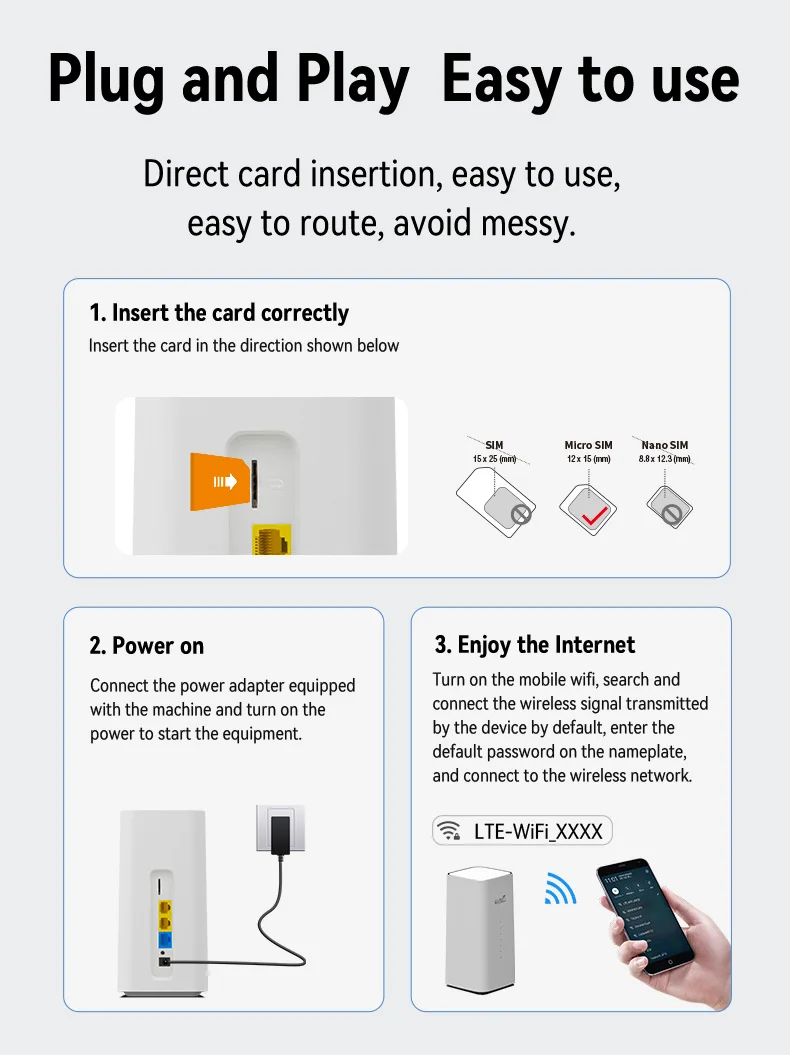

5. Plugs in a card to surf the Internet and enjoy freedom
- Frequency bands : Model no:CPF101-5
FDD:B1\\B3\\B5\\B8, FDD:B38\\B39\\B40\\B41,UMTS: B1\\B5\\B8
- Frequency bands : Model no:CPF101-E
FDD:B1\\B3\\B5\\B7\\B8\\B20, FDD:B38\\B40\\B41,UMTS: B1\\B5\\B8
- Frequency bands : Model no:CPF101-E(B28ab )
FDD:B1\\B3\\B5\\B7\\B8\\B20\\B28ab, FDD:B38\\B40\\B41,UMTS: B1\\B5\\B8
FDD:B1\\B3\\B5\\B7\\B8\\B20\\B28ab, FDD:B38\\B40\\B41,UMTS: B1\\B5\\B8
- Frequency bands : Model no:CPF101-L
FDD:B2\\B3\\B4\\B5\\B7\\B8\\B28\\B66, FDD:B38\\B40\\B41,UMTS: B2\\B4\\B8
FDD:B2\\B3\\B4\\B5\\B7\\B8\\B28\\B66, FDD:B38\\B40\\B41,UMTS: B2\\B4\\B8
Specifications:
* Chipset: Marvell ASR1802S
* 4G Peak Speed:
LTE FDD： 150Mbps（DL）/ 50Mbps（UL）;
LTE TDD： 130Mbps（DL）/ 30Mbps（UL）;
DC-HSDPA：21Mbps（DL）
HSUPA: 5.76Mbps（UL）
WCDMA： 384Kbps（DL）/ 384Kbps（UL）
* WiFi Speed:
WIFI IEEE 802.11b: 11/5.5 Mbps
WIFI IEEE 802.11g: Max 54 Mbps
WIFI IEEE 802.11n: Max 300 Mbps；
* Communication standard:
IEEE 802.3 (Ethernet);
IEEE 802.3u (Fast Ethernet);
IEEE 802.11b/g/n (2.4G WLAN).
* Wireless Security:
WPA/WPA2 Security mechanism (WPA-PSK using TKIP or AES)
* Hardware Configuration
- Wireless Technology: 802.11b/g/n 300m MIMO technology.
- Flash Driver: 2MB/8MB.
- WAN Gate: WAN 10/100Mbps Adaptive network interface*1.
- LAN Gate: LAN 10/100Mbps Adaptive network interface*2.

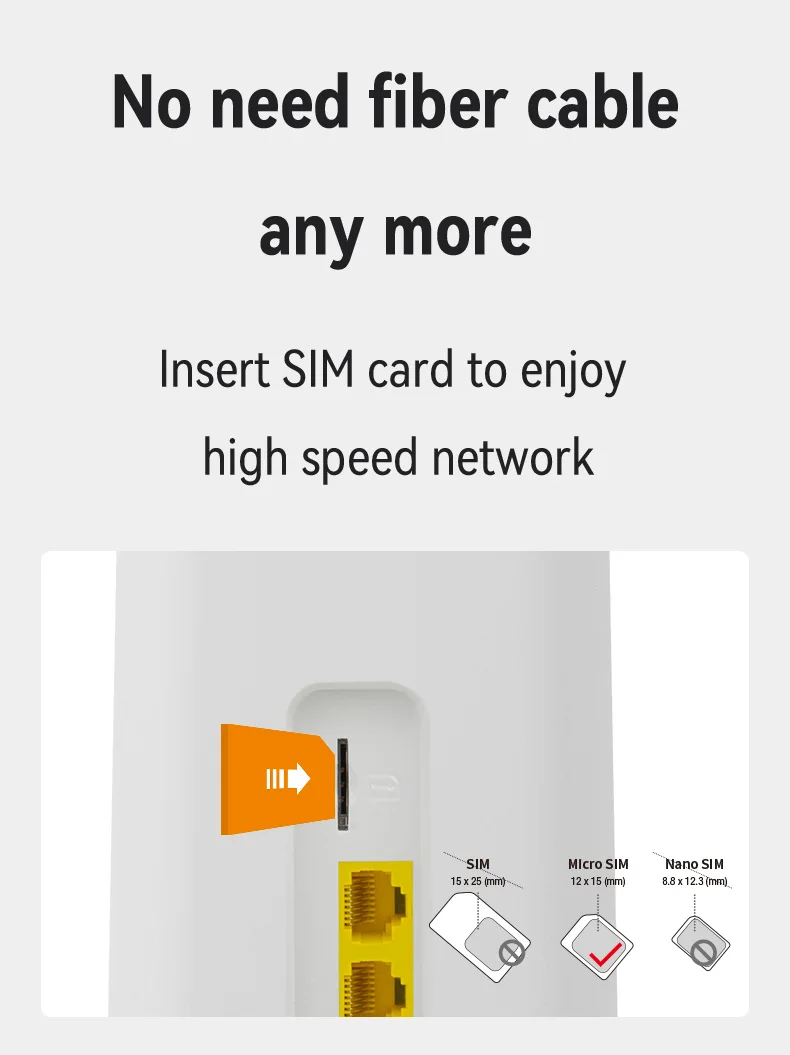

- SIM: 1 * 2FF SIM slot
- Size Antenna: 5dBi clip-on plastic rod antenna;
4G 2T2R 5dBi clip-on plastic rod antenna*2;
WiFi 2T2R 2.4G 5dBi clip-on plastic rod antenna*2.
- Power supply: 12V/1A, Power consumption＜10W.
- Push button: 1 reset button, long press for 3 seconds to restore the factory setting; 1 WPS key, long press for 1-2 seconds to
enter the WPS adaptation process.
- Indicator Light: 8 groups: POWER、WAN、LAN1、LAN2、LAN3、2.4G、4G、WPS.
- Part Size: Length 86.5 mm, Height 86.5mm, Width 28mm.
- Working/Storing Temperature: -10℃～50℃/-40℃～70℃.
- Working/Storing Humidity: 5%～95% (non-condensing).
Details Images
Product Usage
Packing&Shipping
Quality + Safety
Service
Caring for your service. Let products security at your side.
Caring for your service. Let products security at your side.
Packaging
Thick upgrade packaging for transport process more secure.
Thick upgrade packaging for transport process more secure.
Shortcut
First time delivery guarantee rate.
First time delivery guarantee rate.
Company Introduction
Shenzhen Danone Xintong (DNXT) Electronic Co., Ltd. has been focusing on the fields of wireless data terminals for 9 years.
DNXT is committed to providing solutions with own R&D, manufacturing, sales and support, and focus on providing more convenient networking and internet access with high-quality, high performance and low cost networking solutions.
We offer high quality customized services, ODM and OEM are welcome.
FAQ
Q1: When will I get the quotation or reply if I send an inquiry?
A: When we get the inquiry or message, we will reply within 2 hours as usual. If in the midnight of china, we will reply the next
morning.
Q2: Is it possible to put our logo on your product or product packaging?
A: Yes, this is available.
Q3: What is your MOQ?
A: There is no MOQ limit. Especially 1 piece we can offer as well.
Q4: I need a sample, how to order?
A: You could place an order online, click the "Star Order" Button. Or you could contact our sales to draft trade assurance order
for you.
Q5: How to pay for my orders?
A: We support Credit Card Alibaba Trade Assurance / Bank Transfer / Western Union as well.
Q6: When will you shipping the products?
A: Normally, if the products are in stock, we will ship the products within 2 days after we receive the payment. Bulk order could be negotiated.
A: When we get the inquiry or message, we will reply within 2 hours as usual. If in the midnight of china, we will reply the next
morning.
Q2: Is it possible to put our logo on your product or product packaging?
A: Yes, this is available.
Q3: What is your MOQ?
A: There is no MOQ limit. Especially 1 piece we can offer as well.
Q4: I need a sample, how to order?
A: You could place an order online, click the "Star Order" Button. Or you could contact our sales to draft trade assurance order
for you.
Q5: How to pay for my orders?
A: We support Credit Card Alibaba Trade Assurance / Bank Transfer / Western Union as well.
Q6: When will you shipping the products?
A: Normally, if the products are in stock, we will ship the products within 2 days after we receive the payment. Bulk order could be negotiated.
