Products Description




Features
• 250m Distance
• Support IEEE802.3AF/AT
• Whole Power:78W(52V 1.5A)
• All port supported by MDI/MDIX auto flip and self negotiation
• Supply 4 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
• Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
• Each port max. power supply reached 30W.


Application

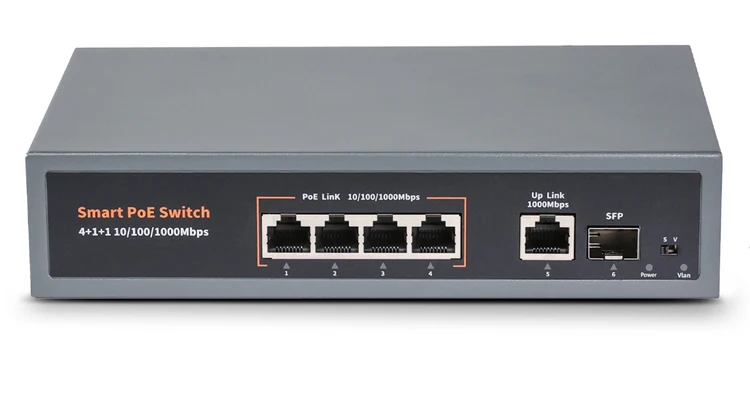

Equipped with 4×100/1000Mbps POE ports, 1×100/1000Mbps UpLink ports and 1x 1G SFP, this switch can connect up to 4 PoE devices and 1 non-PoE devices simultaneously. It supports MDI/MDIX auto flip and self-negotiation, making installation and configuration a breeze. The switch also supplies 4 100/1000Mbps adaptive high-speed forwarding data packet non-lost ports, ensuring smooth and seamless data transmission.

The switch features IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode, ensuring stable and efficient data transfer. Each port can supply a maximum power of 30W, making it perfect for powering PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones.


Specification


Model
6C-G0411GA
Data Distance
≤250m
POE Port
1 to 4 support IEEE802.3AF/AT Standard
Switch Capability
12Gbps
Output Power
15.4W/30W IEEE802.3af/at
Forwarding Mode
Store and forward
Power Pin
Both 1/2+、3/6-
Forwarding Rate
100BASE-tx：14800pps/port
1000BASE-T: 1488095pps/port
Whole Power
≤78W
MAC Address
MAC address table 1K
POE Protocol
IEEE 802.3af/IEEE 802.3at
Port Function
Power priority mechanism, fast and forward, MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
POE Type
End-span
LED Indicator
LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender
Power Distance
≤250m
Working Environment
Working temperature：-10°– 55°C
Network Standard
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
Weight
1kg
Network Medium
10/100BASE-TX:5 class and above non shielded twisted pair
Size
200mm*118mm*40mm(L*W*H)


Compatibility Test




Category Navigation








Our Company






















FAQ


Q1.Can I have a sample order? What is your MOQ?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.

Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center, and also tested for compatibility on a variety of different brands of network equipment.

Q3. What are the trade terms?
A3: Lead Time: most popular optics in stock, ready to ship. some higher-value and specialized optics have a short lead time.
Payment term: Western Union, T/T, Aliexpress escrow, money gram, cash payment.
Warranty: 3 years.

Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)

Q5.Could I use our own logo, label, and package?
A5: Yes, we could provide an OEM service and according to your requirements, design products label, logo, PN, SN, package.
