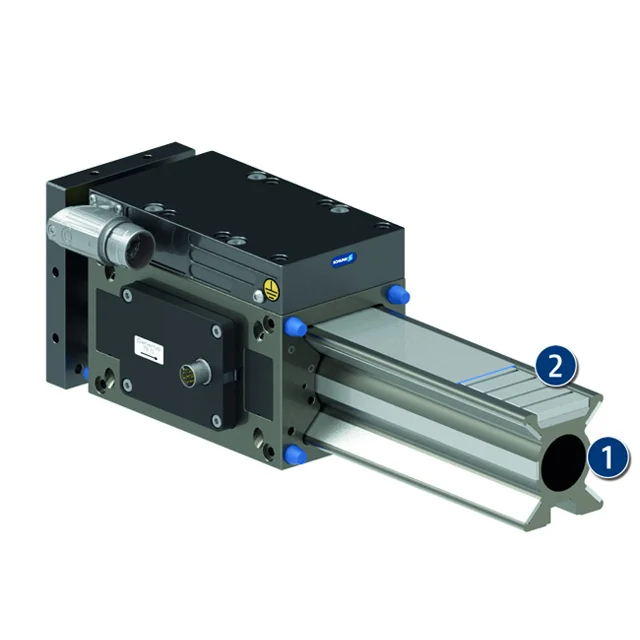

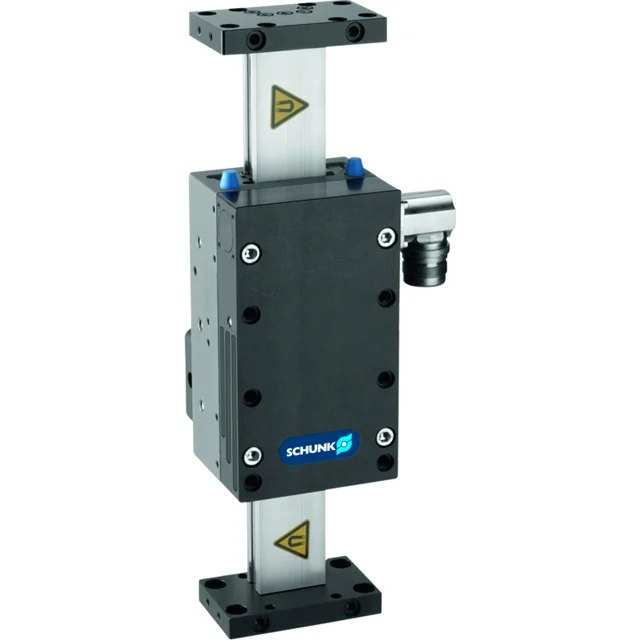

Stroke module LDK, electrical, Linear direct drive Max. stroke: 200 mm Max. driving force: 500 N
Repeat accuracy
is defined as a distribution of the end position for 100 consecutive cycles.
Advantages
Almost no wear parts
For long service life and reliability of the system
No mechanical play between the drive components
for flexible response behavior and high positioning accuracy
Low oscillations and high holding force
for the shortest positioning times and process stability

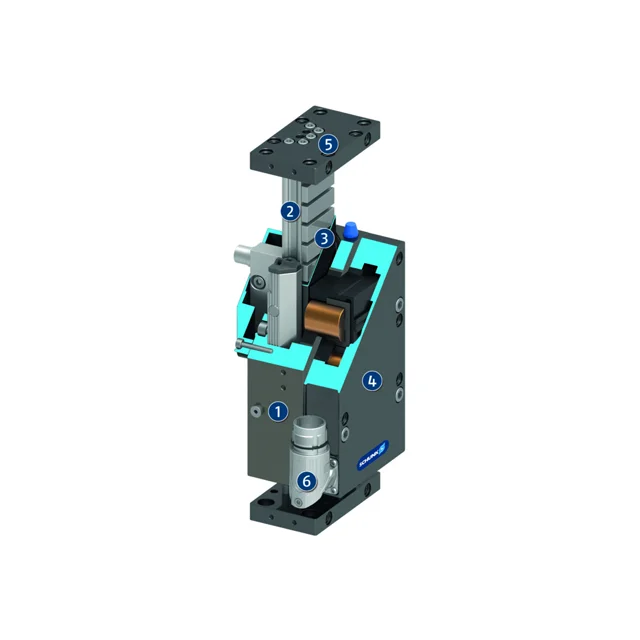

Integrated motor and measuring system in the axis
minimizes interfering contours and space requirements
Pinion position
is always shown in the left end position. The pinion rotates from here to the right in clockwise direction. The arrow makes the direction of rotation clear.
Pinion screw connection diagram
When setting a swivel angle smaller than 90°, the left end stop must be completely turned in. This means that the left end position has a screw connection diagram on the pinion which is clockwise turned by 90° compared to the main view, which shows a swivel angle of 180°.
Torque in the end positions
Please note that the final angular degrees (approx. 2°) before the end position can only be approached using the force of a single drive piston. For this reason, double actuated modules only have about half the rated torque available in this area.
Swiveling time
is the rotation time of pinion/flange around the nominal rotation angle. Valve switching times, hose filling times, or PLC reaction times are not included and are to be considered when cycle times are calculated.
Scope of delivery
Flow control coupling, centering bushings, O-rings for direct connection, assembly and operating manual with declaration of incorporation
Drive concept | Linear direct drive | Length X [mm] | 312 |
Max. stroke [mm] | 200 | Width Y [mm] | 85 |
Max. driving force [N] | 500 | Height Z [mm] | 89.5 |
Nominal force [N] | 185 | Moment Mx max. [Nm] | 62 |
Max. useful load (vertical) [kg] | 6 | Moment My max. [Nm] | 125 |
Repeat accuracy [mm] | ± 0.01 | Moment Mz max. [Nm] | 125 |
Max. speed [m/s] | 4 | Force Fy max. [N] | 1700 |
Max. acceleration [m/s²] | 40 | Force Fz max. [N] | 1700 |
Max. current [A] | 15 | Max. force axial Fz max. [N] | 1700 |
Max. standstill current [A] | 3.19 | Force -Fz max. [N] | 1700 |
Min. ambient temperature [°C] | 5 | Length A [mm] | 250 |
Max. ambient temperature [°C] | 40 | Length L [mm] | 312 |
Weight [kg] | 5.06 | Length L1 [mm] | 288 |
Profile weight per 100 mm of length [kg] | 0.34 | Length L2 [mm] | 156 |
Fully automatic sorting of curtain clips | ||
Workpiece Plastic curtain hooks | Task Sorting, testing, and depositing curtain clips on a conveying belt. | |
Solution Two SCHUNK MPG-plus grippers for small components grip two curtain clips each and deposit them on the conveying belt. If the optical test is negative, the information is sent to the gripper, and the faulty clip is deposited in a reject container. | Customer benefits The cycle times are significantly shortened and the parts are precisely handled. | |
