Product Description



COB feed silo is made of 275g/㎡ hot-dip galvanized sheet and all screws are made of 8.8-level high-strength hot-dip galvanized bolts, which are corrosion-resistant, anti-oxidation, high-temperature resistance, high strength, long service life,and can withstand a strong storm.
The feed silo is mainly composed of silo body, silo cover, mounting ladder, and silo legs etc. All parts are produced in strict accordance with drawing design by using advanced laser equipment and precision molds, and then undergo strict quality inspections to make each component more standard, more precise in size, and more convenient to install to ensure easy assembly and use.

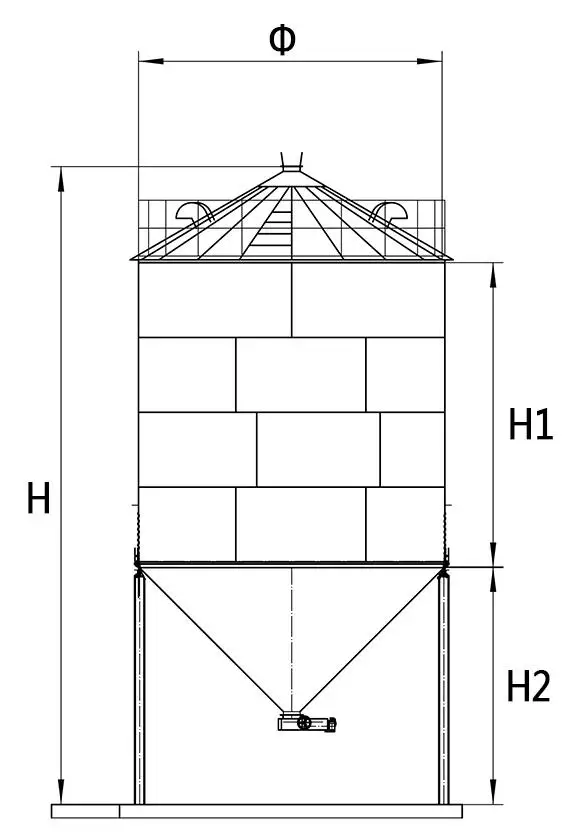

Specification


Project
Layer Number
V(m3)
C(t)
Dia(mm)
H2(mm)
H1(mm)
H(mm)
TCKZ01801
1
4.9
3.7
1800
1925
1190
3580
TCKZ01802
2
7.9
5.9
1800
1925
2310
4700
TCKZ01803
3
10.8
8.1
1800
1925
3430
5820
TCKZ01804
4
13.8
10.3
1800
1925
4550
6940
TCKZ01805
5
16.8
12.6
1800
1925
5670
8060
TCKZ02701
1
13.2
10
2750
2726
1190
4640
TCKZ02702
2
19.9
15
2750
2726
2310
5760
TCKZ02703
3
26.5
20
2750
2726
3430
6880
TCKZ02704
4
33.2
25
2750
2726
4550
8000
TCKZ02705
5
39.8
30
2750
2726
5670
9120
Please contact us for more specifications
5
39.8
30
2750
2726
5670
9120

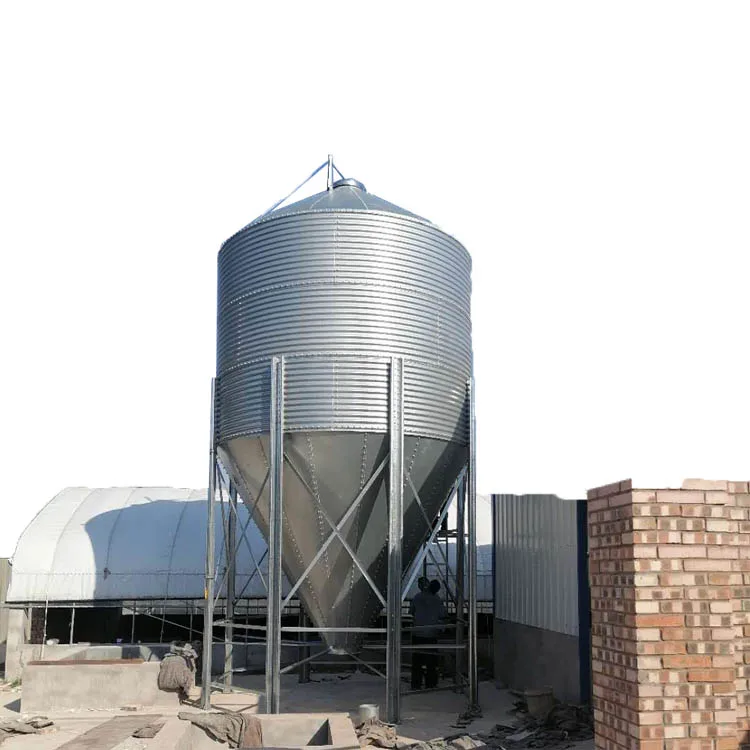

60°Hopper Bottom Steel Silo.
60度料塔

30°Silo Roof.
仓顶角度30度

60°Hopper Bottom.
仓底角度60度

Height of silo bottom outleg flange is 0.63m.
仓底出口法兰高度0.63米

Silo volume is the sum of silo roof,silo body and silo hopper.
仓容积为仓顶、仓筒、仓底容积总和

Capacity is calculated at 0.5t/m3 bulk density.
容重按物理密度0.5吨/立方米计算
.

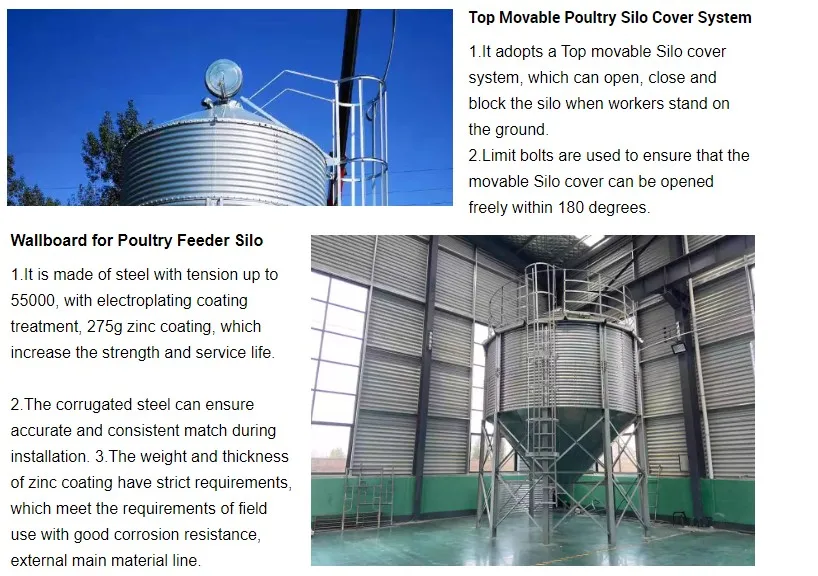

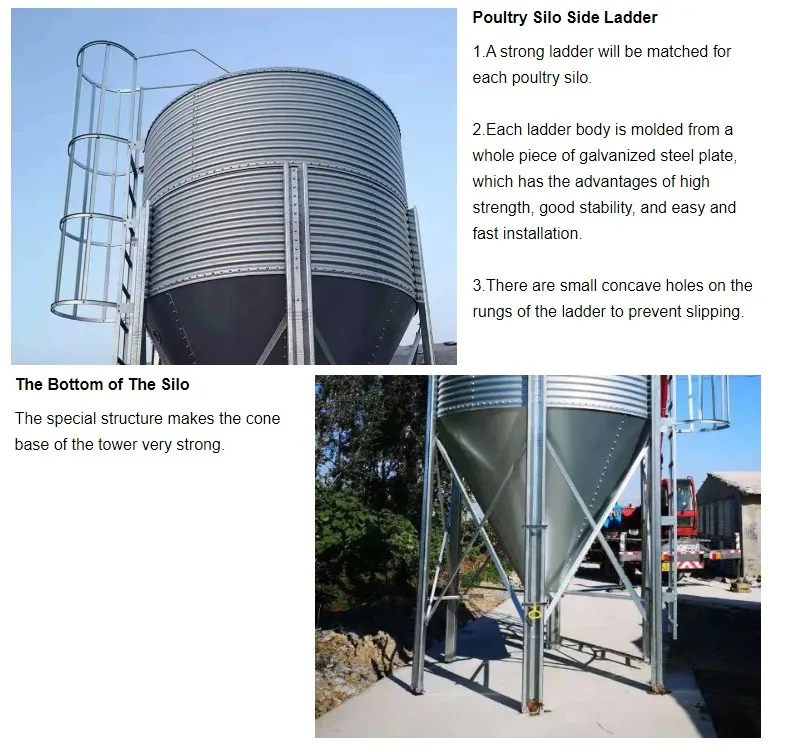

Details Images

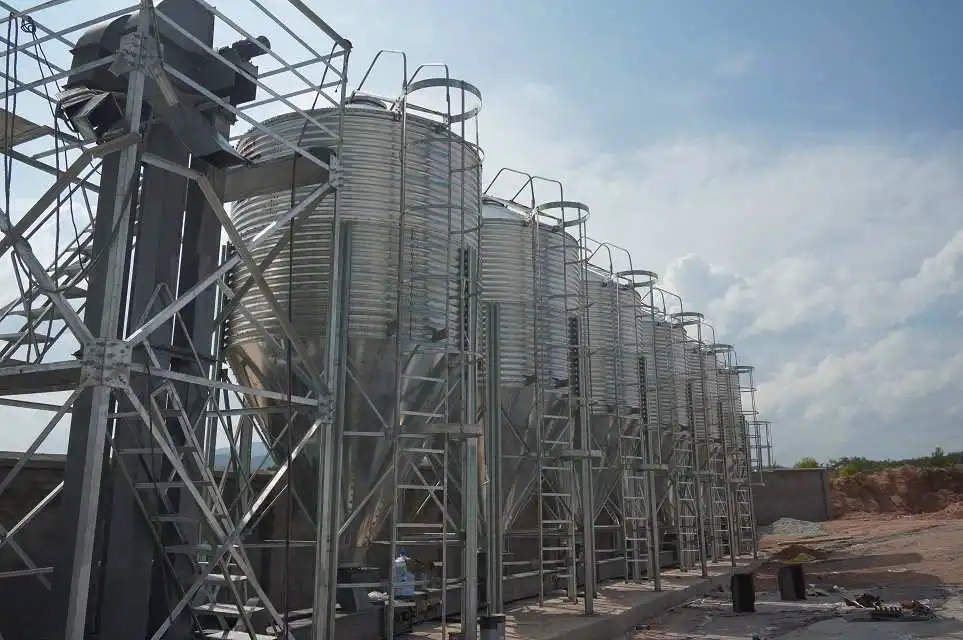

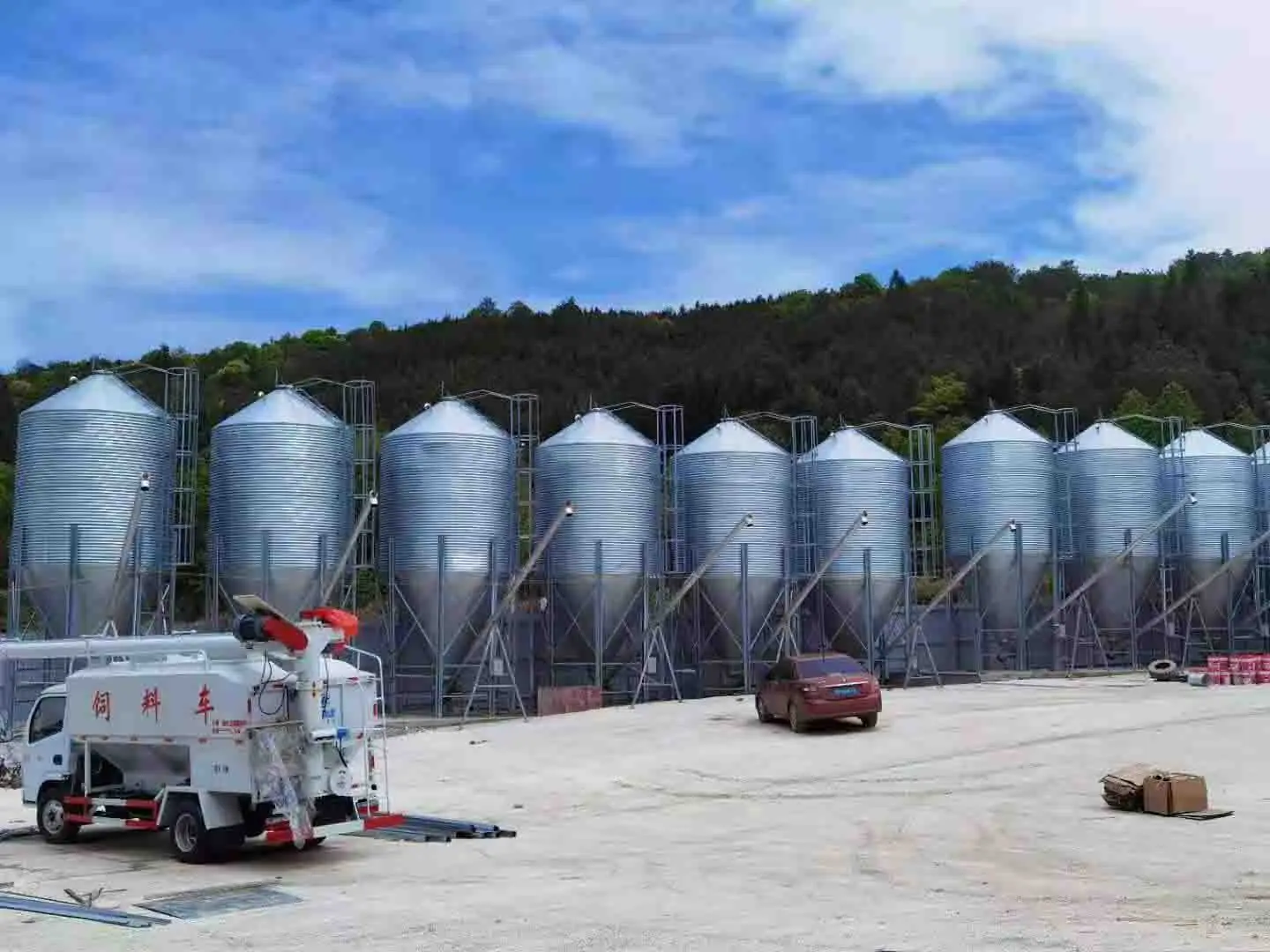

Application




Recommend Products


feed silo
feed silo
feed silo



Related Products


Grain silo
Feed silo

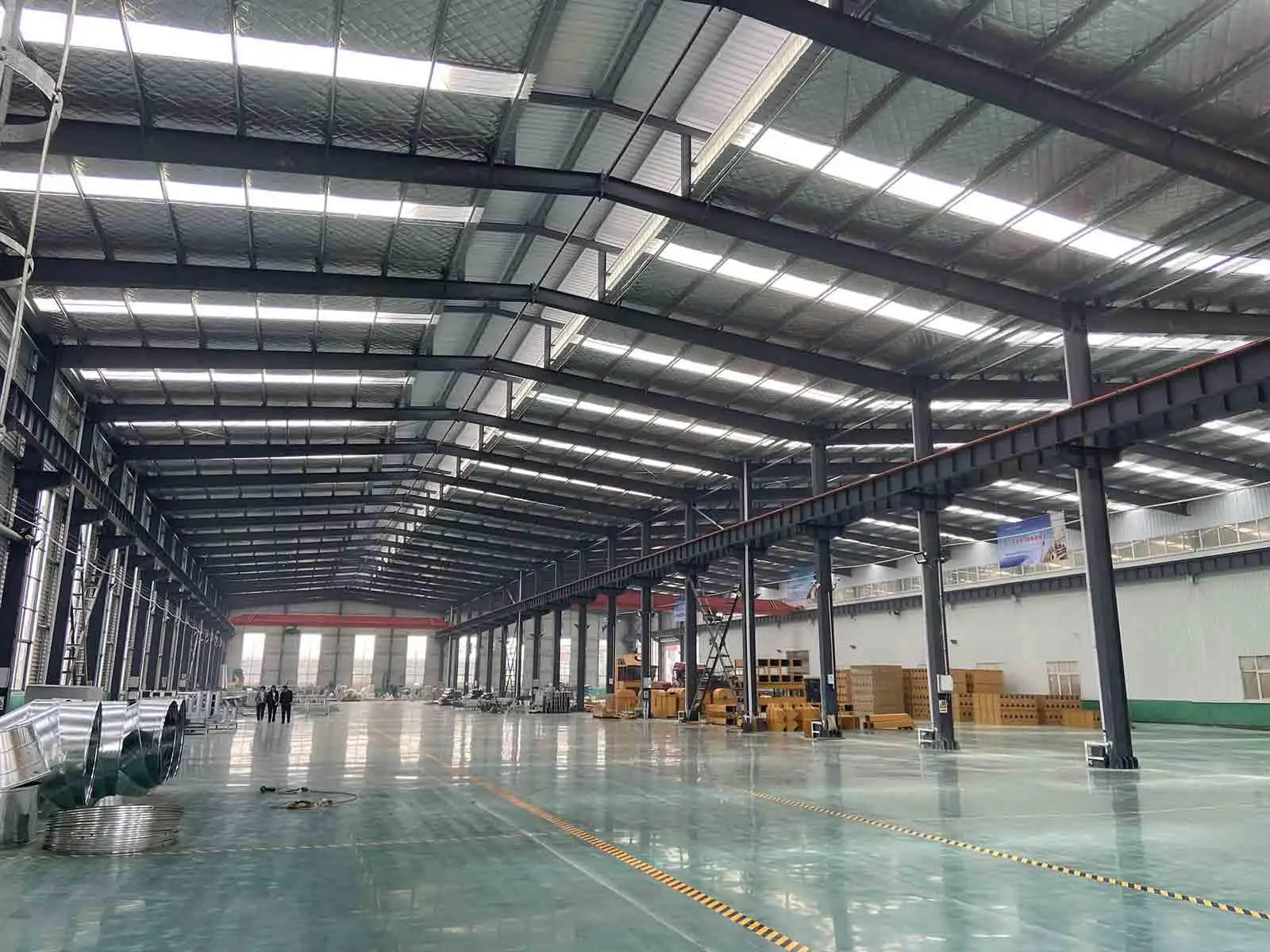

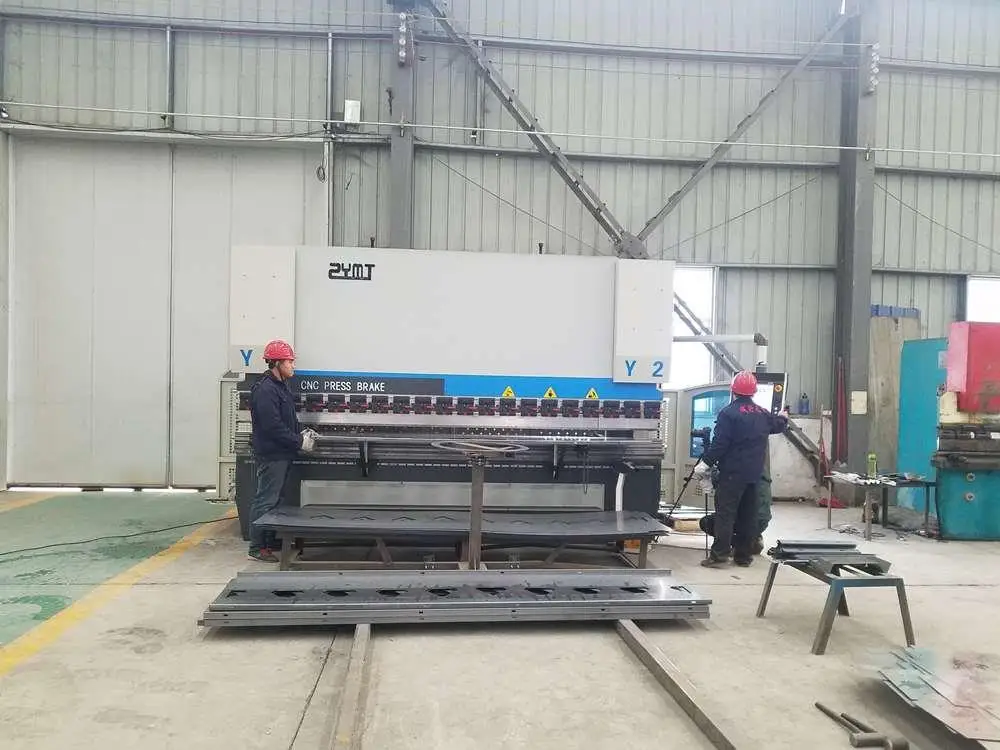

Company Profile



In the spirit of "religious, precise, rigorous, and harmonious", the company's service tenet of "serving customers, being responsible for customers, and satisfying customers" has been rated as the top sales in the industry for many years. Products are widely sold to various countries and regions at home and abroad.
