300mA малое падение линейные регуляторы напряжения микросхемы AK6206-28NR/54FK
- Категории: Electronic Components, Accessories & Telecommunications >>>
- Поставщик: Guangdong,Zhianxin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
PROFESSIONAL CHIP SUPPLIER
ONLY SELL NEW AND ORIGINAL CHIPS
ONLY SELL NEW AND ORIGINAL CHIPS
√ The first-level agent of many Chinese brand and original factories, complete categories, stable supply,Lowest price,all chips
can be traced back to the origin
√ Independent research and development and production, providing overall solution modules
√ Provide BOM orders and FAE technical support,worry-free after-sales
√Large Stock-Most of the models are in stock,fast shipping without waiting
DESCRIPTIONS
AK6206 series is a CMOS voltage voltage regulator with high ripple suppression rate, low power consumption, low voltage difference, overcurrent and short circuit protection. These devices have a very low static bias current (3.0 μA Typ.), they can provide an output current of 300mA with minimal input and output voltage difference, and can still maintain a good adjustment rate. Due to the small voltage difference between input and output and the small static bias current, these devices are particularly suitable for battery-powered products that want to extend their battery life, such as computers, consumer products and industrial equipment. The output voltage can be set internally by the metal fuse technology. It can be selected in increments of 100mV, ranging from 1.2V to 5.0V. Packaging forms are available in the SOT-23, SOT23-3L, and SOT-89's.
FEATURES
Maximum output current: 300mA (typical output voltage 3.3V)Dropout voltage: 160mV@50mA (typical output voltage 3.3V)
Maximum working voltage: 10V
Output voltage range: 1.2V to 5.0V (selectable in 100mV steps)
High precision: 2%
Very Low Quiescent Operating Current: 3μA (typ)
Operating temperature range: -40℃~ 85℃

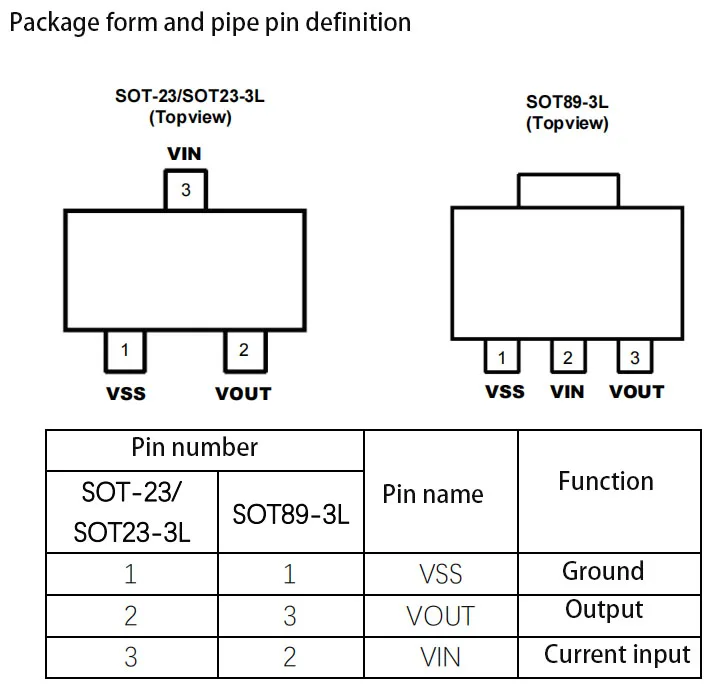

Ultra Small Packages: SOT-23, SOT23-3L, SOT89-3L
Built-in overcurrent and short circuit protection circuits
APPLICATIONS
Battery Power Supply System Cordless Telephone Equipment
Wireless Control System
Portable / Palm Computer
Portable Consumer Equipment
Portable Instruments
Automotive electronic equipment
Voltage benchmark source

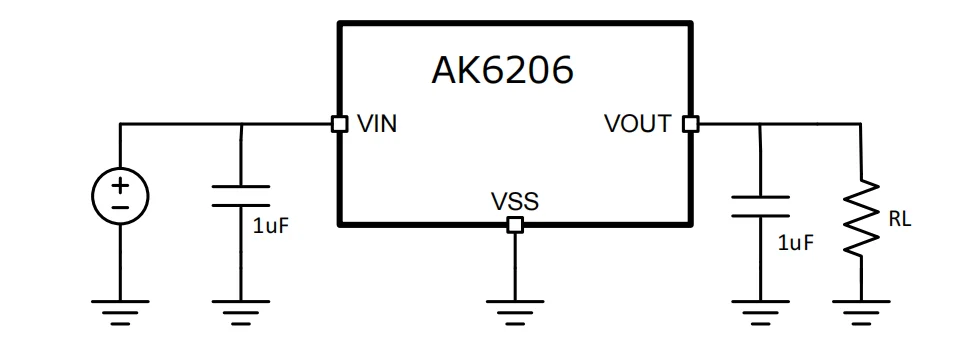

Typical application
