Подшипник стержня CS M5 шариковый подшипник

Описание и отзывы

Характеристики

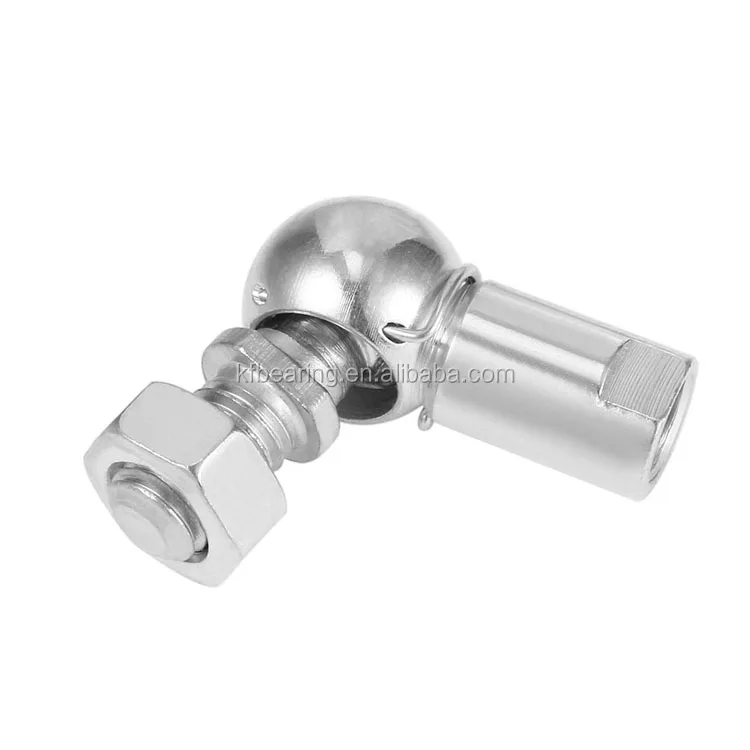

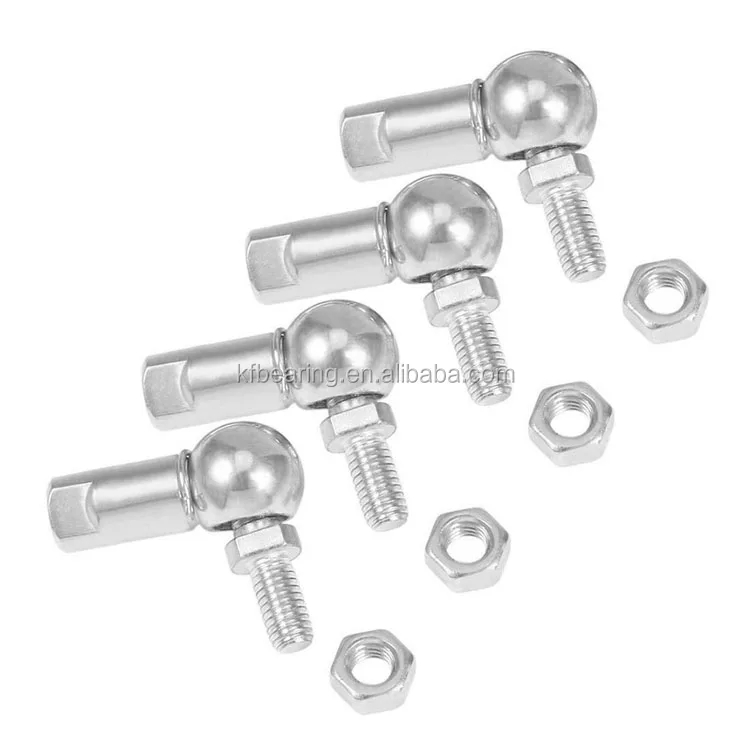

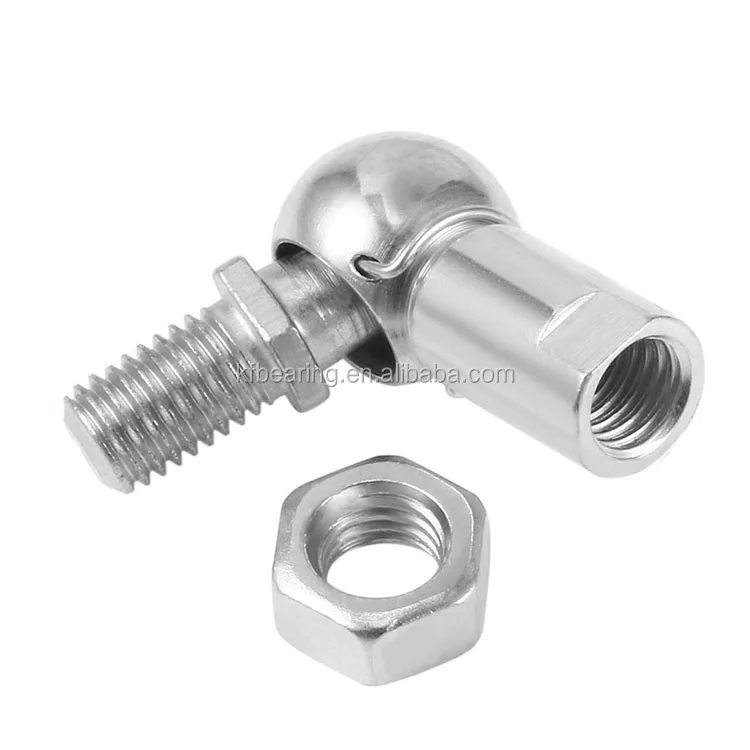

CS M5 rod end bearing, ball joint bearing CSM5

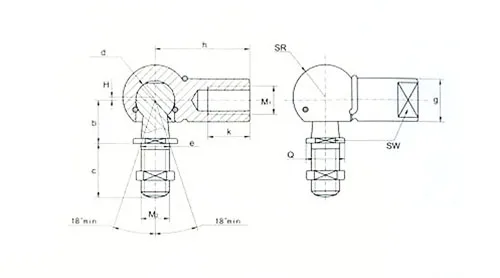

Part No.		h	g	M1	M2	SΦD	b	SW	Q	c	e	H	k	SR	KN	Mass(KG)
CS8	CSM5	22	8	M5*0.8	M5*0.8	8	9	7	8	10	5	0.7	10.2	6.4	15.2	0.014
CS10	CSM6	25	10	M6*1.0	M6*1.0	10	11	8	10	12.5	6	0.7	11.5	7.4	25.2	0.024
CS13	CSM8	30	13	M8*1.25	M8*1.25	13	13	11	13	16.5	8	1.16	14	9.65	53.1	0.053
CS16	CSM10	35	16	M10*1.5	M10*1.5	16	16	13	16	20	10	1.16	15.5	12	103.8	0.097
CS16-1	CSM12	35	16	M12*1.75	M12*1.75	16	16	13	16	20	12	1.16	15.5	12	103.8	0.097
CS19	CSM14	45	22	M14*2.0	M14*2.0	19	20	17	20	28	14	1.5	21.5	15	220.9	0.218
CS19-1	CSM14F	45	22	M14*1.5	M14*1.5	19	20	17	20	28	14	1.5	21.5	15	220.9	0.218
CS19-2	CSM16	45	22	M16*2.0	M16*2.0	19	20	17	20	28	16	1.5	21.5	15	220.9	0.218













Packing&Shipping

Bearings Package:

Original Package:

1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);

2):Small sizes:Plastic Tube + Carton

3):Big sizes:Wooden Case

Bearings Lead time:

We will prepare your order as soon as possible.

1)2-3 days for ex-stock

2)6-10 days for others
