Оригинальный соединитель POS5 POS6 POS7 POS8

Описание и отзывы

Характеристики

Product Description

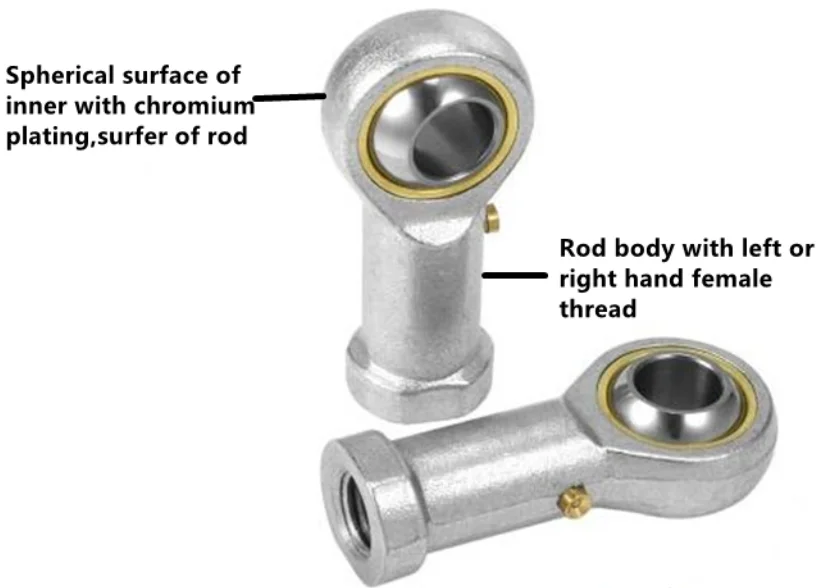

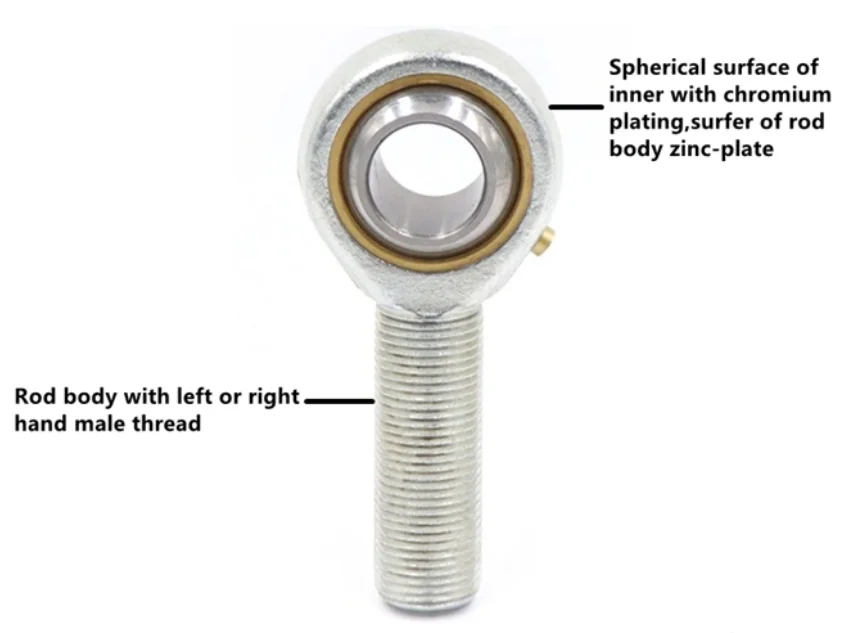

Rod end bearing is a kind of Spherical Plain Bearing , which belongs to a branch of joint bearings.Articulated bearings are spherical sliding bearings. The basic type is composed of inner and outer rings with spherical sliding spherical contact surfaces. The joint bearing is mainly composed of an inner ring with an outer spherical surface and an outer ring with an inner spherical surface, which can bear a large load. According to different types and structures, it can bear radial load, axial load
or combined radial and axial load. Bearings are widely used water conservancy, specialized machinery and other industries.SKF FAG TIMKEN INA IKO NSK NTN NACHI

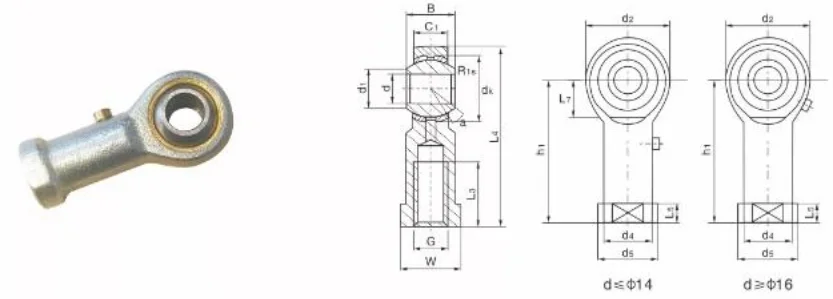

Model	SIZEmm Dimensions						weight/kg
	d H7	B	dk	C1 max	d2 max	G 6H
PHS5	5	8	11.11	6	16	M5*0.8	0.016
PHS6	6	9	12.7	6.75	18	M6*1.0	0.022
PHS8	8	12	15.875	9	22	M8*1.25	0.047
PHS10	10	14	19.05	10.5	26	M10*1.5	0.077
PHS12	12	16	22.225	12	30	M12*1.75	0.1
PHS14	14	19	25.4	13.5	34	M14*2.0	0.16
PHS16	16	21	28.575	15	40	M16*2.0	0.16
PHS18	18	23	31.75	16.5	44	M18*1.5	0.32
PHS20	20	25	34.925	18	50	M20*1.5	0.42
PHS22	22	28	38.1	20	54	M22*1.5	0.54
PHS25	25	31	42.85	22	60	M24*2.0	0.73
PHS28	28	35	47.6	24	66	M27*2.0	0.98
PHS30	30	37	50.8	25	70	M30*2.0	1.1

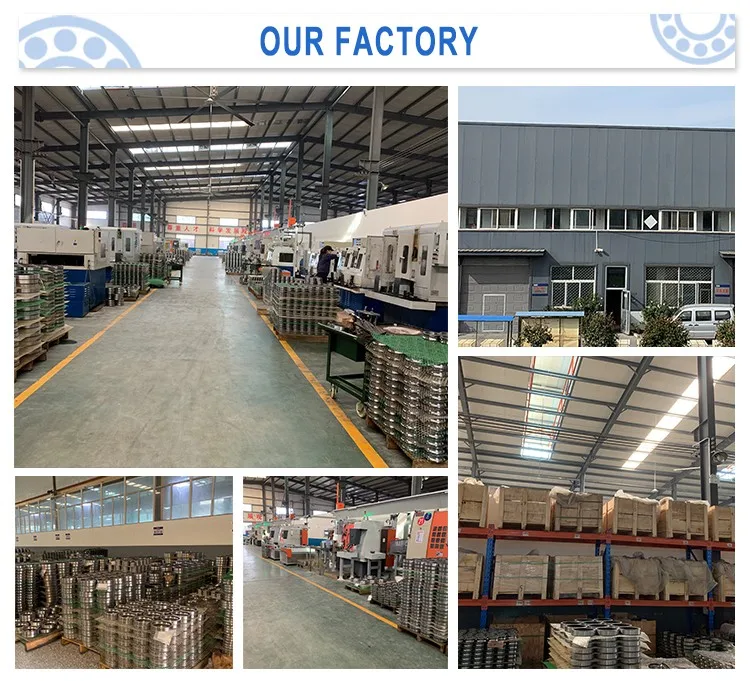

Our factory

SHANDONG BCB BEARING CO., LIMITED is a bearing manufacturer integrating bearing manufacturers.
Research, develop and sell bearings, with a construction area of 18,000 square meters and a workshop area of 4,800 square meters.
The company has a state-level enterprise technology center and a number of provincial-level high-tech enterprises.An enterprise with strong technical force. Our company is known as a competitive brand in the market.

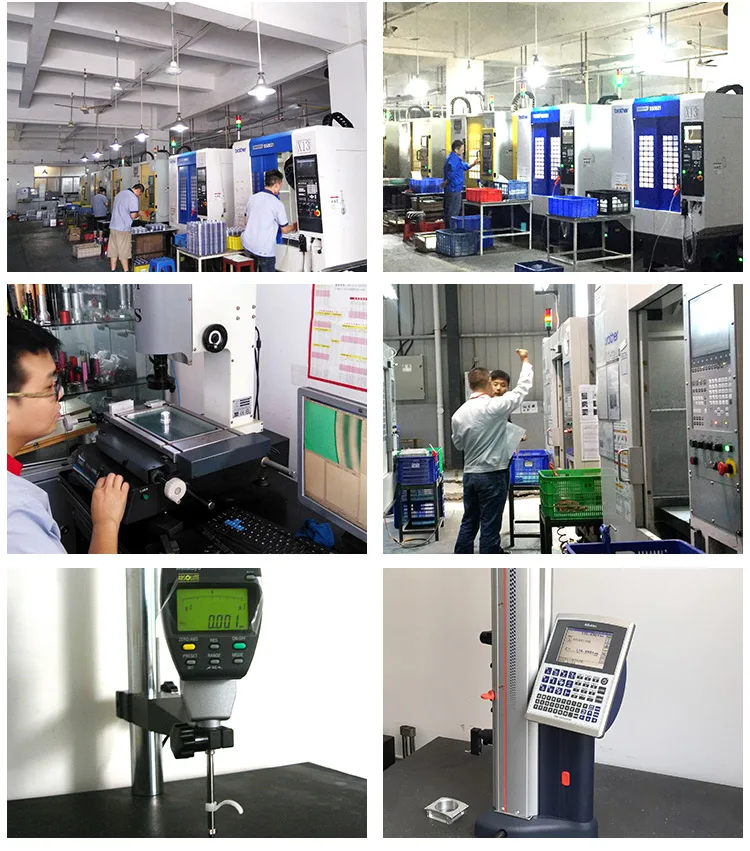

The company has modern production equipment and advanced testing instruments.Three types of spherical roller bearings are produced, namely cylindrical roller bearings,Tapered roller bearings and thrust spherical roller bearings, automobile hub bearings, replacing imported bearings High-end products.

Our bearings have the precision of P0, P6, P5 and P4, and are widely used in complete sets of metallurgical products.
Mining, petroleum, chemical, coal, cement, paper, wind power, heavy machinery, construction machinery and port machinery industries. Our company has self-support import and export rights,the products sell well all over the world!
We can serve you with excellent price and quality, and we can guarantee all after-sales needs.SKF NTN NSK KOYO FAG TIMKEN INA IKO NACHI
We can be good partners and good friends!

Application

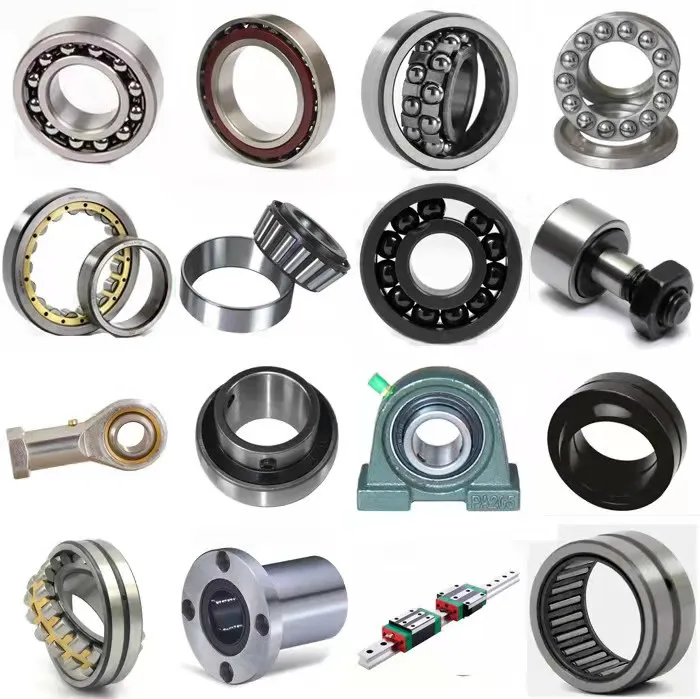

More choices

Delivery & Shipping

FAQ

Q1. Are you trading company or manufacturer?
A: We're manufacturer. We have our own factory and experienced technicans.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q3. What is your terms of delivery and delivery time?
A: EXW, FOB, CFR, CIF, DDU, etc. Generally, it will take 7 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q5. What is your sample policy?
A: We can provide the sample, but do not cover the courier cost.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
(1). We keep good quality and competitive price to ensure our customers benefit ;
(2). We respect every customer as our friend, we sincerely invite you to cooperate with us, we will definitely become your best supplier!
