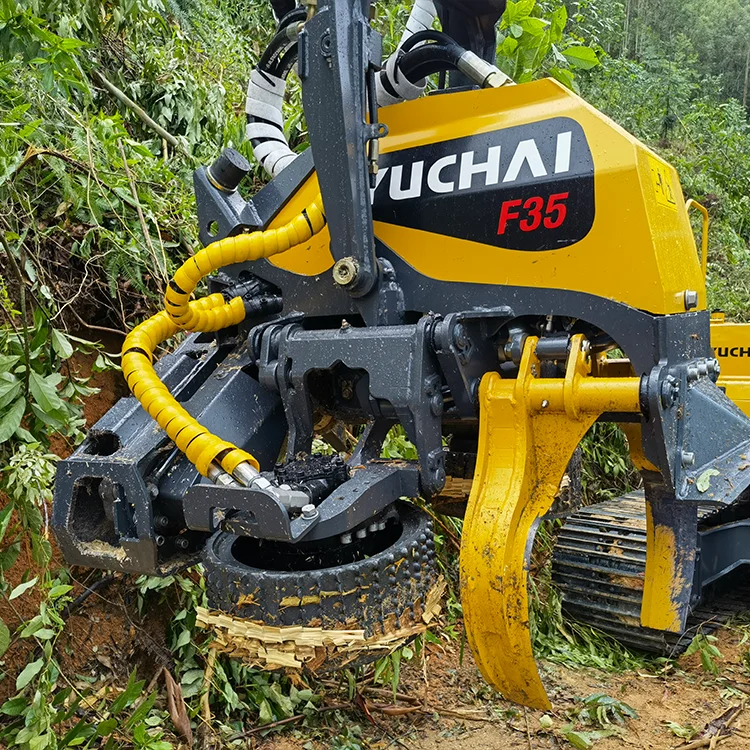

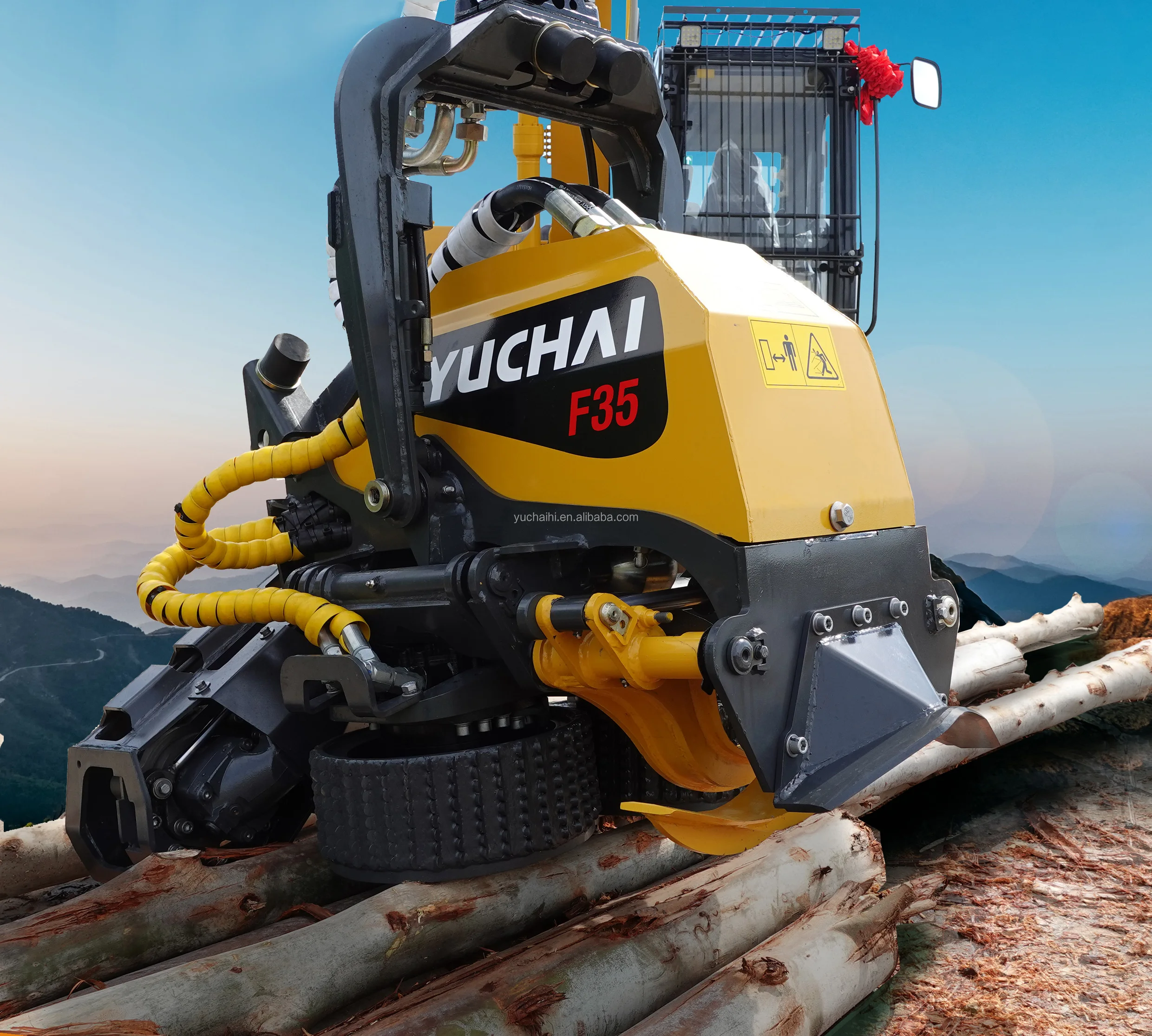

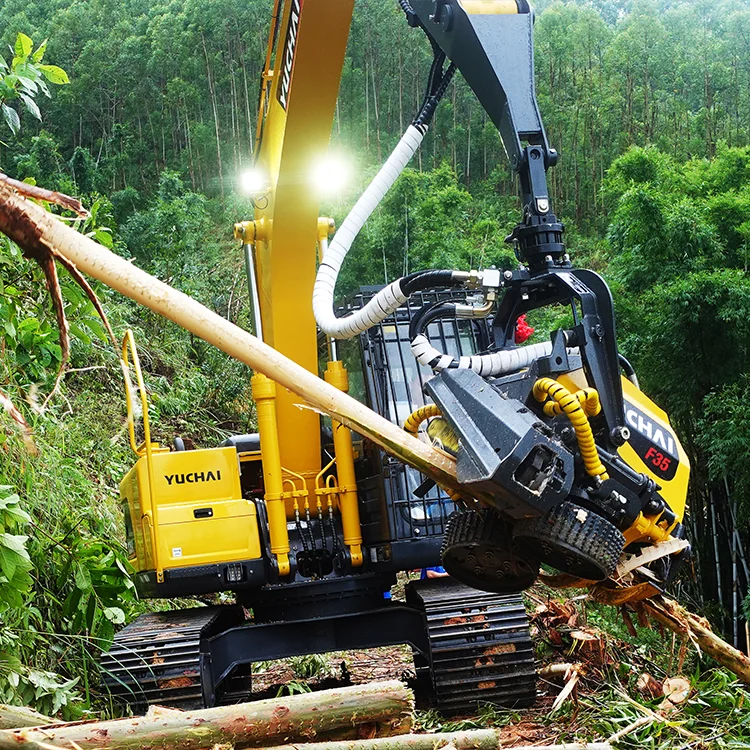

YCF35 Product Introduction
The harvesting head is small in size, complete in functions, and highly concentrated in the electromechanical hydraulic system;
The control logic is clear and reasonable, and the self-programmed control program is adopted to realize intelligent operation;
The control logic is clear and reasonable, and the self-programmed control program is adopted to realize intelligent operation;
Chain saw | Max. cutting diameter | 350mm |
Length of saw bar | 18in | |
Chain type | 0.404in | |
Feeding | Number of rollers | 2 |
Max. roller opening | 400mm | |
Max. roller feeding force | 19KN | |
Max. roller speed | 5m/s | |
Delimbing | Delimbing knives | 2+1+1 |
Max. opening, upper knives | 480mm | |
Max. opening, lower knives | — | |
Hydraulic requirements | Max. operating pressure | 25MPa |
Recommanded pump capacity | 160L/min | |
power requirement | 65kW | |
Dimension | Width（Opening） | 1130mm |
Length | 1140mm | |
Height | 1100mm | |
Weight | 560kg |

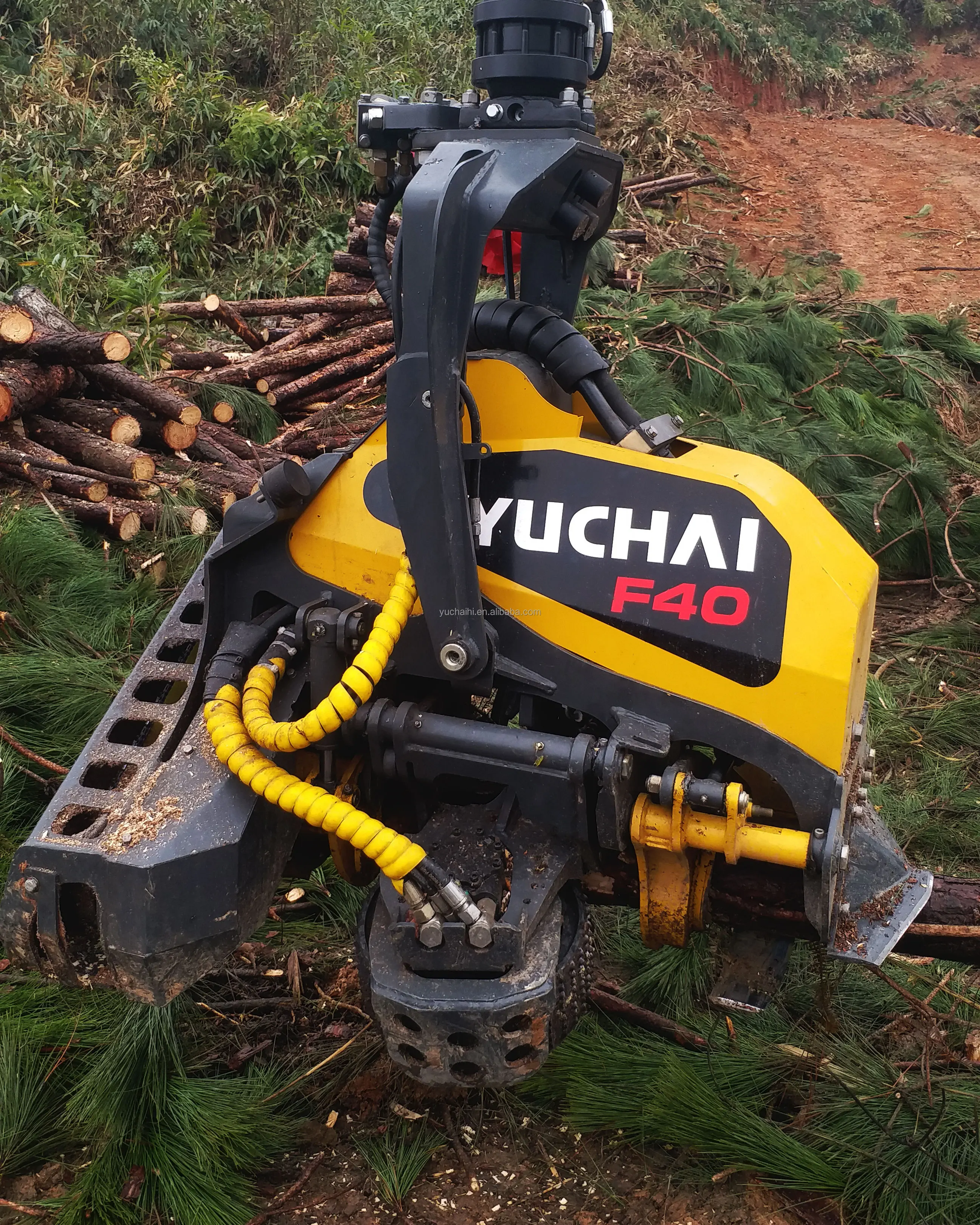

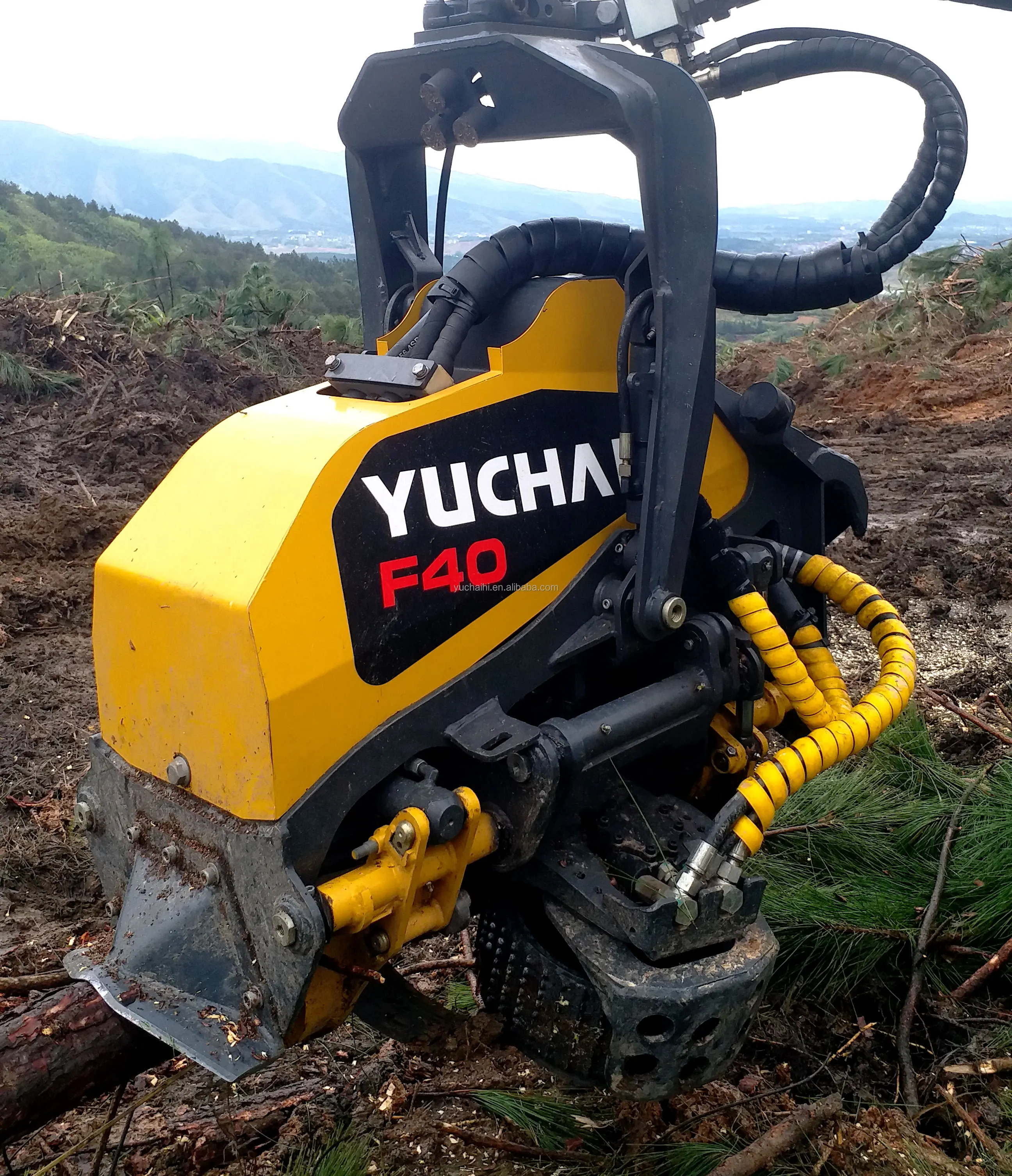

YCF40 Product Introduction
Using a highly integrated precision solenoid valve group, the action is very coordinated and precise;
High cutting efficiency and safer operation. One machine can replace about 30 people for logging.
High cutting efficiency and safer operation. One machine can replace about 30 people for logging.
Chain saw | Max. cutting diameter | 400mm |
Length of saw bar | 20in | |
Chain type | 0.404in | |
Feeding | Number of rollers | 2 |
Max. roller opening | 420mm | |
Max. roller feeding force | 19KN | |
Max. roller speed | 5m/s | |
Delimbing | Delimbing knives | 4+1 |
Max. opening, upper knives | 480mm | |
Max. opening, lower knives | 520mm | |
Hydraulic requirements | Max. operating pressure | 25MPa |
Recommanded pump capacity | 160L/min | |
power requirement | 65kW | |
Dimension | Width（Opening） | 1150mm |
Length | 1275mm | |
Height | 1220mm | |
Weight | 680kg |

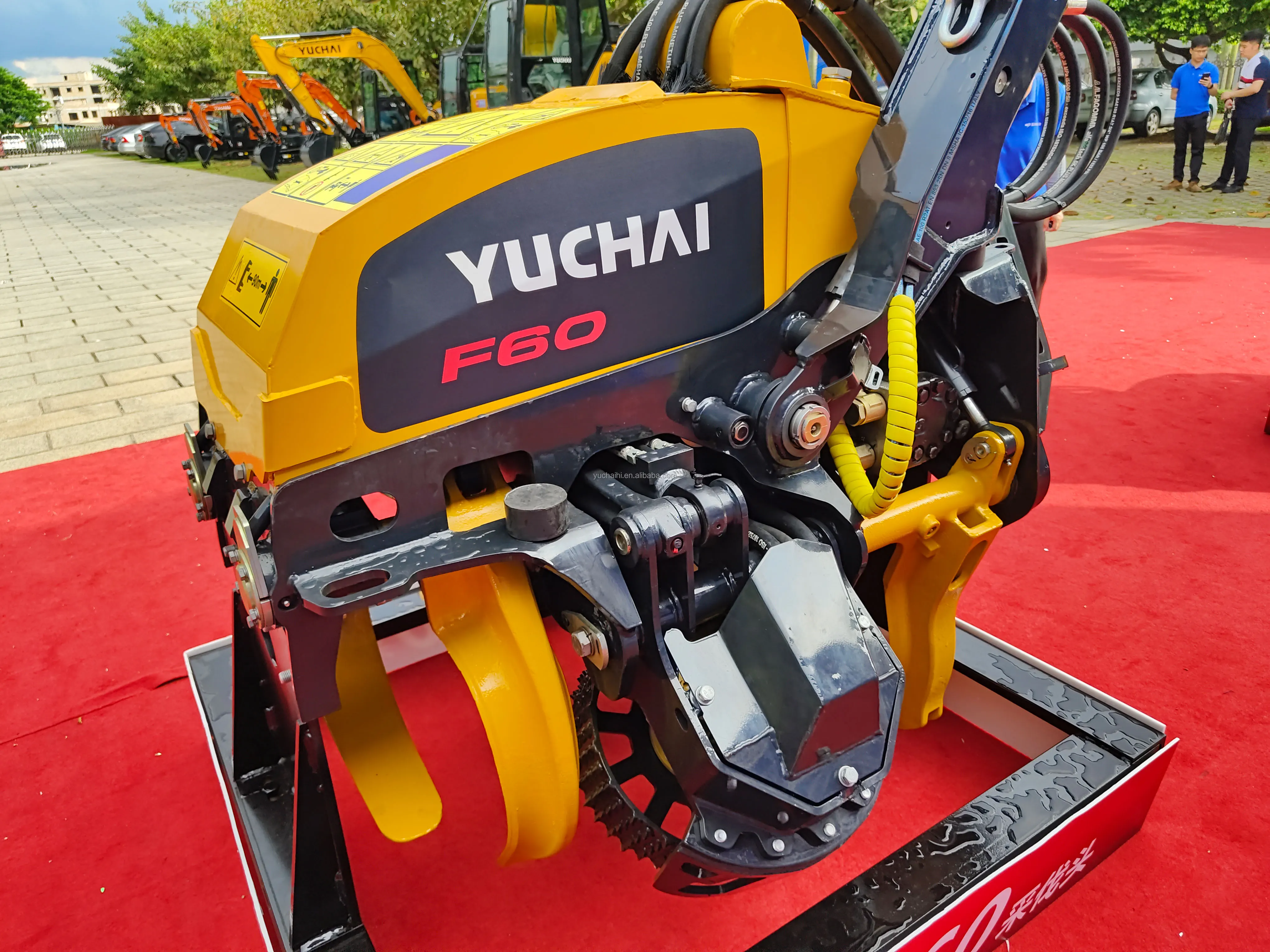

YCF60 Product Introduction
In large forest farms, the harvester head competes with foreign imported brands in an all-round way, Its operating efficiency is equivalent to them, the fuel consumption is reduced by more than 20%, the price is reduced by more than 50%, and the after-sales service cost will be reduced by more than 50%.
The after-sales service efficiency is shortened by half, which is the advantage of the localization of the harvester head, and it is also a good news for the users.
The after-sales service efficiency is shortened by half, which is the advantage of the localization of the harvester head, and it is also a good news for the users.
Chain saw | Max. cutting diameter | 600mm |
Length of saw bar | 29.53in | |
Chain type | 0.404in | |
Feeding | Number of rollers | 3 |
Max. roller opening | 600mm | |
Max. roller feeding force | 25KN | |
Max. roller speed | 6m/s | |
Delimbing | Delimbing knives | 4+1+1 |
Max. opening, upper knives | 640mm | |
Max. opening, lower knives | 650mm | |
Hydraulic requirements | Max. operating pressure | 28MPa |
Recommanded pump capacity | 250L/min | |
power requirement | 100-120kW | |
Dimension | Width（Opening） | 1500mm |
Length | 1445mm | |
Height | 1530mm | |
Weight | 1050kg |
Recommend Products
Company Profile
Guangxi Yuchai Heavy Industry Co., Ltd.
Guangxi Yuchai Heavy Industry Co., Ltd. is a Sino-foreign joint venture controlled by Yuchai Machinery Group Co., Ltd. Since 1989, it has been a professional manufacturer focusing on crawler excavators, integrating R&D, manufacturing and sales of various projects.
It is the first small excavator manufacturer in China and the main export base for small construction machinery.
The annual production capacity is 10,000 units.
WORKSHOP
GUANGXI YUCHAI HEAVY INDUSTRY COMPANY LIMITED

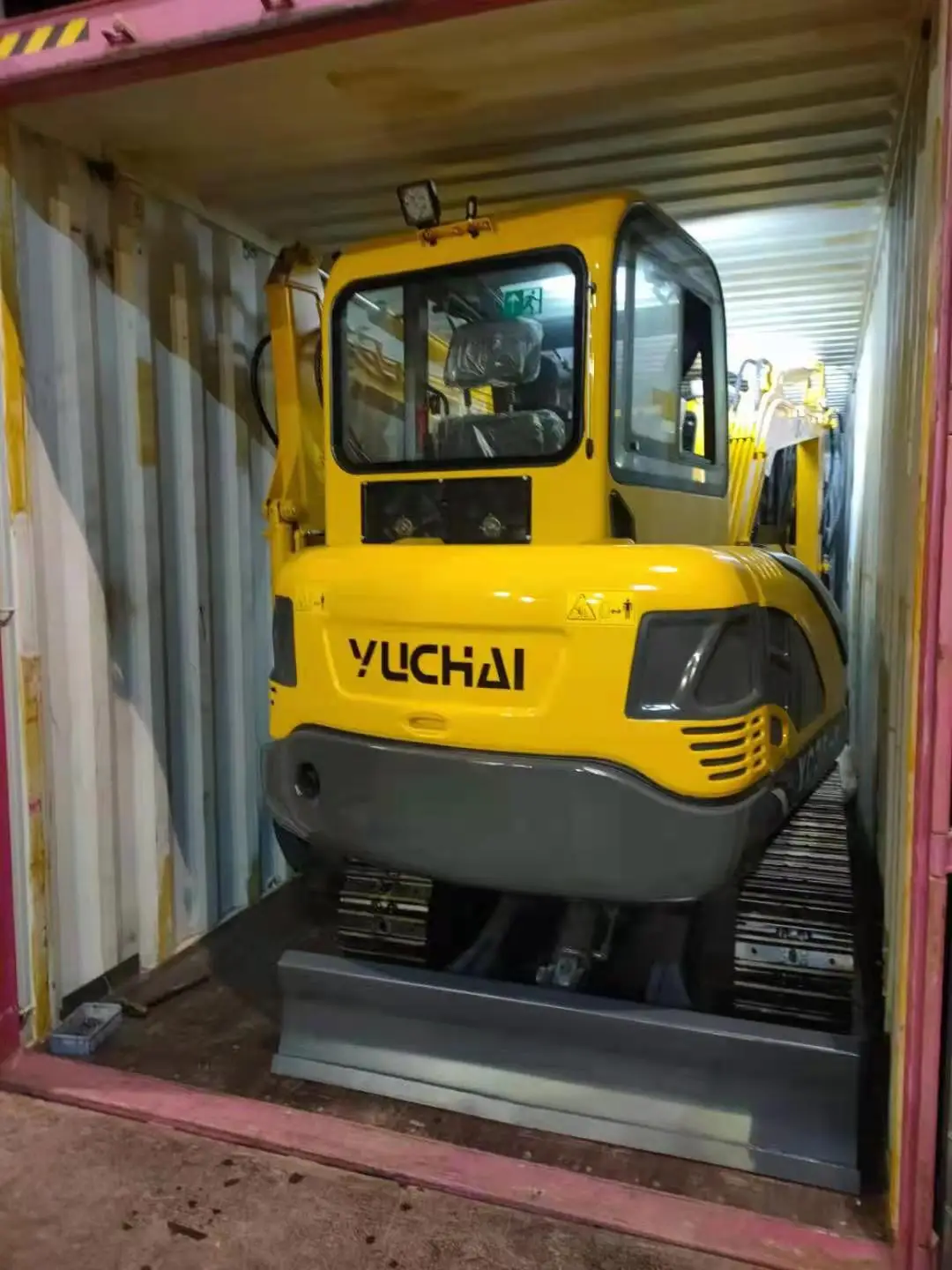

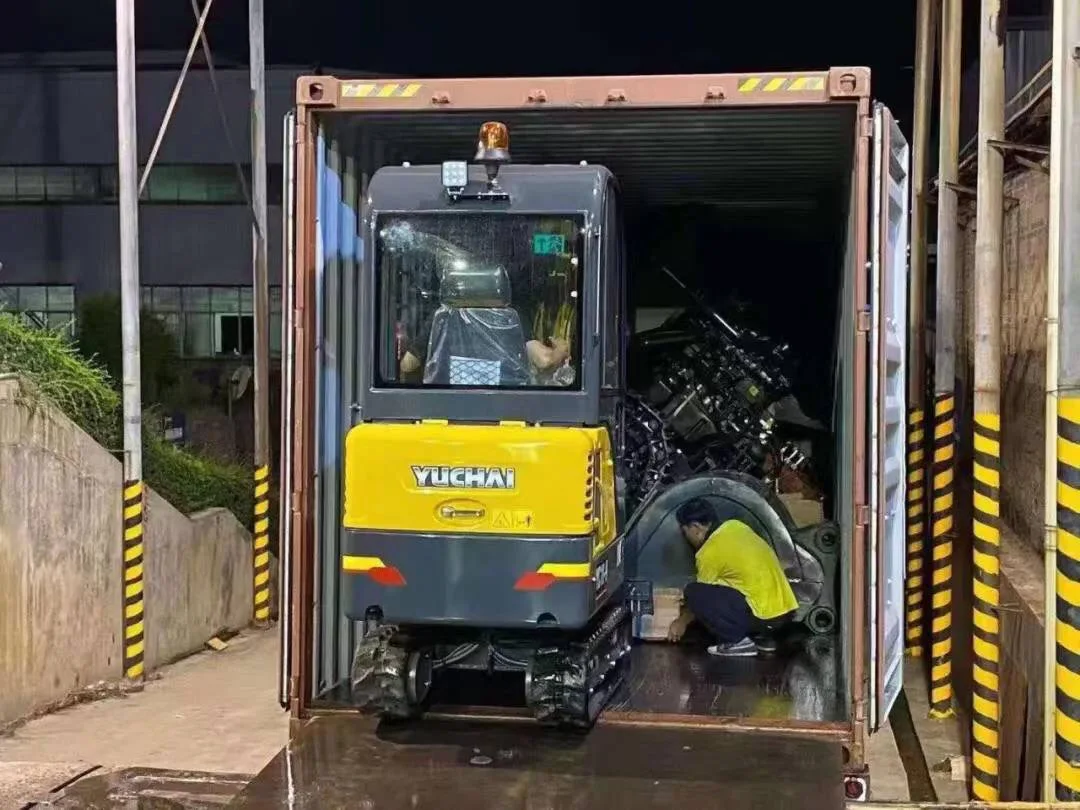

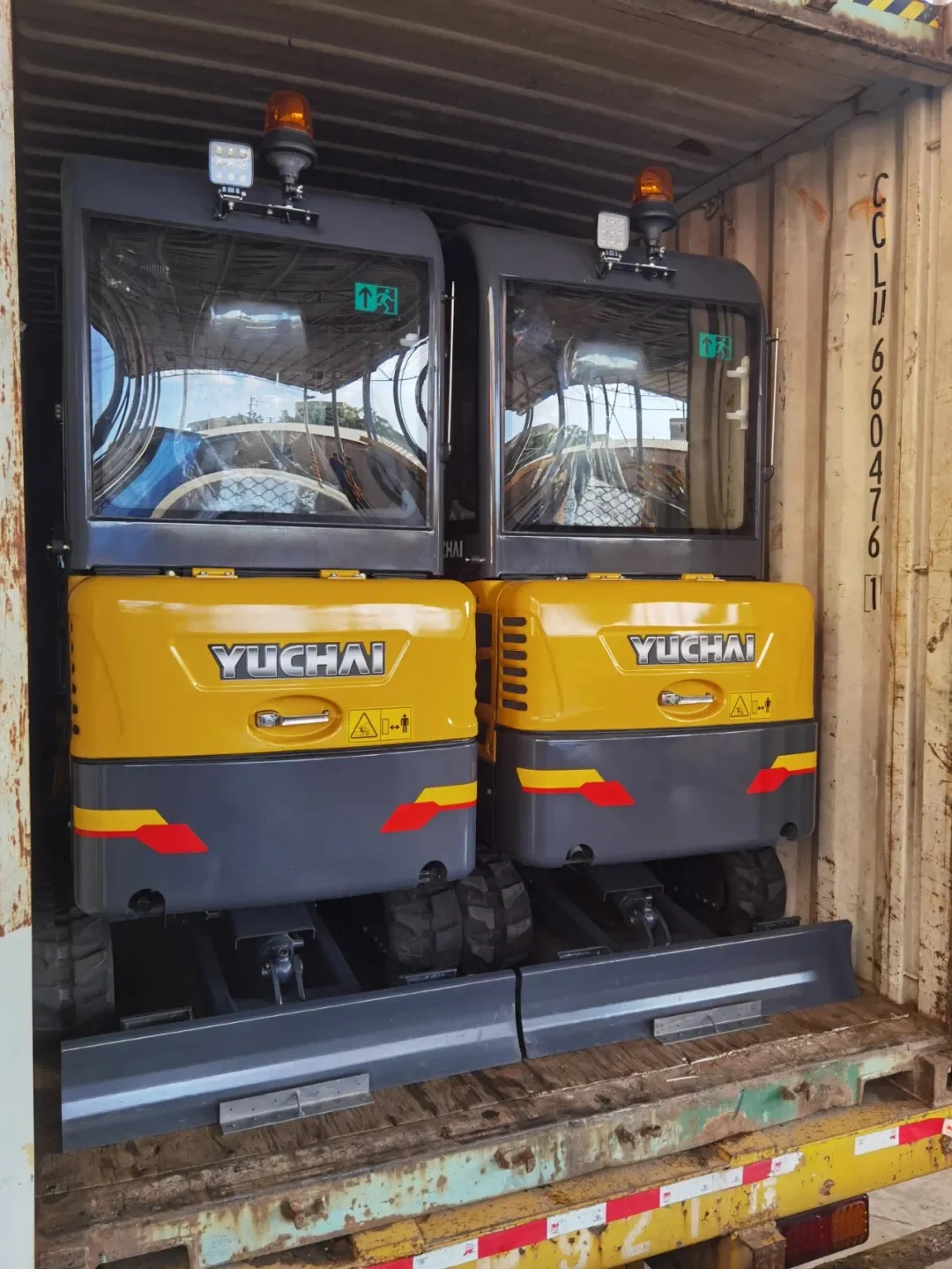

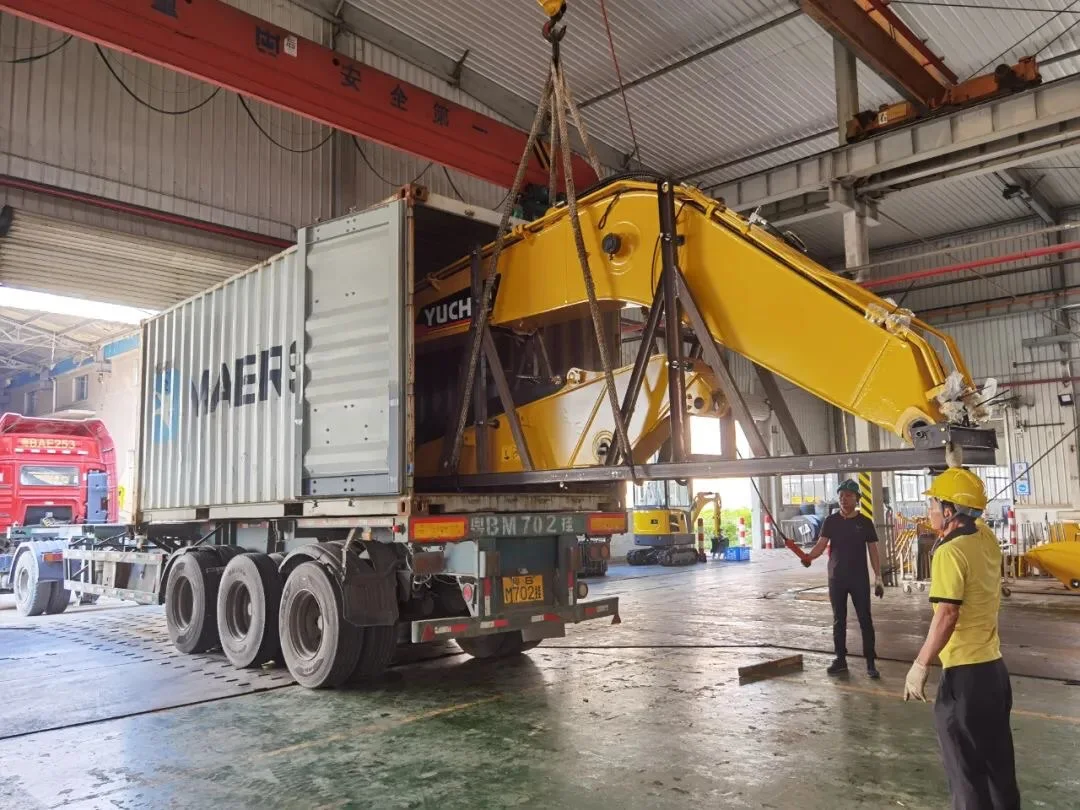

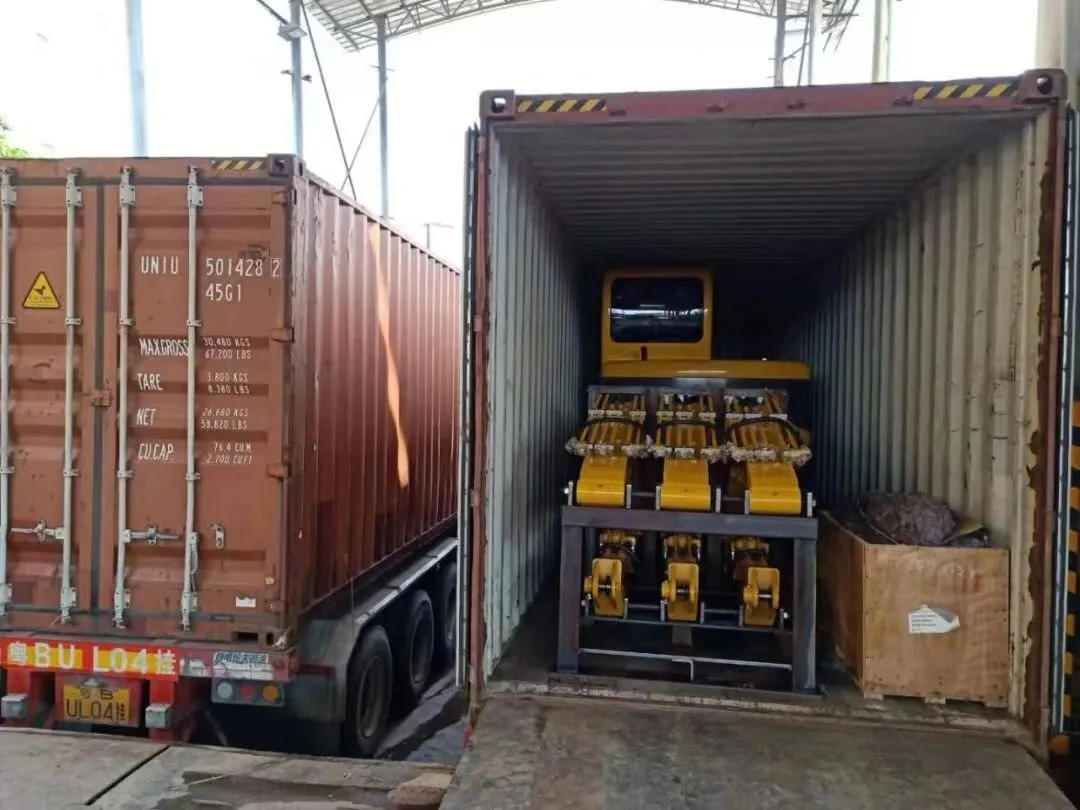

PRODUCT PACKAGING
GUANGXI YUCHAI HEAVY INDUSTRY COMPANY LIMITED
Exhibition
Sales Network
Yuchai excavators provide you with quality services
Yuchai Heavy Industry has established a huge and perfect sales and service system network covering more than 30 provinces, municipalities and autonomous regions in China and more than 30 countries and regions on five continents.
