Product Description

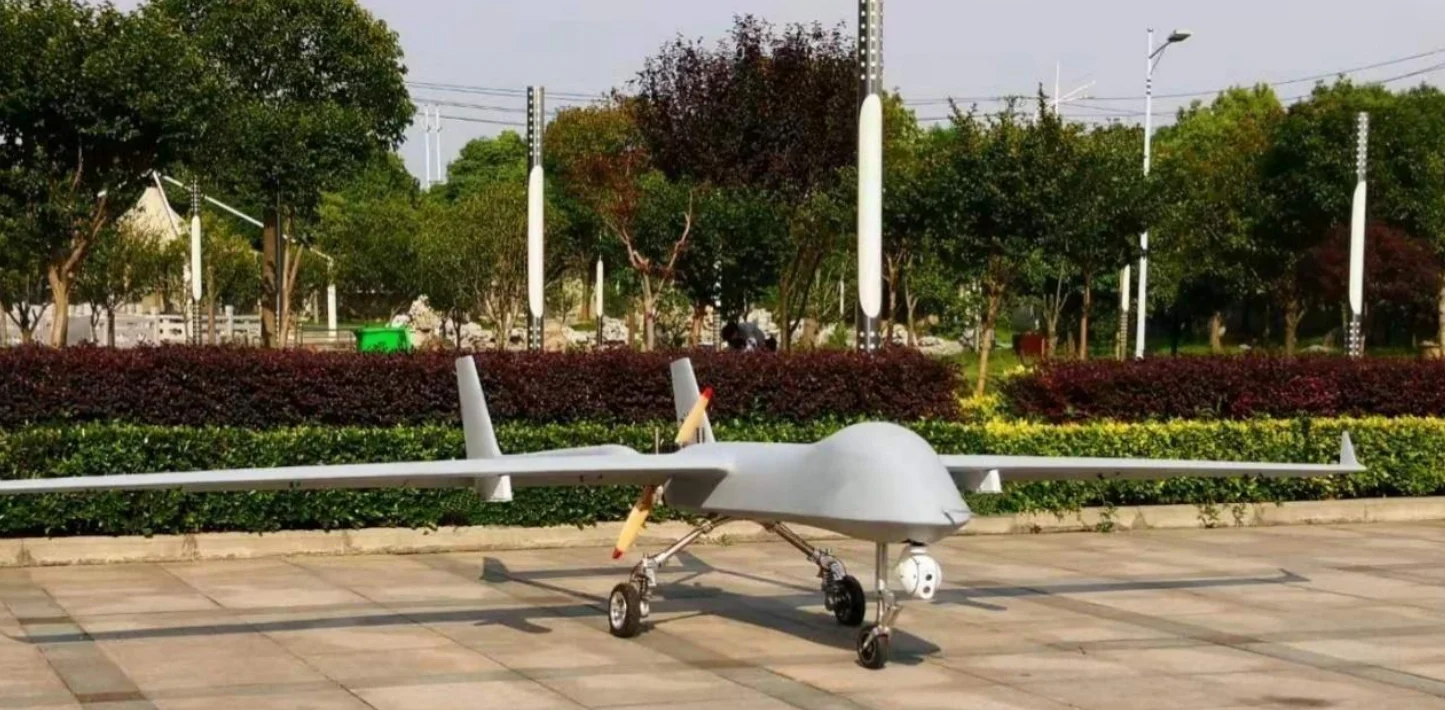

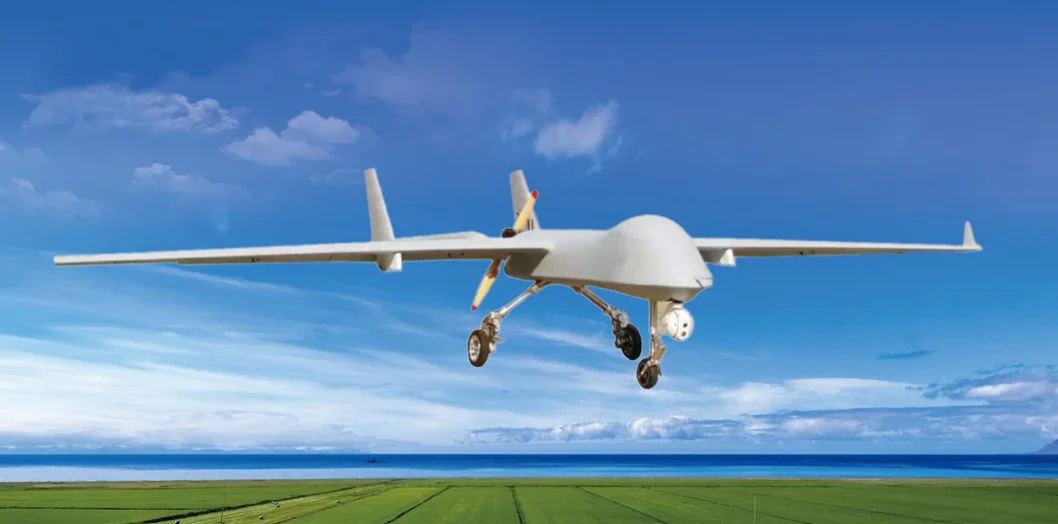

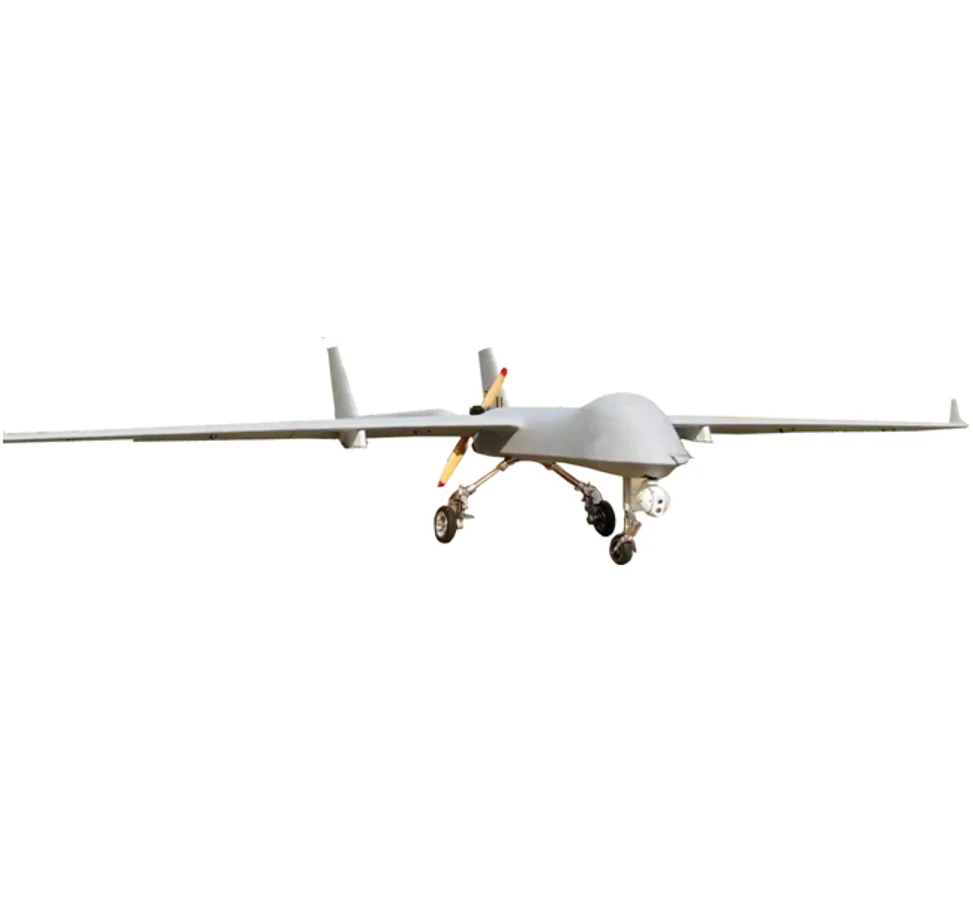

30kg Payload 3H Hybrid power Fixed-wing UAV System
460 equipped with tactical-level accuracy of the MEMS sensor and differential GPS module, with independent navigation solution function.
Using active redundancy structure design, each flight control unit works in standby state. After large data exchange, the
authenticity of data and the correctness of calculation are further determined by system’s self-check and data cross-comparison.
Application scenario:
⚫ Day and Night operations for Border Surveillance and Control.
⚫ Seaport monitoring.
⚫ Homeland Security.
⚫ Fire/ Natural Disaster Management.
⚫ Forest Protection and Management.
⚫ Aerial cartography, 2-dimensional and 3-dimensional.
⚫ Day and Night operations for Border Surveillance and Control.
⚫ Seaport monitoring.
⚫ Homeland Security.
⚫ Fire/ Natural Disaster Management.
⚫ Forest Protection and Management.
⚫ Aerial cartography, 2-dimensional and 3-dimensional.
1,Work normally in severe weather: Cold, hot, snow, and raining.
2, Work normally in Harsh electromagnetic environment.
3, 30Kg payload @ 3 hours endurance.
4, Taking-off on a short runway.
5, Various usages: can be widely used in field of geophysical prospecting, power grid patrol, oil pipeline surveillance, emergency supply transportation, border patrol, anti-terrorism, reconnaissance and attack.
6, Within communication range, Ground Control Station can view live video and control the UAV through data link (Micro Wave or Satellite )
Product Paramenters
Wingspan | 5.94m | Height | 980mm | ||
Length | 3.3m | Area of wing | 2.3m² | ||
Takeoff/landing mode | Taxiing | Endurance | 3hrs | ||
Flying mode | Autonomous and/or manually | Navigation mode | GPS/Beidou | ||
Ceiling | 5000m | Take-off taxiing distance | <300m | ||
Stalling speed | 60km/hr | Oil consumption of cruising | 7L/H | ||
Cruising speed | 120km/hr | Landing taxiing distance | <250m(with braking system) | ||
Max speed | 180km/hr | Fuel type | Ordibary gas | ||
Propeller size | 32*14 | Engine | Limbach L-275 | ||
Payload | 30kg | Power | 22HP | ||
Tank capacity | 22L | Max takingoff weight | 128KG | ||
Meteorological adaptability | Light rain,wind load rating less than grade 5 | ||||
