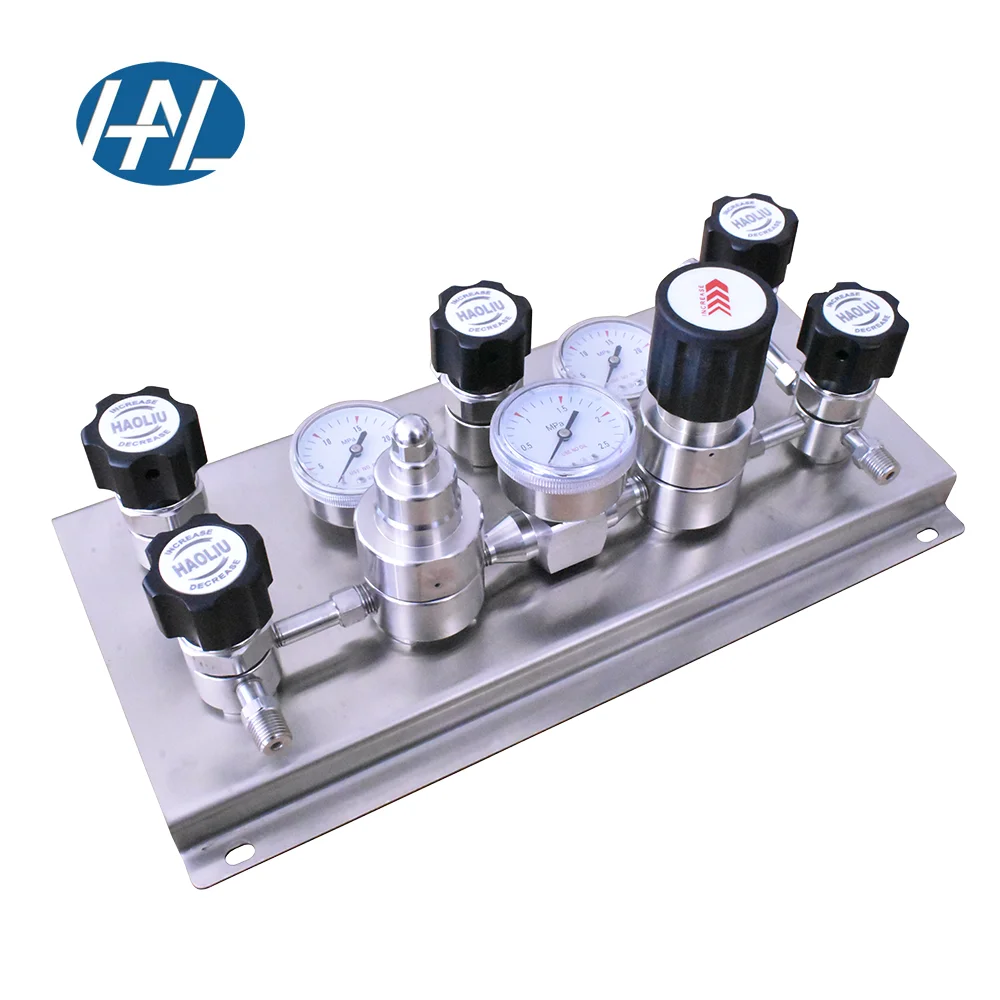

Газовые панели управления с регулятором давления 316 система контроля газа из нержавеющей
- Категории: Pressure Regulators >>>
- Поставщик: Shanghai,Haoliu,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Paramenters

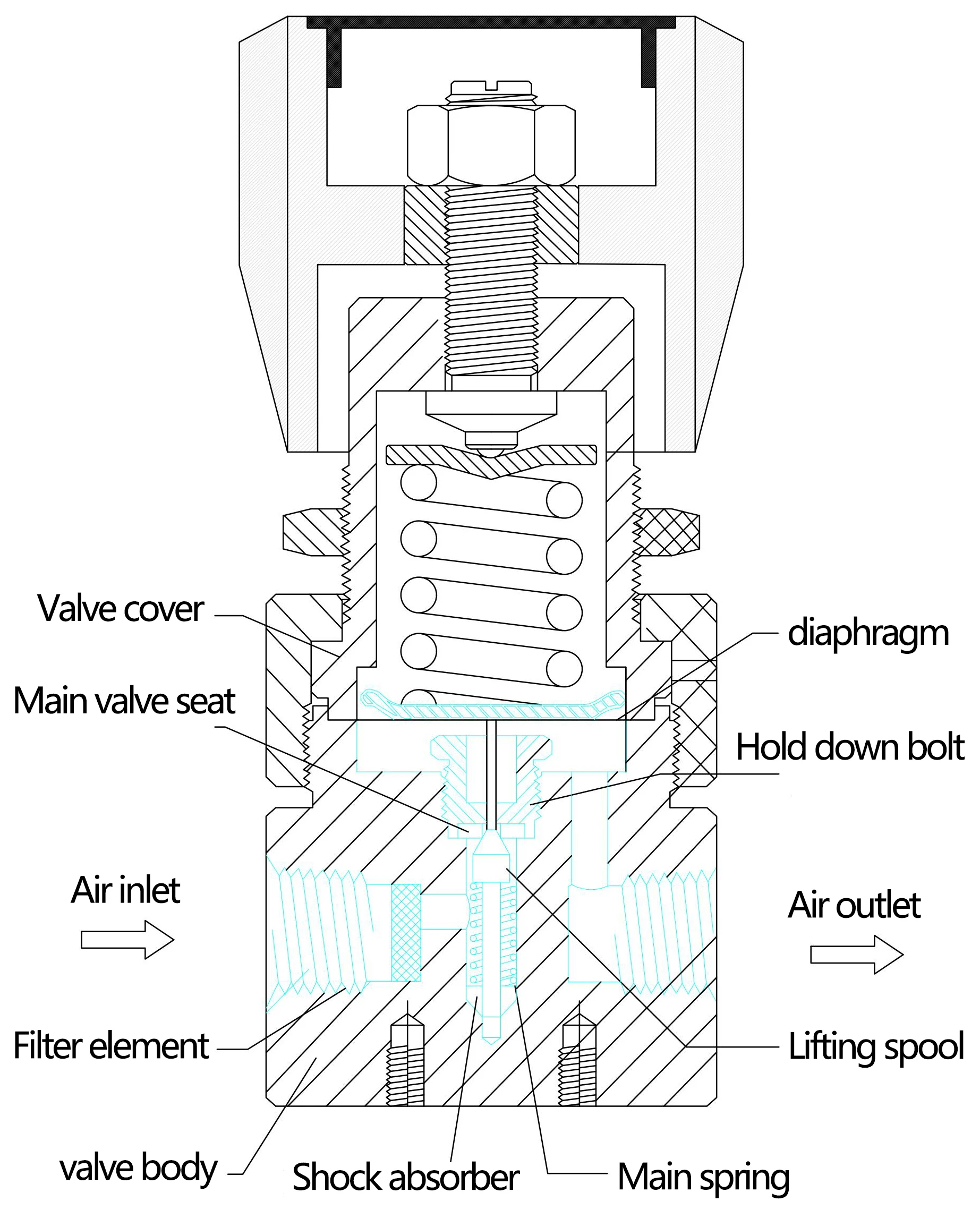

Materials of construction
Regulator body: stainless steelRegulator seat: PU, PTEF, PCTFE
Panel air inlet connection:1/4", 1/2"ferrule
Panel outlet connection: 1/4", 1/2" ferrule
Diaphragm valve body: stainless steel
With purging function

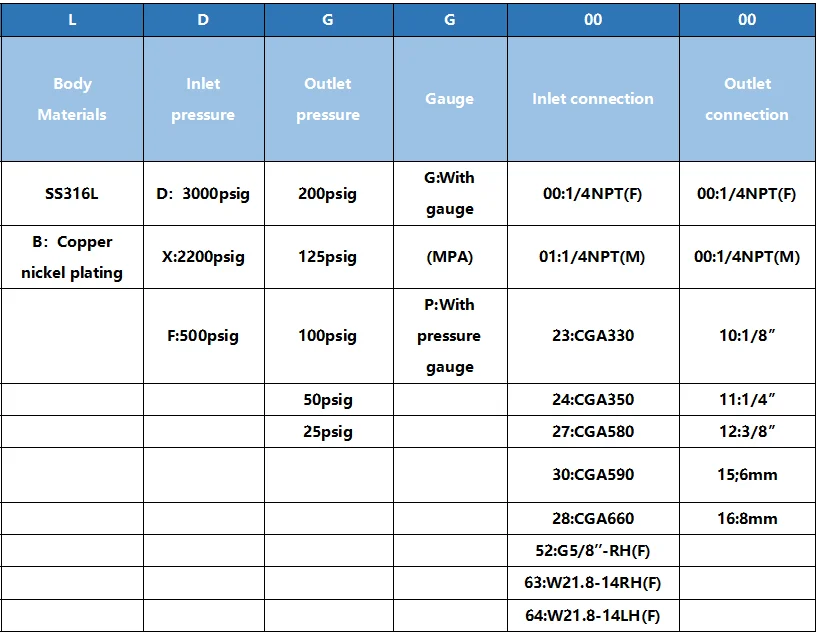

Specifications
Inlet pressure max.: 3000psig
Outlet pressure: 0〜25psig,0〜50psig,0〜100psig,0 〜250psig,0〜500psig
Operating temperature: -40°F~+165°F (-40°C~+74°C)
Leak rate: 2x10-8 atm cc/sec He
CV:0.08

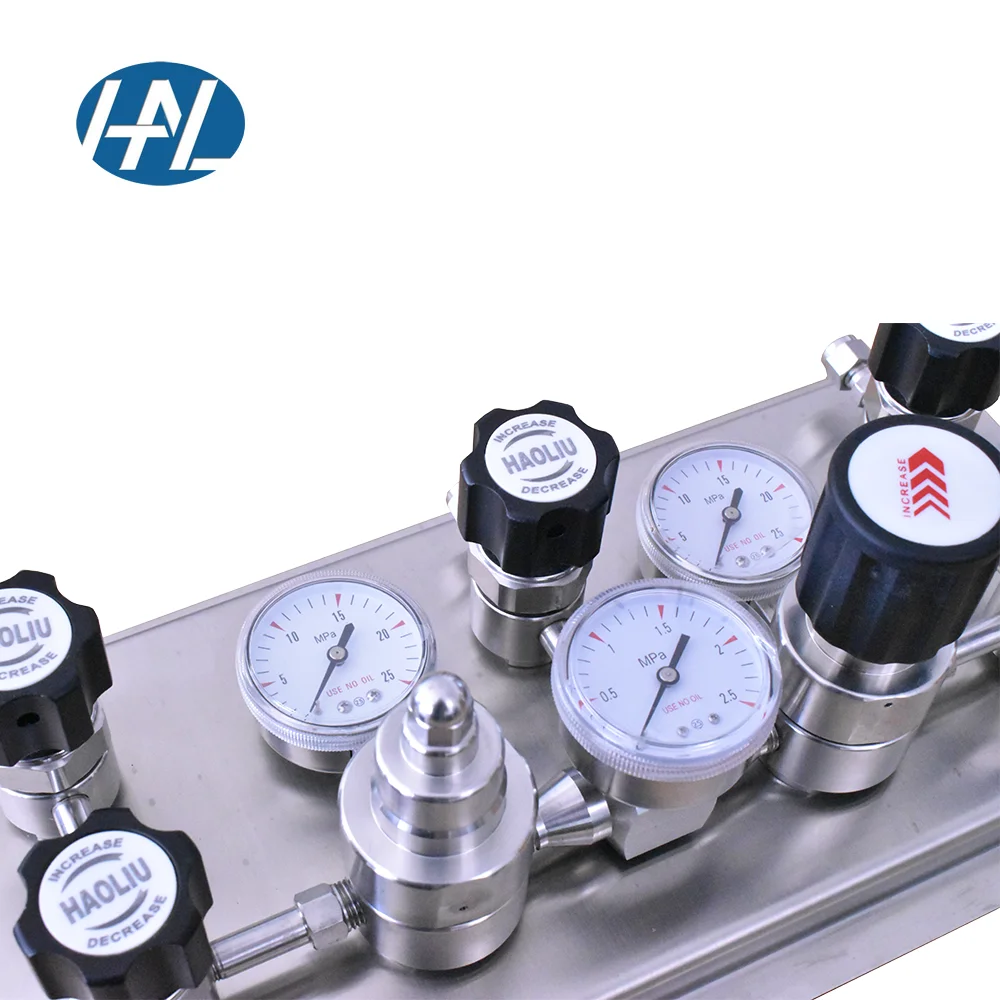

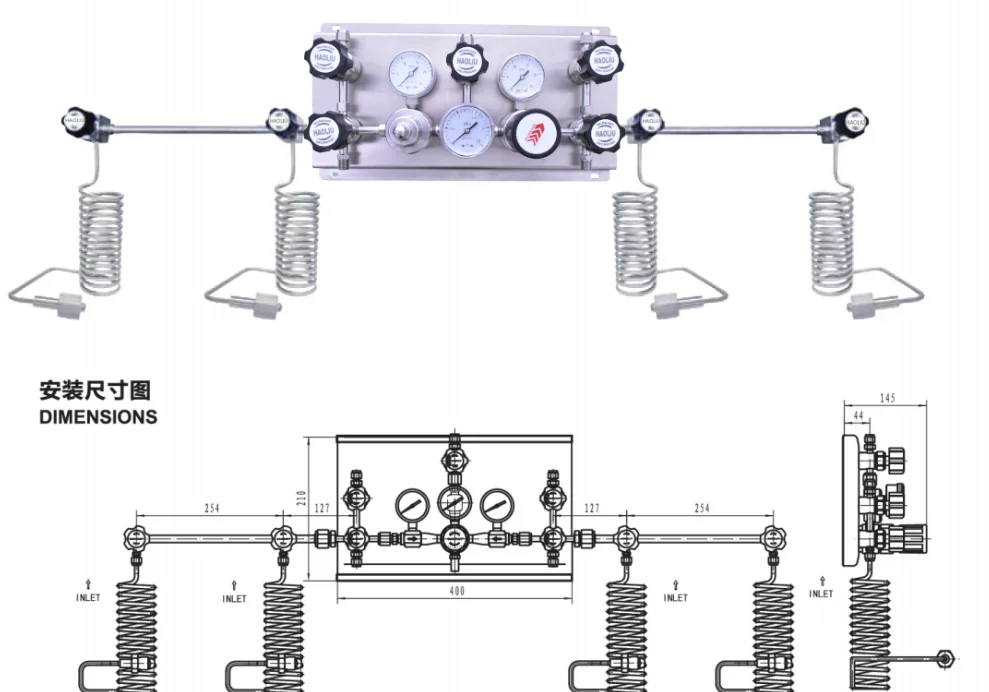

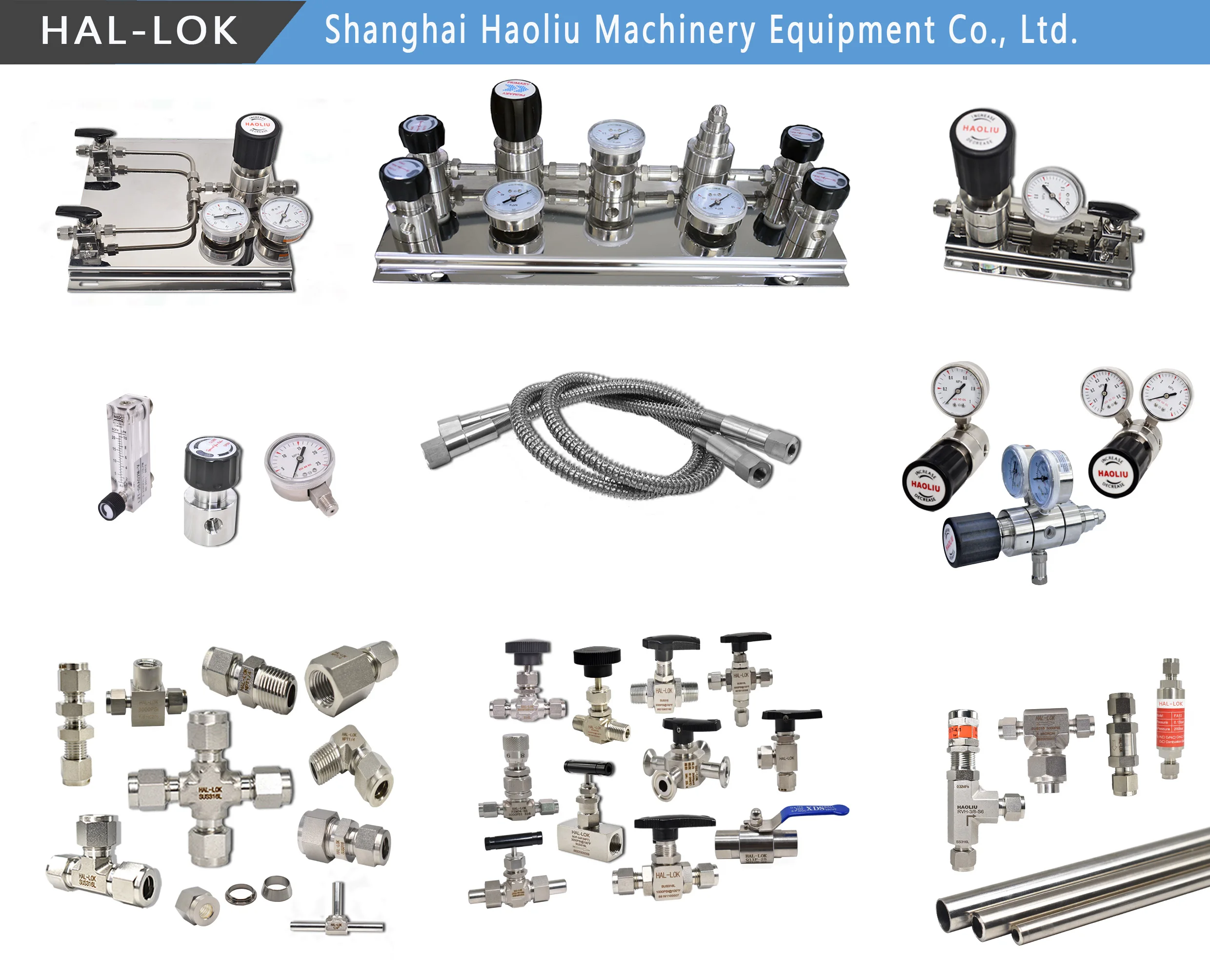

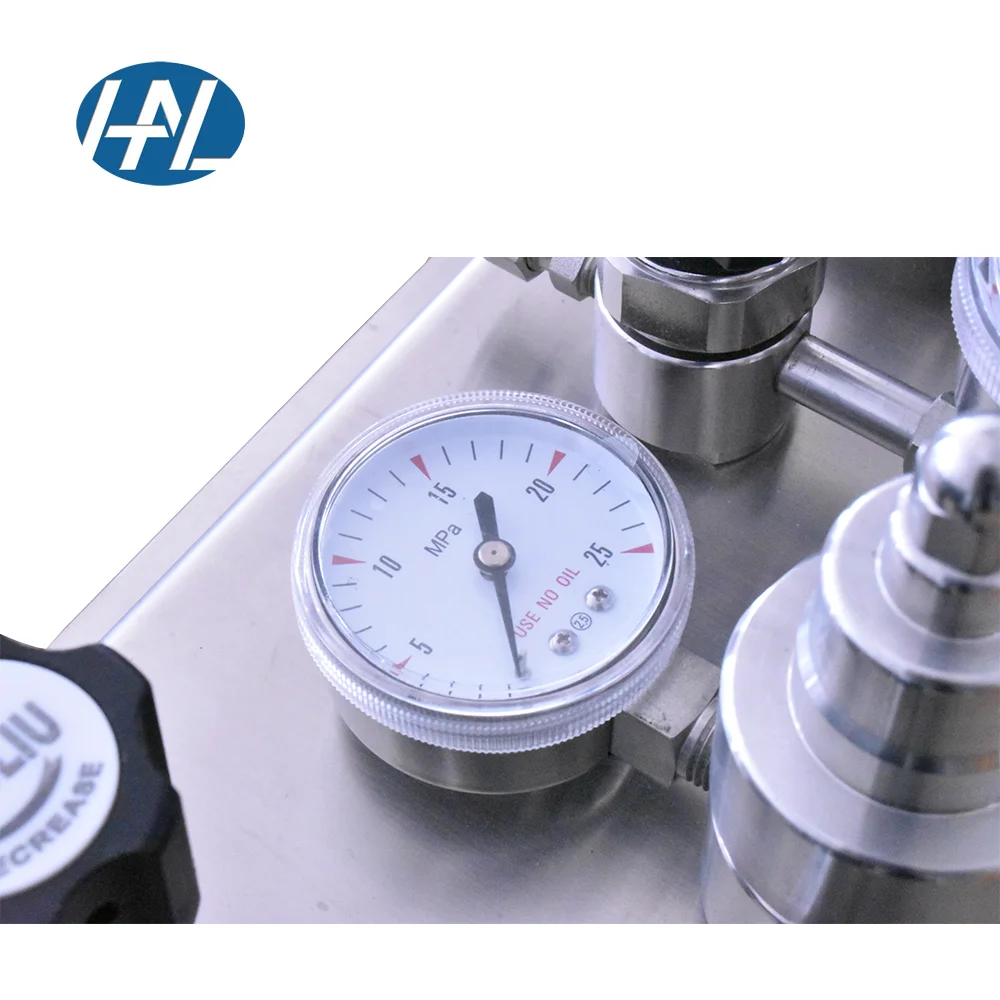

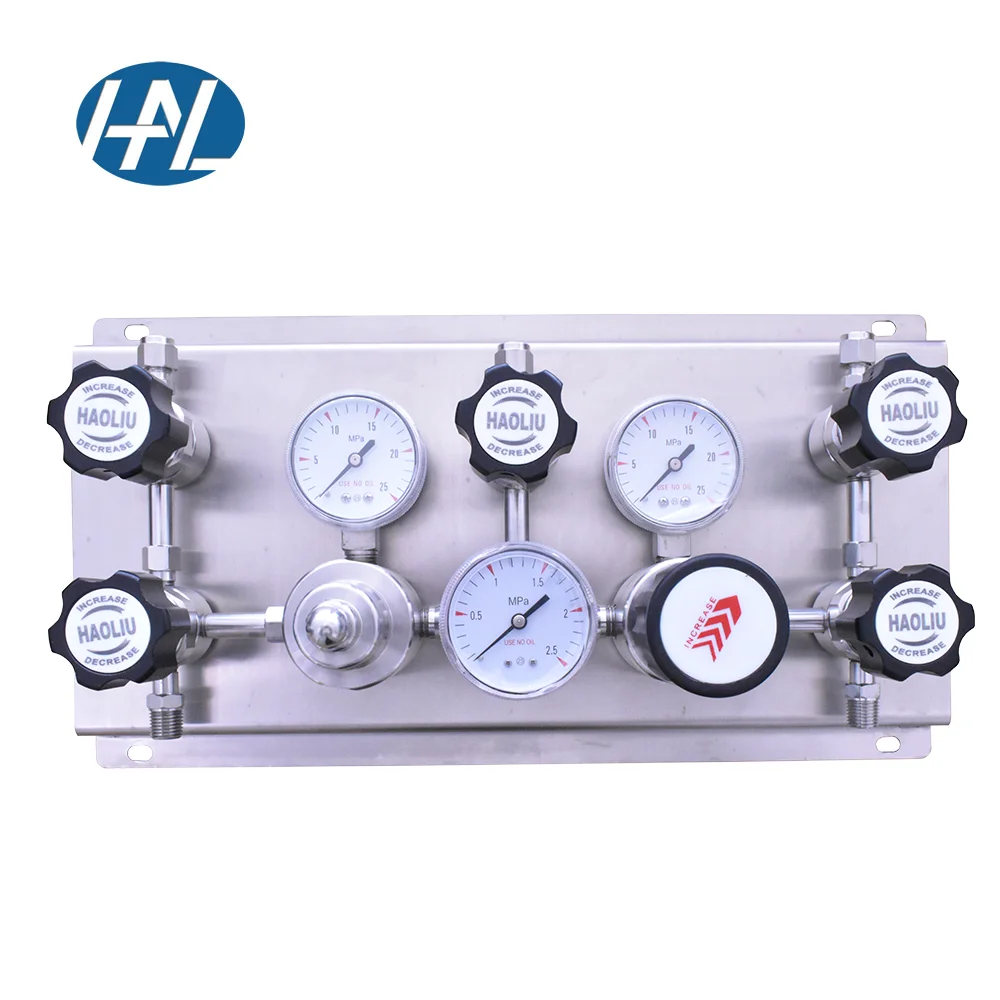

Products Show
Common sense
Decompression device uses common sense：
1. Install the product on the cylinder, leak detection with soapy water or detection fluid.
2. Confirm that the pointer to the pressure gauge is to "0" without pressurization. If you do not point to "0", please stop
the use of the pressure gauge, the product needs to be inspected.
3. Check if impurities or fat dust is left before using theproduct, if impurities and grease remains, please purge.
4. Confirm whether the pressure regulating handle of the gas depression before being placed in the gas in a relaxed state, if thepressure handle of the gas depression is tightened, adjust the handle.
5. When installing the decompression in the gas cylinder, please do not stand in front of the gas depression, need to slowly openthe gas bottle valve.
2. Confirm that the pointer to the pressure gauge is to "0" without pressurization. If you do not point to "0", please stop
the use of the pressure gauge, the product needs to be inspected.
3. Check if impurities or fat dust is left before using theproduct, if impurities and grease remains, please purge.
4. Confirm whether the pressure regulating handle of the gas depression before being placed in the gas in a relaxed state, if thepressure handle of the gas depression is tightened, adjust the handle.
5. When installing the decompression in the gas cylinder, please do not stand in front of the gas depression, need to slowly openthe gas bottle valve.

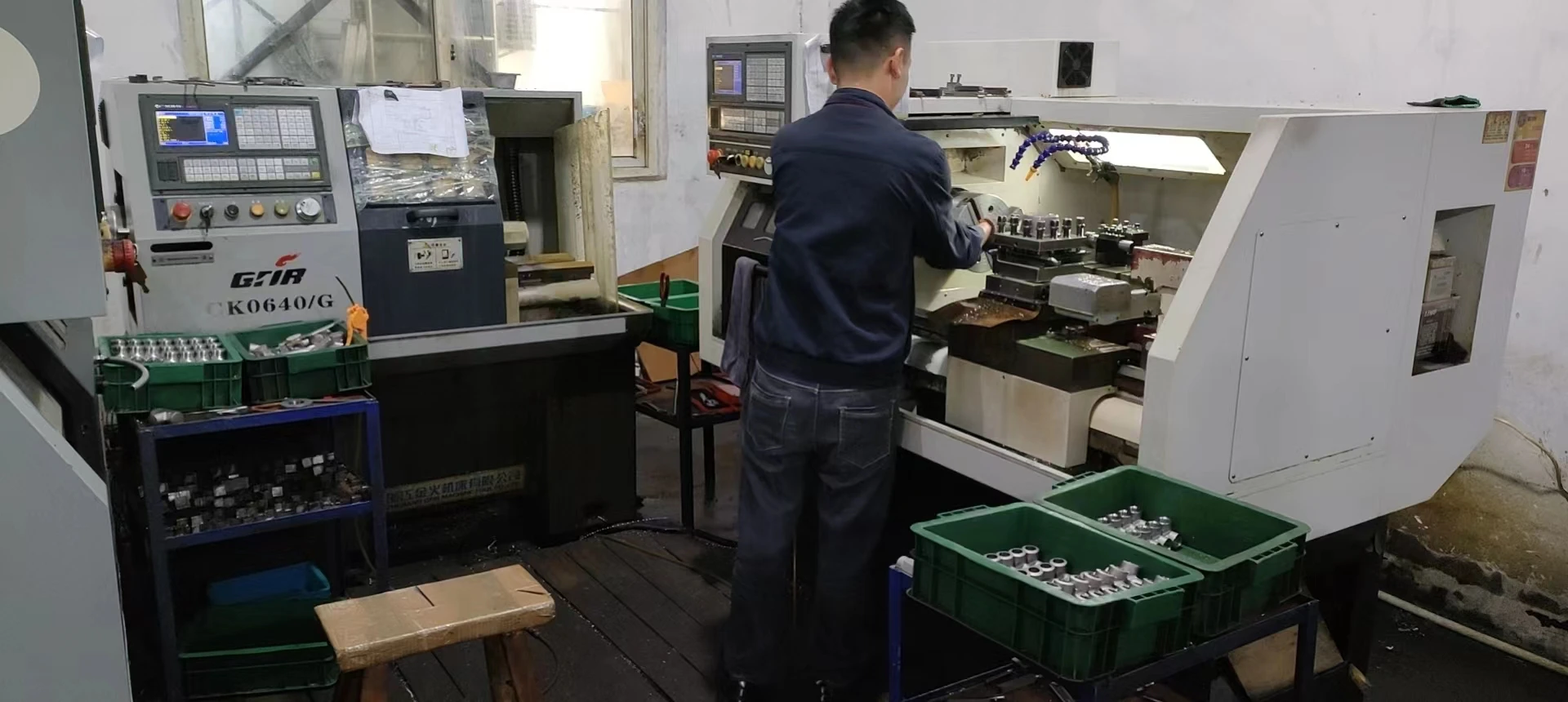

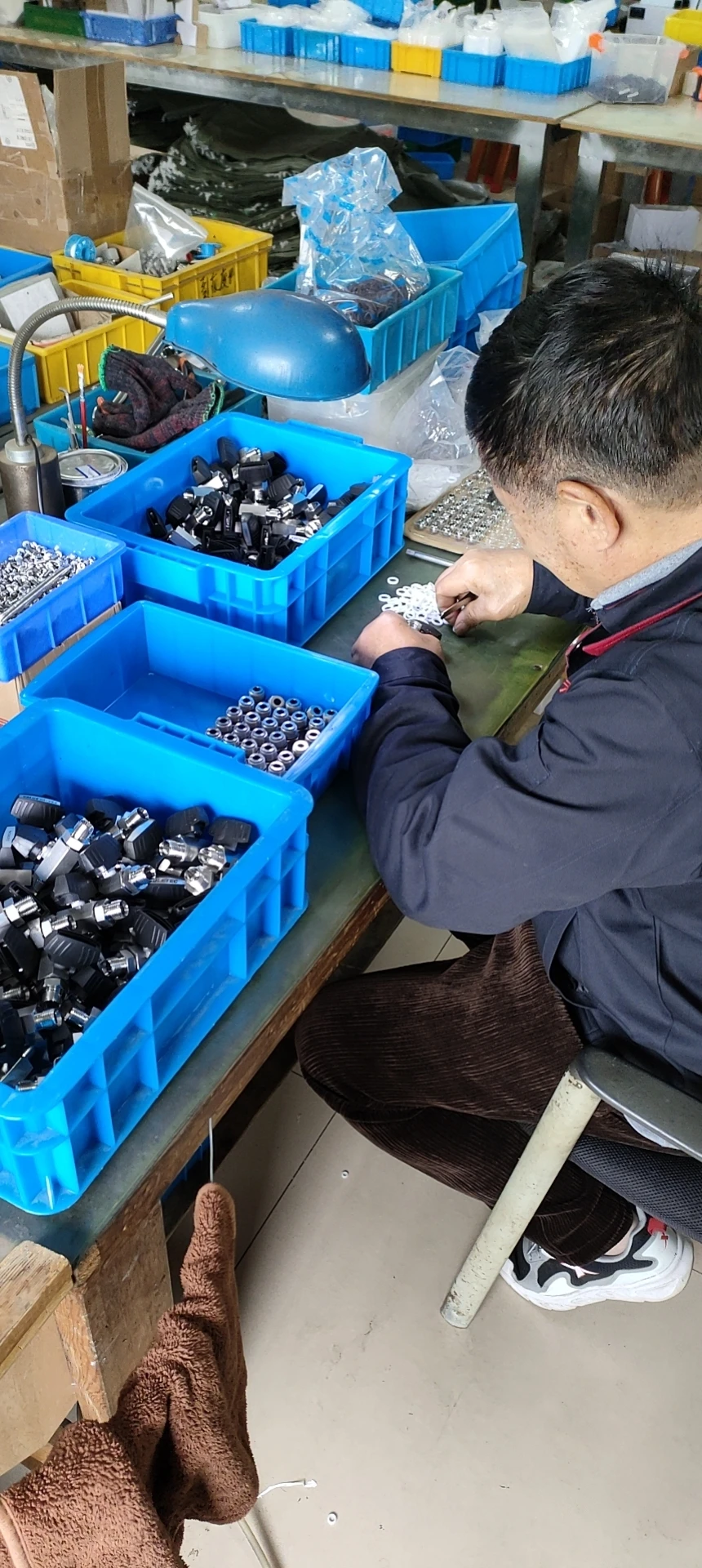

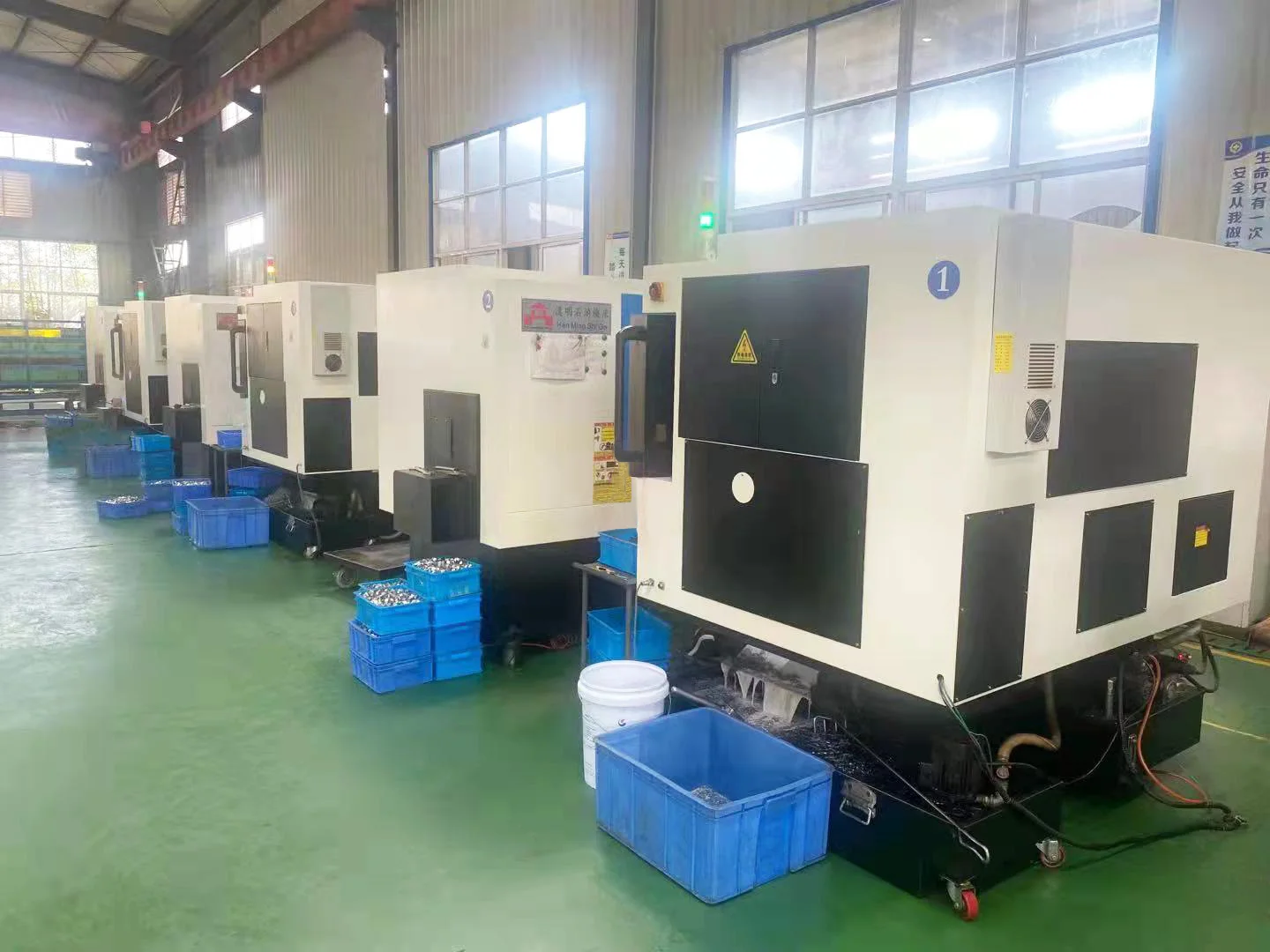

Company Profile
ABOUT US
HAL-LOK fittings and valves are manufactured to the most stringent industry standards.As a result, HAL-LOK is one of the tube fitting and valve manufacturers recognized by many customers. We offer high-quality fittings, valves, hoses, tube accessories, pressure regulators, gauges and filters, quick connects.Our guarantee is that products are leak-tight seals in the application and thoroughly tested, backed by a lifetime limited warranty. Our commitment is to provide customers with reliable products and the most satisfactory customer service. As your supplier of fittings and valves, we have a responsibility to bring more value to your company.
HAL-LOK products are used widely in the oil and gas, chemical and laboratory, transportation, semiconductor, and global projects, and look forward to providing solutions for any of your fluid needs.HAL-LOK Fittings and Valves looks forward to creating a solution for whatever need you may have.
HAL-LOK products are used widely in the oil and gas, chemical and laboratory, transportation, semiconductor, and global projects, and look forward to providing solutions for any of your fluid needs.HAL-LOK Fittings and Valves looks forward to creating a solution for whatever need you may have.

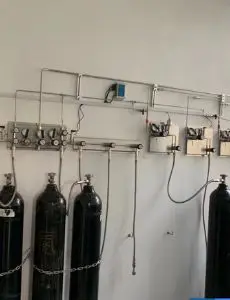

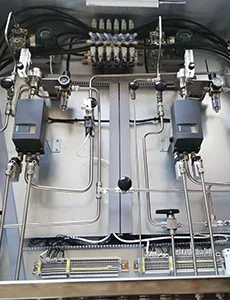

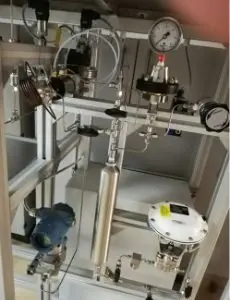

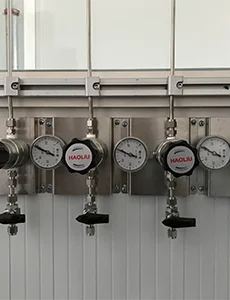

Installation case
Application industry
photovoltaic
Chemical industry
laboratory
steel
energy
chemistry
Packaging & Shipping
FAQ
1. Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available.
3. How to proceed an order for valve?
A:Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express, it takes 7-15 days, you can also choose air shipping.
5. Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available.
3. How to proceed an order for valve?
A:Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express, it takes 7-15 days, you can also choose air shipping.
5. Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
