Product Description


Features
* single-stage pressure-reducing structure
* Metal-to-metal diaphragm seal
* body thread: 1/4” NPT(F)
* easy to clean internal structure
* filter element installed internally
* panel mounting and wall mounting available
echnical Data
* Maximum inlet pressure: 500, 3000psig
* output pressure:0~25, 0~50, 0~100, 0~250, 0~500psig
* safety testing pressure: 1.5 times of maximum inlet pressure
* working temperature: -40~+165 deg F(-40~+74 deg C)
* leakage rate: 2×10-8 atm cc/sec He
* CV value=0.08


Application
* laboratory
* gas chromatography
* gas lasers
* gas bus-bar
* petrochemical industry
* testing equipment

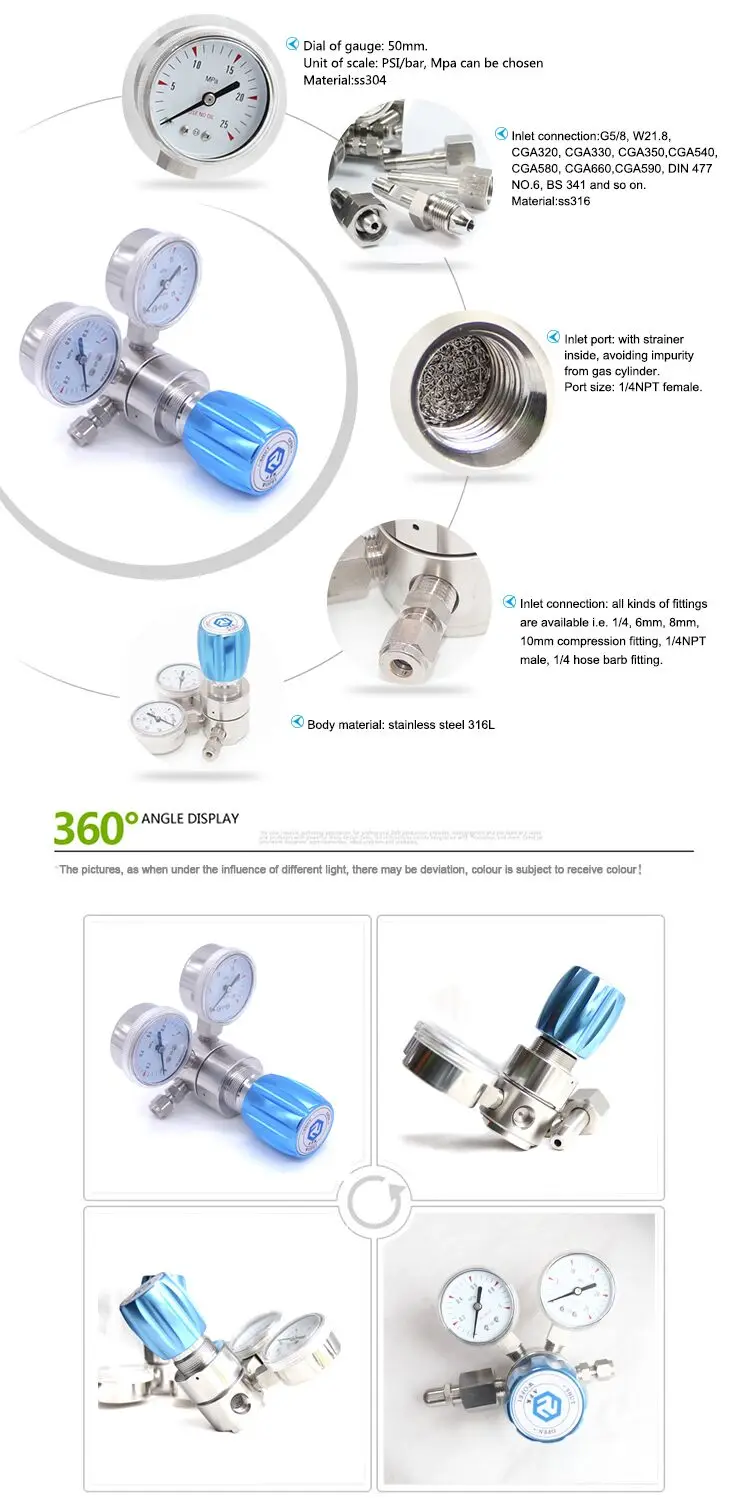

Material
* body: 316L, Brass
* bonnet: 316L, Brass
* diaphragm: 316L
* strainer: 316L(10μm)
* seat: PCTFE, PTFE, Vespel
* spring: 316L
* stem: 316L

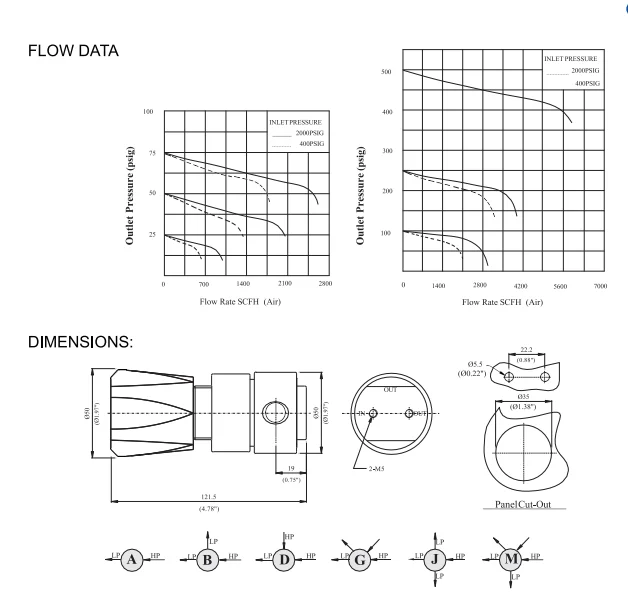

Specification




ORDERING INFORMATION
R11
L
B
D
F
G
00
00
P
Item
Body
Materia
Body Hole
Inlet
pressure
Outlet
pressure
Pressure gauge
Inlet size
Outlet size
mark
R11
L:316
A
D:3000 psi
F:0-500 psi
G:MPa gauge
00:1/4 " NPT (F)
00: 1/4 " NPT(F)
P:Panel mounting

B:Brass
B
E:2200 psi
G:0-250 psi

01:1/4 " NPT (M)
01: 1/4 " NPT(M)
N:Needle valve


D
F:500 psi
l:0-100 psi
P:Psig/bar gauge
23: CGA330
10:1/8 " OD
N:Needle valve


G

K:0-50 psi

24: CGA350
11:1/4 " OD
D:Diaphragm valve


J

L:0-25 psi
W:No gauge
28: CGA660
12:3/8 " OD



M



28: CGA660
15:6mm OD







30: CGA590
16:8mm OD







52: G5/8 "-RH(F)








63: W21.8-14H(F)








64: W21.8-14LH(F)
