Высококачественный Самонарезающий винт din7981 из нержавеющей стали
- Категории: Screws >>>
- Поставщик: Shenzhen,Hengxiang,Hardware,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Model NO. | Name |
RL-S16 | Phillips Pan Head Self Tapping Screws DIN7981 |
Dia Range | Length Range |
2.2,2.9,3.5,4.2,4.8,5.5,6.3 | 4.5MM-100MM |
Drive Available | Suface Available |
Torx,Square,etc | Zinc Plated, Yellow Zinc Plated,etc |
General Material | General Packing |
Carbon Steel&Stainless Steel | Small Color Box Or BULK Carton |
Drawing Format | Processing Method |
Dwg, Pdf, PNG,etc | Cold Heading |
Inspection | Inspection Machines |
100% Inspection Before Shipment | Micrometer,Torsion Machine,Durometer,Coating Thickness Gauge, etc |
Trademark | Specification |
Emblem or OEM | CE, RoHS, SGS |
Transport Mode | Origin |
Sea&Air | shenzhen, China |
Payment Way | Service |
30%T/T+70%T/T, L/C, Paypal, West Union, etc | EXW,FOB,CIF,DDU,DDP |
Products Description
Screw Thread d | ST2.2 | ST2.9 | ST3.5 | (ST3.9) | ST4.2 | ST4.8 | ST5.5 | ST6.3 | ||
P | Pitch | 0.8 | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | |
a | max | 0.8 | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | |
dk | max=nominal size | 4.2 | 5.6 | 6.9 | 7.5 | 8.2 | 9.5 | 10.8 | 12.5 | |
min | 3.9 | 5.3 | 6.54 | 7.14 | 7.84 | 9.14 | 10.37 | 12.07 | ||
k | max=nominal size | 1.8 | 2.2 | 2.6 | 2.8 | 3.05 | 3.55 | 3.95 | 4.55 | |
min | 1.55 | 1.95 | 2.35 | 2.55 | 2.75 | 3.25 | 3.65 | 4.25 | ||
y | Type C | 2 | 2.6 | 3.2 | 3.5 | 3.7 | 4.3 | 5 | 6 | |
Type F | 1.6 | 2.1 | 2.5 | 2.7 | 2.8 | 3.2 | 3.6 | 3.6 | ||
Socket No. | Socket No. | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | |
M1 | ≈ | 2.6 | 3 | 4.2 | 4.4 | 4.6 | 5 | 6.5 | 7.1 | |
M2 | ≈ | 2.4 | 2.9 | 3.9 | 4.1 | 4.3 | 4.7 | 6.2 | 6.7 | |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

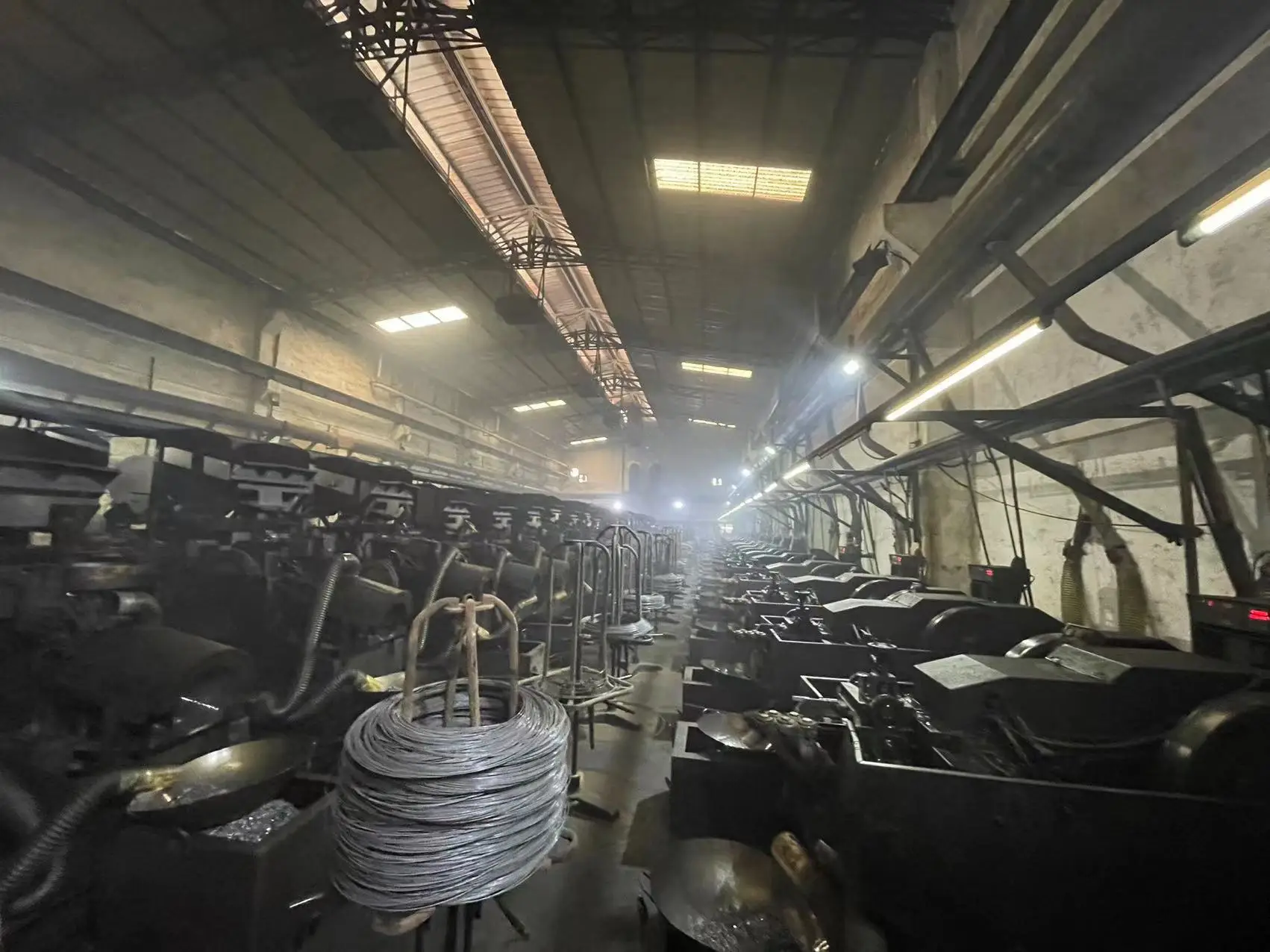

factory
