Лидер продаж измельчитель порошка из мелкой резины 30-120 машина для линии переработки
- Категории: Rubber Recycling Machinery >>>
- Поставщик: Qingdao,Hangsen,Industry,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Features
1) Iron/steel removing ratio>99.5%, fiber removing ratio>98%.
2) Adopt automatic control system for whole line, reduce labor cost.
3) No sewage and waste gas discharge, environment protection.

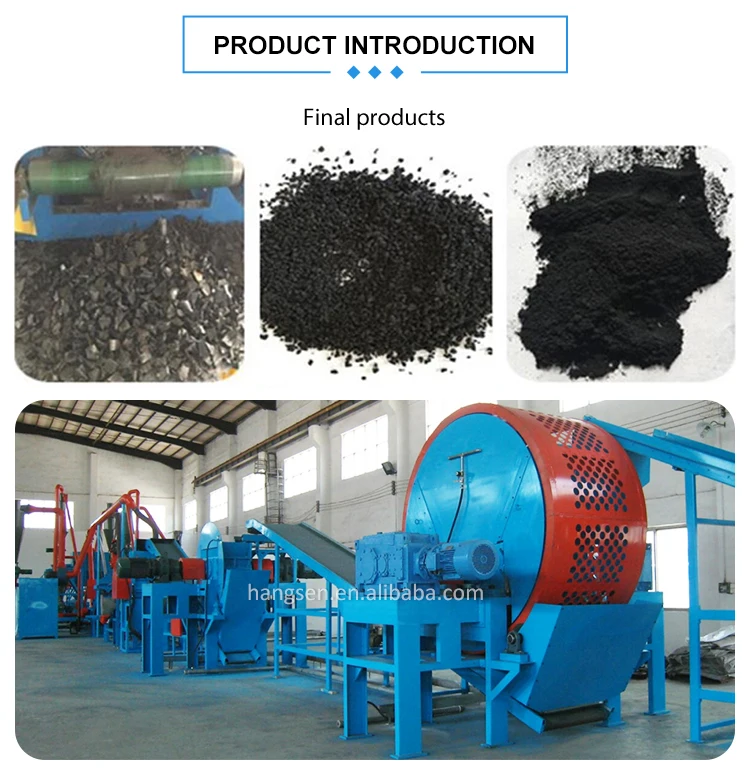

4) Available capacity range of our tyre recycling lines at present: 400~3000kg/h.
5) Available finial rubber powder size: 20~120mesh.
2) Adopt automatic control system for whole line, reduce labor cost.
3) No sewage and waste gas discharge, environment protection.
4) Available capacity range of our tyre recycling lines at present: 400~3000kg/h.
5) Available finial rubber powder size: 20~120mesh.

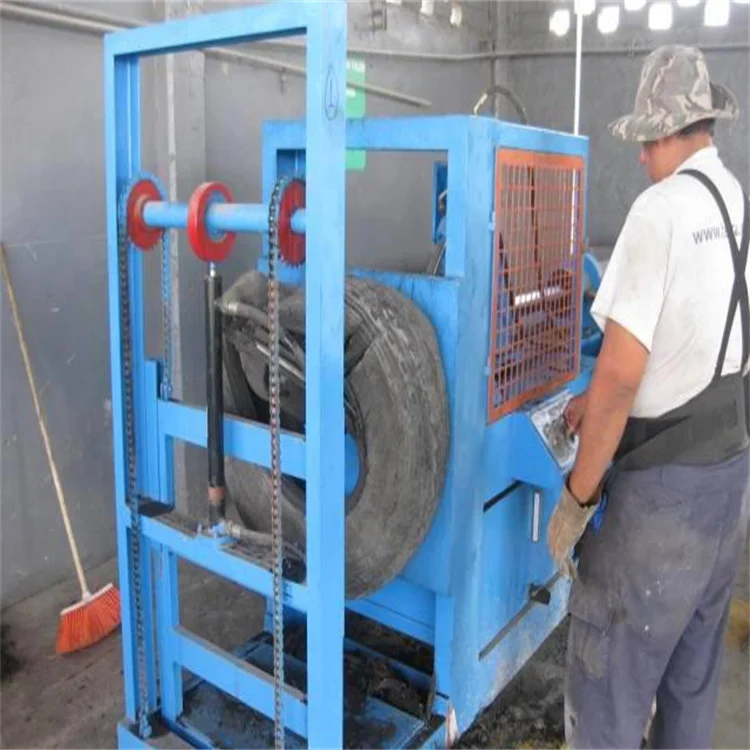

Tire wire draw machine
Model | 1200Y | ||||||
Motor Power (kw) | 7.5 | ||||||
Capacity (tires/h) | 80-100 | ||||||
Overall Dimensions (L×W×H) | 4700×900×1700 | ||||||
Weight (T) | 2.8 | ||||||

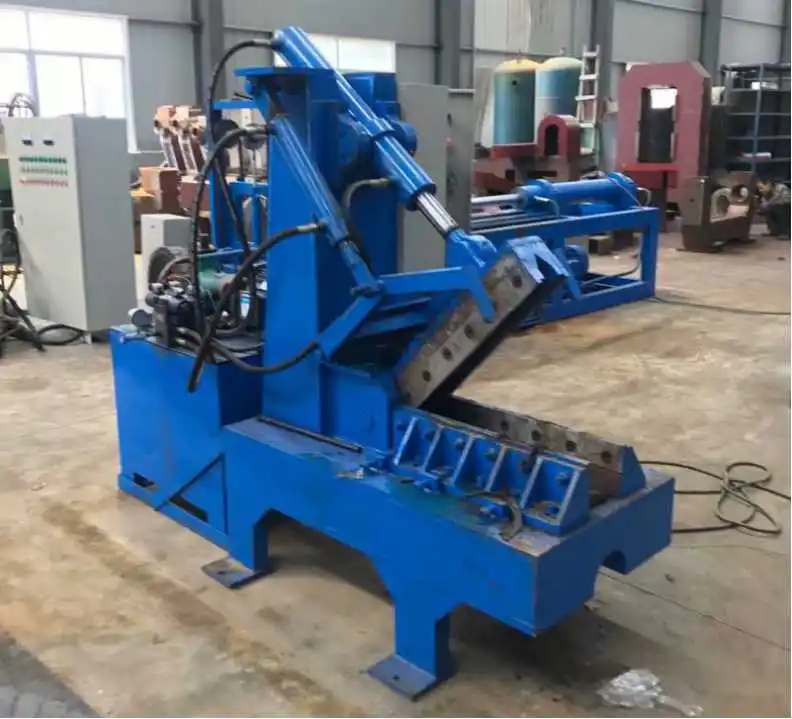

Tire Cutter
Type | 1200 | ||||||
Motor (kw) | 5.5 | ||||||
Fitted size of the tire (mm) | ≤1200 | ||||||
Overall Dimension (mm) | 2200×800×1500 | ||||||
Weight (T) | 1.2 | ||||||

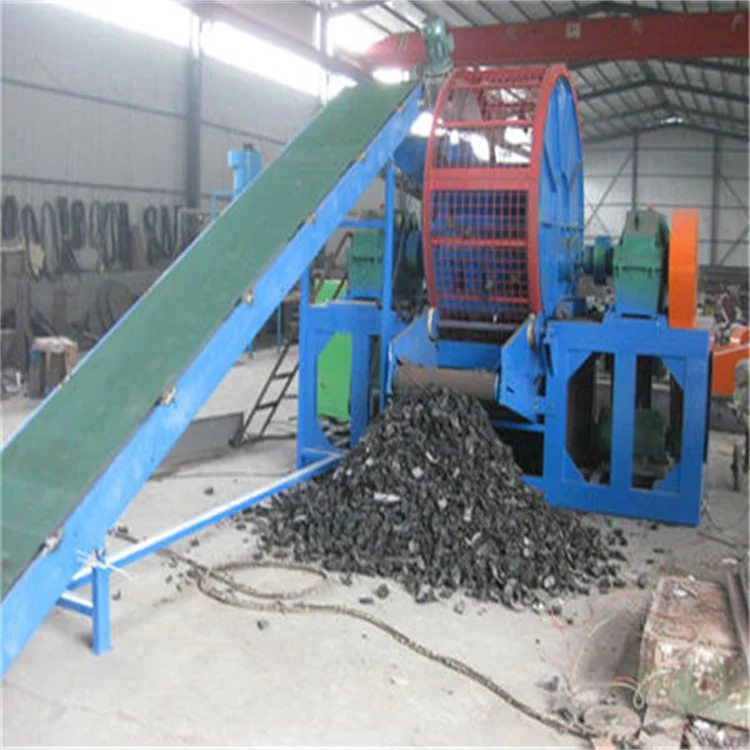

Tire Shredder

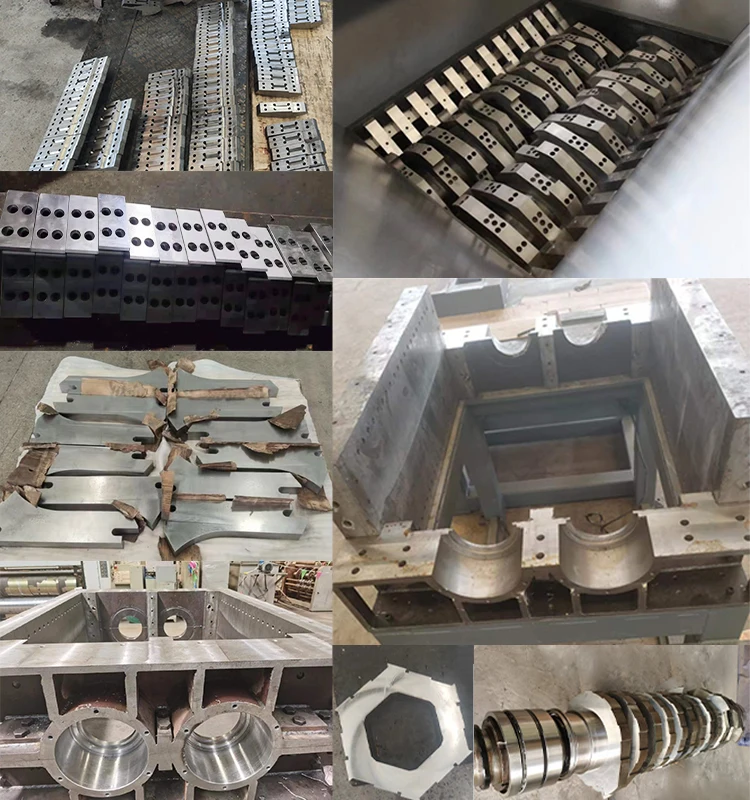

RUBBER SHREDDER BLADE
All tools are CNC machined，25X50 is the effective length of the box，This bearing seat is cast steel or forged, rough machining is completed on welding, machining in a single box, and then the entire box is assembled for the final finishing product.
Type | LP-400 | LP-800 | LP-1200 | ||
Quantity of cutter head | 10 | 16 | 25 | ||
Dimension of cutter head (diameter*thickness)mm | 300*45 | 460*60 | 480*50 | ||
Size of charge-in(mm) | 400 | 800 | 1200 | ||
Size of charge-out(mm) | 45 | 50-60 | 50-60 | ||
Handling Capacity (t/h) | 700 | 1500 | 3000 | ||
Motor Power (kw) | 35 | 37*2 | 55*2 | ||
Dimension(m) | 2.1×0.9×1.9 | 4.2×2.1×2.3 | 6.43×2.6×3.12 | ||
Weight (T) | 3 | 8 | 18 | ||

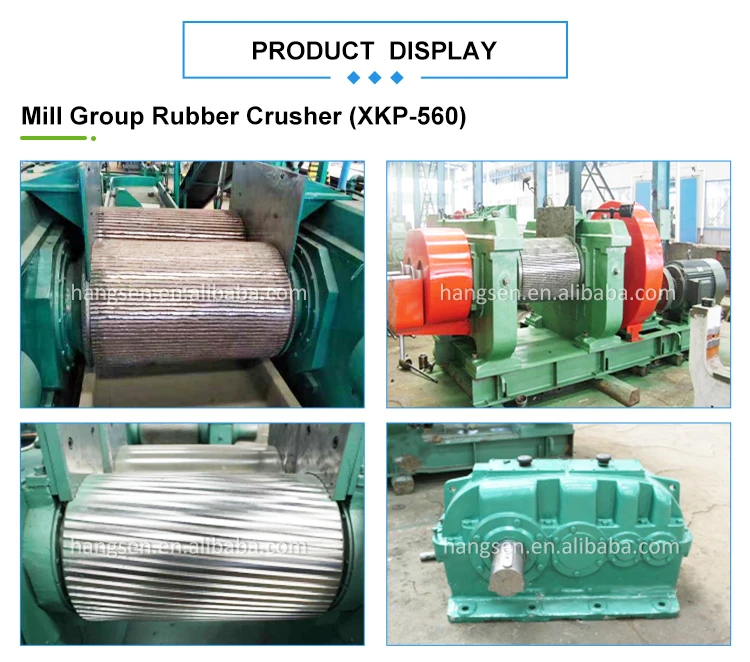

Type | XKP-560 | XKP-610 | ||||||
Front roll diameter(mm) | 510 | 560 | ||||||
Rear roll diameter(mm) | 560(Groove roller) | 610 | ||||||
Working length of rolls(mm) | 800 | 1000 | ||||||
Front roll surface speed(m/min) | 25.56 | 26 | ||||||
Friction ratio | 1:1.3 | 1:1.30 | ||||||
Max. nip(mm) | 15 | 15 | ||||||
Motor power | 90 | 160 | ||||||
Overall dimension:L*W*H(mm) | 5064*2284*1978 | 6000*2300*2100 | ||||||
Vibrating screen(big) | Conveyor belt(magetic separation) (big) | |||||||
Vibrating screen(small) | Conveyor belt(magetic separation) (small) | |||||||
Main cnveyor belt(big) | ||||||||
Parameter | 1100*8 | ||||||
Impeller number | 8 | ||||||
Impeller diameter | 1100mm | ||||||
Speed of main shaft | 377(or 676)/min | ||||||
Power | 5.5kw | ||||||
Speed of feeder | 29/min | ||||||
Feeder power | 0.4kw | ||||||
Overall size(mm) | F1600*3400 | ||||||
Fine powder machine rubber grinder machine
Parameter | Rubber Grinder Machine | ||||||
Size of feed-in materials(mesh) | ≥5 | ||||||
Size of discharged materials(mesh) | 30-40 | 40-60 | 60-120 | ||||
Capacity(kg/h) | 140-180 | 120-150 | 100 | ||||
Power(kw) | 37 | ||||||
Dimesion(mm) | 2100 | 1700 | 1650 | ||||
Weight(kg) | 2200 | ||||||

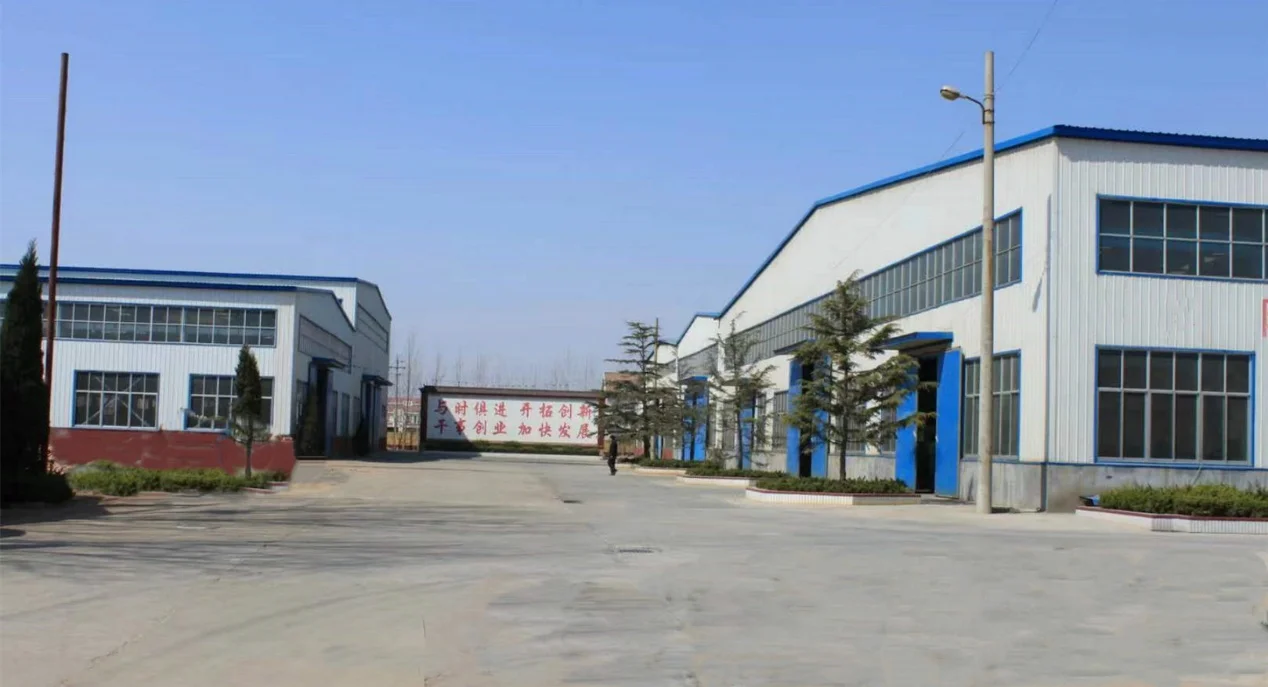

QINGDAO HANGSEN Group was established in 1967，have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,Hangsen Group has exported to more than 40 countries,enjoy a good reputation in the world market.
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,Hangsen Group has exported to more than 40 countries,enjoy a good reputation in the world market.
