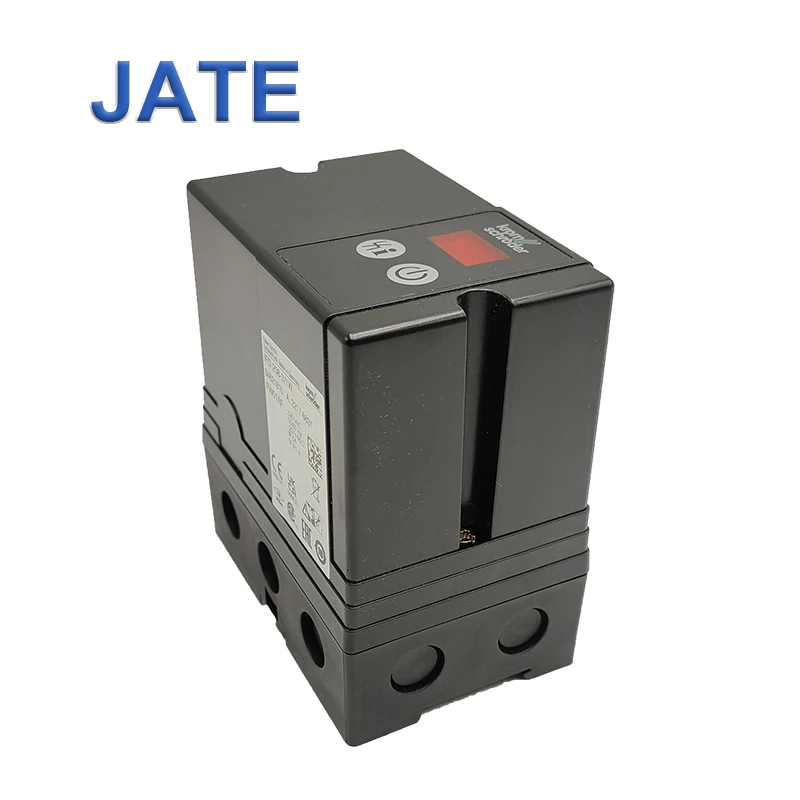

Kromschroder Burner Automatic Burner Control Unit IFD 258-3/1W Gas Combustion Controller
PRODUCT SPECIFICATIONS
Description:
Model | IFD 258-3/1W |
Control Way | Open and closed |
Air Valve | Gas and valve open at the same time |
Rated voltage | 110-220V AC, 50/60HZ |
Usage | gas burner accessories |
Introduction:
Burner controller IFD 258
Burner direct ignition, continuous operation, conforms to EN746-2
standard
Continuous self-check and alarm
Option to fail lockout or restart after ignition failure
UV monitoring or ionization monitoring
Various installation methods, can be installed on DIN rail
IFD 258…I Built-in ignition transformer saves installation space
Displays program status and flame intensity
Burner direct ignition, continuous operation, conforms to EN746-2
standard
Continuous self-check and alarm
Option to fail lockout or restart after ignition failure
UV monitoring or ionization monitoring
Various installation methods, can be installed on DIN rail
IFD 258…I Built-in ignition transformer saves installation space
Displays program status and flame intensity
Application:
1. Application
The automatic burner controller IFD 258 is used for burner ignition and monitoring. advanced electronic equipment
The meter responds quickly to various control requirements, so it is more suitable for frequent pulse conditions.
It can be used for direct ignition, continuous or pulse control conditions of industrial burners.
Program status and flame intensity can be shown directly from the display.
Ignition failure can use the switch, select the fault lockout or restart.
The automatic burner controller IFD 258 is used for burner ignition and monitoring. advanced electronic equipment
The meter responds quickly to various control requirements, so it is more suitable for frequent pulse conditions.
It can be used for direct ignition, continuous or pulse control conditions of industrial burners.
Program status and flame intensity can be shown directly from the display.
Ignition failure can use the switch, select the fault lockout or restart.
Combustion air burner
Control method: open and close
Air valve, gas valve open at the same time, single
Electrodes are used for ignition and flame monitoring, no monitoring
Flame, Immediate Fault Lockout
Air valve, gas valve open at the same time, single
Electrodes are used for ignition and flame monitoring, no monitoring
Flame, Immediate Fault Lockout
Pulse control burner
Control Mode: On/Off and On/Large/Small/Off
Burner BIO/BIC starts at low flame, once it reaches
In normal operation state, the burner controller turns on the electromagnetic
valve.
PLC controls air solenoid valve VR…R to achieve burn-in
Mouth size fire pulse control
Burner BIO/BIC starts at low flame, once it reaches
In normal operation state, the burner controller turns on the electromagnetic
valve.
PLC controls air solenoid valve VR…R to achieve burn-in
Mouth size fire pulse control
Continuous control of the burner
Control mode: on/off/continuous
PLC output signal to actuator IC20, drive
Air butterfly valve BVA to ignition position.
Burner BIO/BIC, start on low fire, once
The normal operation state is reached, and the PLC controls the
Actuator IC20 and air butterfly valve BVA, regulating
Burner power
PLC output signal to actuator IC20, drive
Air butterfly valve BVA to ignition position.
Burner BIO/BIC, start on low fire, once
The normal operation state is reached, and the PLC controls the
Actuator IC20 and air butterfly valve BVA, regulating
Burner power
Normal start:
After the power is supplied, the fault signal still occurs, it must be reset first, the safety interlock will be closed, the IFD will switch to the start position, and the automatic
I detect.
During the waiting time tW, it is not possible to determine the failure of the internal electronic circuit or the flame monitor, check the flame simulation signal.
No flame simulation signal is detected during tW and the safe start time ends. Gas valve and ignition transformer energized, burner
start up. At the end of the safe starting time tSA, the running signal terminal is closed, and the starting procedure ends.
After the power is supplied, the fault signal still occurs, it must be reset first, the safety interlock will be closed, the IFD will switch to the start position, and the automatic
I detect.
During the waiting time tW, it is not possible to determine the failure of the internal electronic circuit or the flame monitor, check the flame simulation signal.
No flame simulation signal is detected during tW and the safe start time ends. Gas valve and ignition transformer energized, burner
start up. At the end of the safe starting time tSA, the running signal terminal is closed, and the starting procedure ends.
Start without flame signal
During the safe start time tsA, the gas valve opens and the ignition starts, no flame is detected, and a fault lockout occurs.
Flame detection failed during operation
In operation, the flame detection fails, the IFD258, latches the fault at the tSB safe run time. The valve closes immediately and the burner stands
Instant restart. If the burner does not start, a fault lockout occurs.
During the safe start time tsA, the gas valve opens and the ignition starts, no flame is detected, and a fault lockout occurs.
Flame detection failed during operation
In operation, the flame detection fails, the IFD258, latches the fault at the tSB safe run time. The valve closes immediately and the burner stands
Instant restart. If the burner does not start, a fault lockout occurs.
