Машина для измельчения шин с высоким
- Категории: Rubber Recycling Machinery >>>
- Поставщик: Zhengzhou,Kowloon,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Scrap Tyre Recycling Equipment Used Tyre Recycling Plant Old Tyre Recycling Machine is widely used into the waste car tyre , used truck tire , scrap rubber , old tire , V belt etc ,through the double shaft shredder outcomes size could be controlled under 50*50 mm .
also the crusher size is about 10-17 mm . the granulate tire rubber after the secondary crusher outcome size about 1-7 mm . the 98% Fe will be sorted out by the magnetic separator . the whole system is controlled by the PLC system . also the dust catching system has been assembled to the line to avoid the solid dust pollution
Appliance
1. V belt scrap
2. Rubber used
3. Truck tire
4. Car tire rubber scrap
5. rubber mat
6.waste tire rubber
7.V belt old
8. truck tire waste
9. TDF and tda rubber waste
industry of the tyre after recycling :
1.sports Venues : runways , school sports field , swimming pools , garden trails , bowling alleys , sidewalks , kindergarten sport venues , tennis and basketball court
2.car industry : floor mats for trains ,brake dic
3. recycle rubber : to re-make various rubber products
4.Geo/Asphalt : drains ,filters ,soil conditioning , road cover ,horse racing tracks ,railway crocessing etc .
Specification
model | capacity | rubebr block | install power (approx) | ||
rubber grumb | rubber powder | ||||
ATRP-500 | 500 KG/H | 90 KW | 75KW | 90KW | |
ATRP-1000 | 1000KG/H | 110 KW | 150KW | 130KW | |
ATRP-1500 | 1500KG/H | 150KW | 110KW | 180KW | |
ATRP-2000 | 2000KG/H | 330KW | 220KW | 400KW | |
Details Images

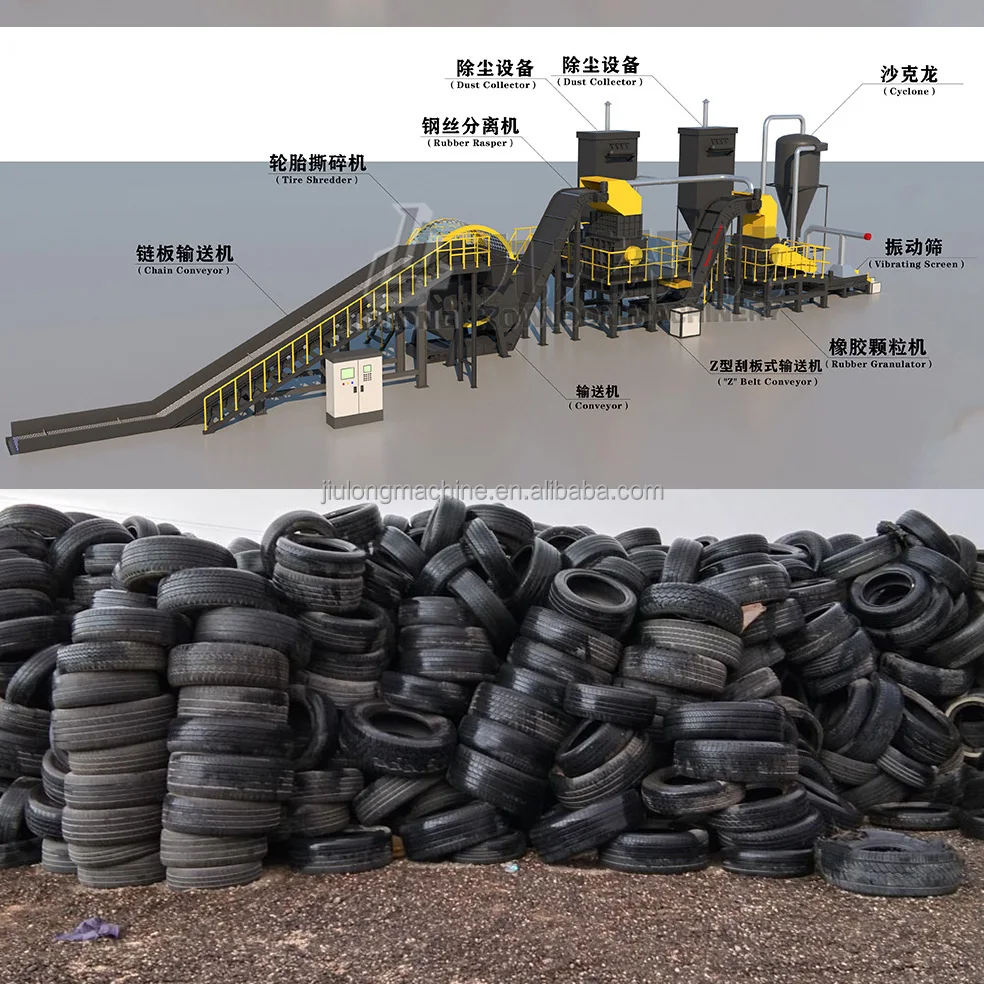

processing of the tyre recycling machine
waste tyre -tire debeader - tire shredder -rubber rasper -rubber granulator -fiber separator -rubber mill -centrifugal screen-finished product -silo -baler
this shredder is mainly used for crushing steel wire tires , radial tires and various rubber products or trims into rubber granulator with required fineness .

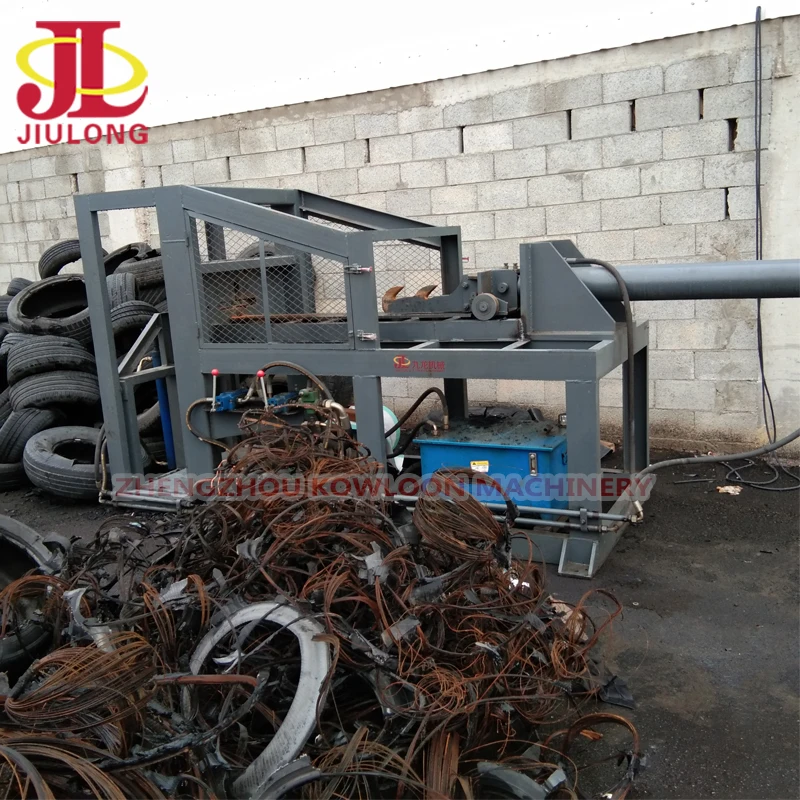

tire debeader steel wire move out
waste tire steel wire big diamter through the hydraulic system lift the tyre to the hook , then through the cyclinder to pull out the steel wire out .

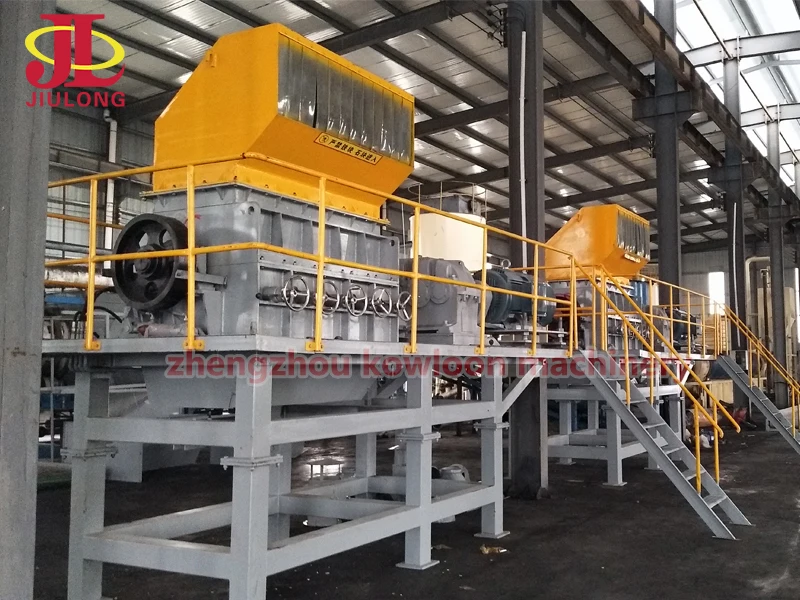

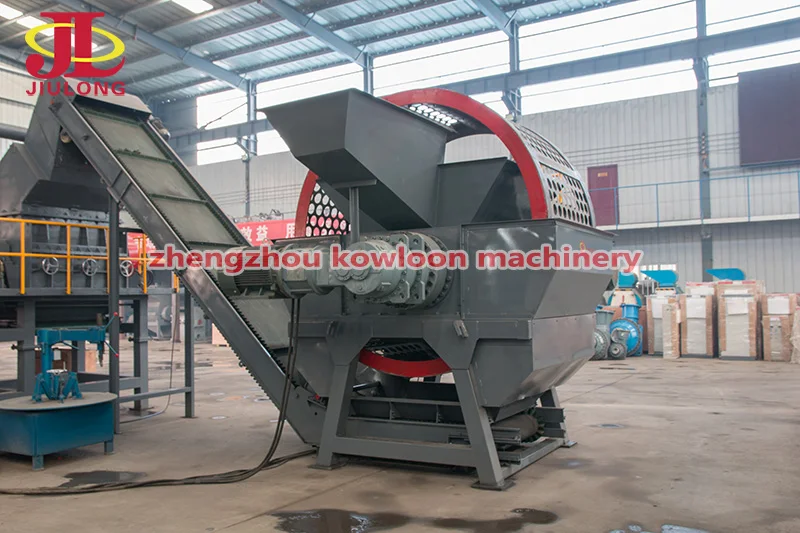

rotary tire rubber shredder machine
1. replaceable blade corner easy to maintain or repair the blade without taking out the shaft .
2. blade materials much more durable take the special alloy of 9SiCr.
3. it takes the spline type of shaft connect the reducer and the motor , much more powerful than tradtional method

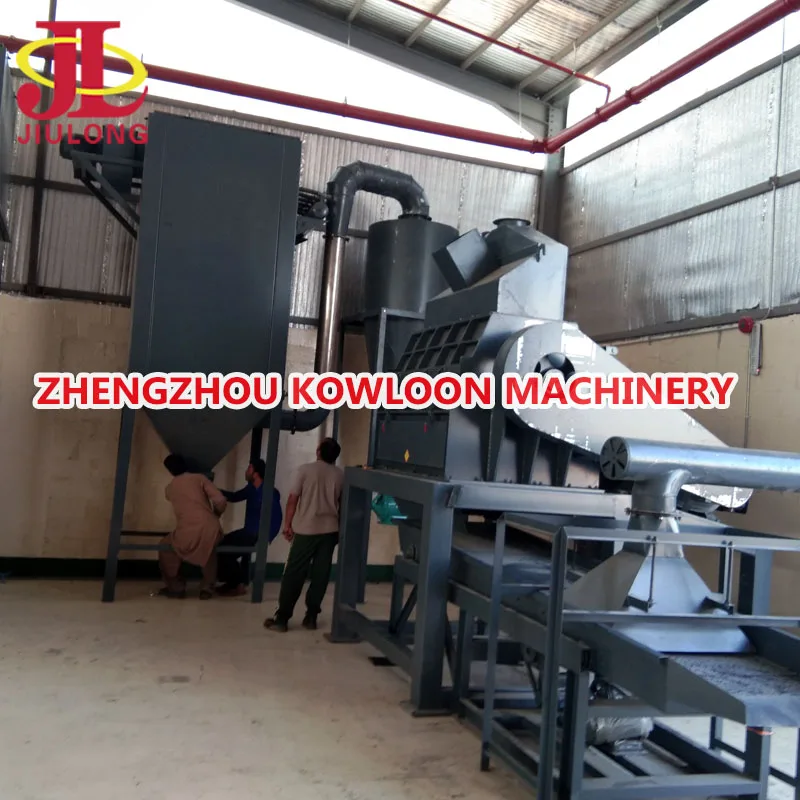

tire rubber rasper and crusher machine
1. Hydrualic system of the shredder to assist disassemble with the chamber open .
2. high output of the machinery . screw conveyor outcomes of the materials
3. the crusher sieve is take the carton steel thickness and strong

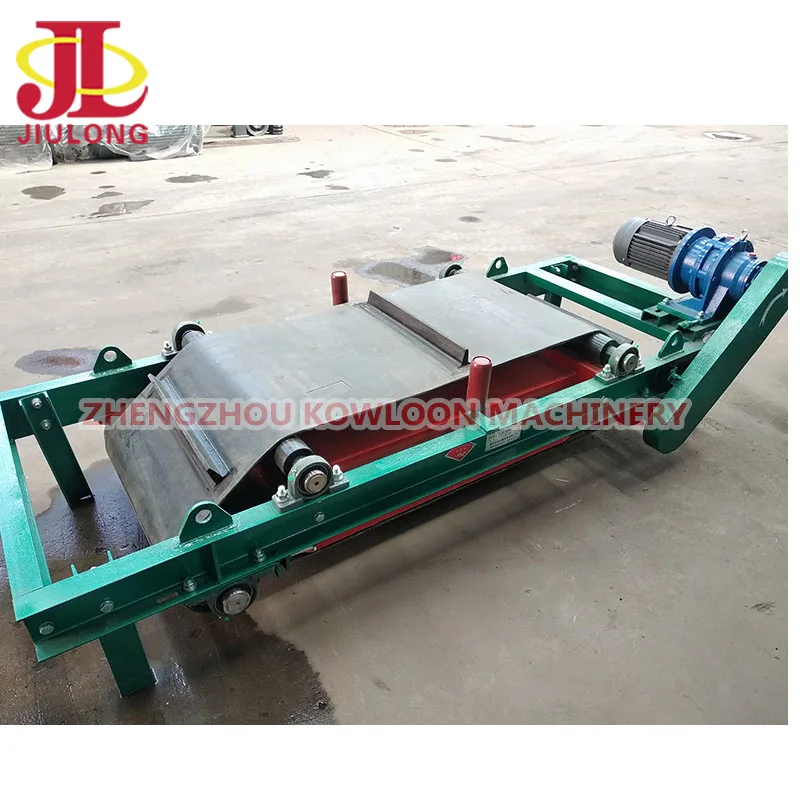

Suspend magnetic
Sorting the Fe out of the rubber .
Tire rubber granulator machine
tire rubber granulate machine is for the tire rubber to grind the materials 1-7 mm
the vibration screen will sort the materials into different kind of the layer .
the Nylon will be connect by the cyclone and the dust to the impulse dust catcher
Character of the tyre recycle to crumb rubber
1.The whole system takes the physcial method , the shredder is taken the replaceable blade ,wchih is easy to repair and maintain .
2. Double shaft shredder takes the rotary screen to control the outcomes size of the rubber .
3. there are the outcomes conveyor assembly with the shredder for convenient collect the materials .
4. Rubber tyre rasper / crusher machine to separate the Fe from the tyre , the outcomes size is controlled by the sieve , meanwhile the hydraulic system has been assembly with the system .
5. rubber tyre granulator machine to get the rubber into smaller parts , to collect the Nylon from rubber .
6.Environment friendly for the whole system is assembly with the dust catching system .

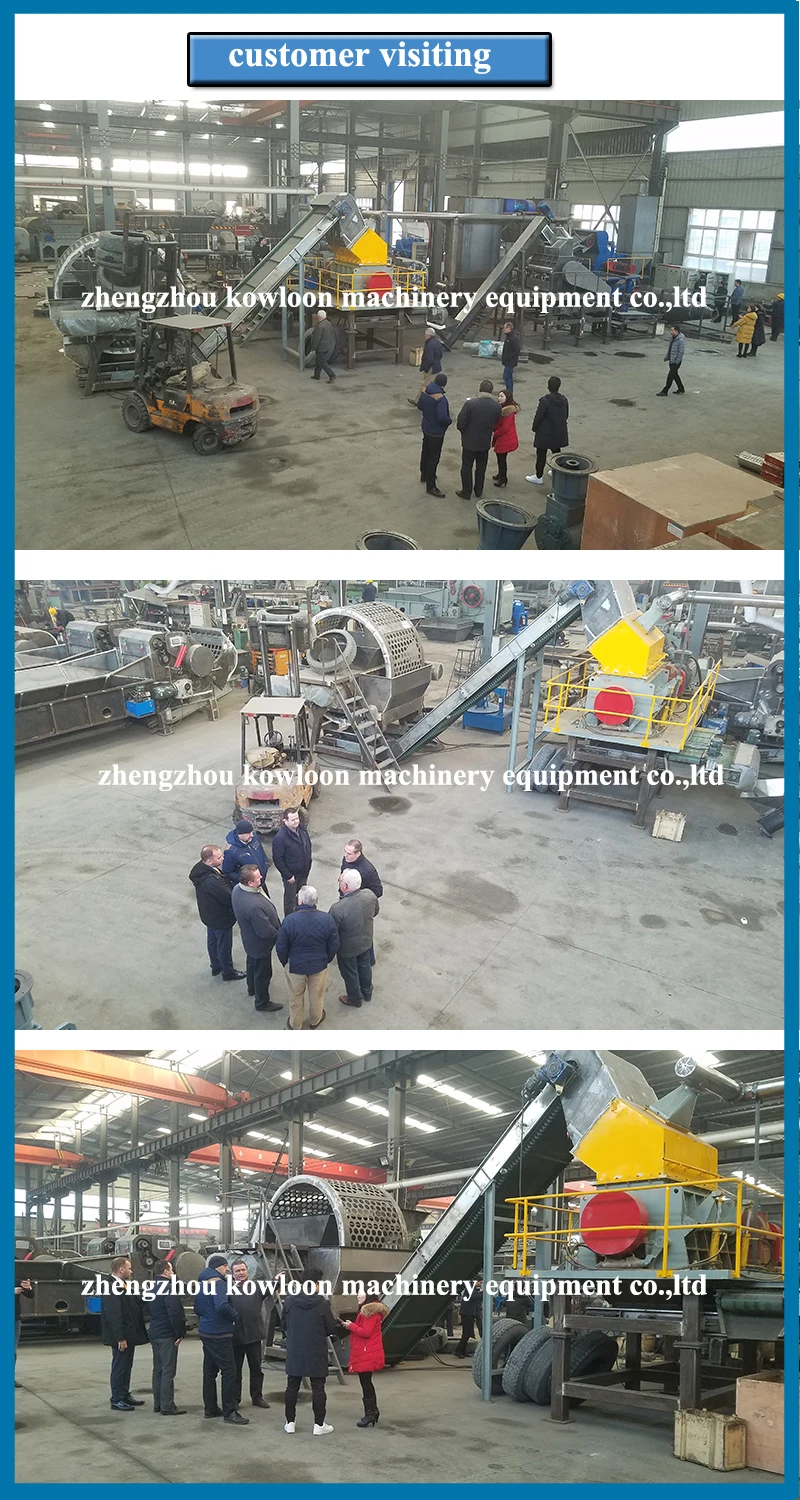

Customer Photos

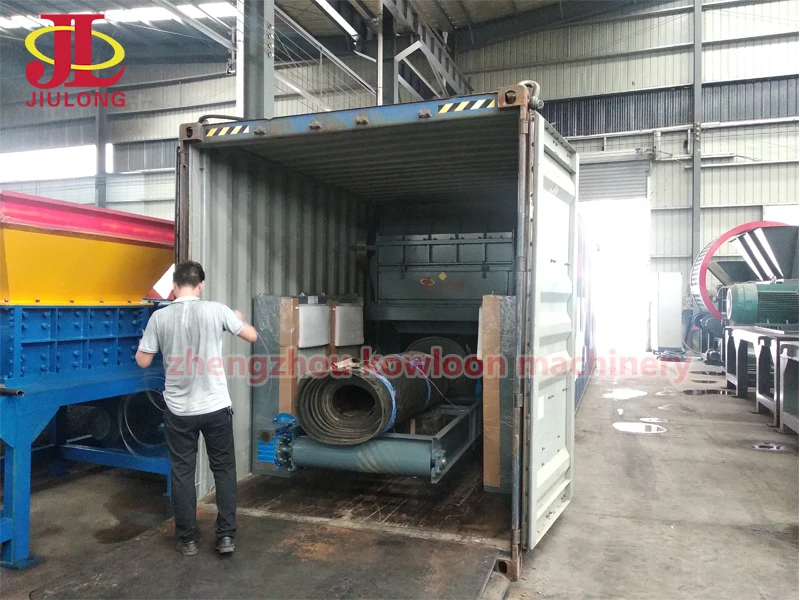

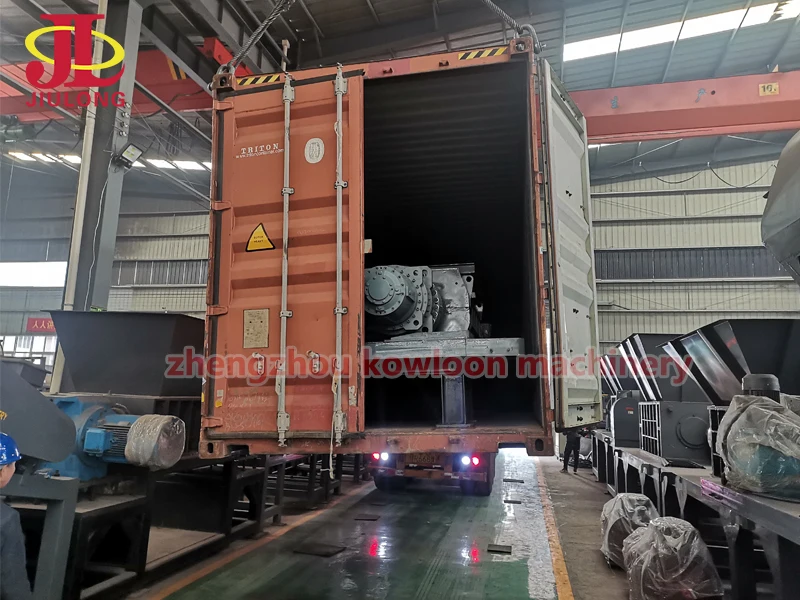

Packing & Delivery
1. Pre-sales:
offer suitable solution to customers, The layout of machinery drawing could satisify customer workshop area.
2. After sales:
2. After sales:
experienced technician could be dispached to assist customer side guident installing . commissioning and training . the circuit diagaram , tools ,diagram will be offered to customer to prepare in advance .
3. spare part
all the machinery spare parts are offered all around year .
Company Profile
Kowloon machines adopt advanced technology parts, design and craft, united technology from USA, Germany,
Japan and Australia, not only suits Chinese market and woods, as well as different materials and countries.
Kowloon support team has more than 20 professional engineers to provide clients professional solutions,
facing multitudinous requirements, Kowloon team always pay patience and offer as more options as possible,
to ensure every users have all security while running our machines, in this way, Kowloon keep growing and
now owns ability of taking large wood processing project, wood sawdust, wood pellet and wood flour
production line in China or abroad, under the support of internal business department, Kowloon is able to take
"Turn-Key" projects in China or abroad.
Japan and Australia, not only suits Chinese market and woods, as well as different materials and countries.
Kowloon support team has more than 20 professional engineers to provide clients professional solutions,
facing multitudinous requirements, Kowloon team always pay patience and offer as more options as possible,
to ensure every users have all security while running our machines, in this way, Kowloon keep growing and
now owns ability of taking large wood processing project, wood sawdust, wood pellet and wood flour
production line in China or abroad, under the support of internal business department, Kowloon is able to take
"Turn-Key" projects in China or abroad.
FAQ
1. who are we?
We are based in Henan, China, start from 2014,sell to Domestic Market(67.00%),Southeast Asia(4.00%),Mid East(4.00%),Eastern Asia(4.00%),South Asia(4.00%),North America(2.00%),South America(2.00%),Eastern Europe(2.00%),Africa(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Double shaft shredder,Tire recycle equipment,Wood chipper,Metal shredder,Metal crusher
4. why should you buy from us not from other suppliers?
14years historied manfacturer of industrial shredder, wood processing equipments, tire recycle equipments, metal recycle equipments, have ability of supplying installation service and continious spare parts supply.
5. what services can we provide?
Accepted Delivery Terms: EXW / FOB /CFR/CIF
Accepted Payment Currency: USD
Accepted Payment Type: T/T .
Language Spoken:English ,Spanish etc
We are based in Henan, China, start from 2014,sell to Domestic Market(67.00%),Southeast Asia(4.00%),Mid East(4.00%),Eastern Asia(4.00%),South Asia(4.00%),North America(2.00%),South America(2.00%),Eastern Europe(2.00%),Africa(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Double shaft shredder,Tire recycle equipment,Wood chipper,Metal shredder,Metal crusher
4. why should you buy from us not from other suppliers?
14years historied manfacturer of industrial shredder, wood processing equipments, tire recycle equipments, metal recycle equipments, have ability of supplying installation service and continious spare parts supply.
5. what services can we provide?
Accepted Delivery Terms: EXW / FOB /CFR/CIF
Accepted Payment Currency: USD
Accepted Payment Type: T/T .
Language Spoken:English ,Spanish etc
