Сделанный на заказ сборный мобильный звукоизоляционный складной контейнерный дом 20 футов может быть гаражом
- Категории: Prefabricated Buildings >>>
- Поставщик: Cross,Cloud,(hebei),Import,And,Export,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

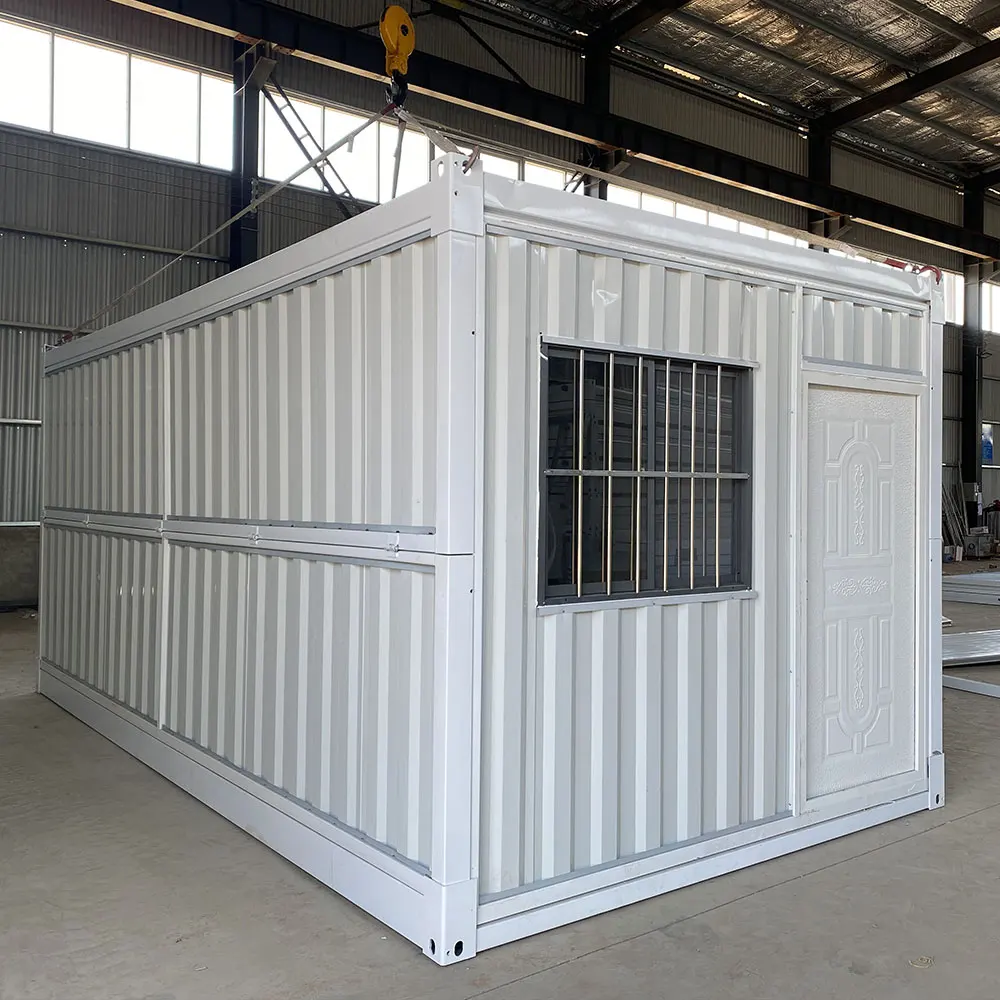

As a new foldable container house in recent years, using steel frame material, not only has the characteristics of convenient construction, mobile and superior fireproof and heat preservation performance, long life, etc., but also does not produce any construction waste, do not change the geological environment of the site, and gradually get the majority of construction companies and home buyers.
Specification
External Dimension(mm) | 5800L*2480W*2560H |
Internal Dimension(mm) | 5640L*2320W*2400H |
Folded state(mm) | 5800*2480*380 |
Total mass(kg) | 1000 |
Top main beam | Q235B rectangular square pipe 60×80×1.5mm |
Bottom main beam | Q235B rectangular square pipe 80×140×1.5mm |
Front and rear main beams | Q235B rectangular square pipe 60×80×1.5mm |
Sidewall frames | Q235B rectangular square pipe 40×80×1.5mm |
Bottom load-bearing | Q235B rectangular square pipe 40×40×1.5mm |
Top load-bearing | Q235B rectangular square pipe 40×40×1.5mm |
Hanging head | Q235B 125*200*(4mm) |
Folding hinges | Galvanized hinge 13mm |
Integral frame protective coating | Electrostatic spraying/high gloss white |
Exterior top plate | Galvanized plate 0.5mm |
Internal ceiling | Color steel veneer V930*0.25㎜ |
Insulating glass wool | Glass wool roll 50mm (capacity 16kg) |
Side walls | 50mm composite board 0.23mm+basalt wool(capacity 80kg)+0.23mm |
Front and rear wall panels | 65mm composite board 0.23mm+basalt wool(capacity 80kg)+0.23mm |
Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products are required to meet CE certification. Connect the circuit according to the circuit engineering specification, indoor: incoming 4² national standard soft copper wire, 1 20A circuit breaker, incoming 2.5² socket, 1 five-hole single-open socket, 1 air conditioning socket, 1 lamp.
Products Description
Every set of folding container house contains building efforts. We quickly address the construction needs of the camp, especially for road construction camps, mining camps, road and bridge project camps, real estate project camps.
We have sufficient supply, if you are interested, we can talk .
Prefabricated

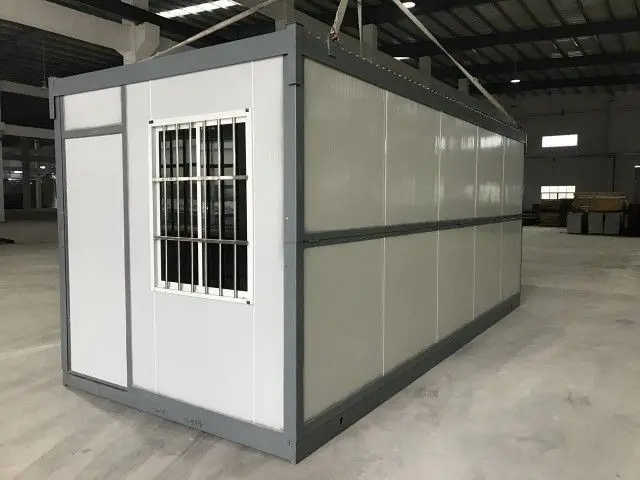

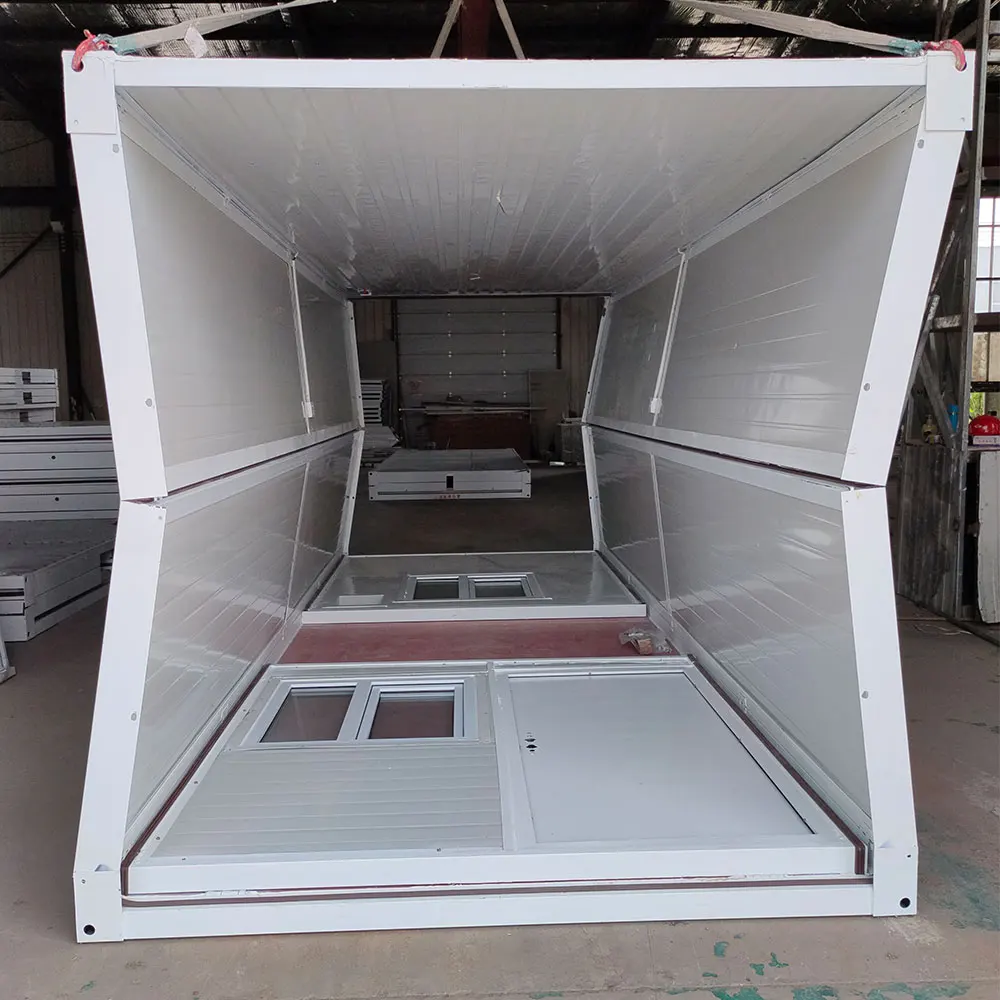

Folding container house have been assembled before shipment, roof and frame welded 360° waterproof. Windows and doors have been installed on the wall, the circuit system is also installed on the wall. The folding is connected by high strength hinge.
Movable

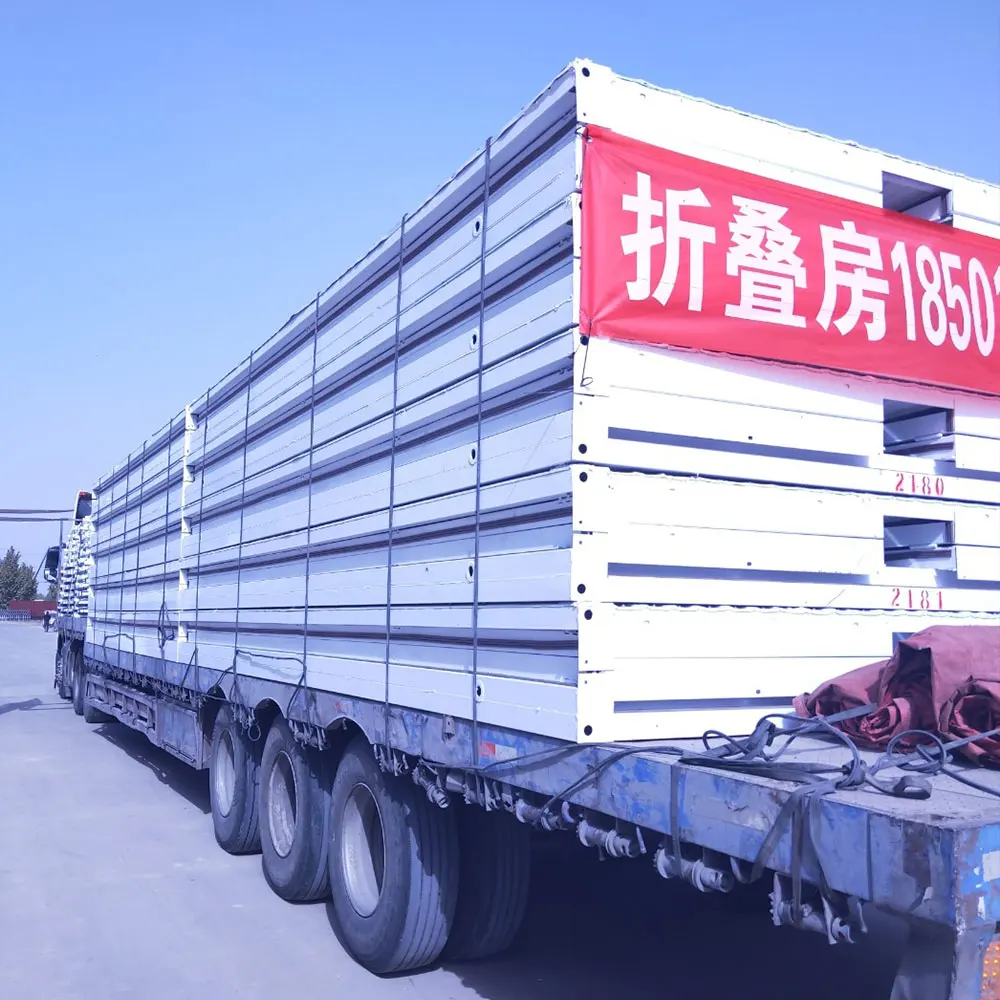

Folding container house easy to move, can be moved before the house, but also after the house installation. Short distance transportation can use forklift, long distance transportation can use truck, Note that this is very economical transportation space, a truck can transport 20 sets folding container house.
Transport convenience

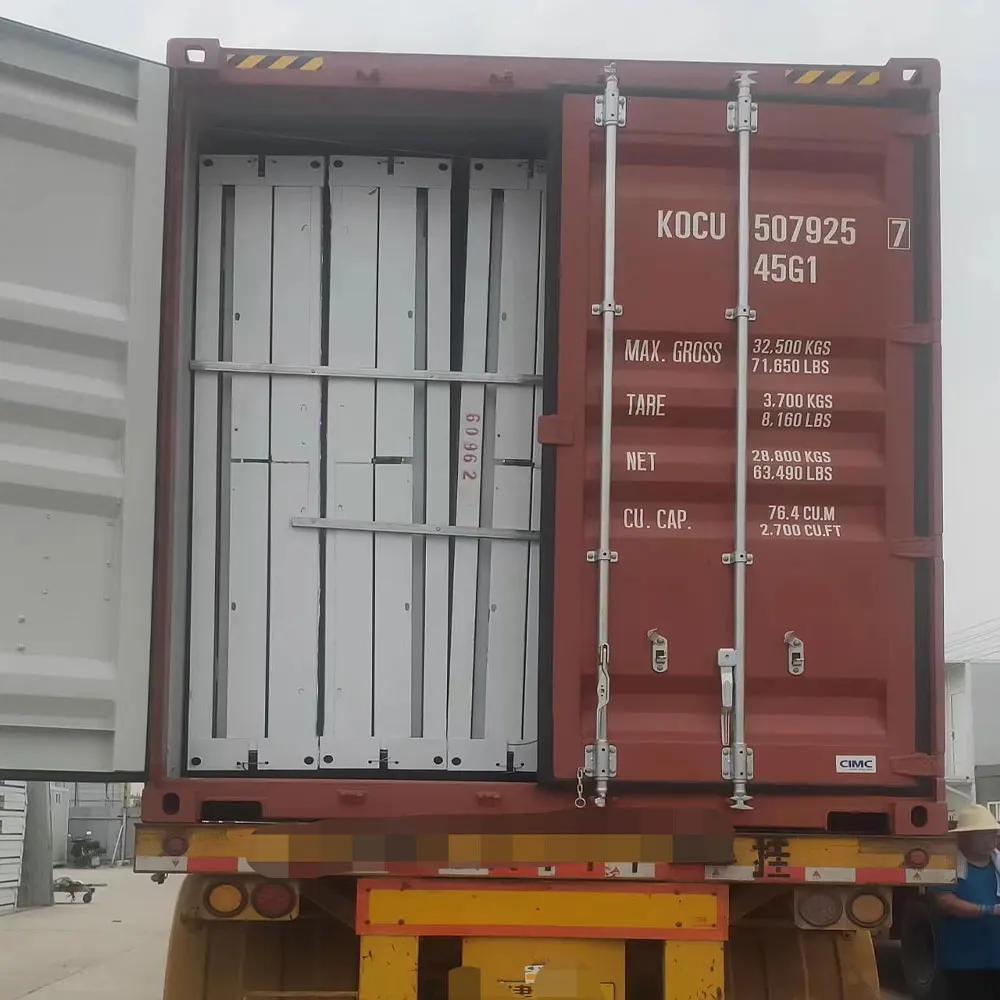

Before you get the material, we put the folding container house down and put it in the shipping container, which saves the transportation space and effectively saves the sea freight. A 40-foot shipping container can transport 12sets folding container house.
Affordable
Folding container house in terms of transportation, installation and maintenance, the cost of traditional buildings is greatly reduced. It is not used in concrete buildings and requires a lot of labor. Unlike wood structure, wood structure is easy to moldy, also easy to suffer from termites gnawing, container house materials for steel, will not moldy, termites will not gnaw.
Reusable
Folding container house material anticorrosion performance is good, the skeleton adopts galvanized baking paint material, the material strength is high, can fold over 10 times repeatedly. The house life is long, the repeated utilization rate is high. Maximize material cost savings.
Environmental protection
Folding container house do not need to do concrete foundation ,5 minutes to complete installation, no noise pollution, no air pollution, no harmful chemical pollution, folding container house is a very energy-saving house.
Quick installation
Folding container house installation is quick and 5 minutes to complete the installation of a house. If you have enough folding container house, you can quickly build a camp or even a city.Thermal insulation
The wall and roof materials of Container house are sandwich panels, usually EPS, glass wool sandwich panels, rock wool sandwich panels, PU sandwich panels. Compared with concrete buildings, sandwich panels have better thermal insulation, and the thermal conductivity is 0.04(W/(m.K)).

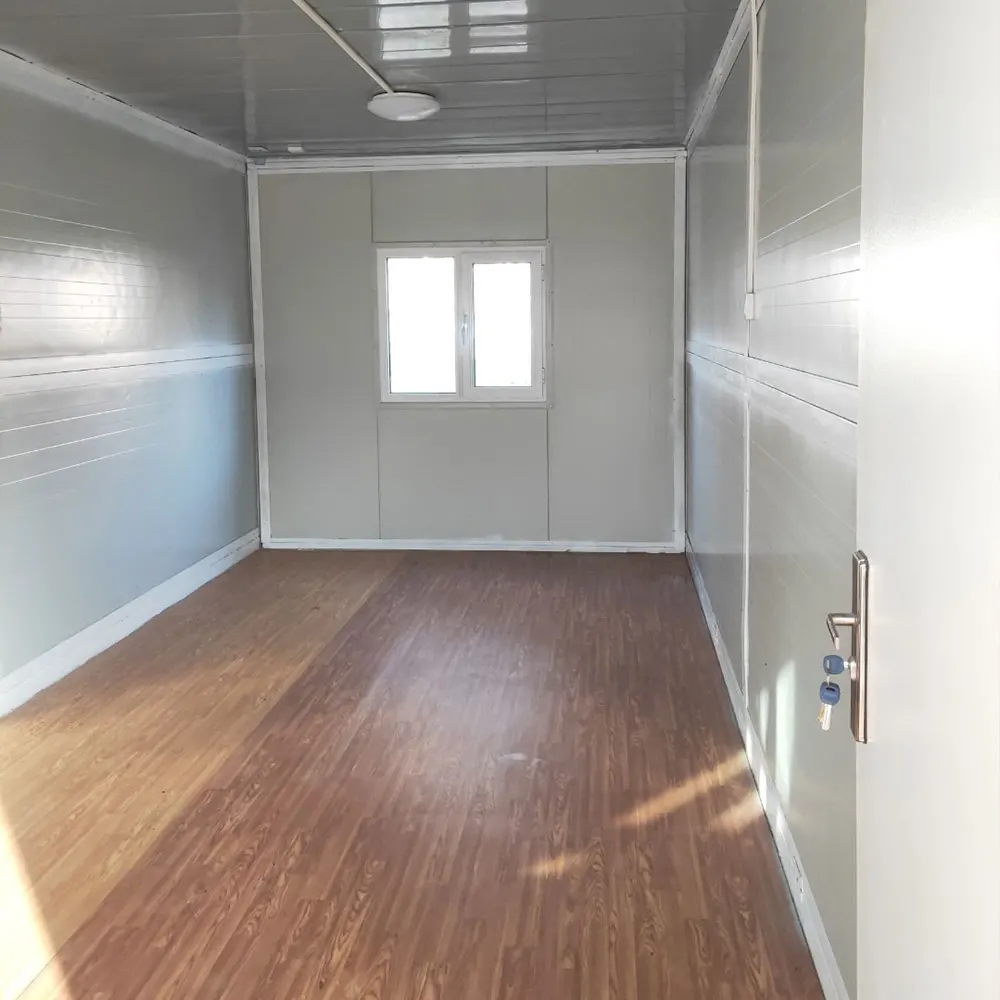

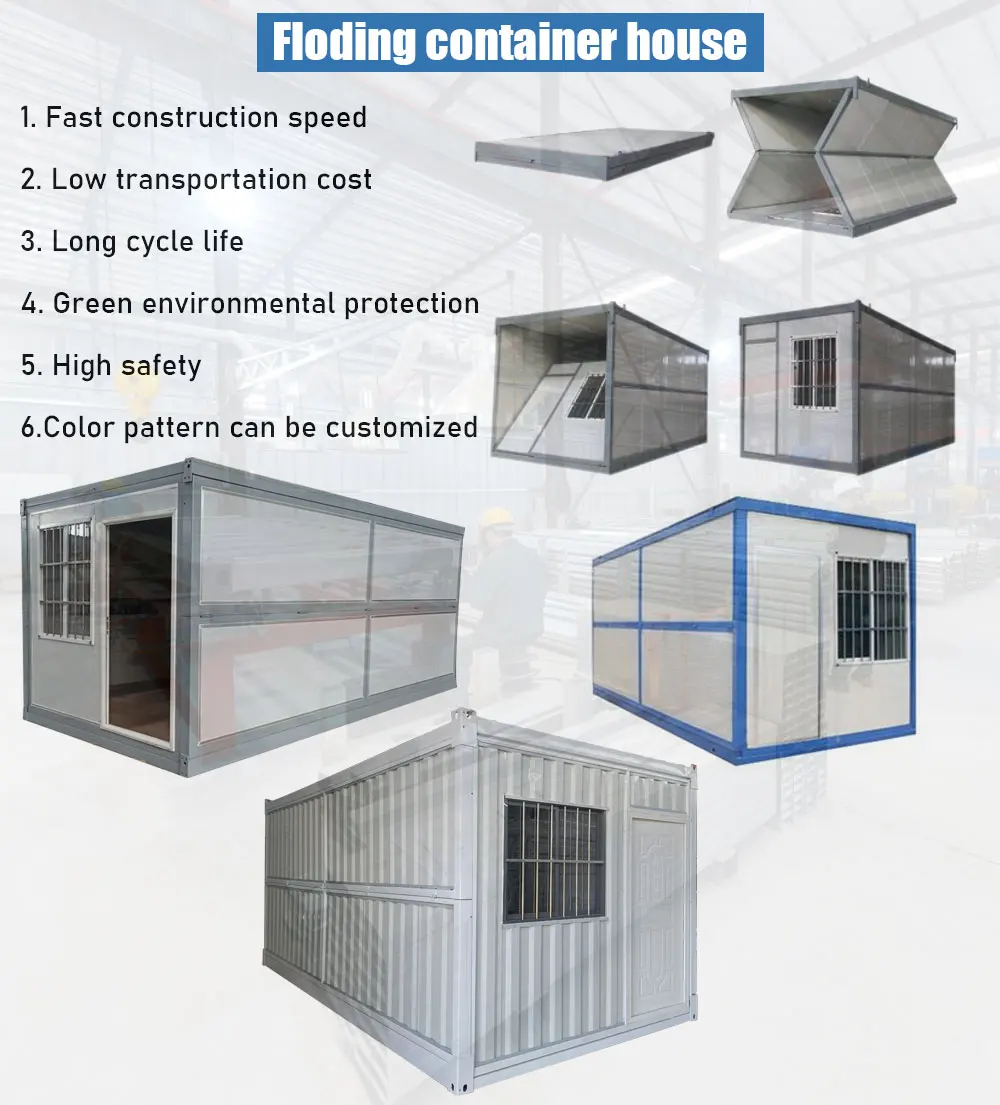

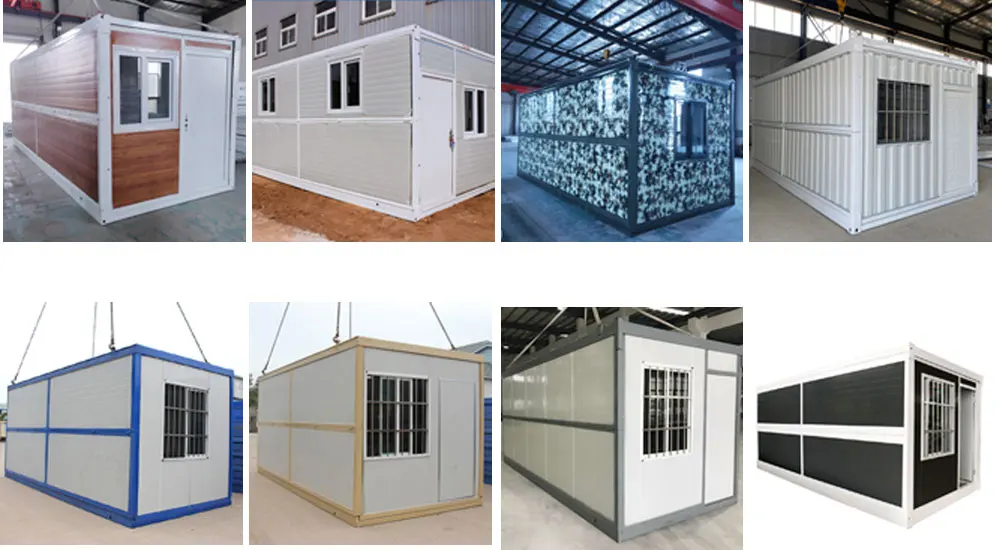

Some styles of the house
We have a professional team that can complete it according to your needs

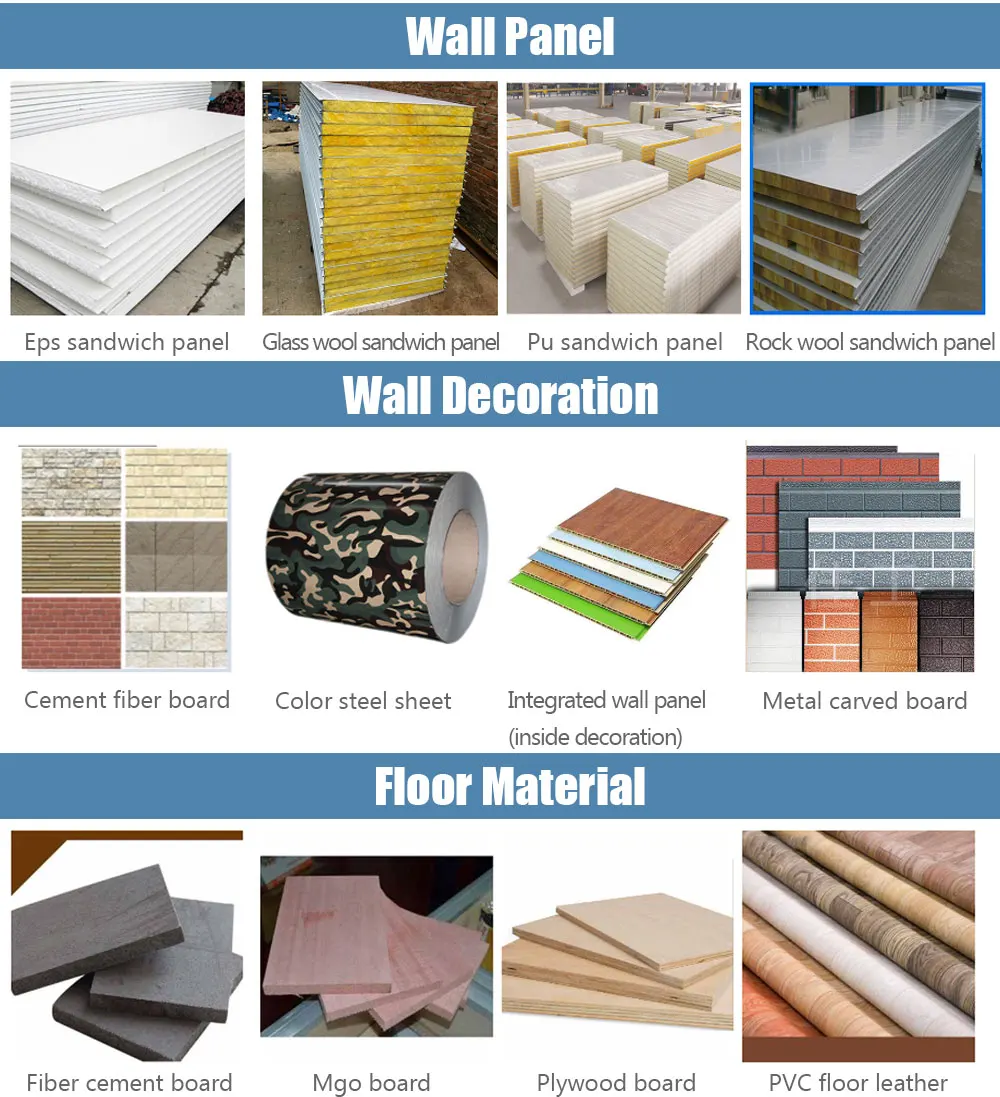

Configuration Options

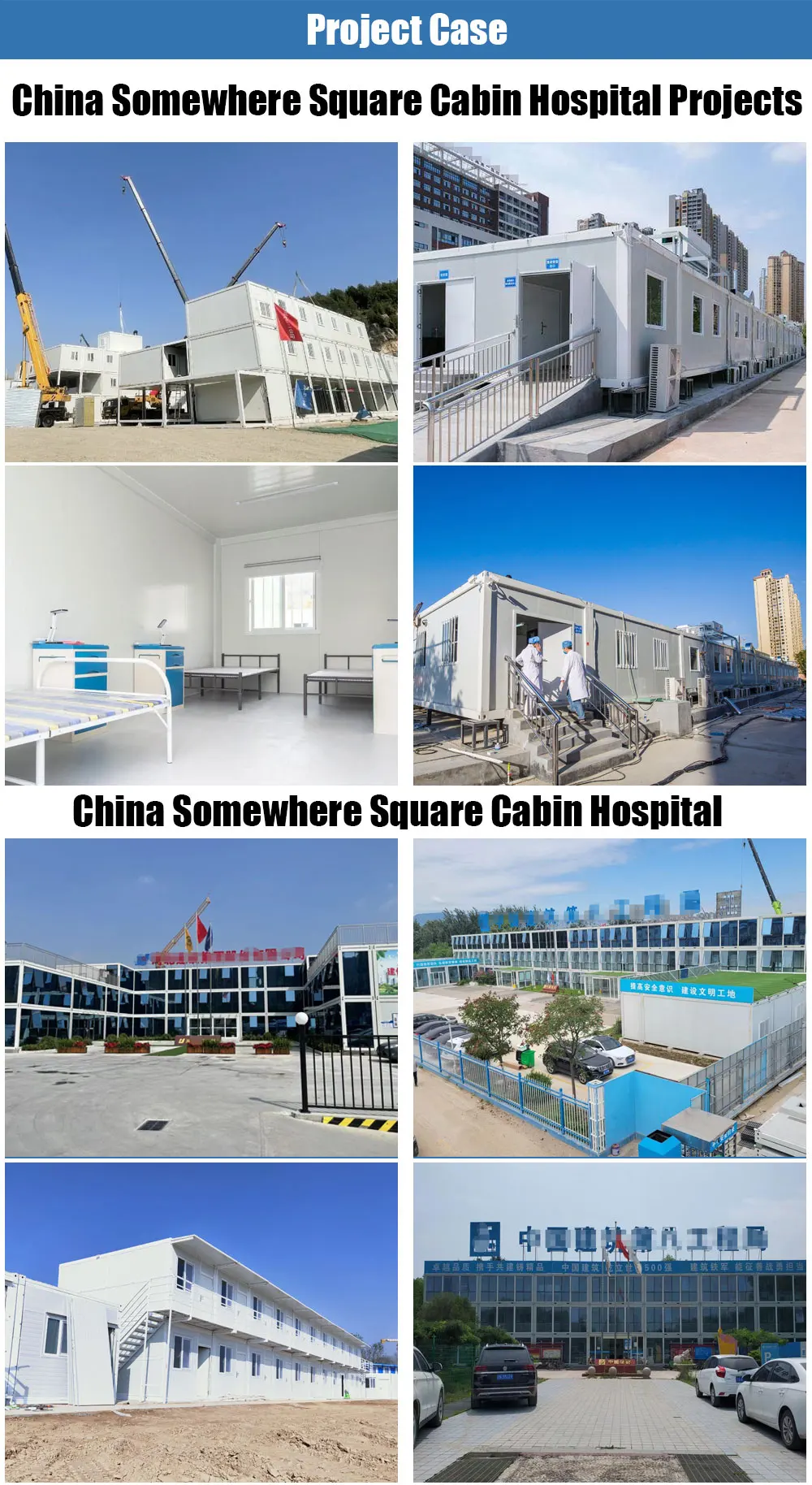

Project Case
Company Profile
COMPANY PROFILE
Cross Cloud (Hebei) Import and Export Trading Co., Ltd. (headquartered company: Beijing Yushenglong Light Steel Color Plate Co., Ltd. was founded in 2003), headquartered in Tongzhou, Beijing, the company mainly deals in the export of container houses and steel structures, focusing on building builders , design institutes, developers, building materials dealers, and residents to provide integrated residential solutions.
The main products are the design, production and installation of folding houses, prefab houses, light steel frame villas, portal frame houses and steel frame structure houses. And corrugated steel plate, sandwich panel, floor plank, c/z purlin, etc. The product has the advantages of light weight, beautiful appearance,shock resistance, quick installation, durability and environmental protection.

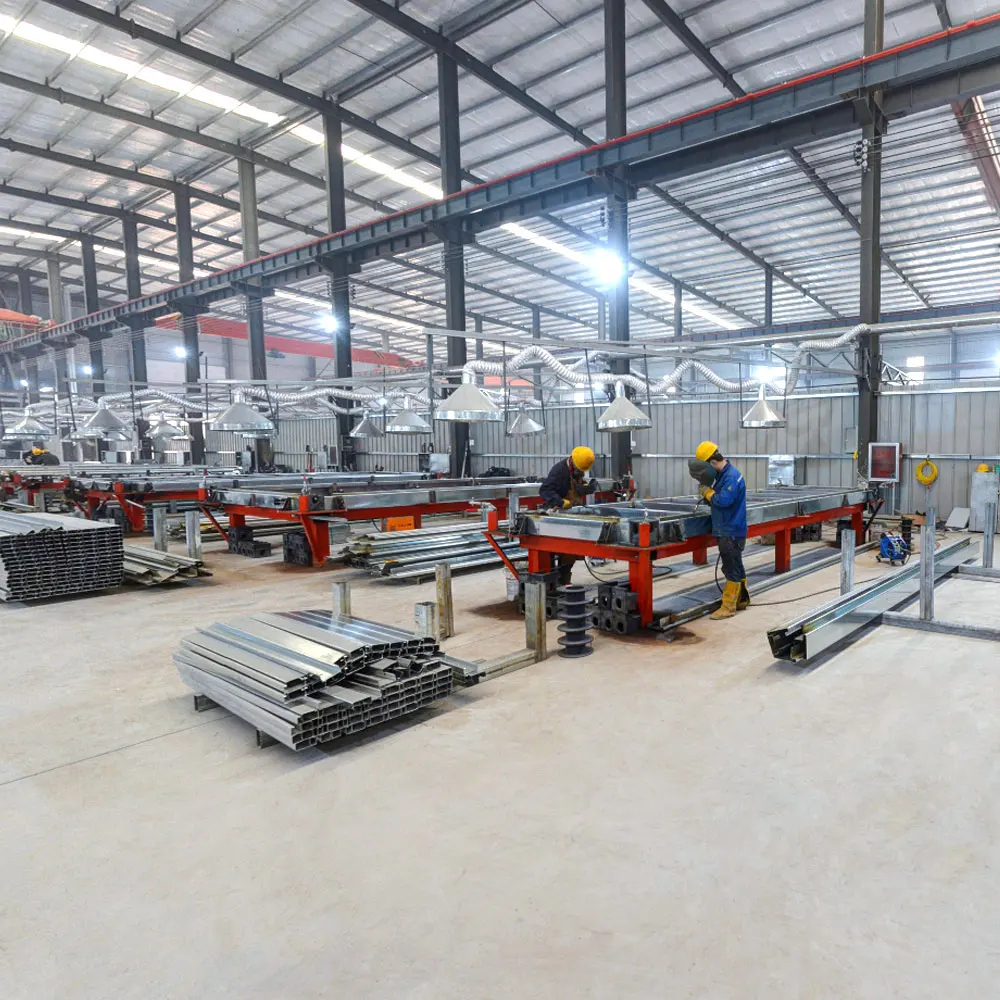

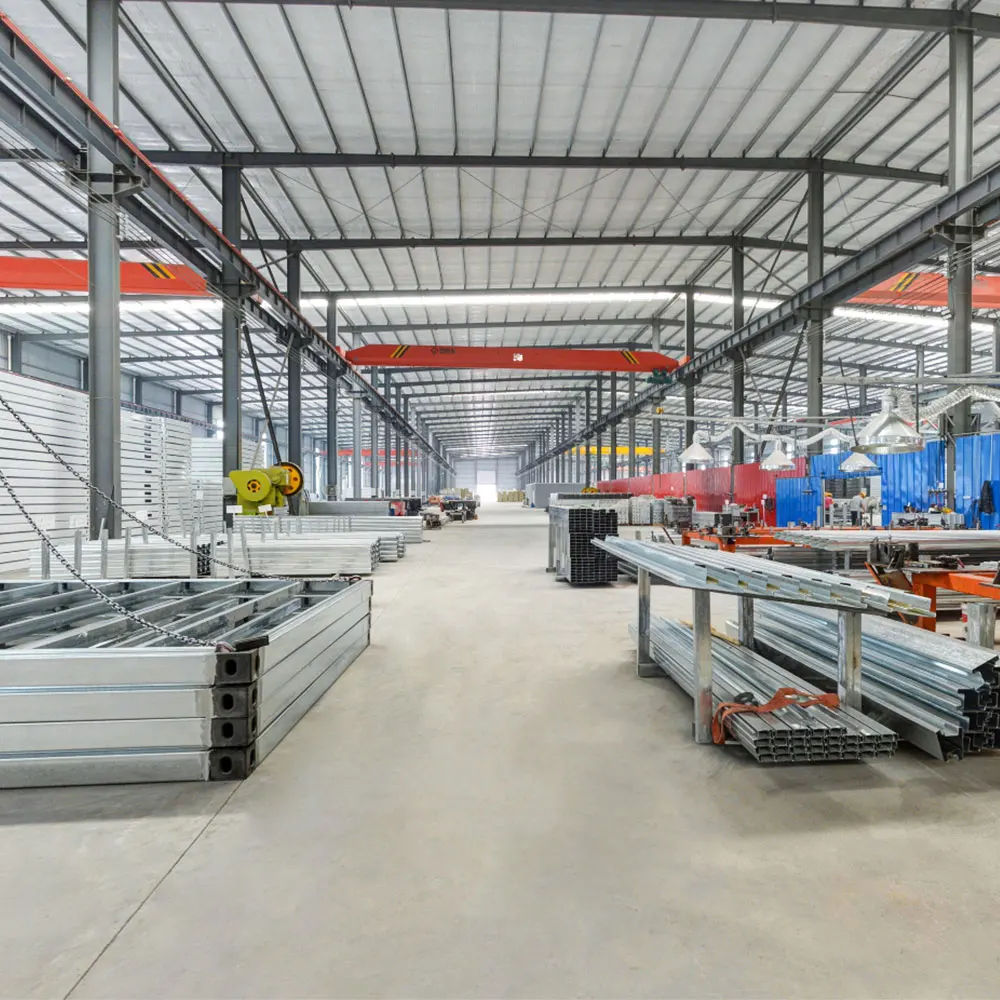

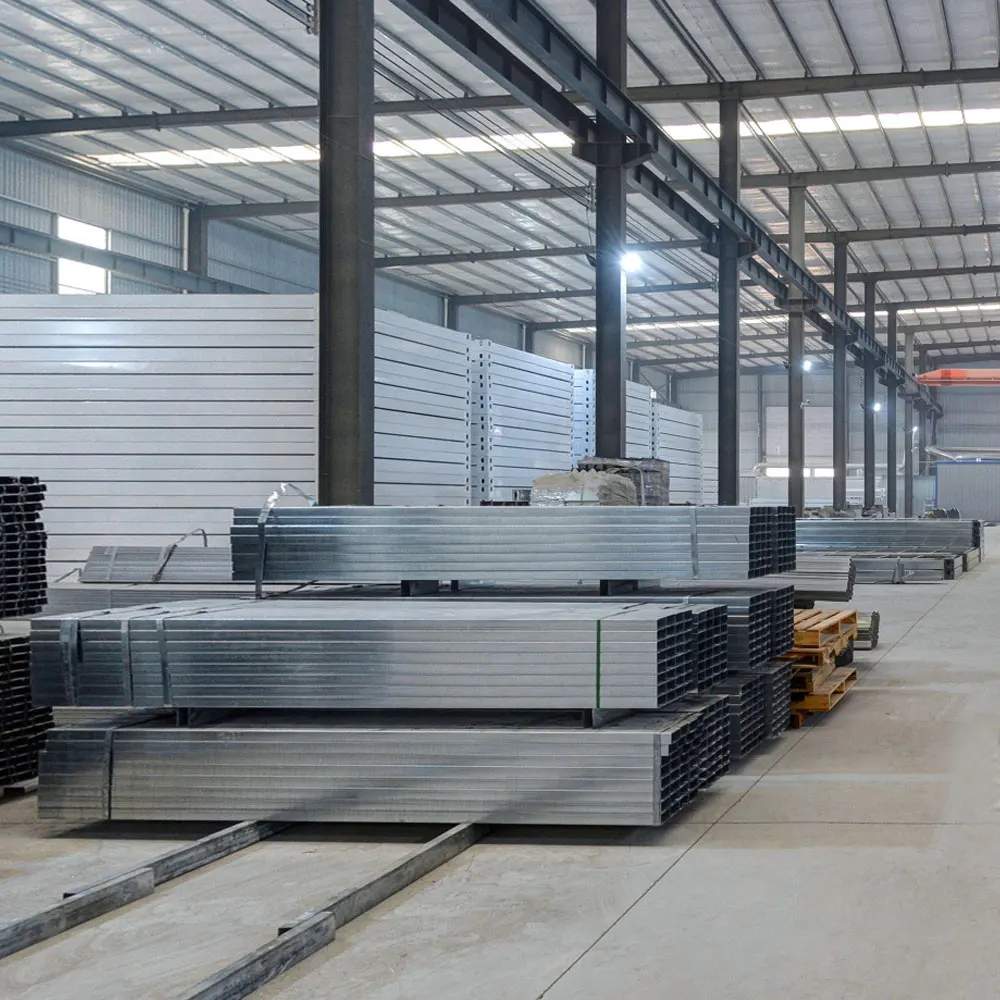

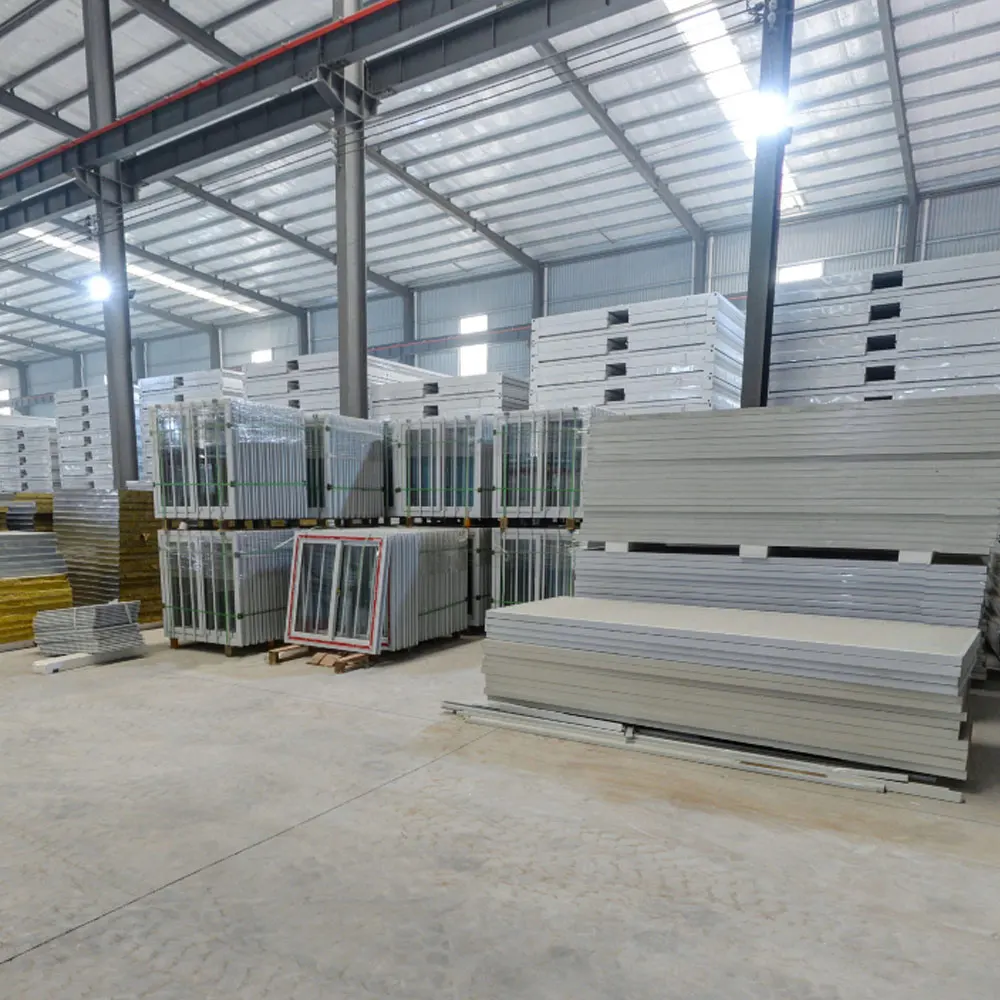

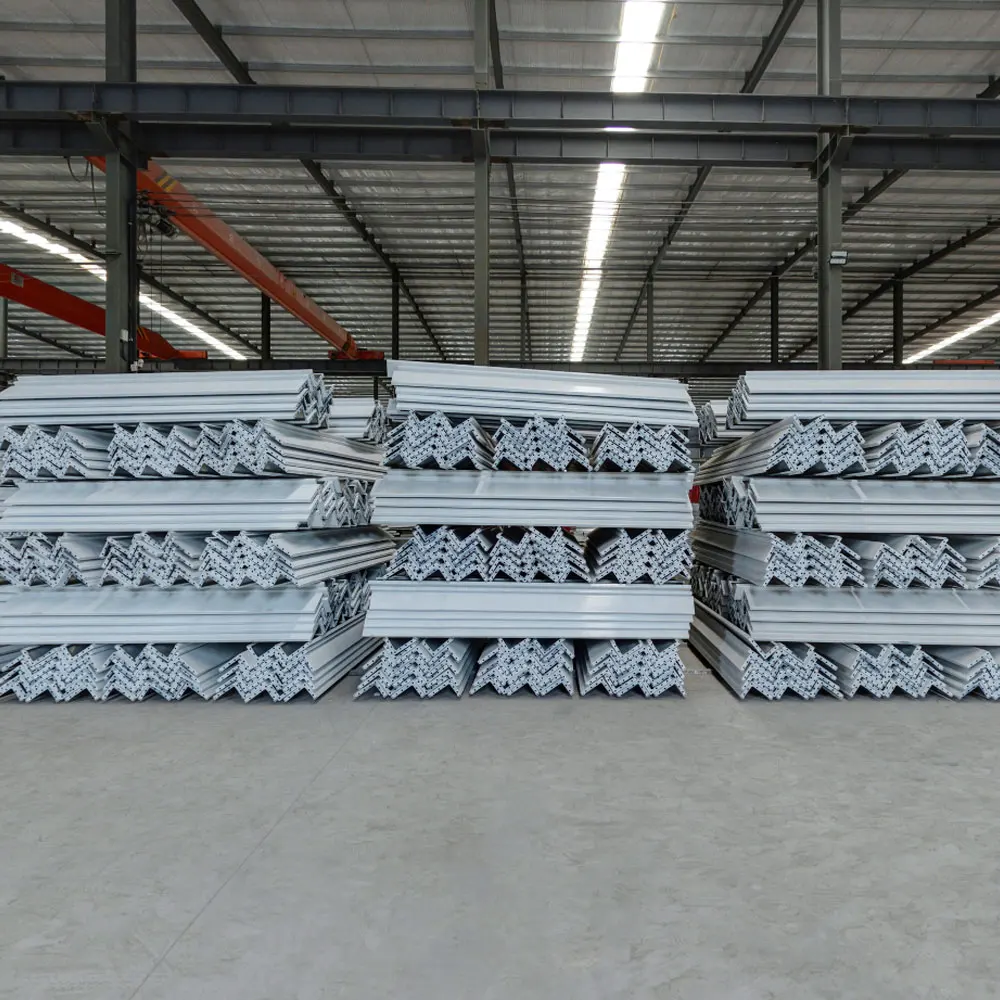

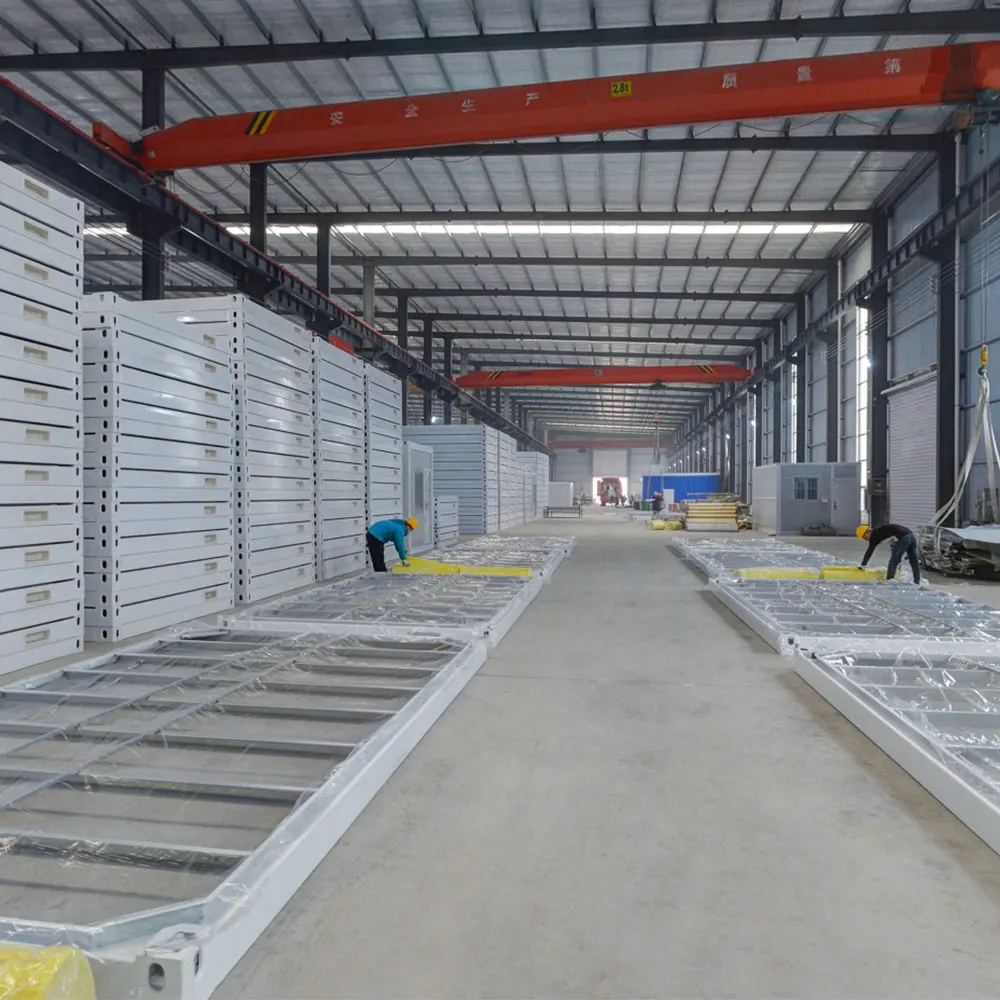

The company's factory building is located in Wuyi County, Hengshui City, Hebei Province. It adopts German automated production lines and covers an area of 200 acres. It has professional production site management capabilities, production equipment, production technology, production teams and professional on-site processing services. A large-scale integrated housing production base integrating R&D, production, sales and after-sales. The single-day production capacity of the folding room is 180 sets, the packing box room is 200 sets, and the steel structure is 350 tons.

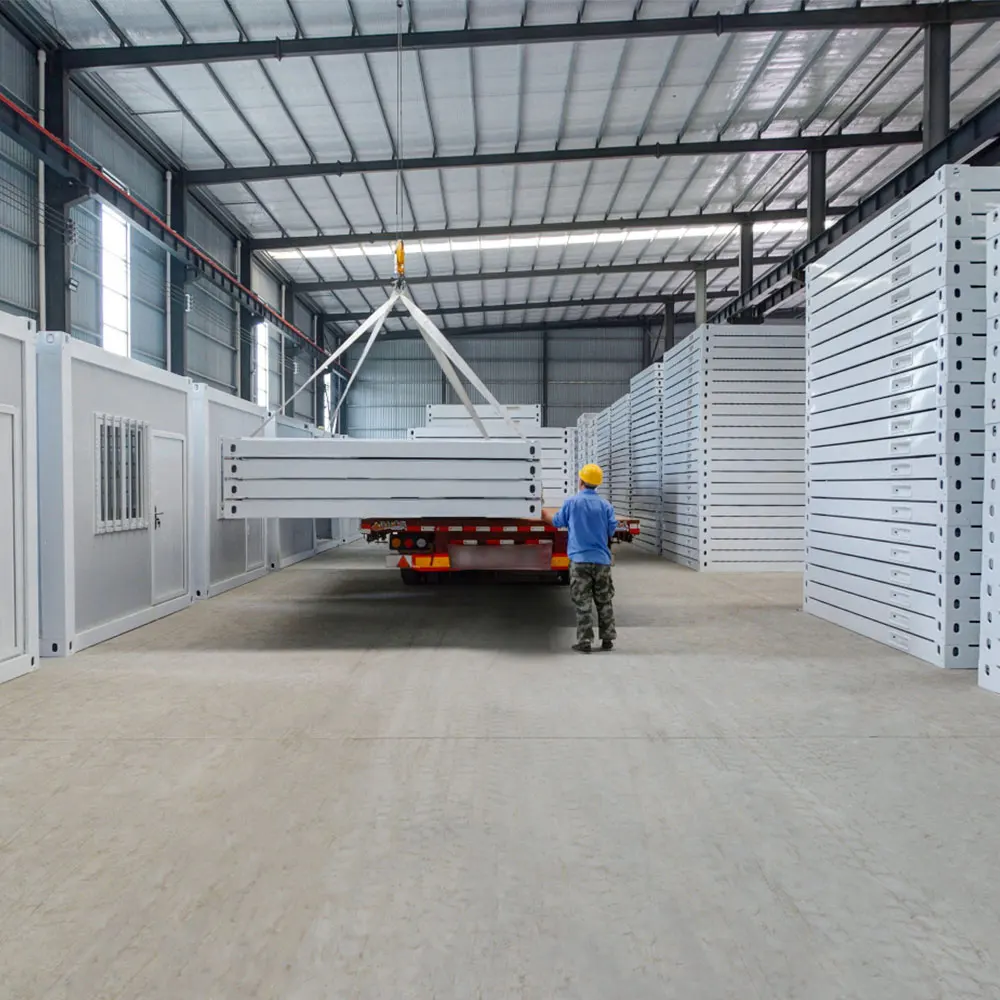

Packing & Delivery
